Product Description
PLUG617
640×512/17μm Uncooled Thermal Module for Imaging
• Typical NETD<30mk, High Sensitivity
• Mature Technology
• Stable Performance
• Clear Image Quality & Details
• Strong Environmental Adaptability
• Mature Technology
• Stable Performance
• Clear Image Quality & Details
• Strong Environmental Adaptability

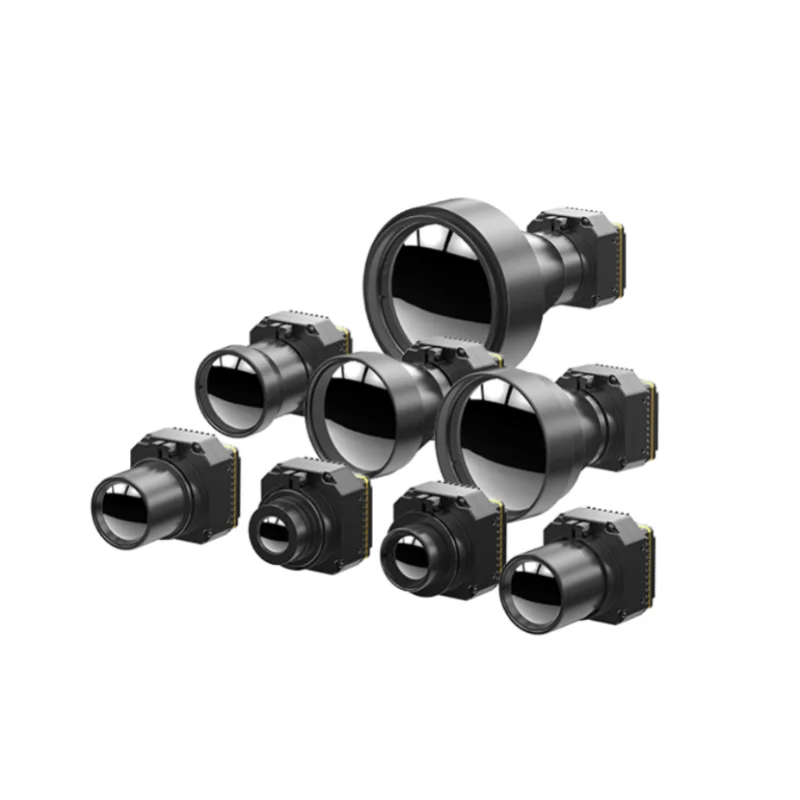

PLUG617 is one of the PLUG series uncooled thermal camera module developed by Global Sensor Technology (GST). PLUG617 thermal module adopts the 17μm VOx microbolometer technology and integrates 640x512 resolution infrared thermal detector. It features in precise visualization and crisp image presentation.

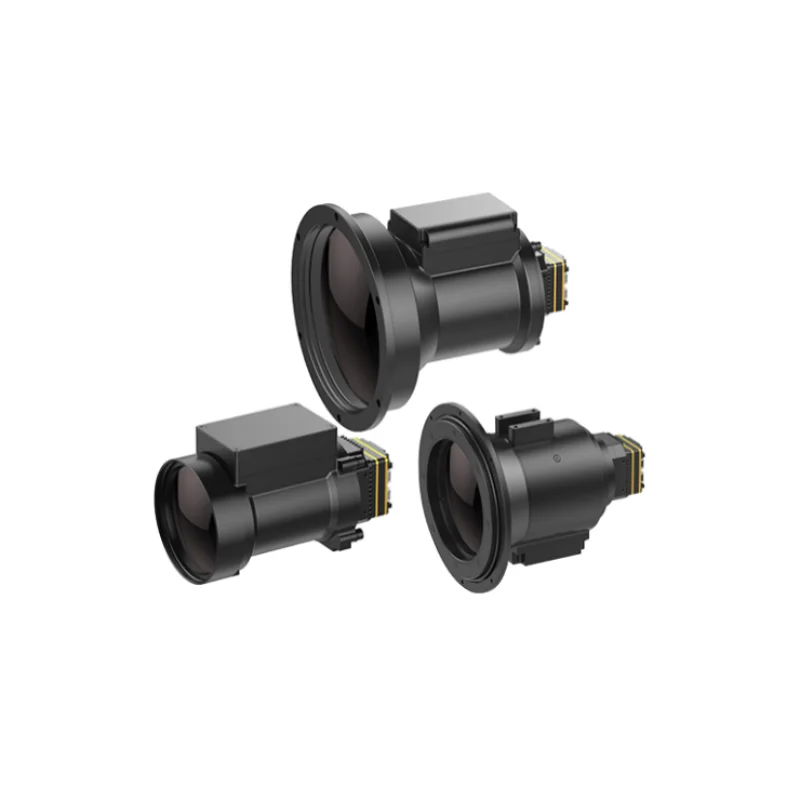

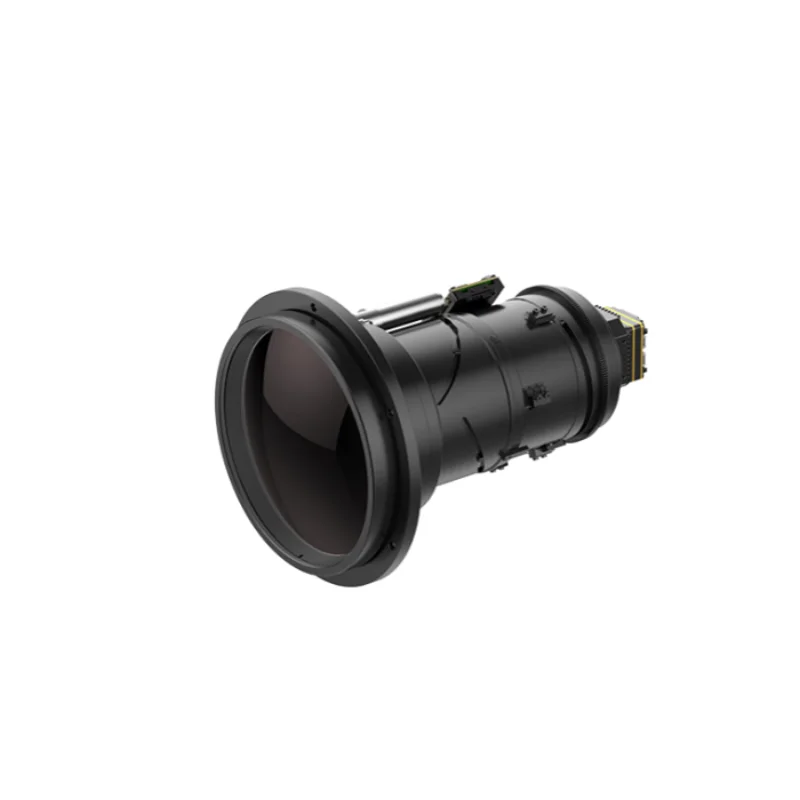

Consisted of 640x512/17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and uniqueimage processing algorithm, the PLUG617 LWIR thermal imaging module provides clear image and superior performance. With various infrared lenses such as fixed focus athermal lens 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm, motorized lens 75mm/100mm/150mm, and continuous zoom lens 30-150mm, the PLUG617 infrared camera core can meet almost all application needs of customers.

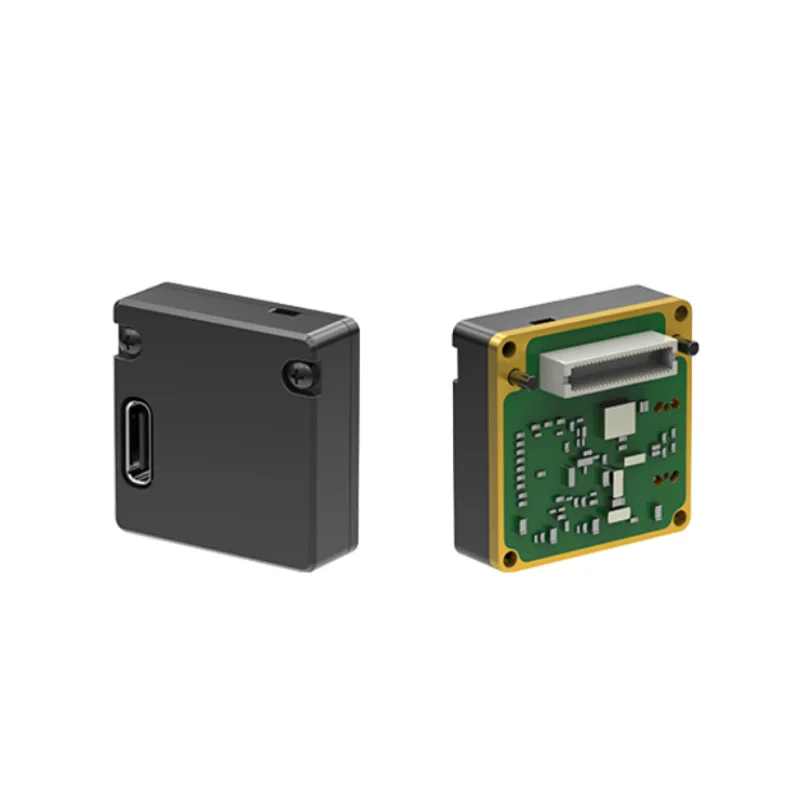

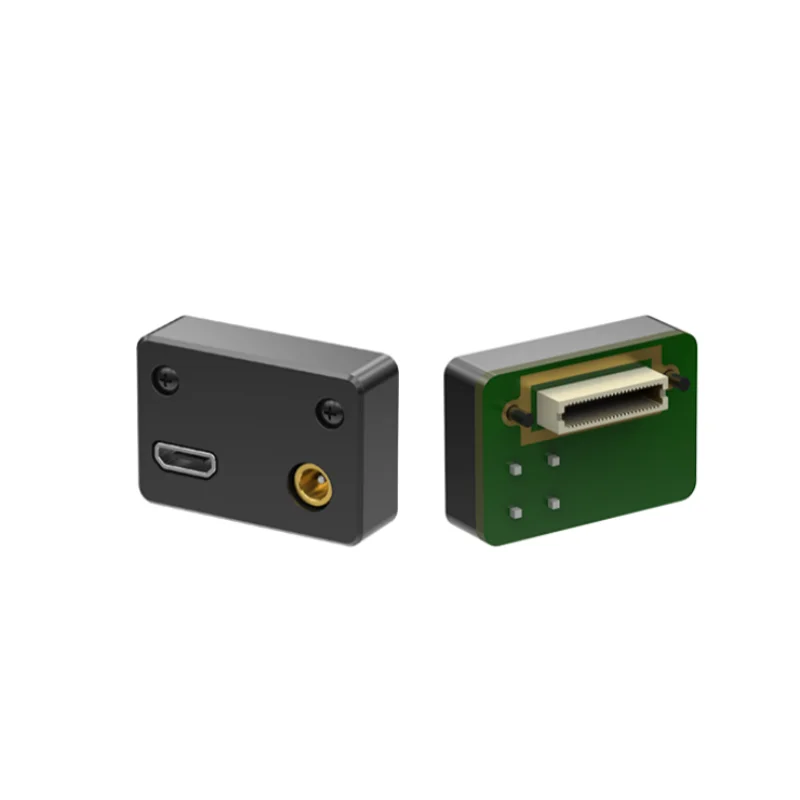

The PLUG617 uncooled infrared modules are specially developed for various personalized observation requirements. It supports multi-mode image data output interfaces (USB/VPC/Cameralink/Gig-E), serial port control and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications, enabling easy configuration and integration into numerous thermal imaging applications, such as security and monitoring, firefighting, drones etc.
Consisted of 640x512/17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and uniqueimage processing algorithm, the PLUG617 LWIR thermal imaging module provides clear image and superior performance. With various infrared lenses such as fixed focus athermal lens 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm, motorized lens 75mm/100mm/150mm, and continuous zoom lens 30-150mm, the PLUG617 infrared camera core can meet almost all application needs of customers.
The PLUG617 uncooled infrared modules are specially developed for various personalized observation requirements. It supports multi-mode image data output interfaces (USB/VPC/Cameralink/Gig-E), serial port control and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications, enabling easy configuration and integration into numerous thermal imaging applications, such as security and monitoring, firefighting, drones etc.
Specification
Model | PLUG617 | |
IR Detector Performance | ||
Resolution | 640×512 | |
Pixel Size | 17μm | |
Spectral Range | 8~14μm | |
Typical NETD | <30mK | |
Image Processing | ||
Frame Rate | 9Hz/25Hz/30Hz/50Hz | |
Start-up Time | 10s | |
Analog Video | PAL/NTSC | |
Digital Video | RAW/YUV/BT656/LVDS | |
Extension Component | USB/VPC/Cameralink/Gig-E | |
Dimming Mode | Linear/Histogram/Mixed | |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 | |
Image Display | Black Hot/White Hot/Pseudo Color | |
Image Direction | Horizontally/Vertically/Diagonally Flip | |
Image Algorithm | Non-uniformity Correction (NUC) | |
Auto Gain Control (AGC) | ||
Image Detail Enhancement (IDE) | ||
Electrical Specification | ||
Standard External Interface | 50pin_HRS | |
Communication Mode | RS232-TTL, 115200bps | |
Supply Voltage | 4~6V | |
Typical Power Consumption | 1.4W | |
Physical Characteristics | ||
Size (mm) | 44.5×45.95×37.3 | |
Weight | 90g±3g | |
Environmental Adaptability | ||
Operating Temperature | -40°C ~ +70°C | |
Storage Temperature | -45°C ~ +85°C | |
Humidity | 5%~95%, Non-condensing | |
Vibration | Random Vibration 5.35grms, 3-axis | |
Shock | Half-sine Wave, 40g/11ms, 3-axis 6-direction | |
Optics | ||
Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm | |
Motorized Lens: 75mm/100mm/150mm | ||
Continuous Zoom: 30-150mm | ||
