UX300 150 м 300 глубина бурильная установка для бурения

UX300 150 м 300 глубина бурильная установка для бурения

Категория: Mining Machinery >>>
Поставщик: Yimei,Machinery,Equipment,Manufacturing,Co.,Ltd.

Цена:324 018,60 ₽ - 464 426,66 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	385581.64 $*	404860.32 $*
Aug-18-2025	382341.17 $*	401458.60 $*
Jul-18-2025	320778.6 $*	336817.22 $*
Jun-18-2025	375861.18 $*	394654.21 $*
May-18-2025	327258.11 $*	343621.43 $*
Apr-18-2025	369381.32 $*	387850.81 $*
Mar-18-2025	366140.28 $*	384447.69 $*
Feb-18-2025	362900.67 $*	381045.86 $*
Jan-18-2025	359660.2 $*	377643.65 $*

Характеристики

Company Profile

Products Description

Introduction of UX300 150m Depth Rock Drilling Machine Water Well Bore Hole Drilling Rig Tunnel Drilling Rig For Sales

Hydraulic mine drilling rig machines are mainly used for water exploration, gas drainage, dust-proof water injection, various engineering holes and geological structure holes at different angles in the mine, and can also be used for mine exploration and core taking. Also for carbide (diamond) drill bit rotary drilling, and be matched with different drill pipe and drill bit to adapt to different drilling requirements.
The whole machine is composed of four parts: main engine , pump station, control console and crawler body. It adopts double pump system.zmwm02

Product Paramenters

Parameters of UX300 150m Depth Rock Drilling Machine Water Well Bore Hole Drilling Rig Tunnel Drilling Rig For Sales

Technical Parameter	UX300	UX600	UX800	UX1000
Rig type	Fully hydraulic pit drilling rig
Drilling capacity (B/N/H)	400 / 300 / 150 m	600 / 500 / 220 m	1000 /800 / 520 m	1200 / 1000 / 620 m
Engine power (electric)	37KW	55 KW	75 KW	90 KW
Feed stroke	1.1 m	1.8 m	1.8 m	1.8 m
Max. torque	650 Nm	1800 Nm	2000 Nm	2250 Nm
upgrading power	38 KN	65 KN	75 KN	89 KN
Max. Drill Pipe Diameter	90 mm	90 mm	90 mm	90 mm
Suitable length of drill pipe	1.5m	1.5m / 3 m	1.5m / 3 m	1.5m / 3 m
Weight	1550Kg	3150Kg	3350Kg	3500 Kg
Forms of transport	Towing/manual labor for carrying
Power	KW	15	22	37
Whole machinery weight	kg	1100	1350	2100
Drill machine weight	kg	600	800	1250

Details Images

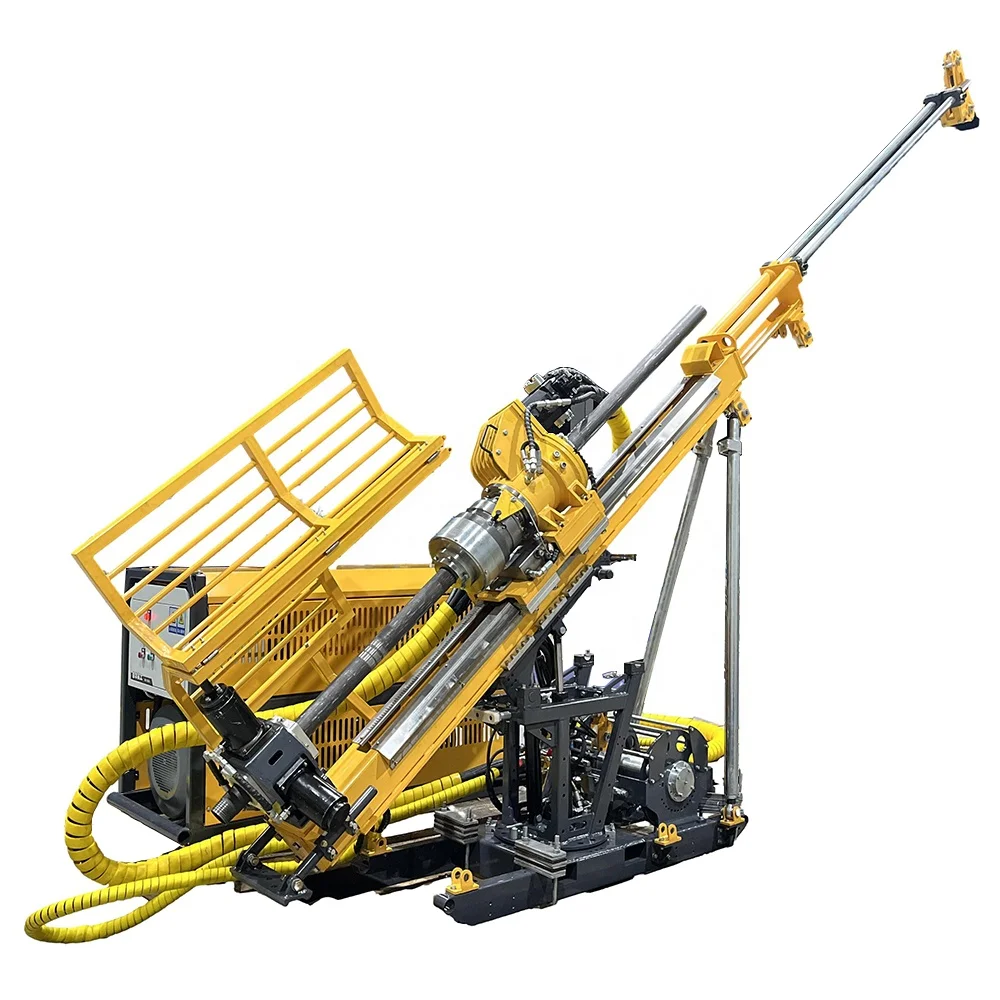

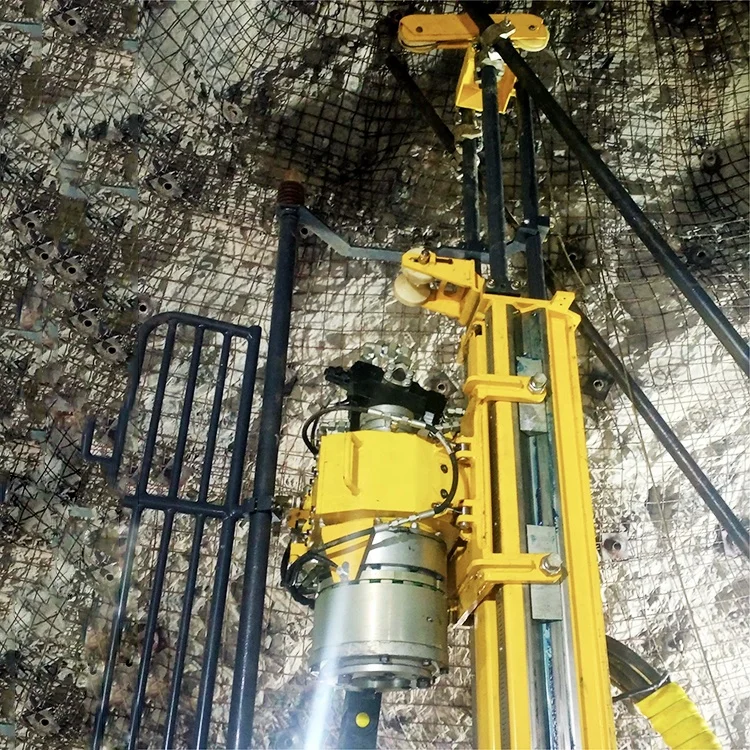

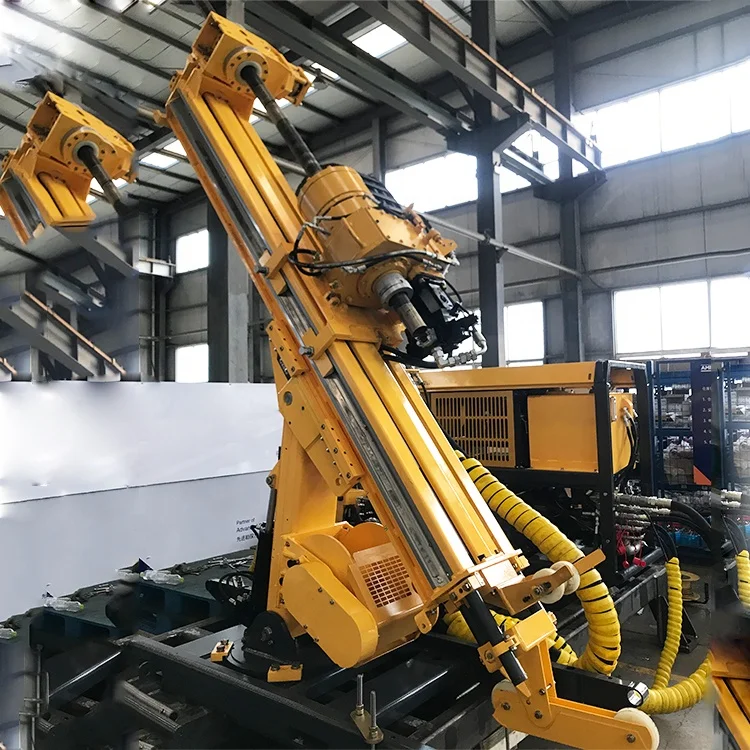

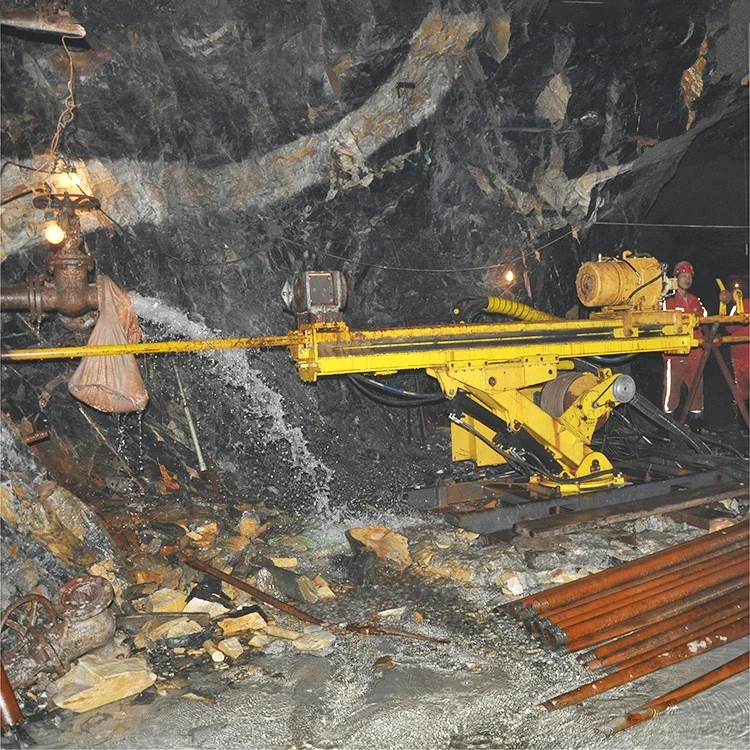

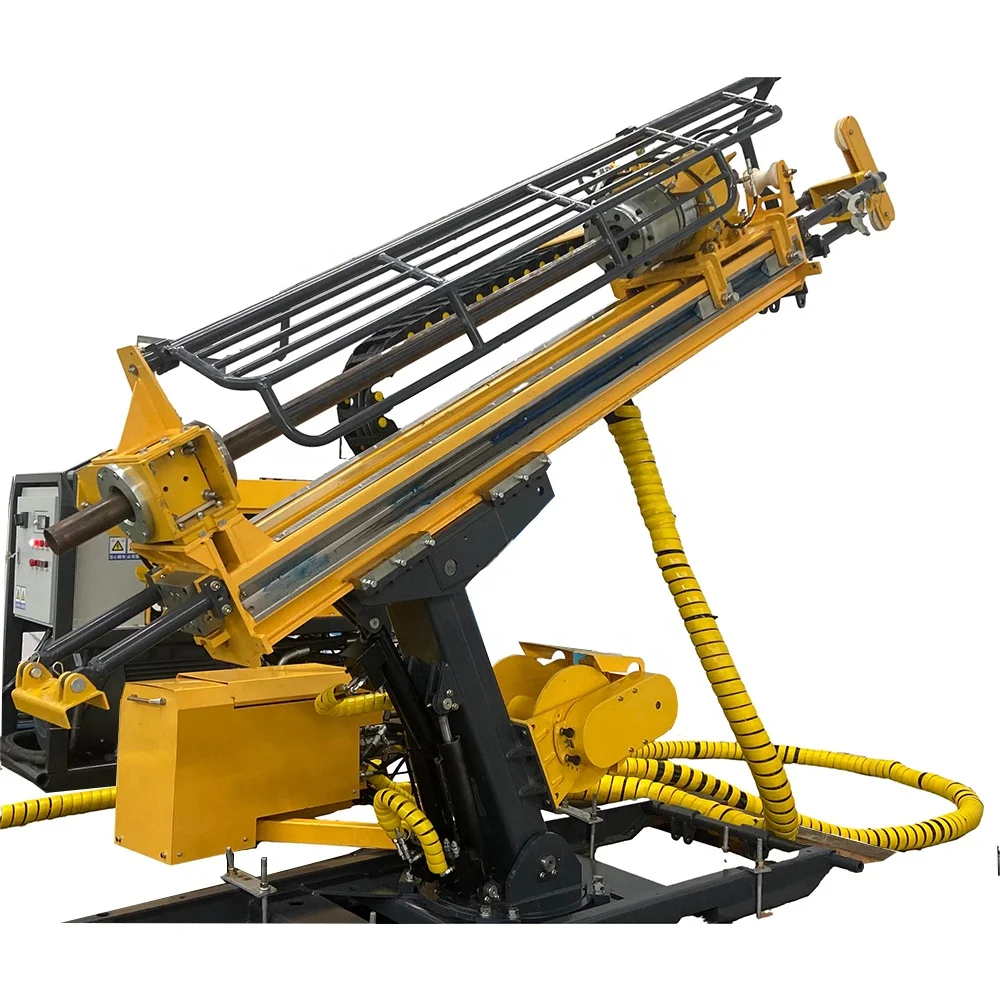

Photos of UX300 150m Depth Rock Drilling Machine Water Well Bore Hole Drilling Rig Tunnel Drilling Rig For Sales

FAQ

1.Factory
Q: Are you tunnel drilling rig manufacturer?
A: We are the mine rock drill rig manufacturer. Yimei mine drilling rig factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about portable drilling rig for sale?
A: Our Mine Drilling Rig have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Rock Drilling Rig?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Underground Tunnel Drilling Rig, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
