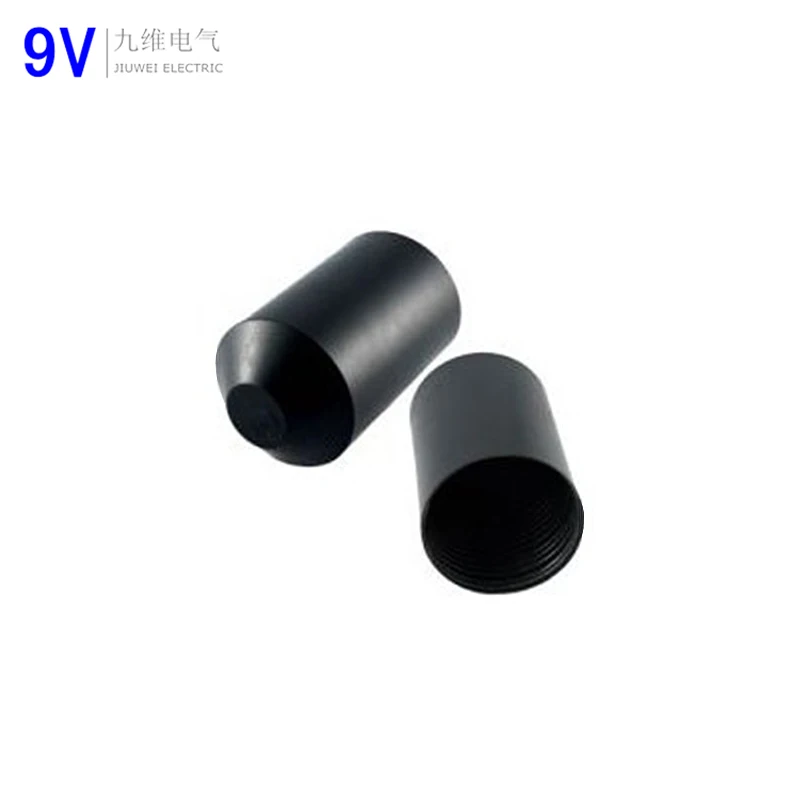

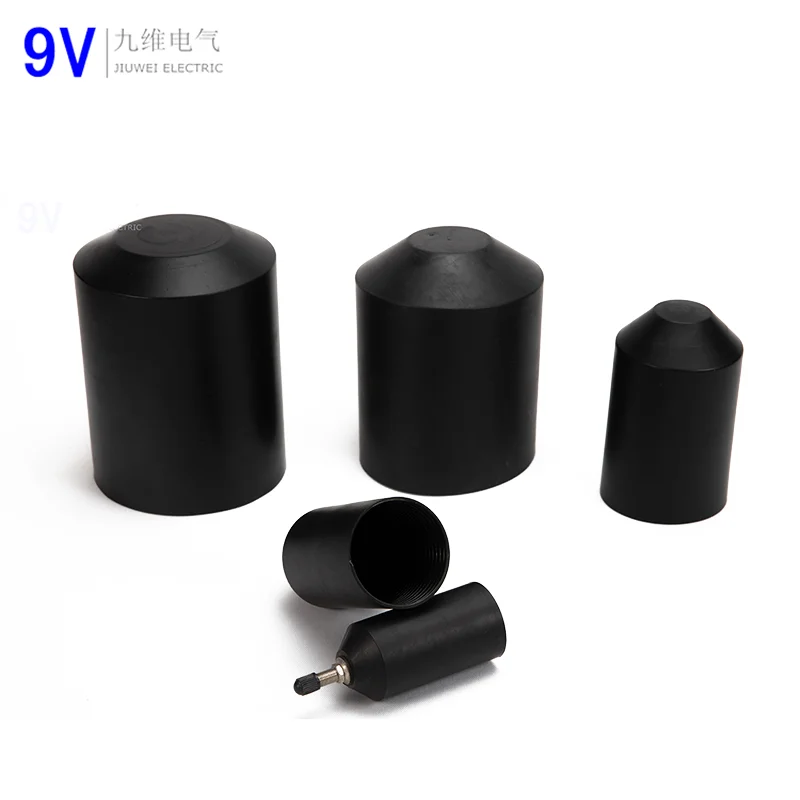

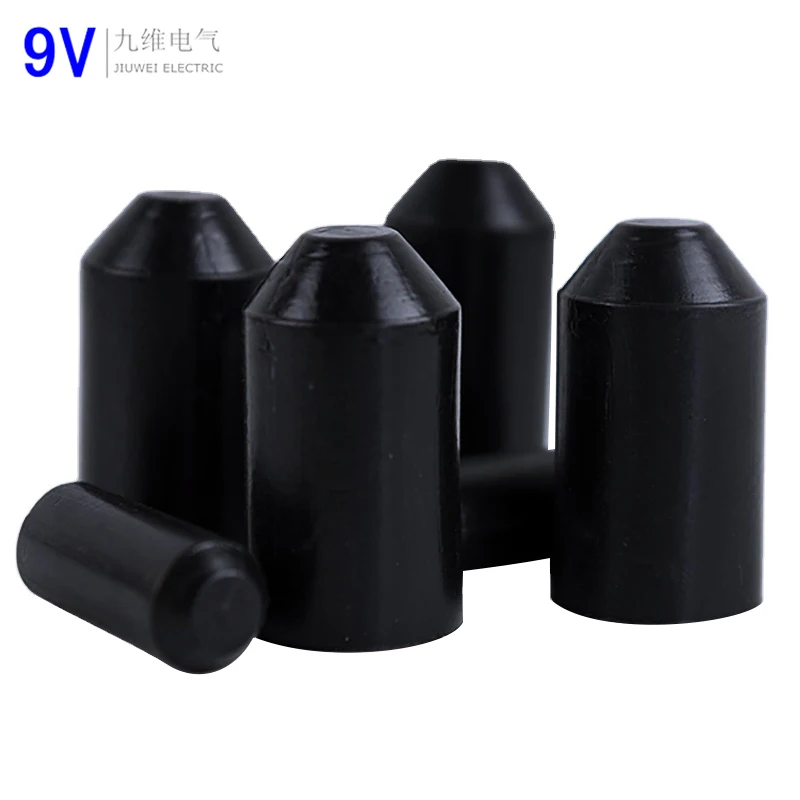

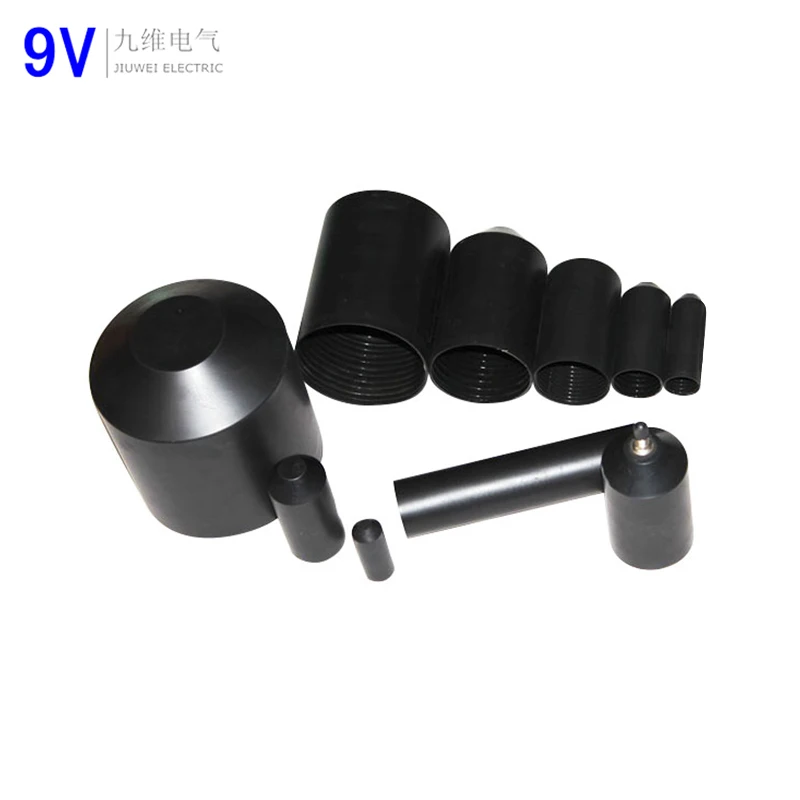

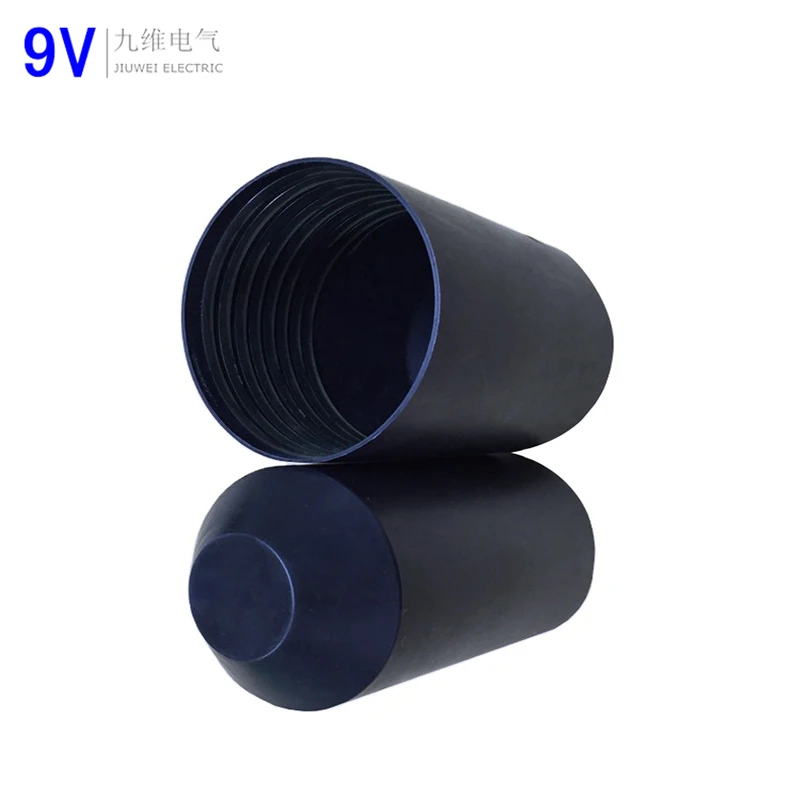

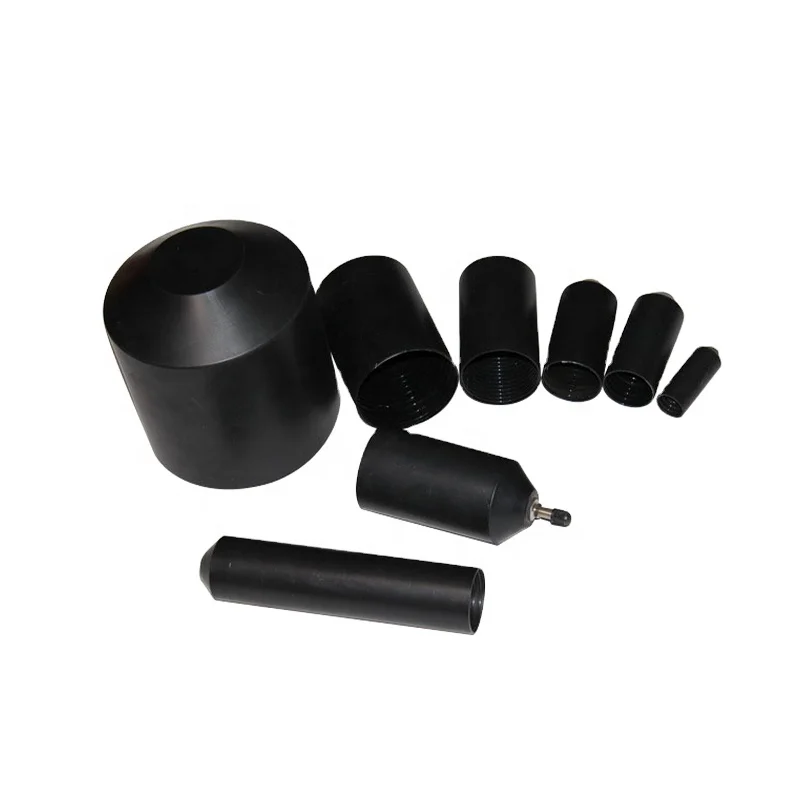

VFSM термоусадочные электрические клеммы виниловые

VFSM термоусадочные электрические клеммы виниловые

Категория: Cable End Caps >>>
Поставщик: Suzhou,Jiuwei,Electric,Made,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.81 $*	0.10 $*
Aug-16-2025	0.28 $*	0.88 $*
Jul-16-2025	0.94 $*	0.45 $*
Jun-16-2025	0.32 $*	0.33 $*
May-16-2025	0.44 $*	0.18 $*
Apr-16-2025	0.26 $*	0.25 $*
Mar-16-2025	0.72 $*	0.76 $*
Feb-16-2025	0.20 $*	0.89 $*
Jan-16-2025	0.56 $*	0.91 $*

Характеристики

No.	Item	Description
1	Features	Sealing, waterproof and moisture-proof, and UV radiation resistant
2	Shrinkage Temperature	120℃
3	Working Temperature	-55°C~110°C
4	Environmental Standard	RoHS
5	Standard Color	Black

Item No.	Size (mm) B/A-L	Thickness (mm) (±5%)	Diameter of Cables (mm)
VFSM-1	Φ12/4-40	2.6	4~10
VFSM-2	Φ14/5-45	2.6	5~12
VFSM-3	Φ20/6-55	2.8	6~16
VFSM-4	Φ25/8.5-68	2,8	10~20
VFSM-5	Φ35/16-83	3.3	17~30
VFSM-6	Φ40/16-83	3.3	18~32
VFSM-7	Φ55/26-103	3.5	28~48
VFSM-8	Φ75/36-120	4.0	45~68
VFSM-9	Φ100/52-140	4.0	55~90
VFSM-10	Φ120/60-150	4.0	65~110
VFSM-11	Φ145/60-150	4.0	70~130
VFSM-12	Φ160/82-150	4.2	90~150
VFSM-13	Φ200/90-160	4.2	100~180
VFSM-14	Φ14/5-55	2.2	5~12
VFSM-15	Φ42/15-110	3.3	18~34
VFSM-16	Φ55/23-140	3.8	25~48
VFSM-17	Φ62/23-140	3.8	25~55
VFSM-18	Φ75/36-150	4.0	40~68
VFSM-19	Φ75/36-170	4.2	45~68
VFSM-20	Φ105/45-150	4.2	50~90

Property Item	Test Method	Test Value
Tensile strength (Mpa)	ASTM D2671	≥14
Elongation at break (%)	ASTM D2671	≥400
Elongation at rupture after aging (Mpa)	UL224 158℃ x 168hr	≥300
Thermal Shock	UL224 250℃ x 4hr	Not breakdown,not cracking
Cold bending	UL224-30℃ x 4hr	Not cracking
Breakdown strength (KV/mm)	IEC 243	≥15
Withstand voltage	UL2242500V	2500V no breakdown
Volume resistivity (Ω·cm)	IEC 93	≥1 x 10¹⁴
Corrosion resistance	UL224 158℃ x 168hr	Pass
Flame retardant	UL224VW-1	Pass

1.About Sample.
Less than 50USD, we won't charge you the samples fee, just offer your express number or pay for the express fee.
Within 2-3days normally, special products ( custom-made ) maybe 7 days.

2.About Delivery.
Time of delivery is 15-20 days based on your Qty, Special products maybe 20-25days.
If the products in stock, ship will be quickly.

3.About Payment.
First time, T/T 30% in advance and balance paid off before shipment.
And if we cooperate for a long time, We can make the contract of quarter settlement or half-year settlement.

4.About Service.
Technical support. If need technical personnel on-site guidance, You just need pay for the traveling allowance.
If the products have quality problems, we will replacement double Qty for you with your next order. But if the problem is caused
by yourself, we won't be responsible for that.

5.About Customization.
Some styles can produce by your samples or technical drawings.
