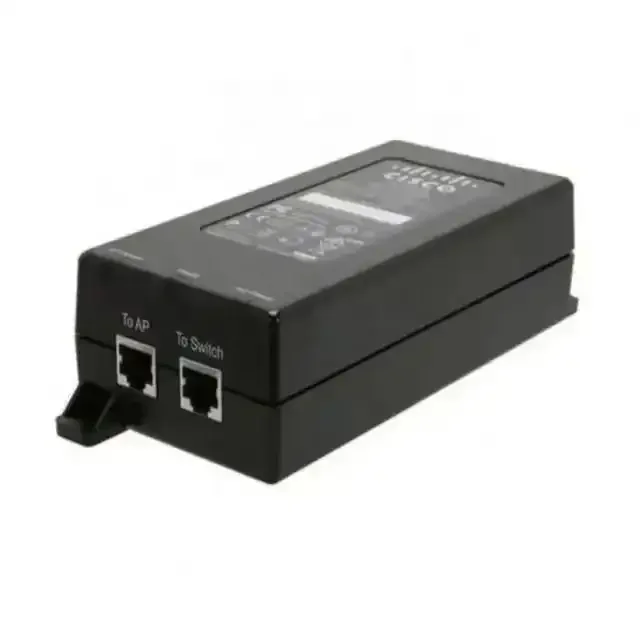

Оригинальный Новый AIR-PWRINJ6 = силовой инжектор для беспроводной точки

AIR-PWRINJ6 Specification

Dimensions (W, H, L)

53 mm x 32.5 mm x 140 mm

2.09 in x 1.28 in x 5.5 in

Data Rates

10/100/100 Mbps

PoE Output

30 W (user port), 100 - 240 VAC, 0.67 A, 50 - 60 Hz (input), 55 VDC (output)

User Port Power

30 Watts

Input Power Requirements

AC Input Voltage: 100 to 240 V AC

AC Input Current: 0.67 A @ 100 - 240 V AC

AC Frequency: 50 to 60 Hz

Connectors

Shielded RJ-45, EIA 568A and 568B

Environmental Conditions

Operating Ambient Temperature: -4ºF to 104ºF (-20ºC to 40ºC) at 30 W; -4ºF to 122ºF (-20ºC to 50ºC) at 25 W

Operating Humidity: Maximum 90%, Non-condensing

Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC)

Reliability

MTBF: 100,000 hrs @ 25ºC

Thermal Rating

20 BTU/Hr @ 240 V AC

Regulatory Compliance

IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant

Electromagnetic Emission and Immunity

FCC Part 15, Class B

EN 55022 Class B (Emissions)

EN 55024 (Immunity)

VCCI

Safety

UL 60950-1

IEC/EN 60950-1

Product Name

AIR-PWRINJ6

AIR-PWRINJ4

AIR-PWRINJ5

Device Type

PoE injector - external

PoE injector - external

PoE injector - external

Dimensions

2.09 in x 1.28 in x 5.5 in

6.5 in x 3.1 in x 1.7 in

6.5 in x 2.6 in x 1.4 in

Connectors

RJ-45, EIA 568A and 568B

1 x RJ-45

2 RJ-45 10/100/1000 (Cat 5 or better Ethernet cable)

Input Voltage

100 - 240V AC

100 - 240V AC

100 - 240V AC
