Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Высокое качество низкая цена полностью автоматическая горизонтальная гидравлическая пластиковая машина для литья под давлением ПВХ PPR PE трубы фитинг
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Haimars,(ningbo),Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 13090.71 $* | 13745.57 $* |
| Aug-16-2025 | 12980.47 $* | 13629.43 $* |
| Jul-16-2025 | 10890.28 $* | 11435.75 $* |
| Jun-16-2025 | 12760.12 $* | 13398.27 $* |
| May-16-2025 | 11110.74 $* | 11666.44 $* |
| Apr-16-2025 | 12540.64 $* | 13167.78 $* |
| Mar-16-2025 | 12430.31 $* | 13052.87 $* |
| Feb-16-2025 | 12320.56 $* | 12936.44 $* |
| Jan-16-2025 | 12210.81 $* | 12821.43 $* |
Характеристики
Products Description

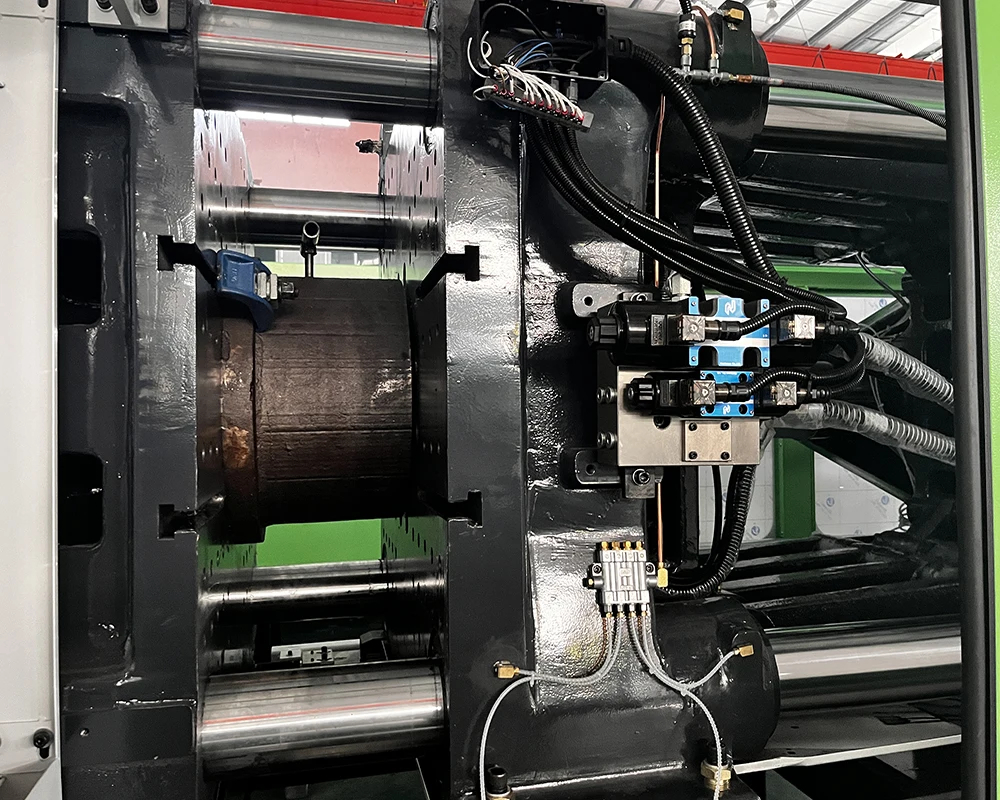

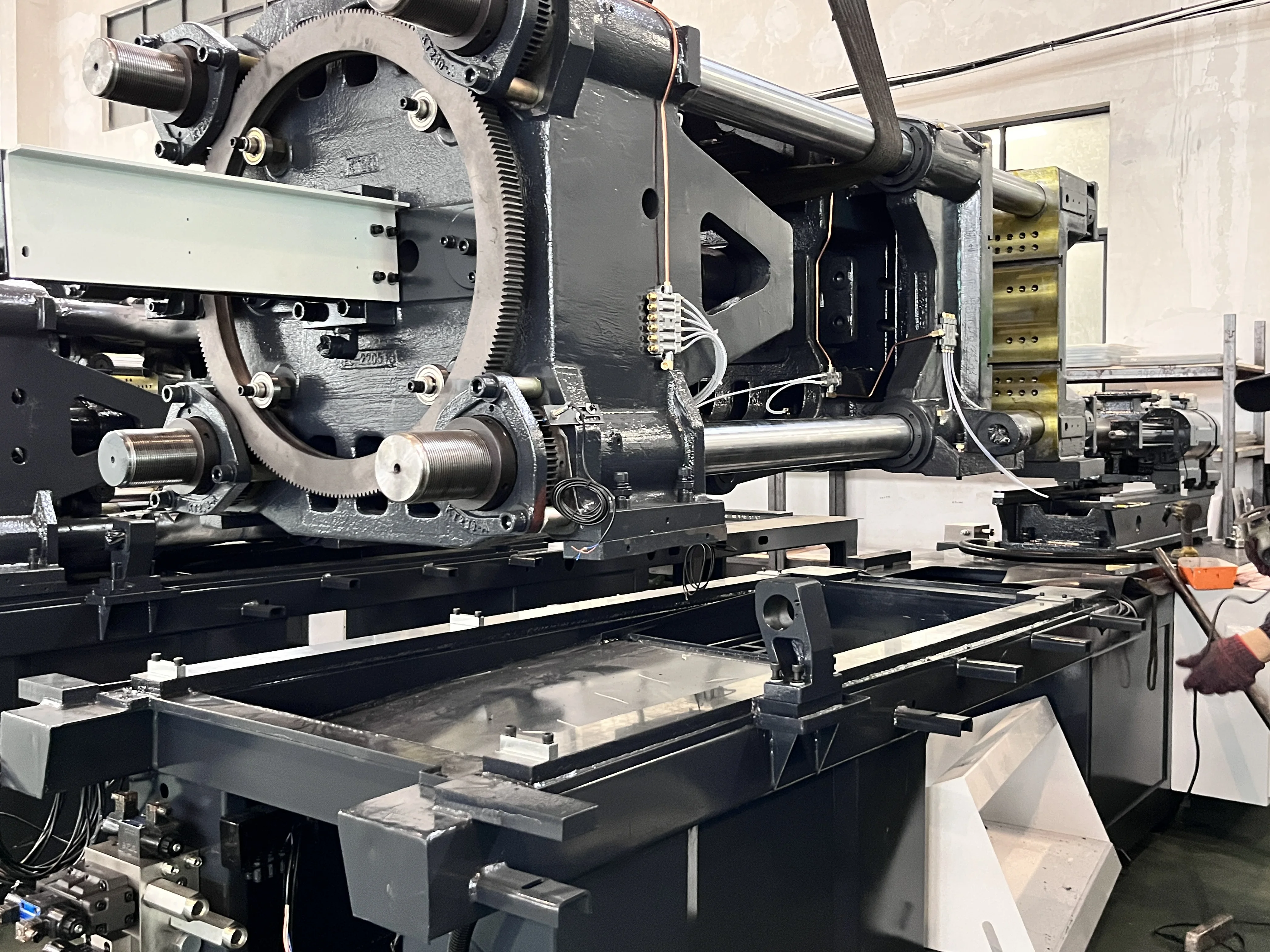

CLAMPING UNIT
High-rigidity clamping system maximizes product quality and stability Improves effective protection of molds, improves efficiency and saves costs for customers
The volume quantitative lubrication distribution system can ensure that each lubrication point is fully lubricated, and the oil distribution is even, the lubrication efficiency is high, and the life of the friction parts is greatly increased
The second plate foot has an adjustable slider structure, which is convenient for adjustment after wear and tear to prolong the service life of the machine.
INJECTION UNIT
Using double linear guide rails, the friction force is small, making the movement faster, more precise and more stable
Double-bar injection mechanism, stable, accurate and fast injection, standard high-quality screw barrel, good plasticizing effect, durable.Different kinds of product materials have corresponding models.
HYDRAULIC UNIT
Due to the high-response servo motor and internal gear pump power system, it only takes 0.05 seconds for the injection molding machine to reach the maximum output. Compared with the traditional hydraulic injection molding machine, the response speed is significantly faster, effectively shortening the cycle and improving the time.

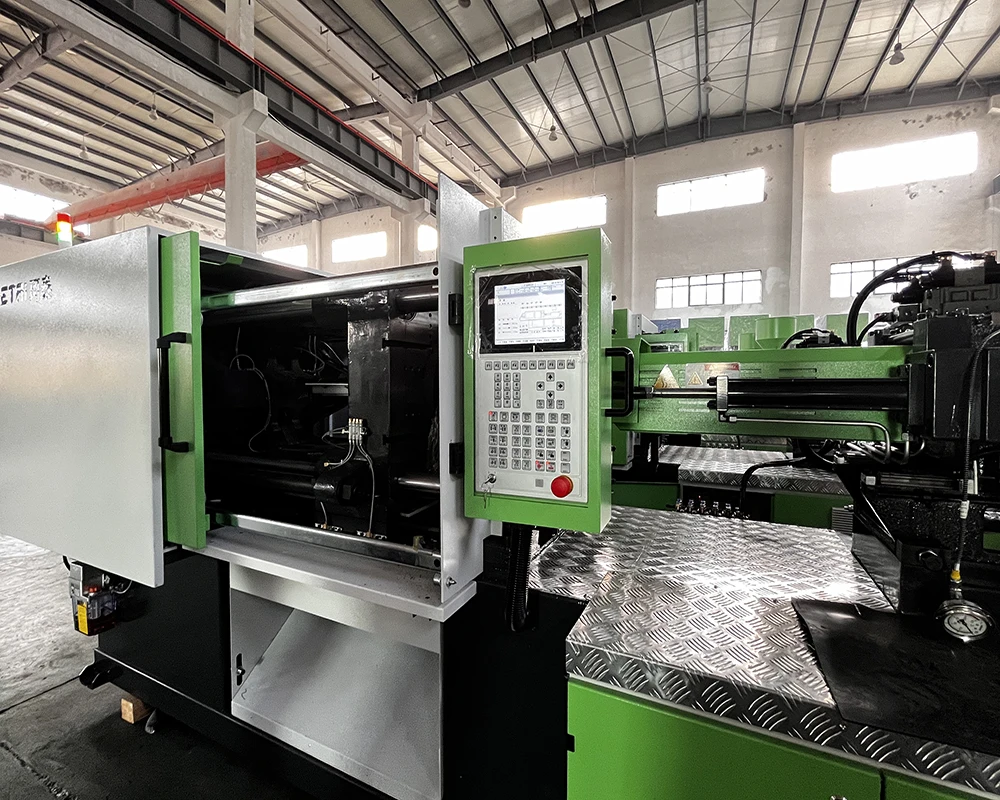

ELECTRONIC UNIT
The main components of the special control system for imported injection molding machines adopt "TFT" true-color display system, a well-known domestic and foreign accessory, a full-digital CAN control system and high-quality electrical components to make the system operation accurate, stable and reliable
PRODUCT SPECIFICATIONS
SPECIFICATION | UNIT | KT170 | ||||||
injection device | A | B | C | |||||
screw diameter | mm | 42 | 45 | 50 | ||||
screw length-diameter ratio | L/D | 22.5 | 21 | 19 | ||||
theoretical injection presure | Mpa | 203 | 177 | 143 | ||||
theoretical injection volume | cm3 | 320 | 358 | 443 | ||||
injection weight | g | 291 | 325 | 403 | ||||
injection rate | g/s | 138 | 160 | 196 | ||||
Screw Max Speed | rpm | 180 | ||||||
Clamping Unit | ||||||||
clamping force | kn | 1700 | ||||||
molding stroke | mm | 30 | ||||||
space between tie-bars | mm | 470*470 | ||||||
max mold thickness | mm | 520 | ||||||
min mold thickness | mm | 180 | ||||||
ejection force | kn | 50 | ||||||
ejection stroke | mm | 135 | ||||||
number of rods | piece | 5 | ||||||
other | ||||||||
system pressure | mpa | 16 | ||||||
motor power | kw | 22.7 | ||||||
electric heating power | kw | 12.3 | ||||||
dimenions | m | 5.1*1.42*2.12 | ||||||
oil tank capacity | L | 230 | ||||||
machine weight | T | 5.2 | ||||||
Company Profile
FAQ
Q:Who are you ?
A:We are Ketai Plastic Machinery .We are injection molding machine manufacturer in Ningbo, China.
Q:Who is NINGBO KEPUTEK IMP AND EXP CO.,LTD? and HAIMARS(NINGBO)INTELLIGENT EQUIPMENT CO.,LTD? AND Why Brand is KETAI?
A:NINGBO KEPUTEK IMP AND EXP CO.,LTD is a subsidiary company invested by HAIMARS(NINGBO)INTELLIGENT EQUIPMENT CO.,LTD. KETAI is our machine brand.
Q:What size injection molding machine can you produce?
A:Normal from 120T-2000T.
Q:Are you provide injection molding machine only ?
A:Not , We provide you complete solution for plastic molding . including injection molding machine +injection mold+auxiliary equipment . and we can provide you process for products . Because we have Own injection machine .
Q:How to inspect the machine before shipment?
A:We provide testing services. If you have the mold, you can send the mold to our factory. We will test molds and machines and shoot video for you.If there is no mold, we will test the machine according to factory standard.
Q:What payment methods do you accept?
A:TT/LC/CASH Etc.Please talk with our sales.thanks .
Q:How long does it take to ship after receiving the deposit?
A:If only injection machine and have stock . we can shipped within 10days.
A:We are Ketai Plastic Machinery .We are injection molding machine manufacturer in Ningbo, China.
Q:Who is NINGBO KEPUTEK IMP AND EXP CO.,LTD? and HAIMARS(NINGBO)INTELLIGENT EQUIPMENT CO.,LTD? AND Why Brand is KETAI?
A:NINGBO KEPUTEK IMP AND EXP CO.,LTD is a subsidiary company invested by HAIMARS(NINGBO)INTELLIGENT EQUIPMENT CO.,LTD. KETAI is our machine brand.
Q:What size injection molding machine can you produce?
A:Normal from 120T-2000T.
Q:Are you provide injection molding machine only ?
A:Not , We provide you complete solution for plastic molding . including injection molding machine +injection mold+auxiliary equipment . and we can provide you process for products . Because we have Own injection machine .
Q:What projects have you done before?
A:Most of our customers produce household products. For example: buckets, pots, cups, clips, plastic wall nails, food boxes,plastic cutlery spoons, mobile phone cases, fruit boxes, wire boxes. There are also some medical products, auto parts, preform bottles. We are updating.
Q:How to inspect the machine before shipment?
A:We provide testing services. If you have the mold, you can send the mold to our factory. We will test molds and machines and shoot video for you.If there is no mold, we will test the machine according to factory standard.
Q:What payment methods do you accept?
A:TT/LC/CASH Etc.Please talk with our sales.thanks .
Q:How long does it take to ship after receiving the deposit?
A:If only injection machine and have stock . we can shipped within 10days.
