Калиброванный топливный бак из нержавеющей стали ss304
US $68.00-$74.00
150 м экономичный звуковой датчик с фиксированным зондом лучшие датчики уровня жидкости
- Категория: Level Measuring Instruments >>>
- Поставщик: Lanka,Industrial,Automation(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 309.20 $* | 324.44 $* |
| Aug-18-2025 | 307.36 $* | 322.63 $* |
| Jul-18-2025 | 257.79 $* | 270.36 $* |
| Jun-18-2025 | 302.71 $* | 317.24 $* |
| May-18-2025 | 263.89 $* | 276.35 $* |
| Apr-18-2025 | 296.84 $* | 311.58 $* |
| Mar-18-2025 | 294.34 $* | 309.95 $* |
| Feb-18-2025 | 291.53 $* | 306.22 $* |
| Jan-18-2025 | 289.20 $* | 303.35 $* |
Характеристики
Water Measurement Level Meter with Probe 150M
Water level meters are used to measure the depth of water in wells, boreholes, and standpipes. Our Electronic Water level Meters Series use sound waves to measure the water level. The sound waves are sent from a transmitter to a receiver. The time it takes for the sound waves or ultrasonic waves to travel from the transmitter to the receiver is then used to calculate the water level.
Technical Parameters
Water Meter Level | Specification |
Depth Of Measure | 0-150 m |
Resolution | 0.5mm |
Response Indication | ≤1mm |
Repeat Indication | ±2mm |
Working Temperature | -20 ℃ ~ +60℃ |
Reel Material | Plastic or Metal |
Signal | LED, Buzzer, Electrical Meter |
Reel Color (Option) | Black, Blue, Yellow and Red |
Probe Diameter | 14mm |
Quality Standard | comply with the dam safety monitoring technology standard (SL60-94) |
Tape Length ( Option) | If 150 m length not suitable to you, we can have 0-30m, 0-50m,0-100m, 0-200m, 0-300m for your choice. |
Product Structure

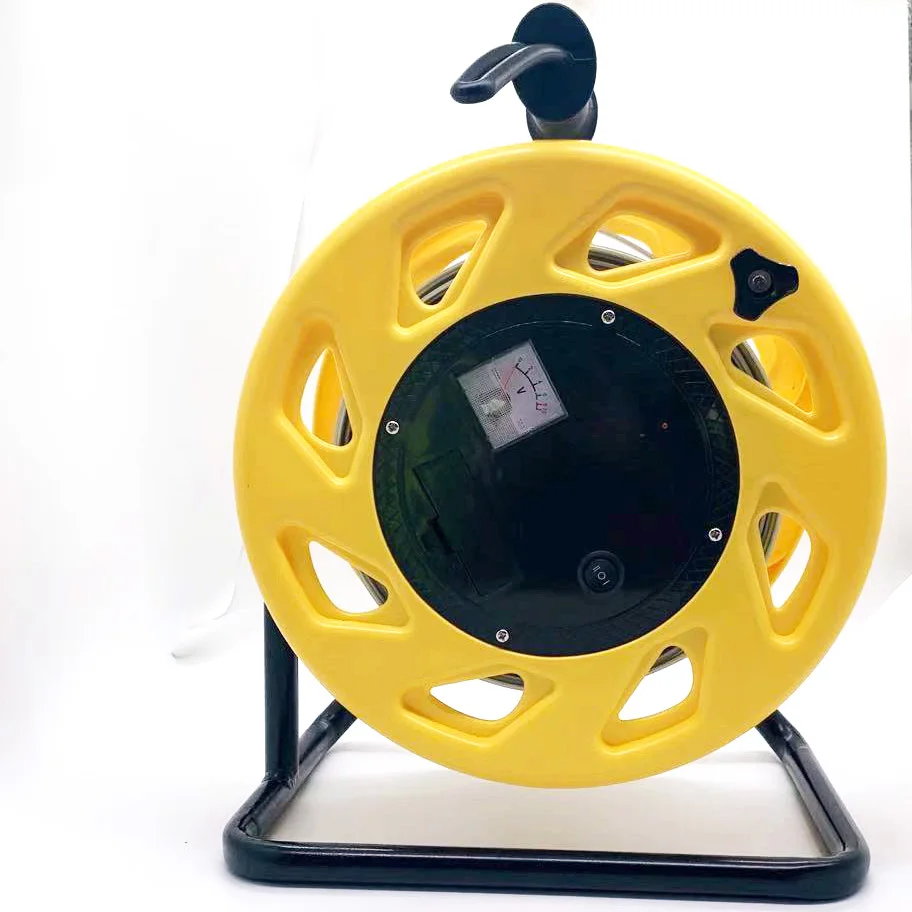

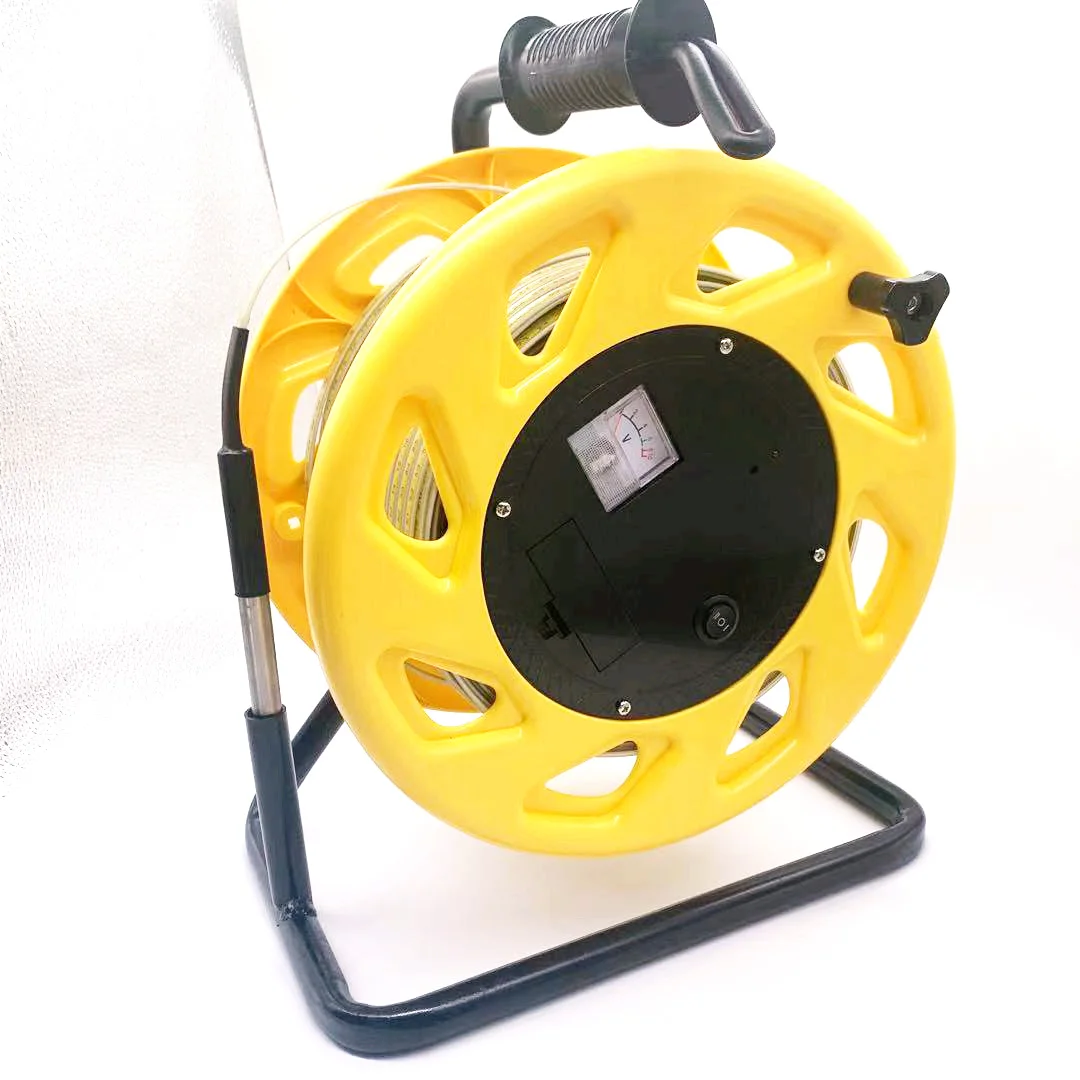

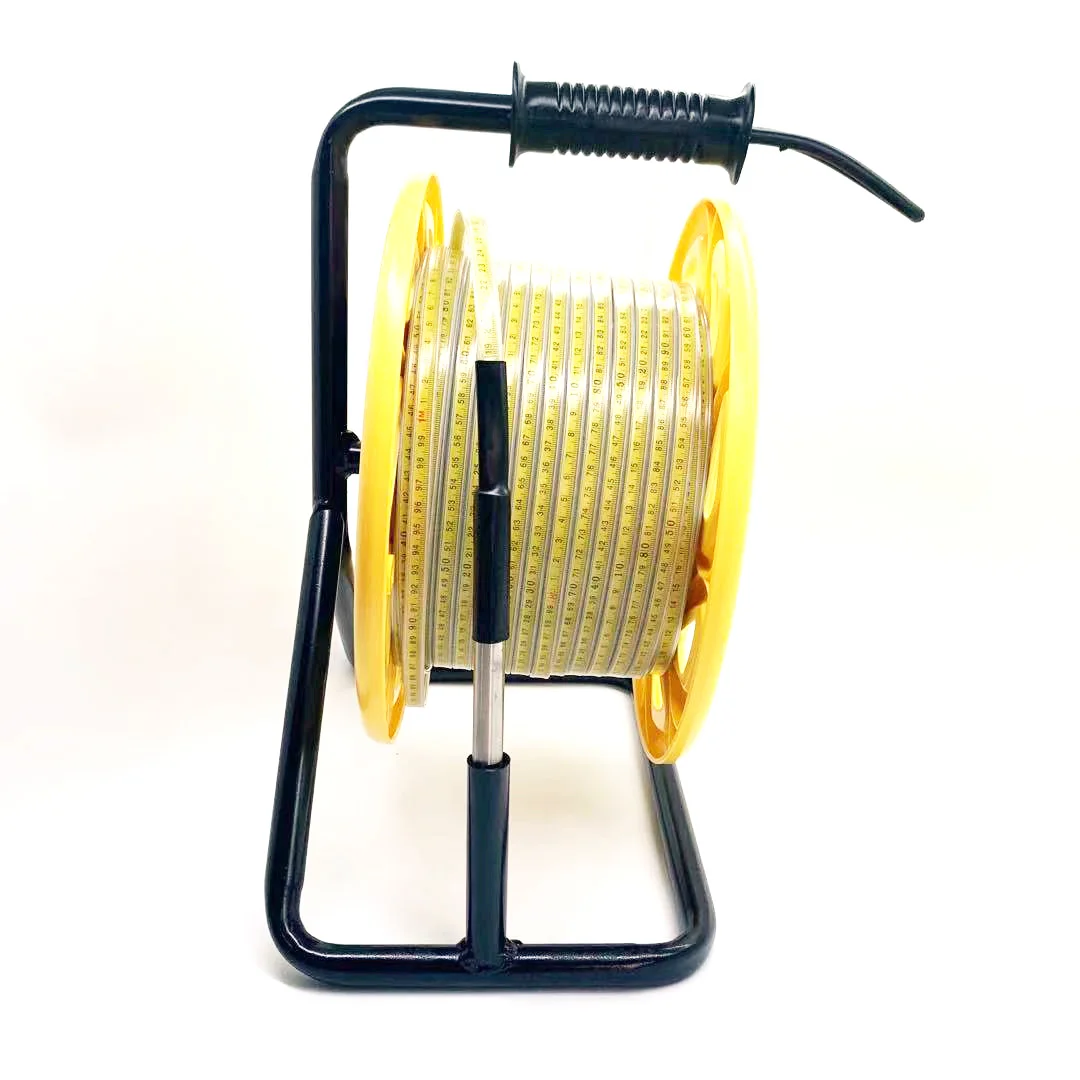

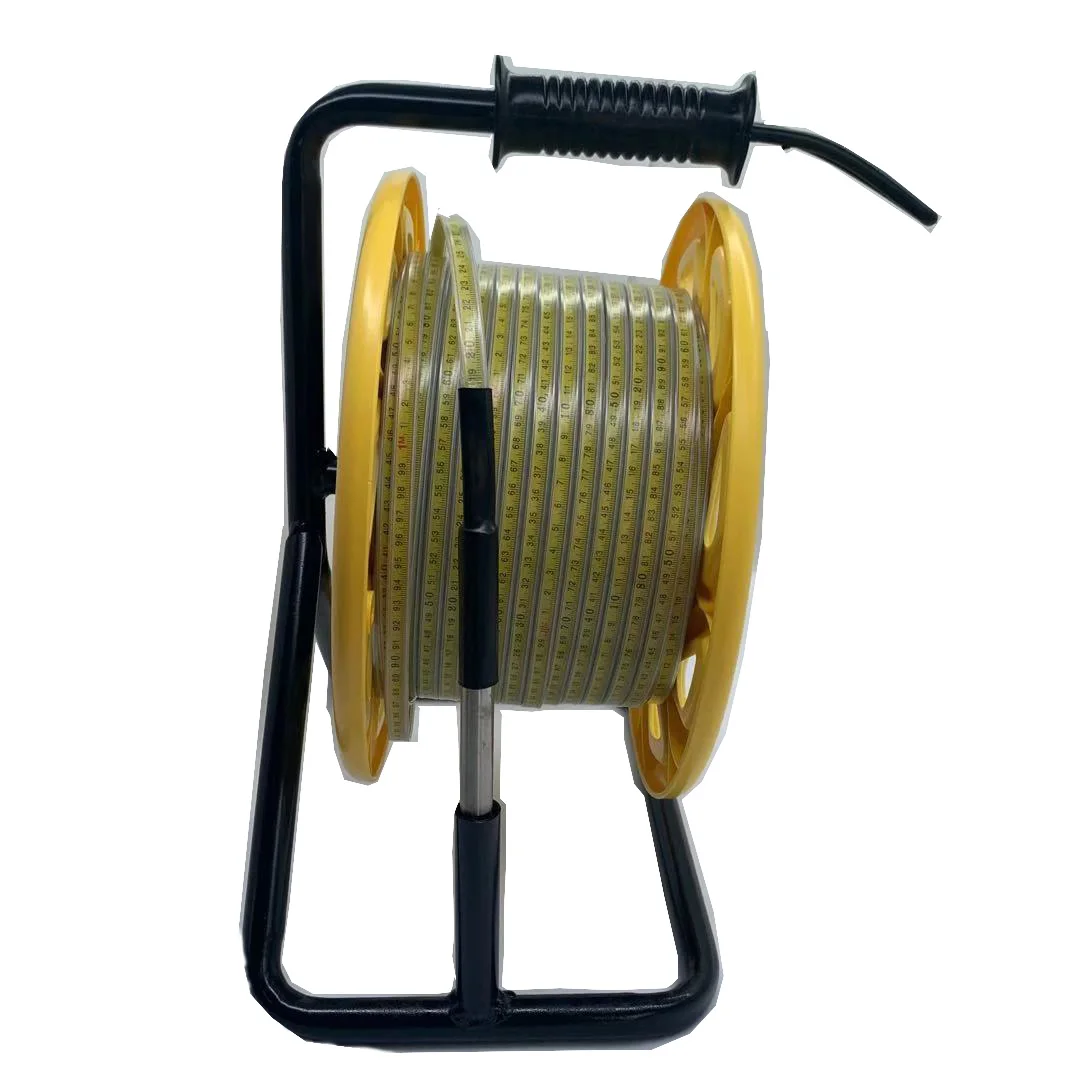

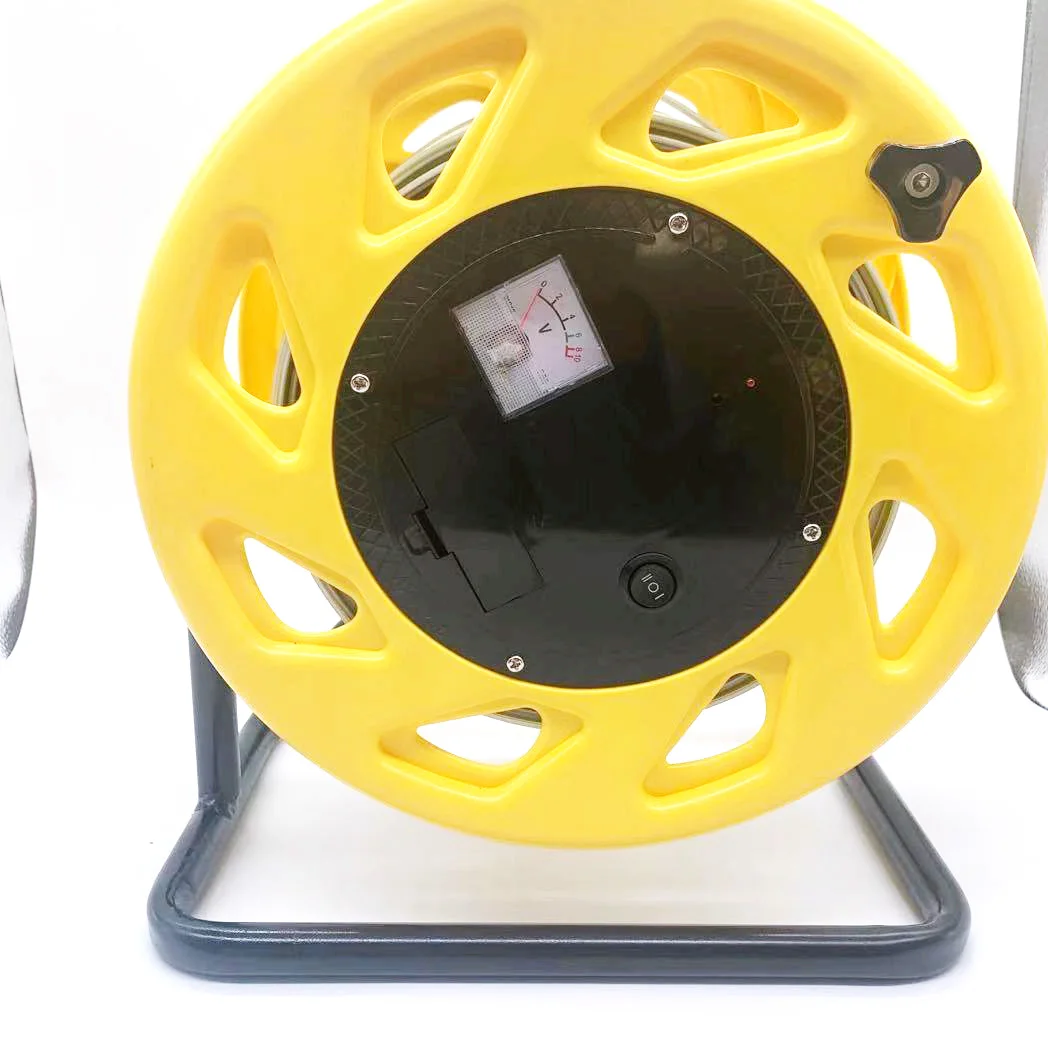

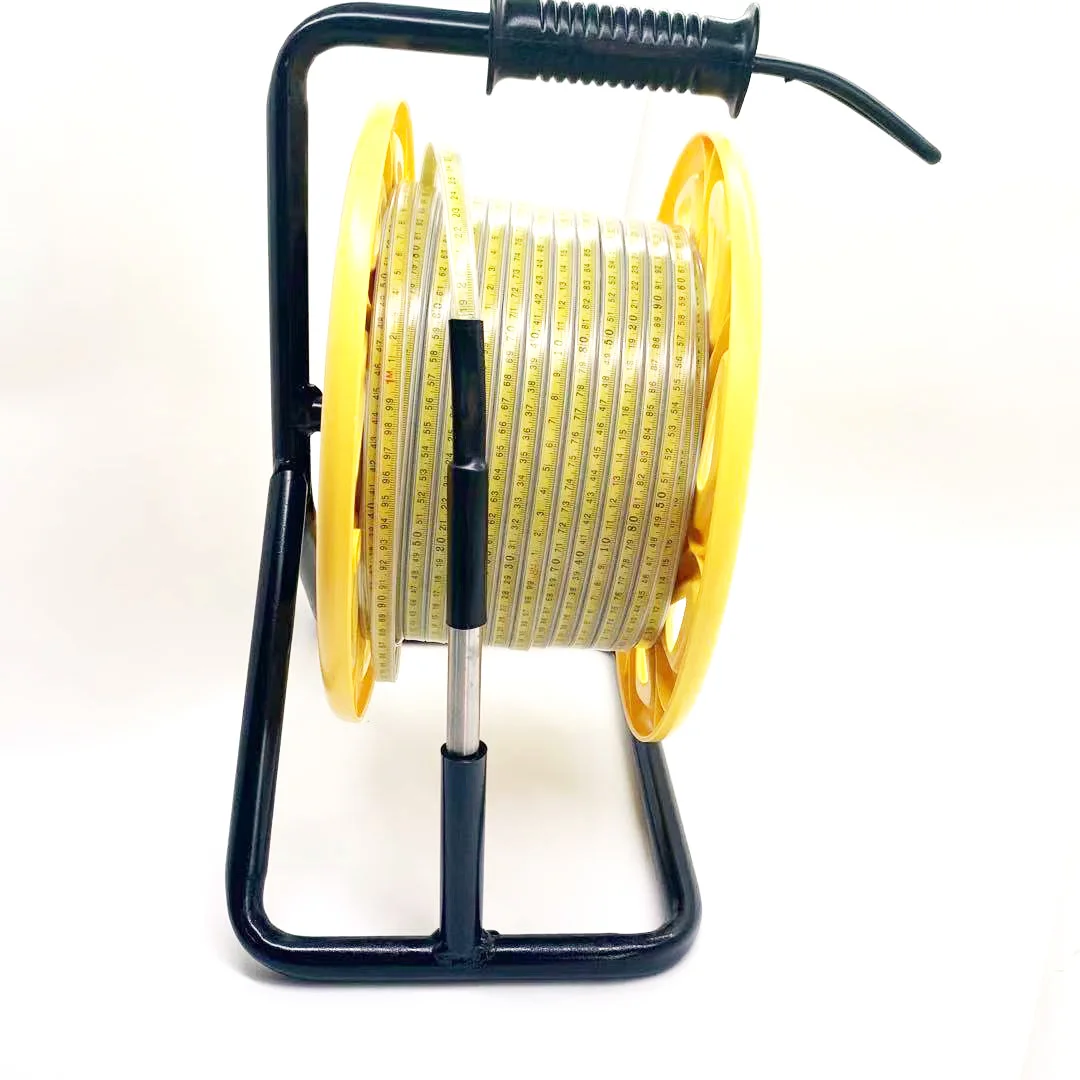

Water Level Meter Structure
1.This is to fix the reel panel
2. Probe, probe diameter is 14mm, when it detect water, the led light on and buzzer buzzing.
3. Reel (Color Option: Yellow, Blue, Black, OT Red)
4. Led light, when probe contact water, light on
4. Led light, when probe contact water, light on
5. Buzzer, when probe contact water, buzzing
6.Power voltage, this show the battery power
7. Button
8. Battery case： 9V battery is necessary to put inside（order shipment without battery）
9. Support, material is metal
Work Principle
The water level measurement system has two parts: underground components and a ground receiver-ruler water level meter. The underground components, which include the water level pipe and bottom cover, are not included in the system and must be bought separately.
The receiver system has a sounder and indicator light. The green test button on the panel turns on the light and buzzer when pressed to show that the circuit is working.
The ground receiver-ruler water level meter has a probe, ruler cable, receiver system, and cable reel. The probe has a water-resistant contact point that turns the receiver system on when it touches water and off when it leaves the water.
The ruler cable is made of a ruler and cable held together with plastic technology to prevent corrosion and make it easier to read measurements accurately.
The ruler cable is made of a ruler and cable held together with plastic technology to prevent corrosion and make it easier to read measurements accurately.
The receiver system has a sounder and indicator light. The green test button on the panel turns on the light and buzzer when pressed to show that the circuit is working.
Maintenance
Because the system use battery to supply power, so when you finish test,you should keep it power off.Power supply is 9V,when it has no power,you should open the cover and change it. After measurement, please keep the detect head and cable clean, cable rolled in cable reel. And put them in a good condition. Unauthorized disassembly of the product, it can not put in water horizontally,the cable cannot bucking,especially the ends. The detect head should carry and put softly and avoid vibration.
Storage
1.Customer should open the box and check the product when you receive it.
2.Storage temperature: -10℃~+40℃,humidity less than 80%,no aggressive gas.
3.Product warranty: 1year.
2.Storage temperature: -10℃~+40℃,humidity less than 80%,no aggressive gas.
3.Product warranty: 1year.
How to Use Our Water Level Meter
To measure the water level, follow these steps:
1. Rotate the cable reel and press the power button.
2. Place the probe into the underground water pipe
3. Hold the ruler cable in your hand and slowly lower it into the pipe.
4. When the probe contacts the water, the receiver system’s buzzer will sound. If the surrounding noise is too loud to hear the buzzer, you can observe the indicator light and voltage meter instead. If the light and buzzer don’t turn on, there may be a problem with the circuit or battery.
1. Rotate the cable reel and press the power button.
2. Place the probe into the underground water pipe
3. Hold the ruler cable in your hand and slowly lower it into the pipe.
4. When the probe contacts the water, the receiver system’s buzzer will sound. If the surrounding noise is too loud to hear the buzzer, you can observe the indicator light and voltage meter instead. If the light and buzzer don’t turn on, there may be a problem with the circuit or battery.
FAQ
Q1: I can’t find the model I need on this page. What should I do?
Q2: What is your Minimum Order Quantity (MOQ)?
Q3: How soon can I get a price quote and how long is it valid for?
Q4: What are your payment terms?
Q5: How long does delivery take?
Q6: How do you package your products?
If you have any other questions, please feel free to contact us at any time!
A1: If you can’t find the model you need on this page, please contact us and we will email you our e-catalog as soon as possible. We also offer customization services, so don’t hesitate to get in touch with us!
Q2: What is your Minimum Order Quantity (MOQ)?
A2: Our MOQ is normally 300m, but we also accept orders as small as 100m.
Q3: How soon can I get a price quote and how long is it valid for?
A3: We usually provide price quotes within one day. Our quotes are valid for 30 days.
Q4: What are your payment terms?
A4: We accept payment by T/T with a 30% deposit in advance and the remaining 70% balance due before shipment. You can also pay through our Alibaba sub-account via the Alibaba company.
Q5: How long does delivery take?
A5: Delivery time depends on whether we have stock of your desired product.
For normal orders, it takes about 10-30 days.
Q6: How do you package your products?
A6: We usually use cartons for packaging, but for larger cables, we use wooden drums.
If you have any other questions, please feel free to contact us at any time!
