35 100 мост и замкнутая цепь

Категория: Drag Chain >>>
Поставщик: Hebei,Ruiao,Machine,Tool,Accessories,Producing,Co.,Ltd.

Цена:8,99 $ - 15,99 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	10.48 $*	11.62 $*
Aug-18-2025	9.73 $*	9.27 $*
Jul-18-2025	8.39 $*	8.17 $*
Jun-18-2025	9.92 $*	9.32 $*
May-18-2025	8.20 $*	8.26 $*
Apr-18-2025	9.72 $*	9.13 $*
Mar-18-2025	9.34 $*	9.58 $*
Feb-18-2025	9.54 $*	9.60 $*
Jan-18-2025	9.84 $*	9.35 $*

Характеристики

Product Description

1. Grade: A-nylon

2. Size: TEZ35 series

3. Diameter: as catalog

4. Certification: ISO9001, CE, ROHS

Product Name	35mm height Cable Drag Chain
Material	nylon
Color	Black
Size	Height*Width
Bending radius	75/100/125/150/175/200/250mm
Brade	RUIAO
Temperature	-20°~130°
Speed	5m/s

A brief introduction of cable carrier drag chain

1. inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .

2. inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin

3. radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin

Drag Chain-light	Inside H*W(mm)	Outside H*W(mm)	Bending radius	Pitch	Type
TEZ35*50D	35*50	58*77	75/100/125/150/ 175/200/250	66mm	Bridge and Enclosed
TEZ35*75D	35*75	58*102				66mm
TEZ35*100D	35*100	58*127				66mm
TEZ35*125D	35*125	58*152				66mm
TEZ35*150D	35*150	58*177				66mm
TEZ35*175D	35*175	58*202				66mm
TEZ35*200D	35*200	58*227				66mm

Drag Chain-heavy	Inside H*W(mm)	Outside H*W(mm)	Bending radius	Pitch	Type
TLX35*50	35*51	60*79	75/100/125/150/ 175/200/250	62mm	Bridge and Enclosed
TLX35*60	35*61	60*89				62mm
TLX35*75	35*76	60*104				62mm
TLX35*100	35*101	60*129				62mm
TLX35*125	35*126	60*154				62mm
TLX35*150	35*151	60*179				62mm
TLX35*175	35*176	60*204				62mm
TLX35*200	35*201	60*229				62mm

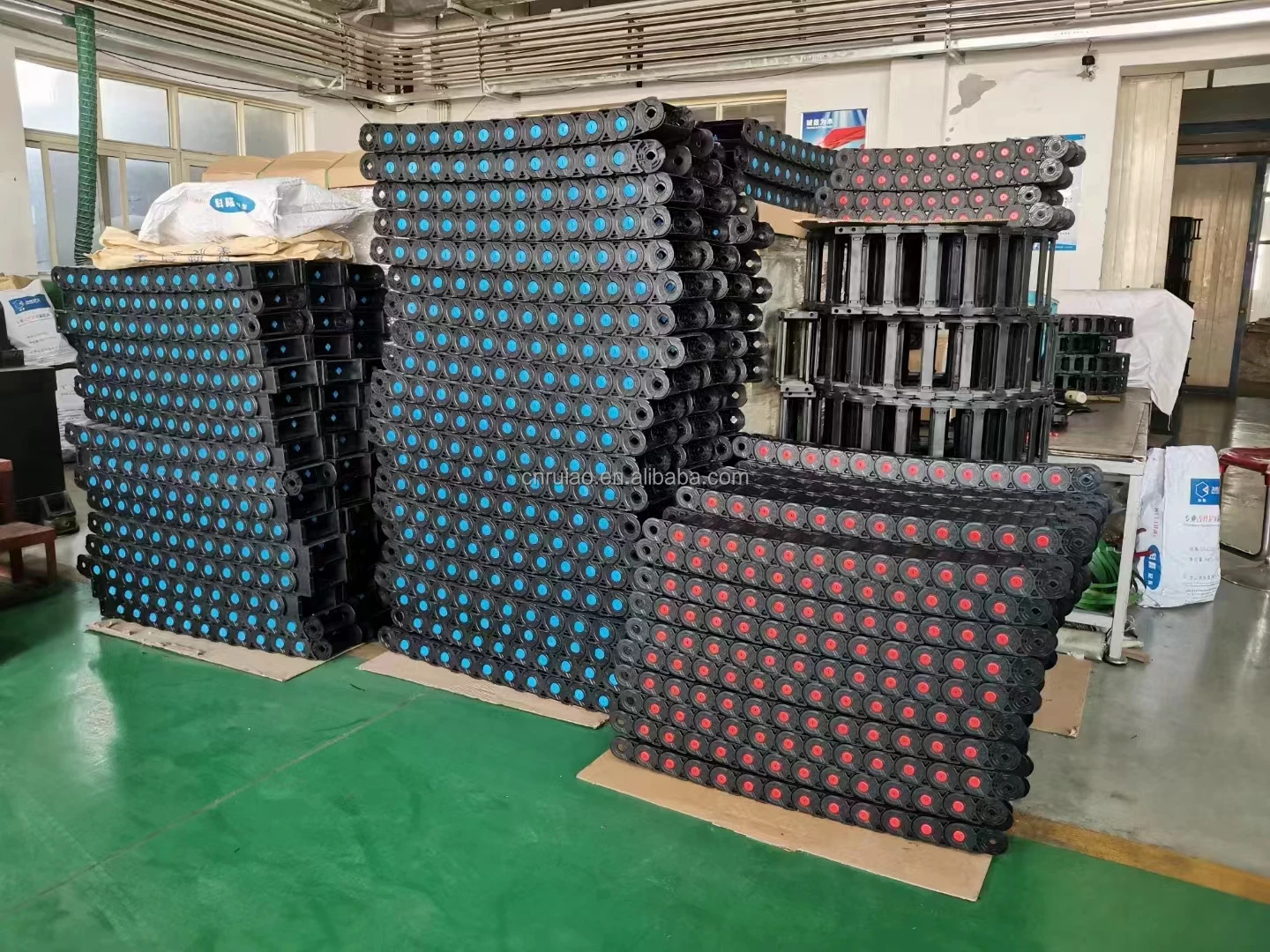

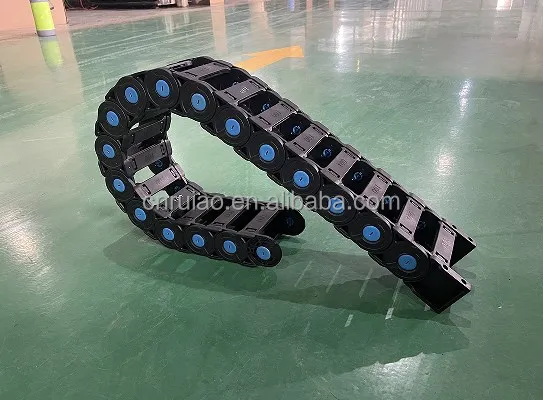

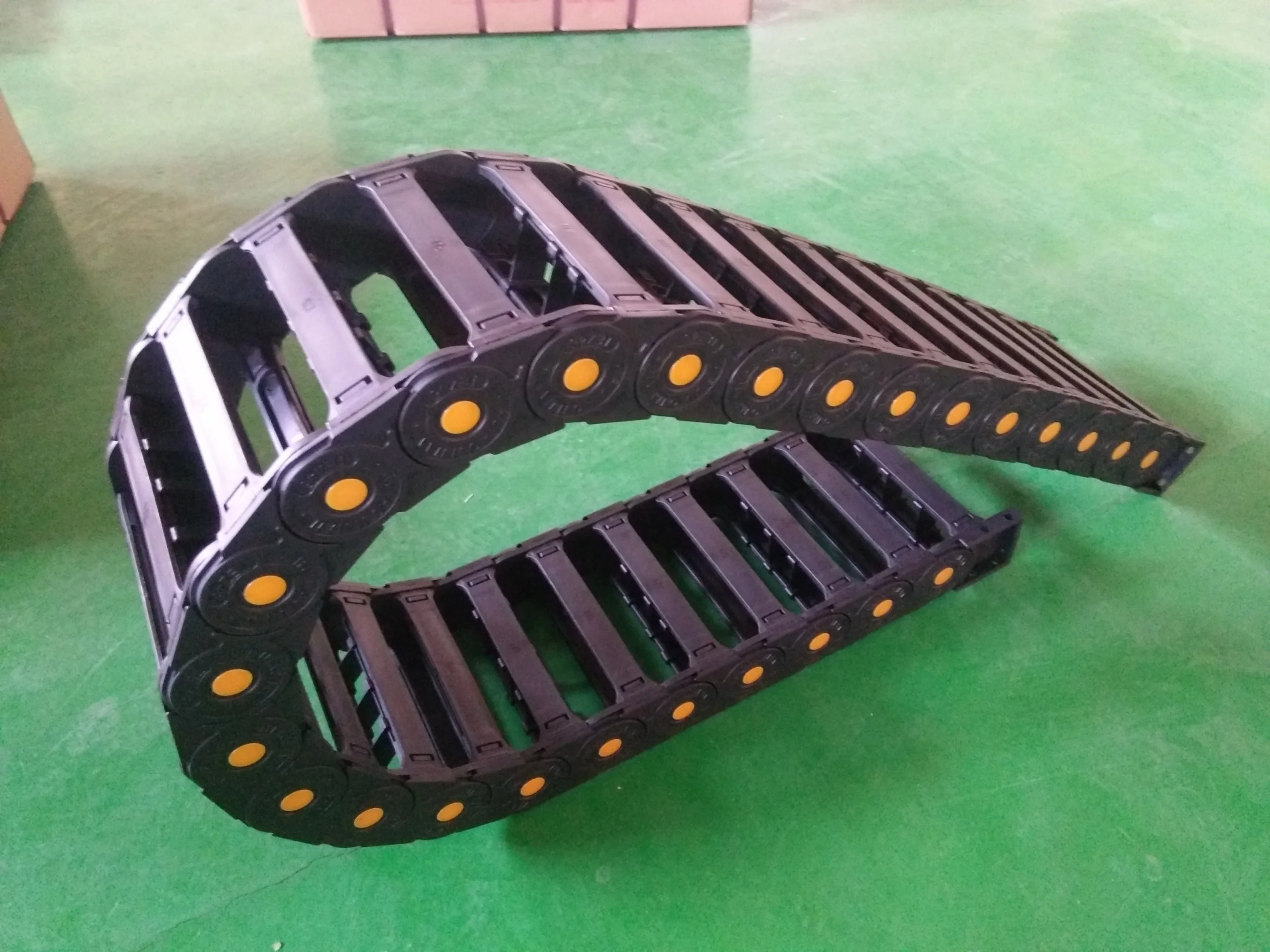

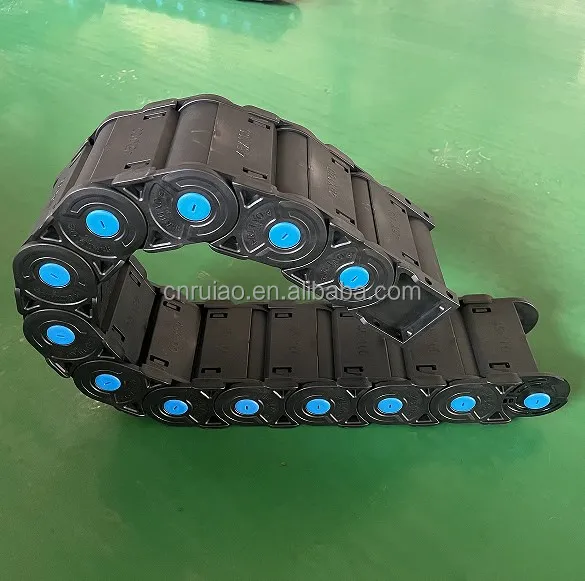

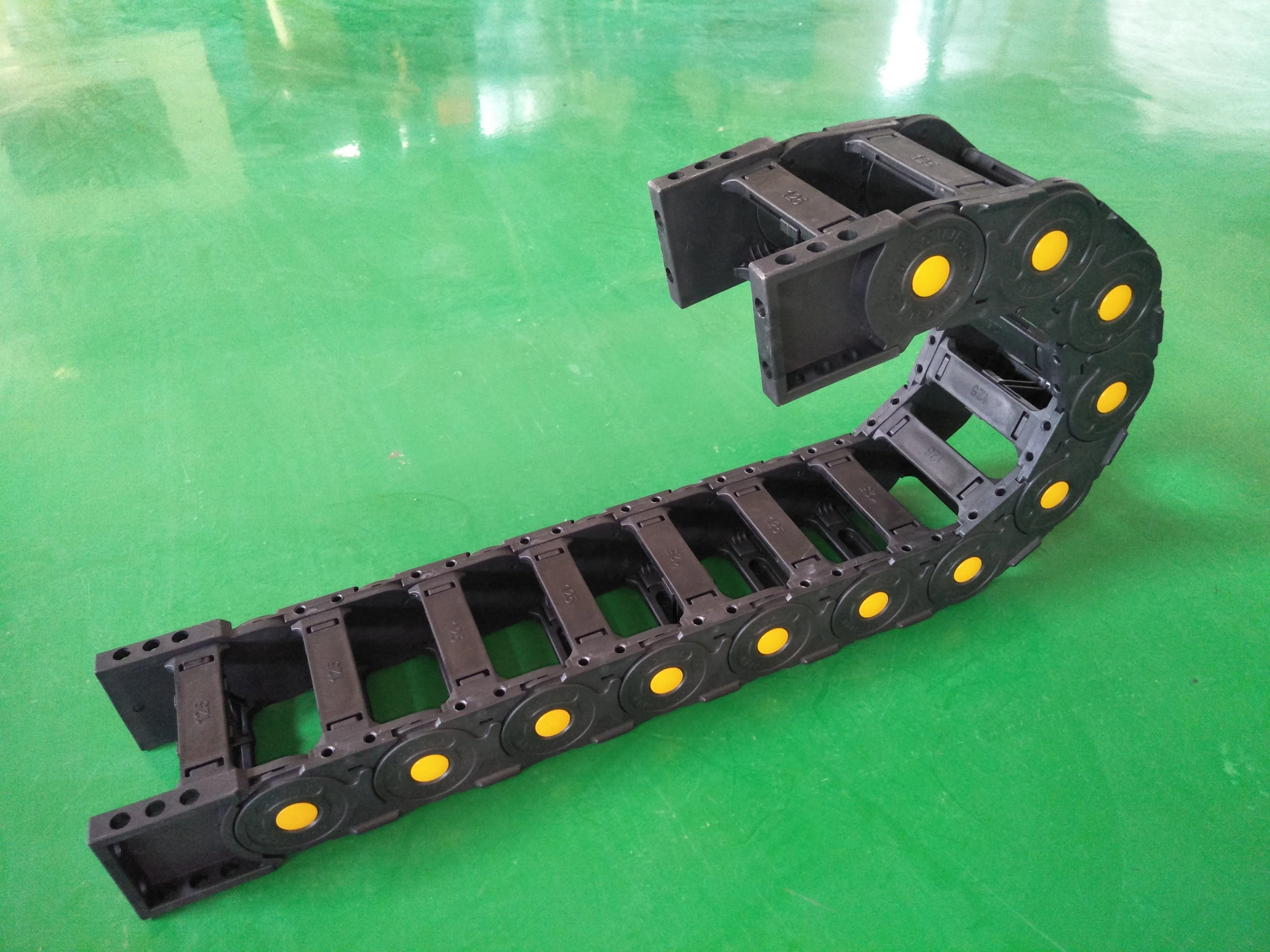

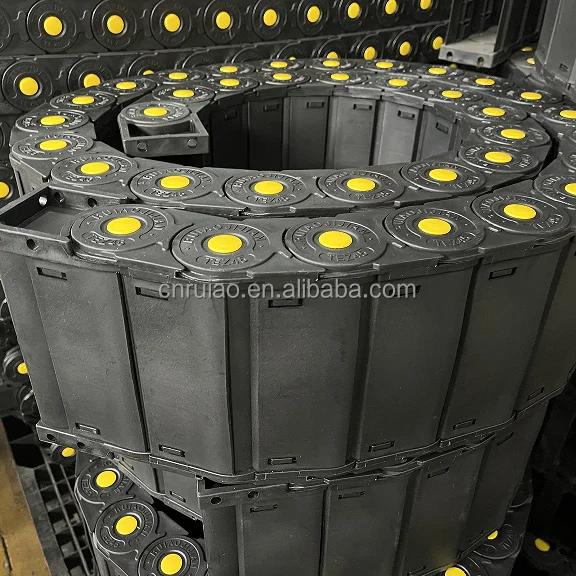

Products Show

Cable carriers (also known as cable drag chains) are flexible hollow structures composed of links to help guide and protect cables,hoses, and hydraulic lines on equipment and machinery. RUIAO manufactures a complete line of cable carrier assemblies for high performance, heavy or light-duty applications with the proof of scraps, heat, and debris. Contact us today to discuss cable carrier selection for your application.
