Сетевой инструмент меньше cat5e cat6 Cat6a utp keystone jack модуль Cat 6 180 toolfree 8p8c
- Категория: Telecom Parts >>>
- Поставщик: Ningbo,Hyconnect,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.68 $* | 0.88 $* |
| Aug-18-2025 | 0.67 $* | 0.71 $* |
| Jul-18-2025 | 0.83 $* | 0.42 $* |
| Jun-18-2025 | 0.4 $* | 0.46 $* |
| May-18-2025 | 0.38 $* | 0.77 $* |
| Apr-18-2025 | 0.22 $* | 0.49 $* |
| Mar-18-2025 | 0.80 $* | 0.11 $* |
| Feb-18-2025 | 0.19 $* | 0.33 $* |
| Jan-18-2025 | 0.92 $* | 0.21 $* |
Характеристики
item | value |
Model Number | HKJ-801M-C6 |
Brand Name | HY connect |

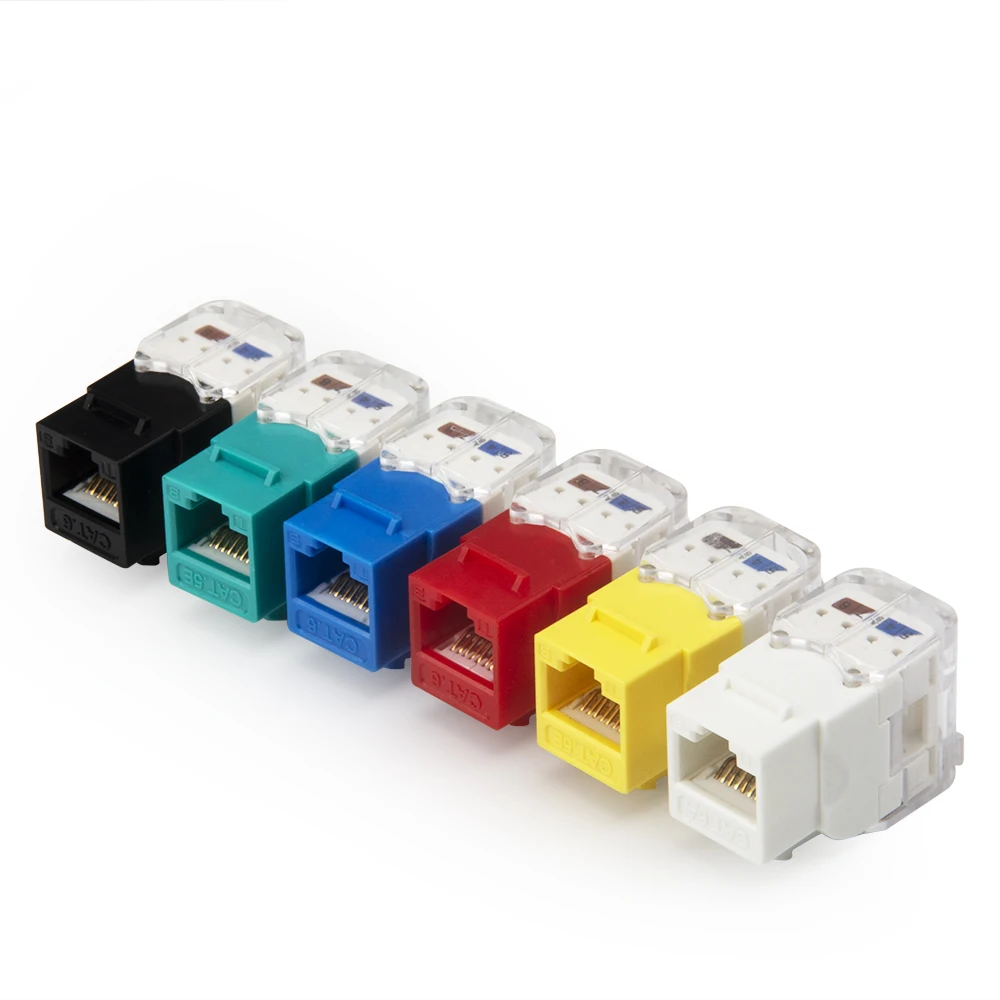

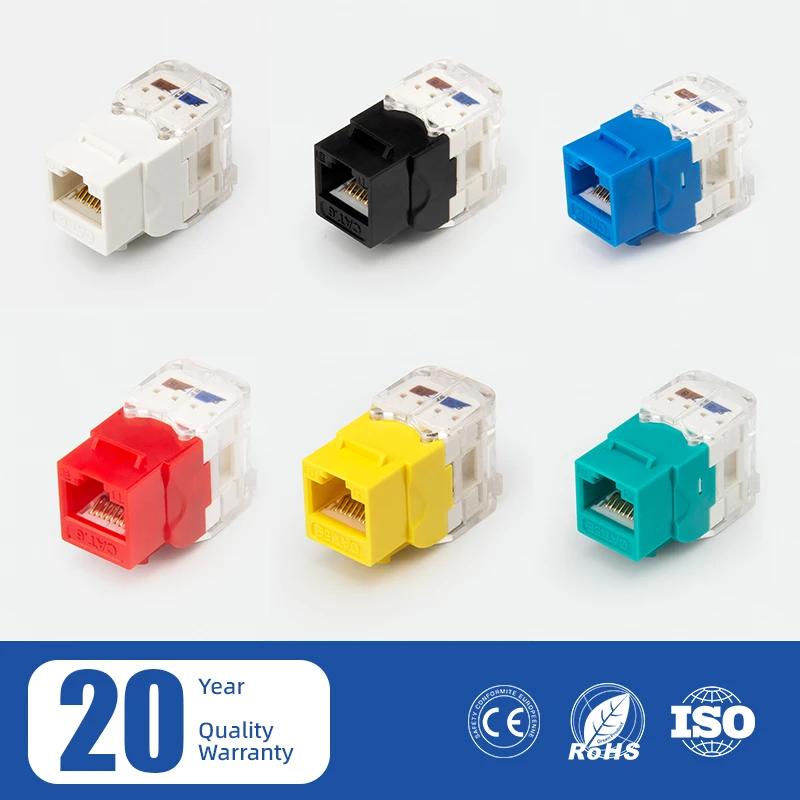

Color | white, blue, black, yellow, green, red |
Category | Cat.5e/Cat.6/Cat.6A UTP |
Material | PC |
RJ45 Insert PIN | 8P8C with golden plated |
Wiring Mode | T568B |
IDC Terminal | 22-26 AWG Cables |
Installation | 180 degree |
MOQ | 100PCS |
Service | OEM |
Packing | 1 Pcs /Bag |
Technique Characteristics | Material of plastic parts: PC UL94V-0 | ||||||

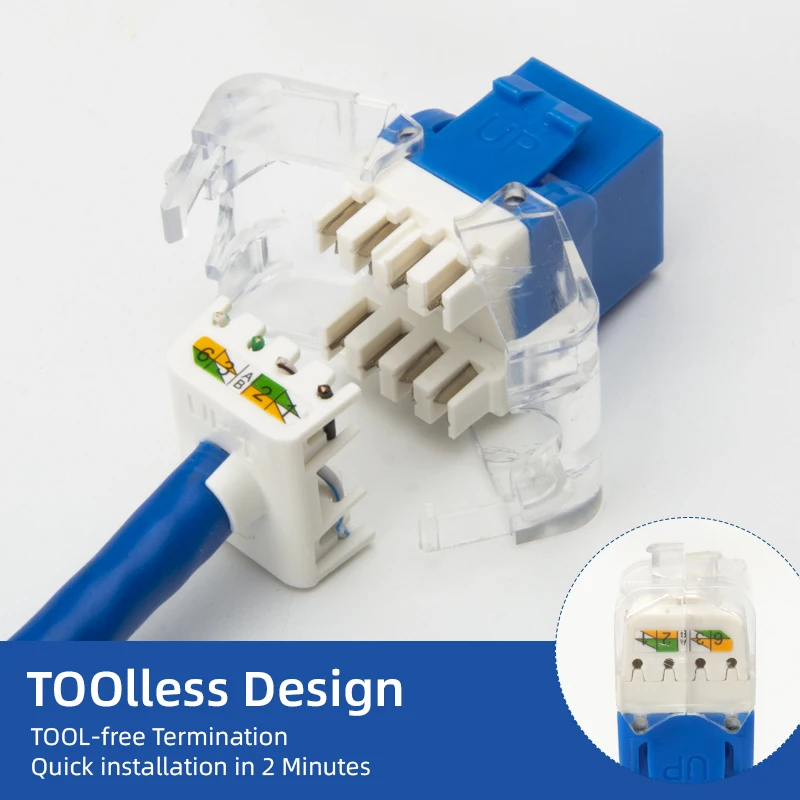

Toolless rotate make operation more convenient | |||||||

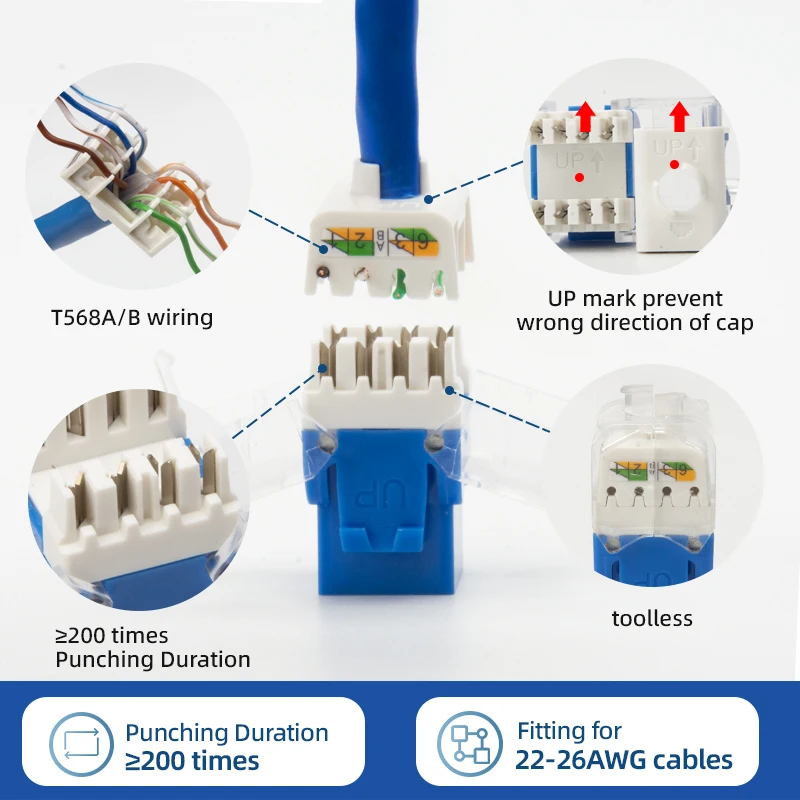

IDC clips with 45 degree angled design ensure the cables reliable connection | |||||||
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6 | |||||||
Golden plated Pins, IDC clips and internal PCB board match well and provide best performance | |||||||
Whole Pin nickel plated with connect pins golden plated prevent oxidation, lasting the service life | |||||||
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times | |||||||
Electrical Characteristics | DC Resistance: ≤300mΩ | ||||||
Contact Resistance: ≤20mΩ | |||||||
Dielectric strength: 1000V(AC750V)1min no break down and flashover | |||||||
Insulation Resistance: ≥1000MΩ | |||||||

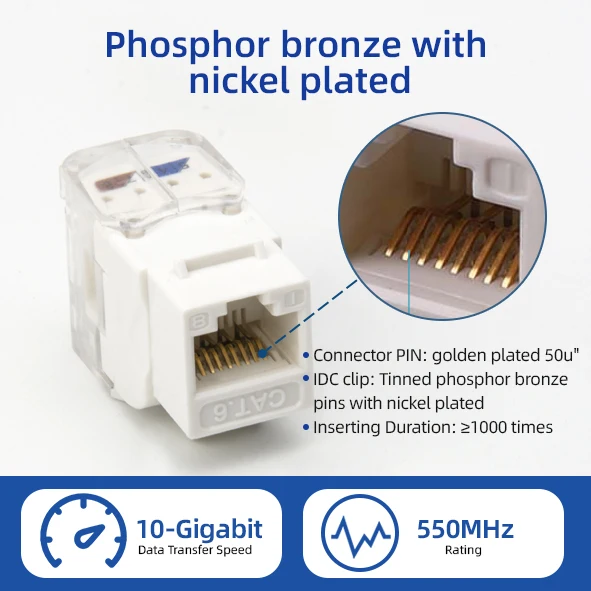

Physical Characteristics | Phosphor bronze with nickel plated , connector pins with golden plated 3μ | ||||||
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables | |||||||
Inserting Duration: ≥750 times | |||||||
Punching Duration: ≥250 times | |||||||
Jack housing plastic part: RED,YELLOW,BLUE,GREEN,BLACK and other colors availabl | |||||||
Termination caps material: UL94V -2 | |||||||
Working temperature: -25℃~60℃ | |||||||
Standards | ISO/IEC11801 | ||||||
TIA/EIA-568B.2-1 | |||||||
EN50173 | |||||||
Application | Structured cabling transmitting data ,voice, video | ||||||
Applied for Cat.6 and E Classes | |||||||
Suitable for working area, central room, managing room, equipment room and subsystem applications | |||||||
Packing & Delivery
Packaging Details | 1pc/PE bag, 100bags/box, 10box/carton | ||||||
Neutral PE bag, box, and export carton | |||||||
Port | Ningbo | ||||||
Lead time | Quantity(pieces) | 1 - 10000 | 10001 - 60000 | >60000 | |||
Lead time (days) | 7 | 15 | To be negotiated | ||||
