SHACMAN F2000 6x4 водяной бак


Поделиться:


Цена:30 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 35700.0 $* 37485.33 $*
Aug-16-2025 35400.26 $* 37170.16 $*
Jul-16-2025 29700.77 $* 31185.94 $*
Jun-16-2025 34800.63 $* 36540.77 $*
May-16-2025 30300.80 $* 31815.59 $*
Apr-16-2025 34200.45 $* 35910.51 $*
Mar-16-2025 33900.40 $* 35595.17 $*
Feb-16-2025 33600.83 $* 35280.95 $*
Jan-16-2025 33300.69 $* 34965.93 $*

Характеристики



Hot Product Links


































Product Description














































































































































Cab



MAN F2000 Cab  Single bed  Air conditioner



Dimension(Lx W xH)(mm)



9550×2500×3530mm



Total mass(kg)



25000kg



Kerb mass(kg)



10900kg



Rated mass(kg)



13970kg



Approach / departure angel



16/17



Front/rear suspension(mm)



1525/2400



Max. gradeability (%)



25



Engine brand



Weichai Engine



Engine model



WP10.290E32,290hp



Rated output power



213kw



Torque(N.m r. p. m)



1160N.m/1200-1600rpm



Rated speed(rpm)



2200rpm



Emission Standard



E-II



Displacement(L)



9.726L



Driving type



4



Axle number



3



Wheel base(mm)



4375+1400mm



Clutch



φ430 diaphragm spring



Gearbox



FAST 9JS119,9 Forward&1 Reverse,Manual



PTO



QH50



Front axle



7.5T MAN  7500kg



Rear axle



13T STR  2×13000kg



Ratio



4.8



Steering



ZF technology   left-hand drive(LHD)



Brake system



WABCO ABS(Four channel)



Type



315/80R22.5,10+1pc



Tank capacity(L)



400L



Max. speed (km/h)



90km/h



Color



Optional



Tank volume



20000L



Water tank configuration

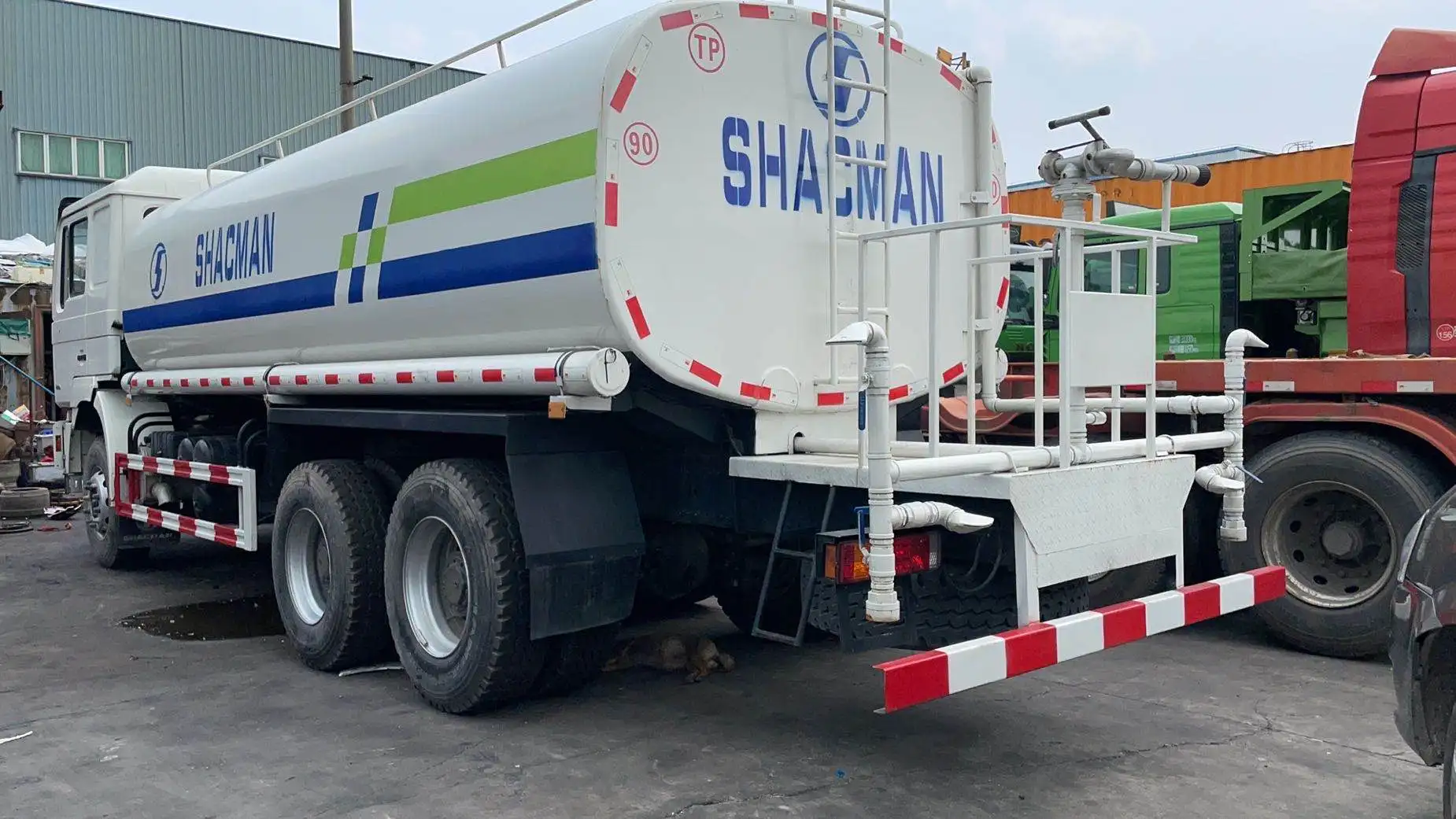

Pump,Front spray,Rear sprinkle,Rear spray,Back work platform…









Our Factory










 PPTX _01.jpg





RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.





 PPTX _02.jpg





 PPTX _04.jpg











 PPTX _05.jpg





From the factory to our customer's destination, we will conduct all-round supervision.We can also helpto sign purchase ordercontractstest product qualityguarantee timelydeliveryand accomodate special orders.











 PPTX _03.jpg








 PPTX .jpg


What is the proportion of your products exported?


75% of our products are exported to all over the world.


What is the payment term?


Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.


What kind of logistic service do you supply?


A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.


B. Term: FOB,CIF, DAP, to door service, etc.
