Мобильный сочлененный подъемник стрелы 16 м до 30 Электрический шарнирный для
- Категория: Work Platforms >>>
- Поставщик: Xiamen,LTMG,Co.,Ltd.Xiamen,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1663142.43 $* | 1696405.68 $* |
| Jul-16-2025 | 1348848.50 $* | 1375825.53 $* |
| Jun-16-2025 | 1636951.85 $* | 1669690.47 $* |
| May-16-2025 | 1623856.7 $* | 1656333.28 $* |
| Apr-16-2025 | 1296465.91 $* | 1322394.27 $* |
| Mar-16-2025 | 1597664.74 $* | 1629617.74 $* |
| Feb-16-2025 | 1584569.90 $* | 1616260.32 $* |
| Jan-16-2025 | 1571473.88 $* | 1602902.50 $* |
Характеристики
Product Features
- strong load capacity with the max platform occupancy being 230KG.
- Flexible turning ability enables workers to easily reach the right workplaces.
- Excellent off-road performance makes the vehicle go through complex terrains smoothly.
- Complete safety devices and compact Structure.
- Flexible turning ability enables workers to easily reach the right workplaces.
- Excellent off-road performance makes the vehicle go through complex terrains smoothly.
- Complete safety devices and compact Structure.
Model | LTQD1214 | LTQD1618 | LTQD2022 | LTQD2426 | ||||||
Measurements | ||||||||||
Working height maximum | m | 14 | 18 | 22 | 26 | |||||
Platform height maximum | m | 12 | 16 | 20 | 24.2 | |||||
Horizontal reach maximum | m | 8 | 9.8 | 12.6 | 15.8 | |||||
Up & over clearance maximum | m | 5 | 7.75 | 9.2 | 9.8 | |||||
(LxW) Platform dimensions | m | 1.1x0.67 | 1.83x0.76 | |||||||
Length(stowed) | m | 5.3 | 7.7 | 9.07 | 9.92 | |||||
Width(stowed) | m | 2 | 2.28 | 2.38 | 2.48 | |||||
Height(stowed) | m | 2.26 | 2.38 | 2.49 | 2.82 | |||||
Wheelbase | m | 2.4 | 2.45 | 3.00 | ||||||
Ground clearance(center) | m | 0.2 | 0.43 | |||||||
Productivity | ||||||||||
Lift capacity maximum | kg | 200 | 230 | |||||||
Platform occupancy maximum | 2 | |||||||||
Platform rotation | ±80° | |||||||||
Vertical jib rotation | 140° | |||||||||
Turntable rotation | 360° | |||||||||
Turntable tail swing | m | 0.26 | 0 | 0.33 | 0.28 | |||||
Drive speed (stowed) | km/h | 3.2 | 4.2 | |||||||
Drive speed(raised or extended) | km/h | 0.8 | 1.1 | |||||||
Gradeability | 30% | 45% | ||||||||
Allowable slope maximum | 3°/3° | |||||||||
Power | ||||||||||
Engine | Japanese | Japanese | Japanese | |||||||
Power | 25.2kW @2200rpm | 35.5kW@2400rpm | 43kW@2500rpm | |||||||
Weight | kg | 5300 | 7877 | 8800 | 16300 | |||||
Product Details
The Product complete safety devices
and compact Structure.
Larger up clearance & horizontal reach.
160°rotatable platform provides a larger working rangewhile narrow turntable with compact layout,improving work efficiency
Equipped with tiresskid-proofand explosion-proof with longer lifetime providing a stable and labor-saving operation.

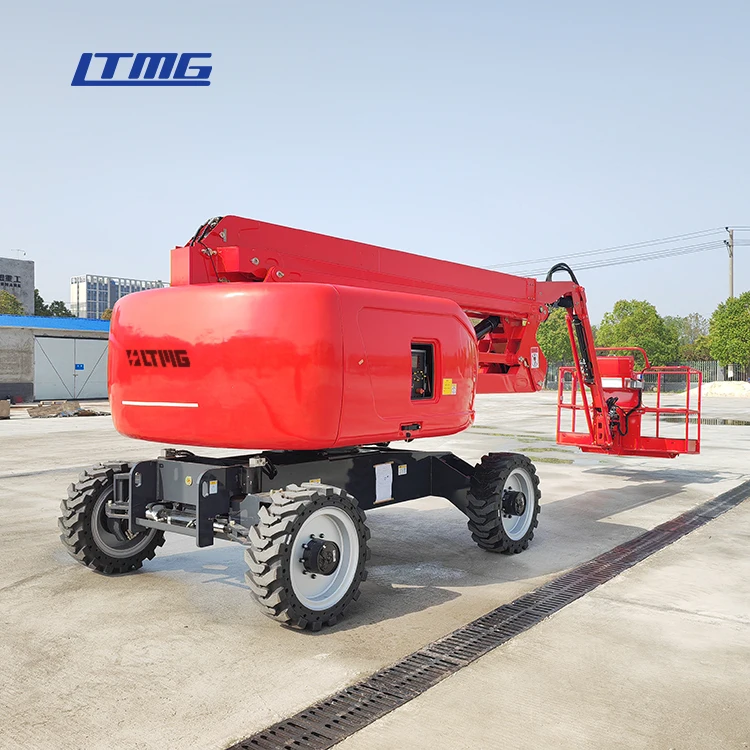

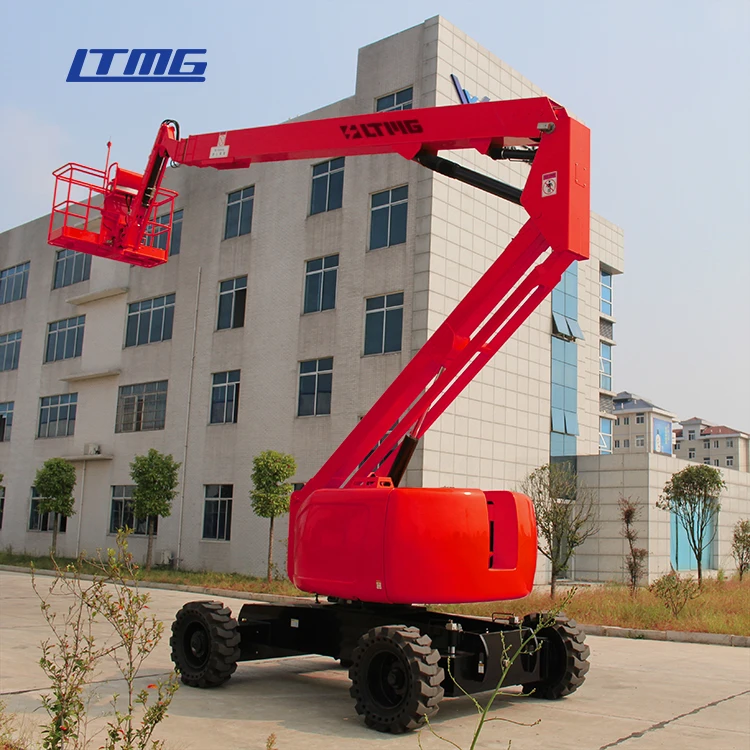

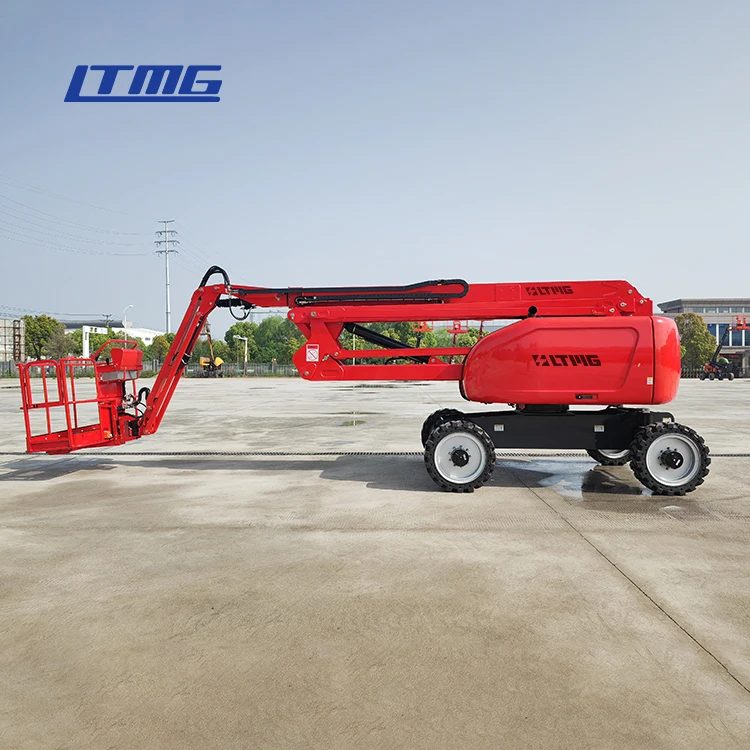

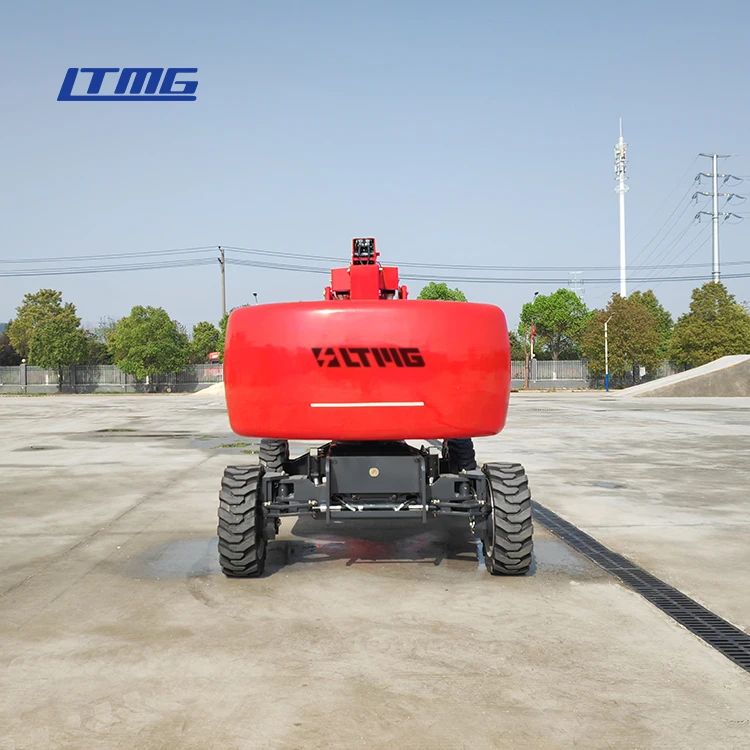

Product Shows
Product Applications
OEM/ODM
Shipping Plan
Factory Introduction
Certificate
Hot Product
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift
trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
