Product Description
Lithium Battery 8 Channels Testing Machine 5V6A Pouch Cell Battery Charge and Discharge Tester
Model: CT-4008T-5V6A-S1
1. MR-CT4008-5V6A-S1 Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 0.1 mA to 6000 mA, up to 5V. With Channel parallel, the Current can up to 12000mA.
2. This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
3. MR-CT-4000 Testing system has more quick sampling speed, attached with DC Resistance testing function. It also add with Channel parallel function which can enlarge the current up to twice of the normal range.
4. If you use this tester to test Super capacitor, please choose the model MR-CT-4008-S1-F, with the min discharge voltage up to 0V, Suitable for super capacitor, NI-MH battery, Nickel-chromium battery and all kind of rechargeable battery testing.
5V6A | 0.5mA-0.1A | 0.1A-3A | 3A-6A |
Popularizing multi-range technology actively
To meet the various requirements adopted in advanced battery research, our equipments can automatically switch the current range in accordance with user settings to maintain consistent accuracy, and can be fitted with additional hardware to provide a number of optional features and capabilities.
To meet the various requirements adopted in advanced battery research, our equipments can automatically switch the current range in accordance with user settings to maintain consistent accuracy, and can be fitted with additional hardware to provide a number of optional features and capabilities.
Small in size. Big on capability.
You can see equipment's unite ID via LCD. What's more, 164 port is used to connect accessories to test coin cells. CT-4000-mA equipment has already became the classic equipment, which is widely used in universities, laboratories and research institutes.
High efficiency in cooling system. The picture below shows us the intake system on the left side.
New cooling system is much safer and higher efficiency than before. As we know, air inlet occupies the half of the left and right sides. It is really in excellent industrial design. Use it, it can give you a suprise.
You can see equipment's unite ID via LCD. What's more, 164 port is used to connect accessories to test coin cells. CT-4000-mA equipment has already became the classic equipment, which is widely used in universities, laboratories and research institutes.
High efficiency in cooling system. The picture below shows us the intake system on the left side.
New cooling system is much safer and higher efficiency than before. As we know, air inlet occupies the half of the left and right sides. It is really in excellent industrial design. Use it, it can give you a suprise.
Turn back! You can't just see the cool system.

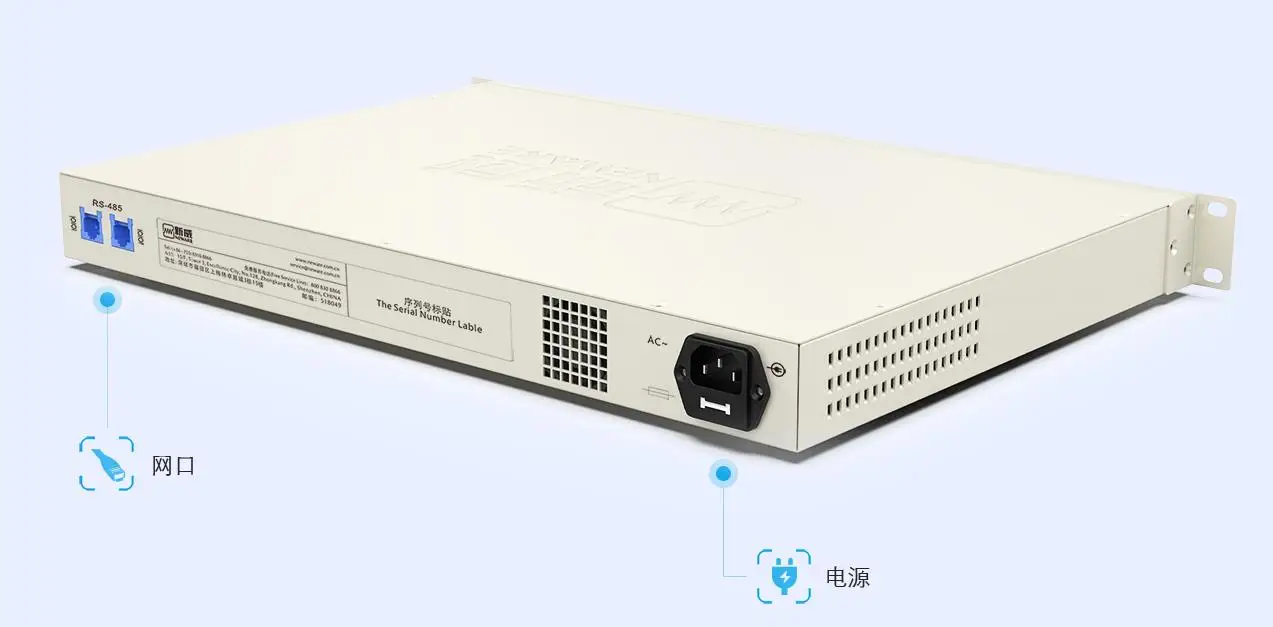

On the back, you can see the RS-485 interface and AC power supply, which connect the middle computer and BTS server via the netting twine.
On the back, you can see the RS-485 interface and AC power supply, which connect the middle computer and BTS server via the netting twine.
Application:
Now widely used by battery research institutes,laboratories, universities and EV battery manufacturers all around the world. it supports some testings as follow: EV battery pulse charge/discharge, DCIR(Direct Current Internal Resistance), cycle life testing and rate testing.
Company Profile
Exhibition Show
Customer Show
Product packaging

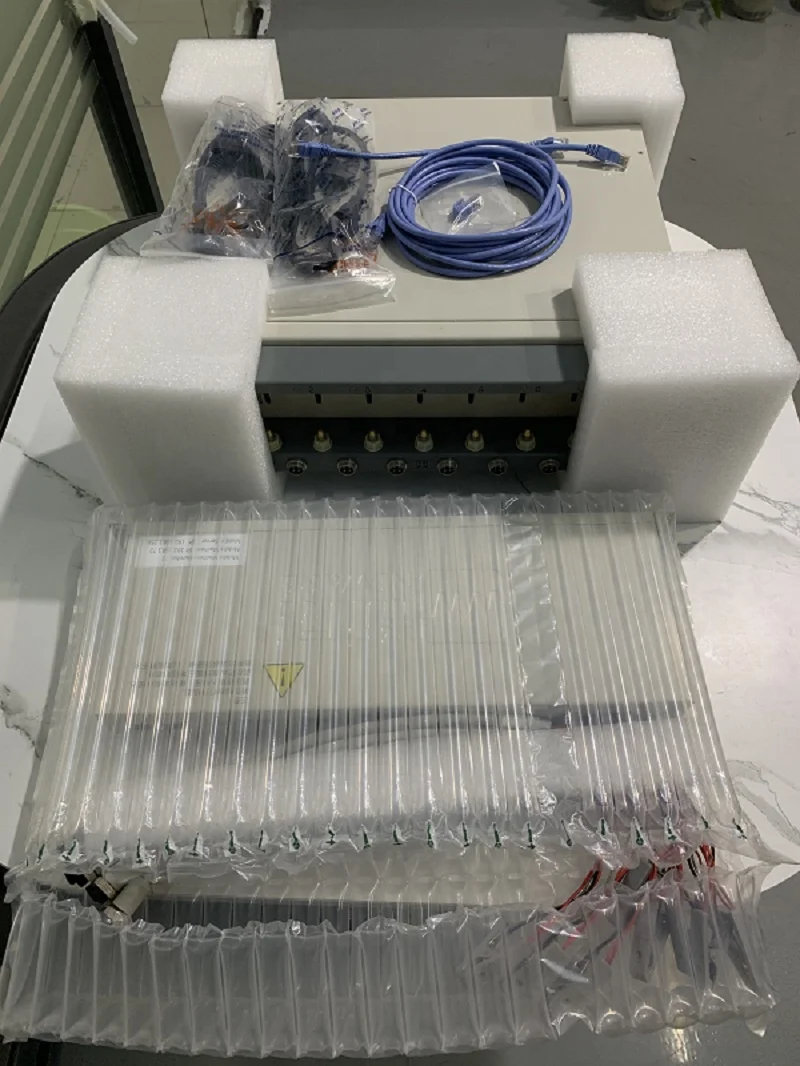

1. Standard exported package : Internal anticollision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way,
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way,
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
