Трехосный цементный прицеп
- Категория: Cement Trucks >>>
- Поставщик: Sinoauto,International,Trade(Shandong),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 23800.61 $* | 24990.83 $* |
| Aug-15-2025 | 23600.30 $* | 24780.23 $* |
| Jul-15-2025 | 19800.20 $* | 20790.16 $* |
| Jun-15-2025 | 23200.98 $* | 24360.97 $* |
| May-15-2025 | 20200.99 $* | 21210.52 $* |
| Apr-15-2025 | 22800.11 $* | 23940.14 $* |
| Mar-15-2025 | 22600.58 $* | 23730.7 $* |
| Feb-15-2025 | 22400.3 $* | 23520.76 $* |
| Jan-15-2025 | 22200.85 $* | 23310.15 $* |
Характеристики
Products Description
Main Features
1. Reduce transportation cost.
2. There are most professional production lines in china .
3. Specialized dump truck line with large box thickness and strong wear resistance.
4. Customers from different countries come to visit our factory .
5. Shorten transportation cycle and improve production efficiency.
1. Reduce transportation cost.
2. There are most professional production lines in china .
3. Specialized dump truck line with large box thickness and strong wear resistance.
4. Customers from different countries come to visit our factory .
5. Shorten transportation cycle and improve production efficiency.
Capacity: 6m3-20m3
Cabin model : HW76
Type: Lengthen cabin,single sleeper,adjustable steering wheel,VDO panel,control module,safe-belt with 2locks ,outer sun shade..
Engine: 266HP-420HP
Rated power kw/rpm 213/2200
Max.torque Nm/rpm 1160/1100-1600
Discharge 9.726L
Type 6cylinder inline,turbo charger inter cooled,2 valves,postposition supercharger
Transmission:SINOTRUCK HW SERIES 10 Speeds,Main and auxiliary box structure,the main box double counter shaft Planetary
reducer,with power takeofff.WD615.62,WD615.with HW15710 .
Gear box :430 single plate dry diaphragm,hydraulically with air assist .WD 615.62,WD615.87 with 430C,
Front axle HF9drum ,rated loading 9T
Rear driving axle HC16 double reduction(central reducton+hub reduction),ratio:5.73; 4.8available
Suspendion: Front/ rear suspension are semi-slliptic leaf springs+shock absorber +stabilizer
Steering system: ZF8098 steering gear box,ZF power steering pump,system pressure :18MPa
Brake system: Driving brake: dual circuit compress air brake;parking brake: spring brake,compressed air operating at rear wheel
auxiliary:EVB+engine exhaust (ABS is available)
Electric system: CAN bus control,voltage:24V: alternator:1540w ;starter:7,5KW,battery:12V/165Ah.2pcs
Tyre: 12.00R20 /13R22.5 /315/80R22.5/12.00-20/12R22.5
Fuel tank capacity: 400L
Payload: 12800/8650
Gross vehicle weight: 25000kg
Rated loading weight: 12070/16220
Overrall size: 8204x2496x3850mm
Chassis size: 7350x2496x2958mm
Axle base: 3225+1350
Front/rear suspension: 1500(2129/1275)
Wheelbase: 2022/1850
Min ground clearance: 314mm
Approach/departure angle: 16/(32/36)
Max speed: 75km/h
Max.climbing capacity: >50%
Min turning circle: 15mm
Cabin model : HW76
Type: Lengthen cabin,single sleeper,adjustable steering wheel,VDO panel,control module,safe-belt with 2locks ,outer sun shade..
Engine: 266HP-420HP
Rated power kw/rpm 213/2200
Max.torque Nm/rpm 1160/1100-1600
Discharge 9.726L
Type 6cylinder inline,turbo charger inter cooled,2 valves,postposition supercharger
Transmission:SINOTRUCK HW SERIES 10 Speeds,Main and auxiliary box structure,the main box double counter shaft Planetary
reducer,with power takeofff.WD615.62,WD615.with HW15710 .
Gear box :430 single plate dry diaphragm,hydraulically with air assist .WD 615.62,WD615.87 with 430C,
Front axle HF9drum ,rated loading 9T
Rear driving axle HC16 double reduction(central reducton+hub reduction),ratio:5.73; 4.8available
Suspendion: Front/ rear suspension are semi-slliptic leaf springs+shock absorber +stabilizer
Steering system: ZF8098 steering gear box,ZF power steering pump,system pressure :18MPa
Brake system: Driving brake: dual circuit compress air brake;parking brake: spring brake,compressed air operating at rear wheel
auxiliary:EVB+engine exhaust (ABS is available)
Electric system: CAN bus control,voltage:24V: alternator:1540w ;starter:7,5KW,battery:12V/165Ah.2pcs
Tyre: 12.00R20 /13R22.5 /315/80R22.5/12.00-20/12R22.5
Fuel tank capacity: 400L
Payload: 12800/8650
Gross vehicle weight: 25000kg
Rated loading weight: 12070/16220
Overrall size: 8204x2496x3850mm
Chassis size: 7350x2496x2958mm
Axle base: 3225+1350
Front/rear suspension: 1500(2129/1275)
Wheelbase: 2022/1850
Min ground clearance: 314mm
Approach/departure angle: 16/(32/36)
Max speed: 75km/h
Max.climbing capacity: >50%
Min turning circle: 15mm

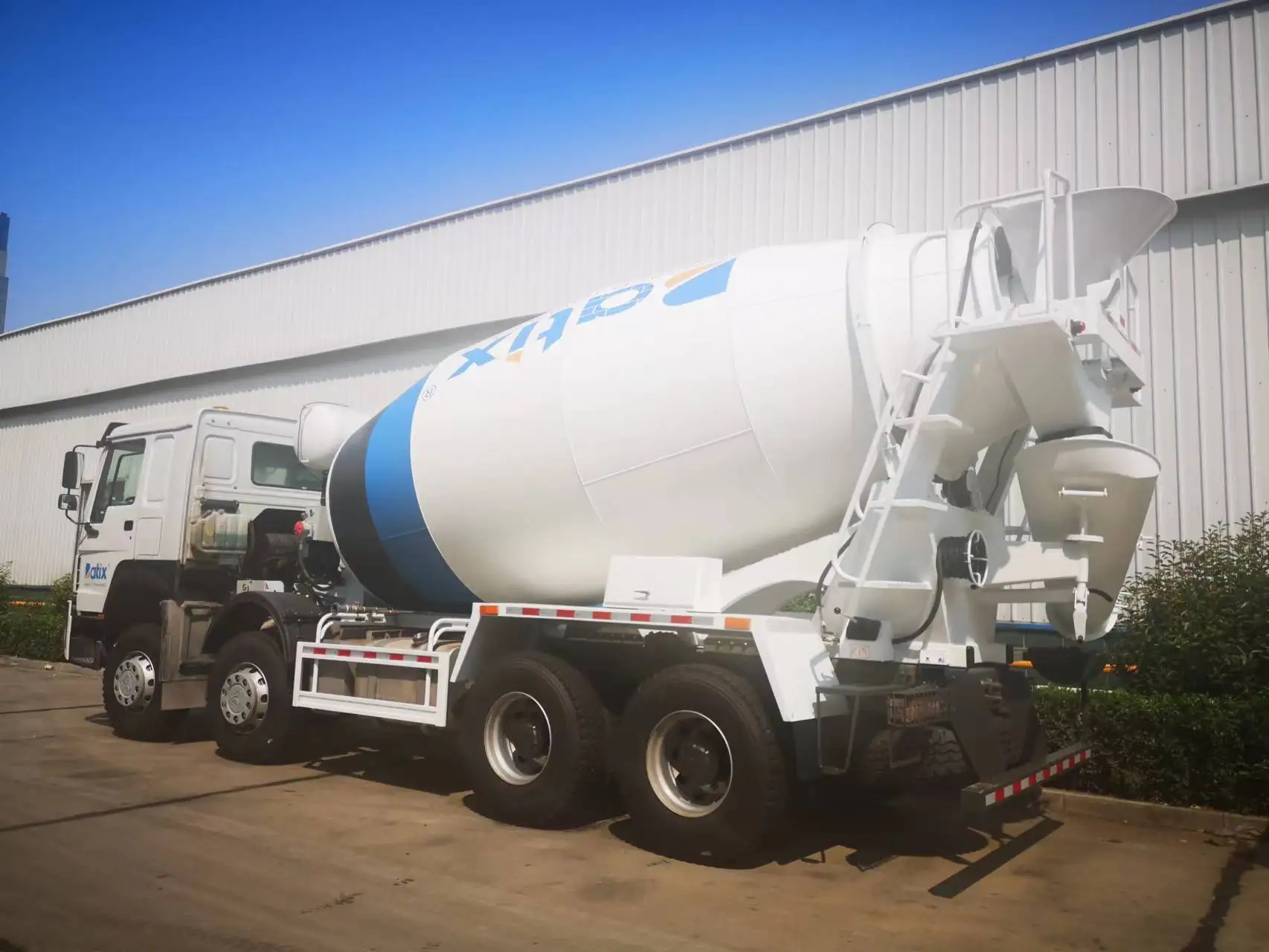

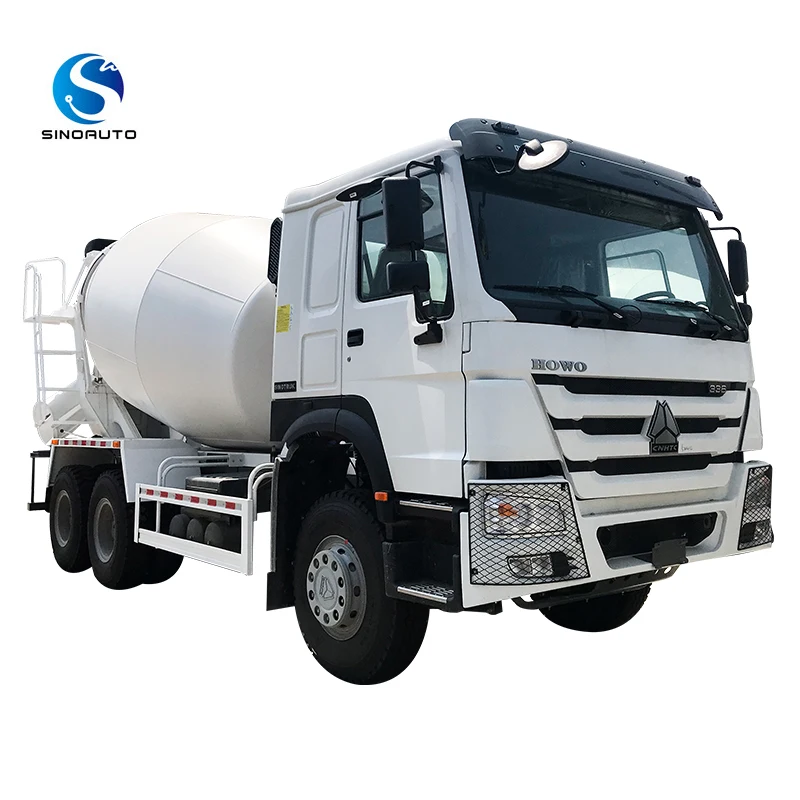

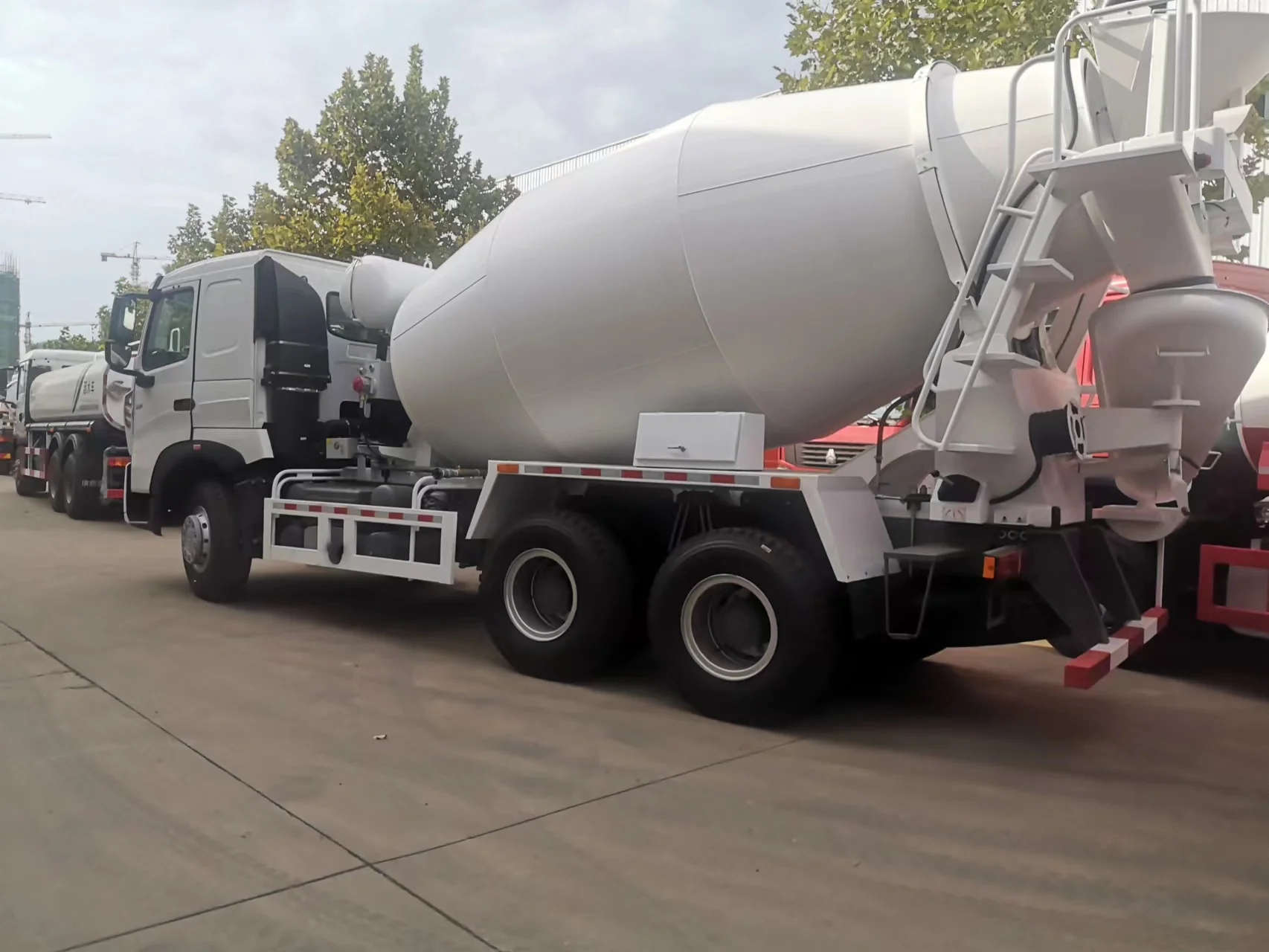

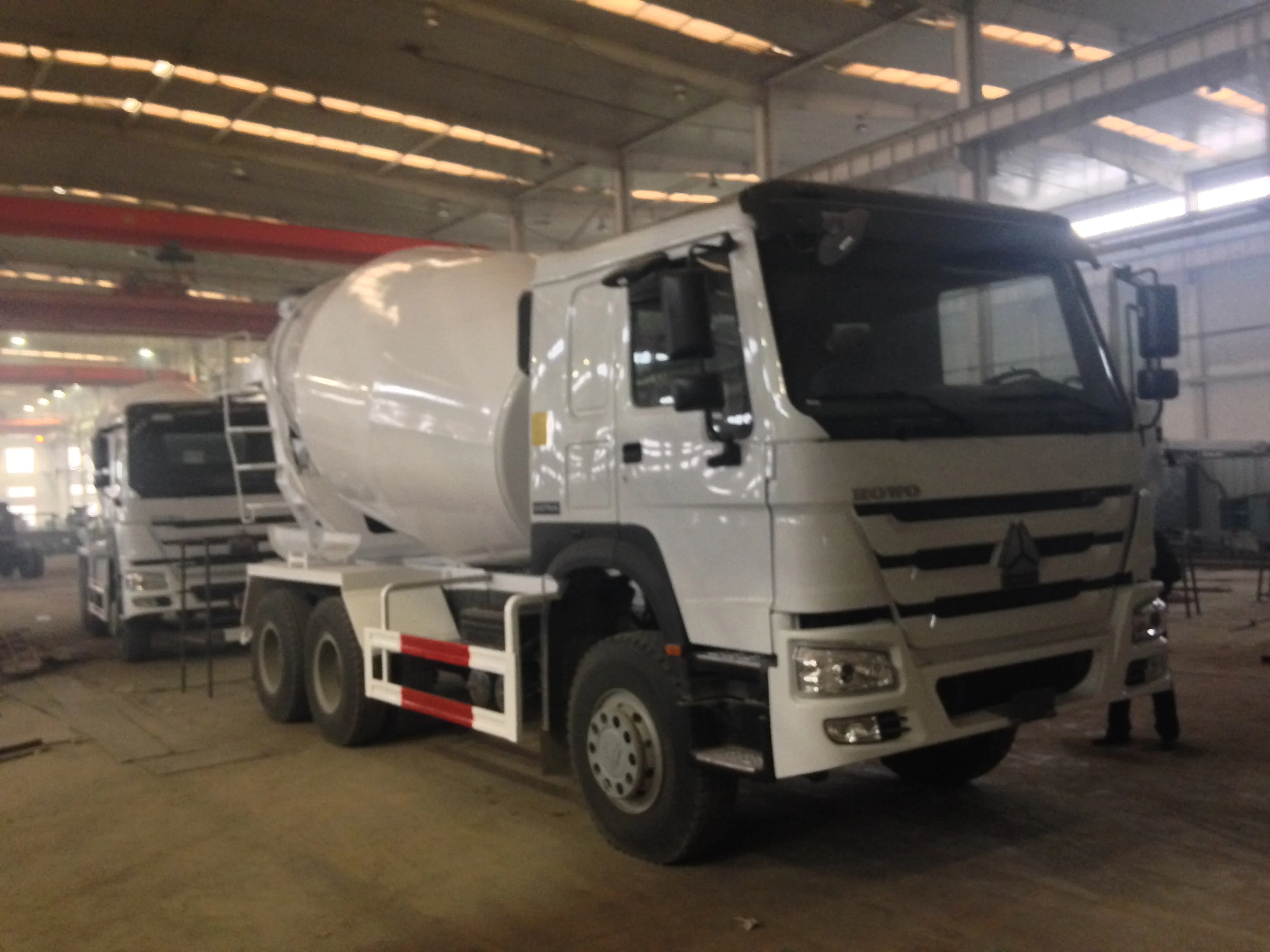

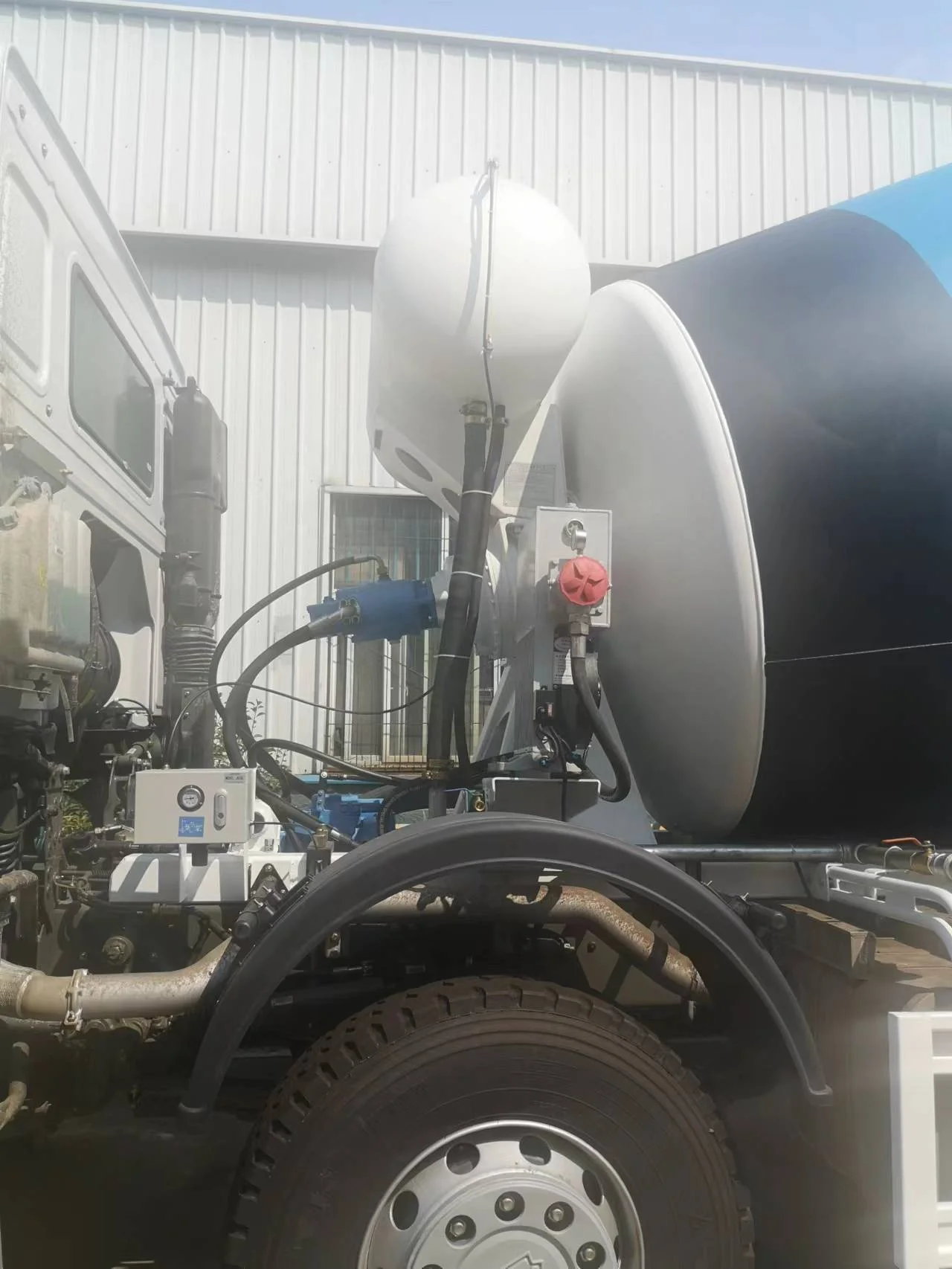

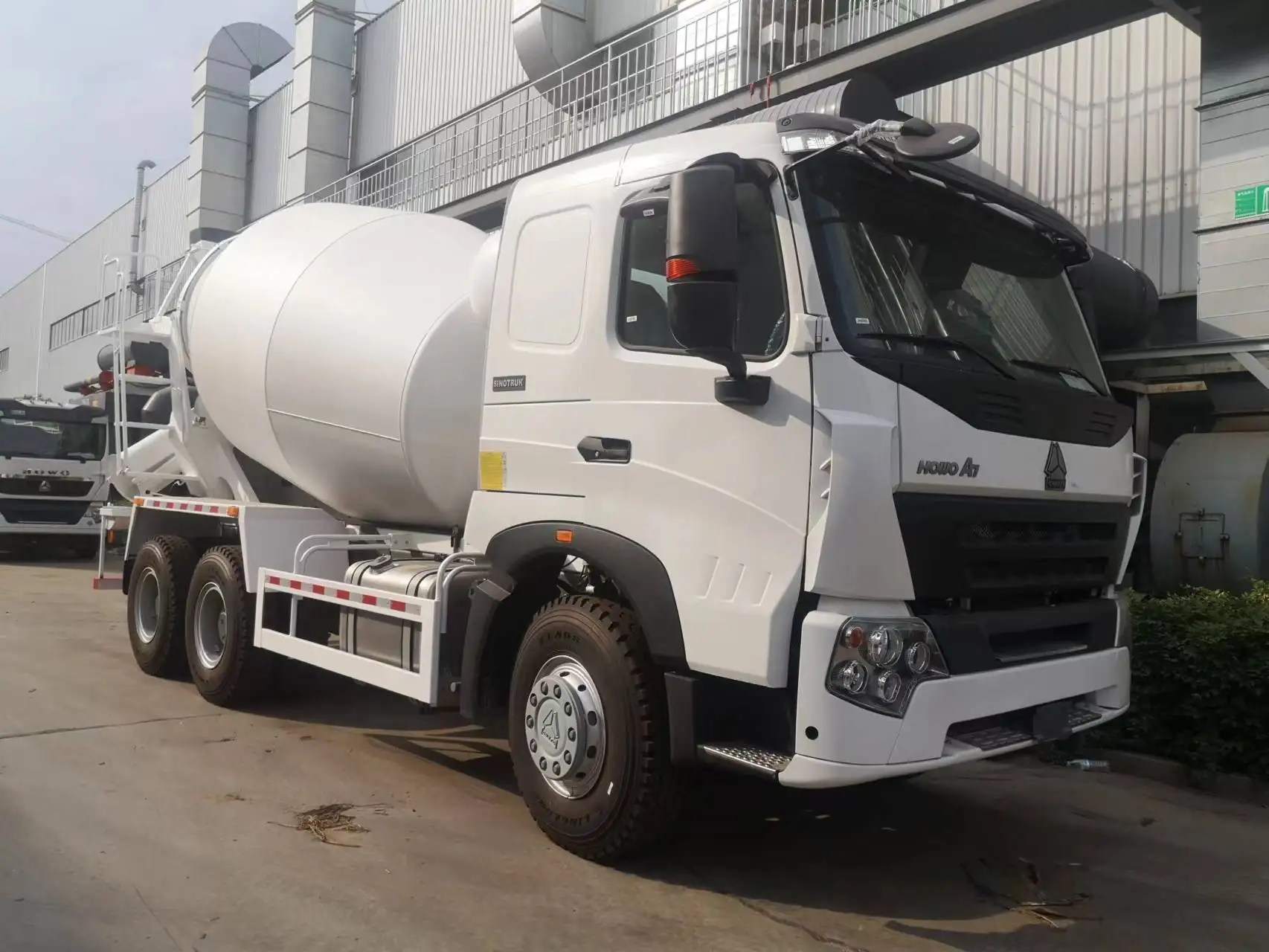

Details Images
