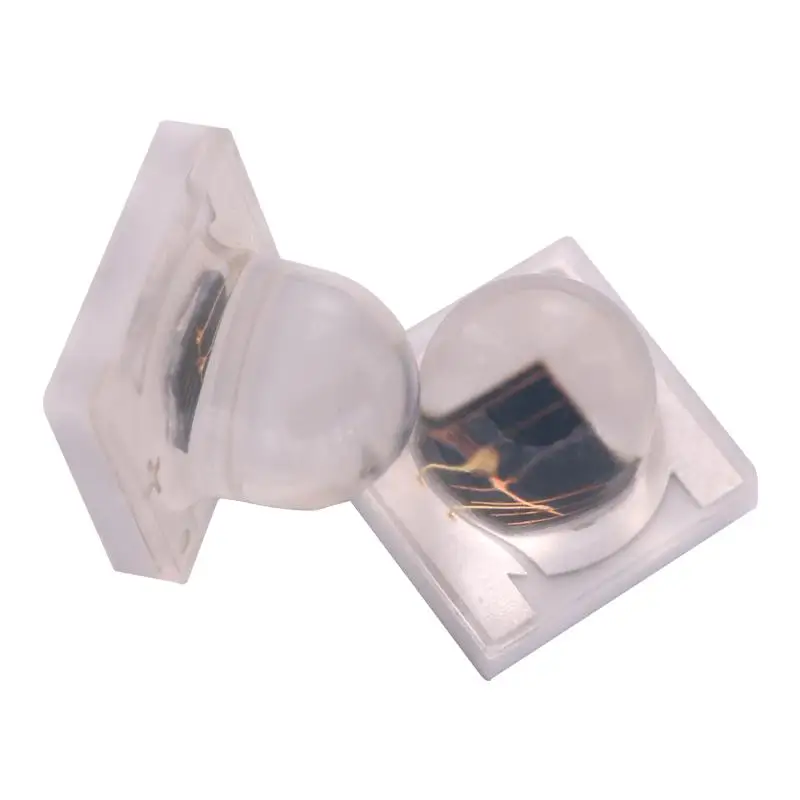

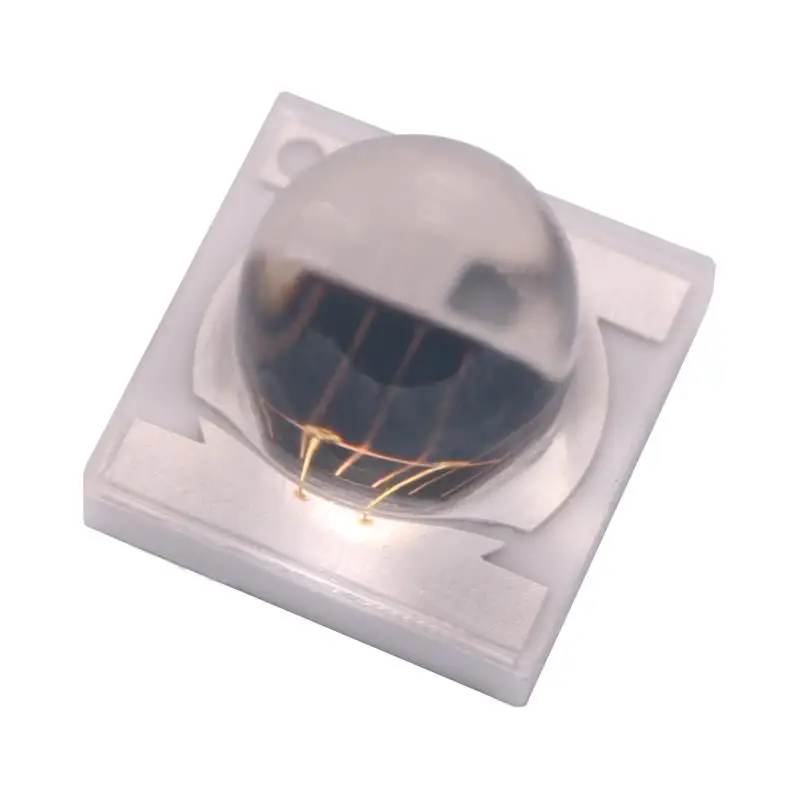

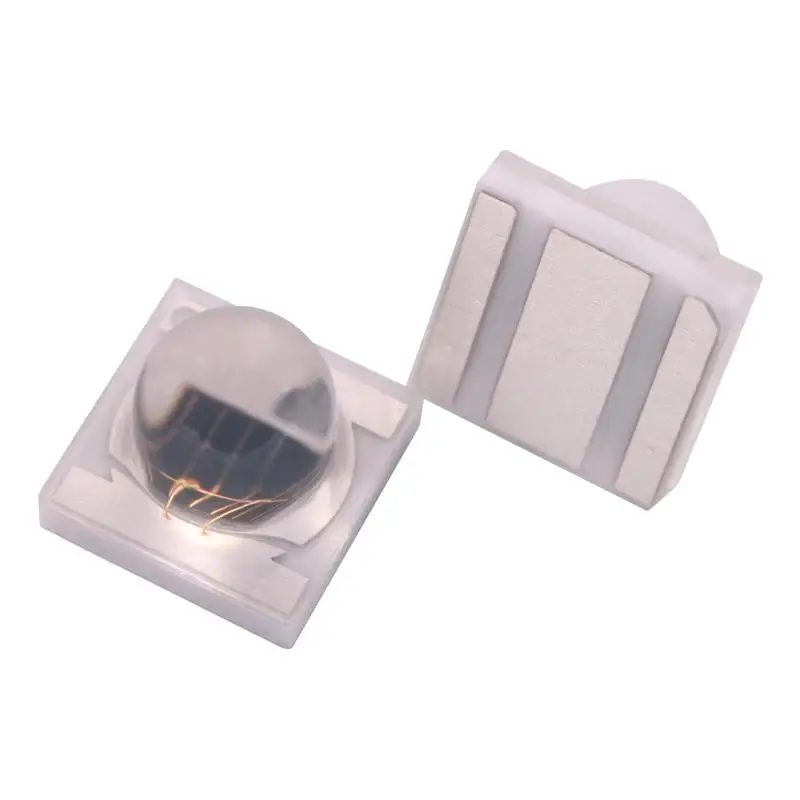

3535 EMC SMD СВЕТОДИОДНЫЙ 3 Вт 60 ° светодиод
- Категория: Lighting Accessories >>>
- Поставщик: Shenzhen,Qianlin,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.6 $* | 0.64 $* |
| Aug-18-2025 | 0.42 $* | 0.17 $* |
| Jul-18-2025 | 0.51 $* | 0.89 $* |
| Jun-18-2025 | 0.51 $* | 0.44 $* |
| May-18-2025 | 0.68 $* | 0.46 $* |
| Apr-18-2025 | 0.63 $* | 0.39 $* |
| Mar-18-2025 | 0.41 $* | 0.60 $* |
| Feb-18-2025 | 0.41 $* | 0.26 $* |
| Jan-18-2025 | 0.38 $* | 0.2 $* |
Характеристики
EMC 3535 SMD LED 3535 IR 3W 60Deg LED IR LED 940nm
Product DescriptionDescription | Features And Benefits | Key Applications |
• This surface-mount standard package 3.45x3.45mm • The L35I series is designed for high flux output applications • High current operation capability. | • Designed for high current operation • Low thermal resistance • Pb-free reflow soldering application | • Surveillance camera • IR data transmission • IR sensor |
Product Selection Table
Part Number | Peak Wavelength | ||||||
Color | Min. | Typ. | Max. | ||||
L35I-80011C1A-LGUV | IR | 800 | 805 | 810 | |||
L35I-85011C1A-LGUV | IR | 845 | 850 | 855 | |||
L35I-94011C1A-LEUV | IR | 940 | 945 | 955 | |||
Electro Optical Characteristics , IF=350mA Ta = 25℃, RH60%
Part Number | Peak Wave length (nm) | Forward Current | Forward Voltage (V) | Radiometric Power (mW) | ||||||||
Min. | Max. | Typ. | Min. | Max. | Typ. | |||||||
L35I-80011C1A-LGUV | 810 | 350 | 1.2 | 2.0 | - | 300 | 400 | 330 | ||||
L35I-85011C1A-LGUV | 850 | 350 | 1.2 | 2.0 | - | 280 | 380 | 300 | ||||
L35I-94011C1A-LEUV | 940 | 350 | 1.2 | 2.0 | 260 | 360 | 280 | |||||
Absolute Maximum Ratings , Ta = 25℃, RH60%
• Tolerance of measurement of Luminous Flux or Radiometric Power: ±10% • Tolerance of measurement of wavelength: ±2nm
• Tolerance of measurement of Forward Voltage: ±0.05V • All the data are just for reference, specific parameters refer to the label
• When the LEDs are in operation the maximum current should be decided after measuring the package temperature, junction temperature should not exceed the maximum rate.
Relative Spectral Distribution
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
WHO WE ARE
Established in 2012, Gainer LED has been focused on LED industry for over 10 years.
We supply LED components, LED drivers, and Optical Lens of prestigious brands like C-R-E-E , Os,Lumi--leds, Ni--chia, ,Sam--sung, Bridge--lux, Lumi--nus, Citi--zen, etc.
Benefit from the huge market of China's LED industry and excellent supplier relations, we have better price advantage, abundant supply and shorter delivery time.
Driven by the ethic of ever-improving customer-understanding, Gainer LED aims to provide fast, consistent, and highly responsive service to global lighting manufacturers.
Established in 2012, Gainer LED has been focused on LED industry for over 10 years.
We supply LED components, LED drivers, and Optical Lens of prestigious brands like C-R-E-E , Os,Lumi--leds, Ni--chia, ,Sam--sung, Bridge--lux, Lumi--nus, Citi--zen, etc.
Benefit from the huge market of China's LED industry and excellent supplier relations, we have better price advantage, abundant supply and shorter delivery time.
Driven by the ethic of ever-improving customer-understanding, Gainer LED aims to provide fast, consistent, and highly responsive service to global lighting manufacturers.
FAQ
WHY US
With years of experiences & expertise, our well-trained product specialists and engineers can give you support& advice on product development. Help you to accelerate time to market with innovative&cost effective solutions.
With years of experiences & expertise, our well-trained product specialists and engineers can give you support& advice on product development. Help you to accelerate time to market with innovative&cost effective solutions.
