Характеристики
Products Description
Main Features
1. The whole machine frame is made of iron plate, with extremely high precision and stability.
2. Main motor adopts single-phase asynchronous motor.
3. PhotoelectricEPC system.
4. Inverter : Delta
5. Automatic constant tension of unwinding and rewindingby magnetic powder brake and clutch.
6. Rewinding and unwinding adopts air shaft.
7. Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant, mild and corrosion-resistant
8. Electrical equipment
9. The standard machine equipped with 1 set(10 pcs)circular knives, razor knife is optional.
10. The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
2. Main motor adopts single-phase asynchronous motor.
3. PhotoelectricEPC system.
4. Inverter : Delta
5. Automatic constant tension of unwinding and rewindingby magnetic powder brake and clutch.
6. Rewinding and unwinding adopts air shaft.
7. Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant, mild and corrosion-resistant
8. Electrical equipment
9. The standard machine equipped with 1 set(10 pcs)circular knives, razor knife is optional.
10. The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.
Machine Model | DBFQT200 |
Type | Unwinding part and rewinding part are on same side |
Suitable Slitting material | PE, BOPP,OPP, paper, non woven fabric, and aluminum foil,ect. |
Max. Unwinding material width | 800mm |
Max. Unwinding dia | 600mm |
Slitting width | 50mm-800mm |
Slitting speed | 10-200m/min (depends on different material) |
Max. Rewinding dia | Φ450mm |
Inner dia of paper core | 3” |
Voltage | 380V,3P,50HZ |
Machine size(L*W*H) | 1.3x1.96x1.4m |
Machine weight | 1000kg |

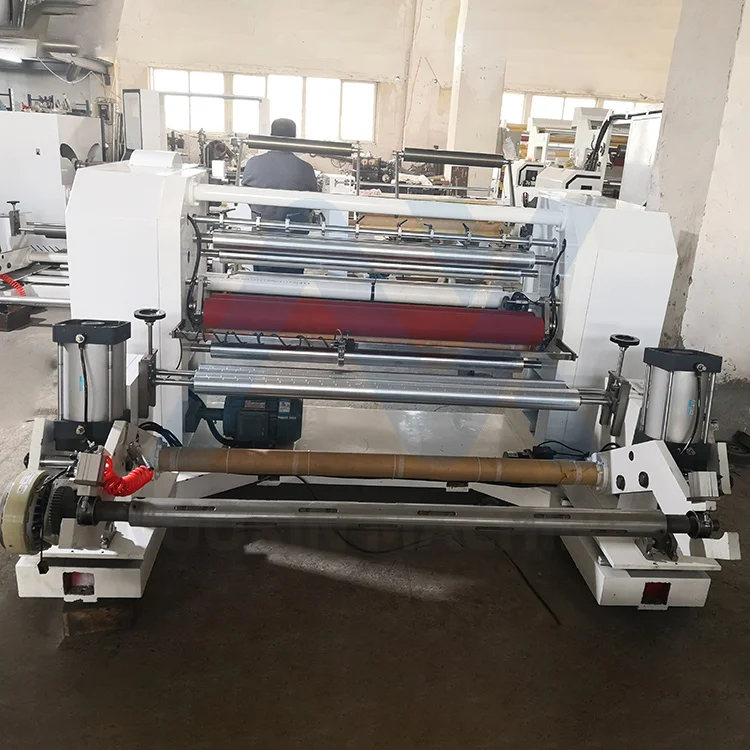

Machine Display
1.Unwinding Unit 2.Rewinding Part 3.Web Guide Controller 4.Control Panel 5.Slitting Part

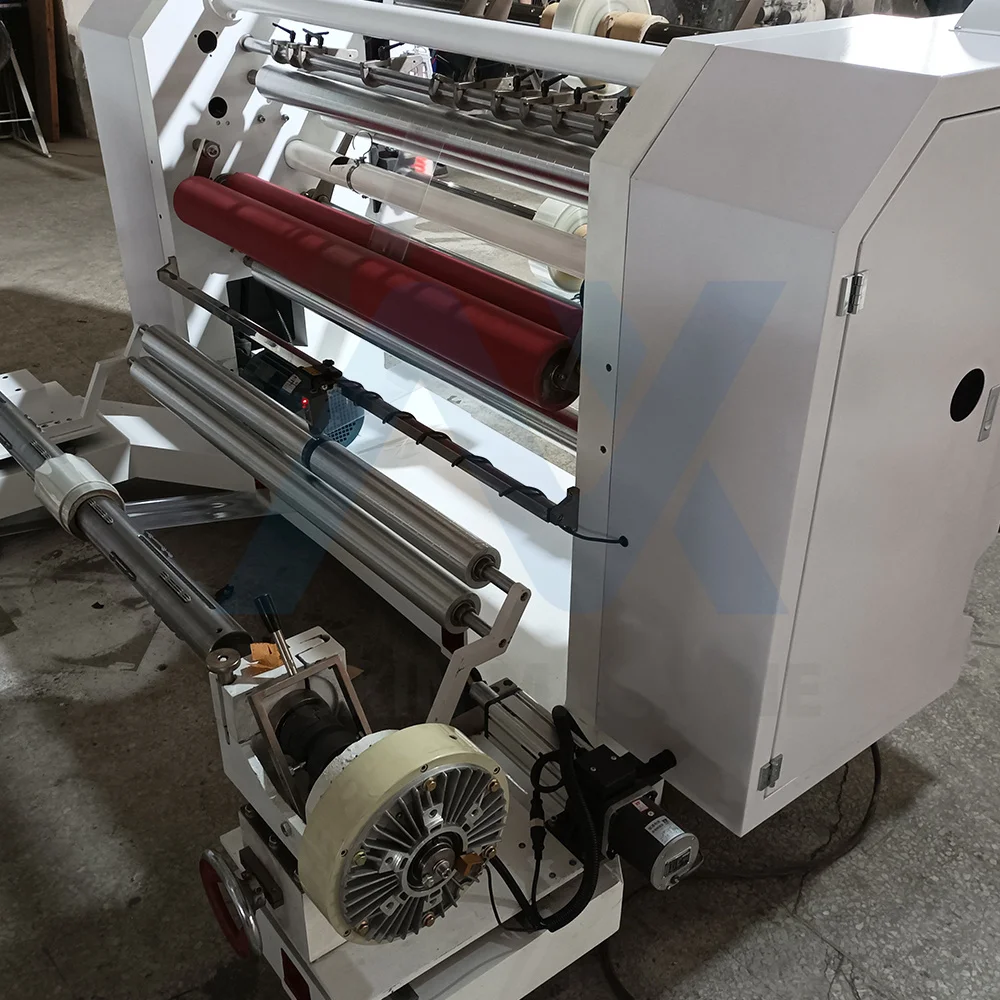

Machine Details
