Новое поступление осциллятор экстракции 6-позиционный сепараторный вертикальный

Описание и отзывы

Трекер стоимости

Характеристики

Product Features
Article No	9465
brand	Laixin
Rotation frequency	10-300 times/minute
Model number	9465
Order number	9465
weight	75
dimension	785*460*260mm
Temperature control range	Normal temperature
Processing customization	is
Is it a cross-border export exclusive source of goods	no
volume	Standard fixture: 50-1000mL Large fixture: 50-3000mL
Import or not	no
Swing amplitude	45mm
Timing range	It's 0-60 minutes
type	Vertical or oblique oscillation

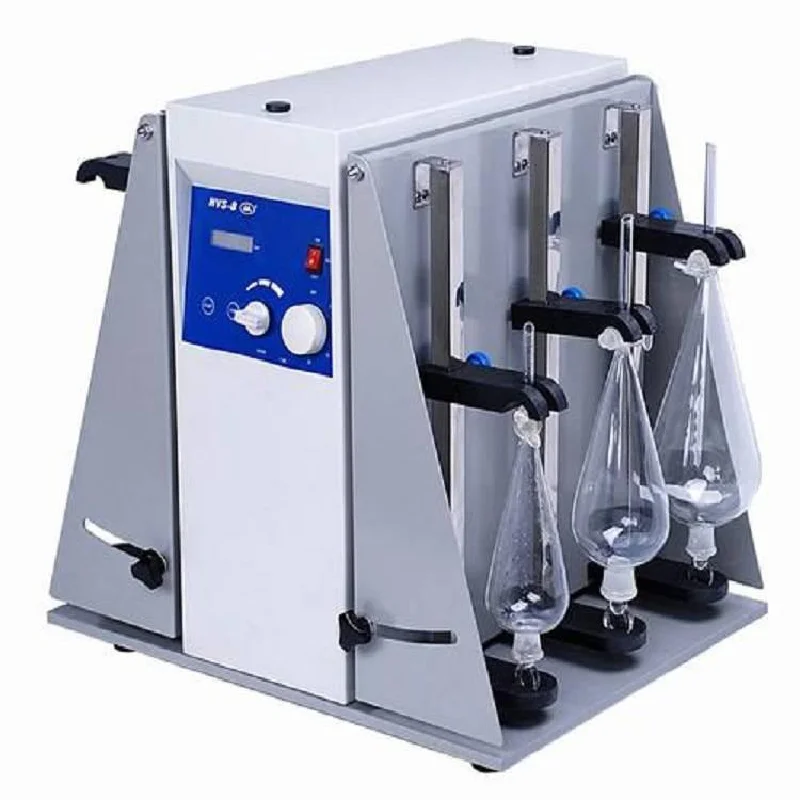

New Arrivals Extraction Purification Oscillator 6-position separatory funnel vertical oscillator Intelligent separatory funnel vertical oscillator

-\\ Operation instructions:

1\\ Liquid separation funnel vertical oscillator will be the sample and extraction solution to be extracted by oscillation placed in the sample bottle as required, close the inner cover, tighten the outer cover, reverse the sample bottle, ensure that the solution in the bottle does not leak.

2\\ Switch on the power of the flip oscillator, push the main power switch upward, turn on the power of the instrument.

3. Loading of sample bottles

Push the movable push door upwards, turn the oscillator by hand to rotate the device to the appropriate position, turn the handle counterclockwise, loosen the bottle fixing device, put the prepared and tightly capped sample bottle into the tray, and tighten the handle up and down in the clockwise direction; Screw the fixing nut counterclockwise to the top by hand to prevent the fixing device from loosening during machine operation.

After the sample bottle is loaded, close the movable push door, switch on the speed/switch button, and the instrument starts to work.

4\\ Select one-way/two-way rotation mode, one-way/two-way button press up for one-way rotation, press down for two-way rotation.

5\\ Determine the oscillation time and rotate. Adjust the time setting and display. Button to the required time

6\\ Set the leaching temperature according to the requirements of leaching method.

7\\ After setting up, the instrument begins to work. When the operation reaches the set time, the operation will automatically stop. Turn off the switch switch, open the movable push door, turn it by hand to the appropriate position, turn the lower part of the screw fixing the nut clockwise, turn the handle counterclockwise until the sample bottle can be removed, and then tighten the handle clockwise. All sample bottles will be removed in this way, and the handle will be reset.
