Китайский производитель бульдозер SD16 HD16 с лезвием 3 зубца рыхлитель от
- Категория: Bulldozers >>>
- Поставщик: Jinan,Fortius,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.59 $* | 0.99 $* |
| Aug-16-2025 | 0.84 $* | 0.47 $* |
| Jul-16-2025 | 0.83 $* | 0.91 $* |
| Jun-16-2025 | 0.0 $* | 0.98 $* |
| May-16-2025 | 0.77 $* | 0.23 $* |
| Apr-16-2025 | 0.44 $* | 0.8 $* |
| Mar-16-2025 | 0.39 $* | 0.5 $* |
| Feb-16-2025 | 0.56 $* | 0.53 $* |
| Jan-16-2025 | 0.26 $* | 0.91 $* |
Характеристики
Chinese manufacturer SD16 HD16 Dozer Bulldozer with blade 3 Teeth Ripper By Skd
SPECIFICATION | SPECIFICATION | |||||||
Specification/Blade type | Straight-tilt | Angle | U-Blade | |||||
Operating Weight | Kg | 17400 | 17700 | 17900 | ||||
Min.Turning Radius | M | 3.2 | 3.2 | 3.2 | ||||
Ground Pressure | MPa | 0.069 | 0.07 | 0.071 | ||||
Track Gauge | MM | 1880 | 1880 | 1880 | ||||
Max. Pulling Force | KN | 142 | 142 | 142 | ||||
Grade Ability | ° | 30 | 30 | 30 | ||||
TRAVEL SPEED | ||||||||
1st | 2nd | 3rd | ||||||
Forward (km) | 0～3.8 | 0～6.6 | 0～10.6 | |||||
Reverse (km) | 0～10.6 | 0～8.5 | 0～13.6 | |||||
ENGINE | ||||||||
Model & Type | Weichai WD10G178E25 | |||||||
6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection | ||||||||
Rated Revolution | (rpm) | 1850 | ||||||
Flywheel Horsepower | (HP) | 160 | ||||||
Cylinder Number-BoreX Stroke | (mm) | 6-126X 130 | ||||||
Piston Displacement | (L) | 9.73 | ||||||
Min. Fuel Consumption | (g/kW.h) | 223 | ||||||
Max.Torque | (Nm/rpm) | 830/1100 | ||||||
Starting Motor | V*KW | 24*7.5 | ||||||
POWER TRANSMISSION SYSTEM | ||||||||
Torque Converte | 3-element,1-stage,1-phase | |||||||
Transmission | Planetary gearing, hand-manipulated, hydraulic shift， forced lubrication,3 forward and 3 reverse speeds | |||||||
Bevel Gear | Spiral bevel gear, splash lubrication, single-stage speed reduction | |||||||
Steering Clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||||||
Steering Brake | Wet, band type, pedal hydraulic booster, with parking brakes | |||||||
Final Drive | Double reduction of spur gear, splash lubrication | |||||||
HYDRAULIC SYSTEM | ||||||||
Pump Type | Gear pump 07441-67503 | |||||||
Working Pressure | (MPa) | 13.4 | ||||||
System Discharge | (L/min) | 250 | ||||||
Working Cylinder type | Double-acting piston type | |||||||
Working Cylinder Lift Number-BoreXRodXStroke | (mm） | 2-110X65X1026 | ||||||
Working Cylinder Tilt BoreXRodXStroke | (mm) | 160X70X140 | ||||||
UNDERCARRIAGE SYSTEM | ||||||||
Type | Swing type of sprayed beam, suspended structure of equalizer bar | |||||||
Carrier Rollers | 2(each side) | |||||||
Track Rollers | 6/each side (4-single flange, 2-double flange) | |||||||
Track Type | Sealed, assembled single- grouser | |||||||
Number Of Track Shoes | 37(each side) | |||||||
Width Of Track Shoes | (mm) | 510 | ||||||
Pitch | (mm) | 203.2 | ||||||
Length Of Track 0n Ground | (mm) | 2430 | ||||||
WORK EQUIPMENT | ||||||||
Specification/Blade type | Straight-tilt | Angle | Angle | |||||
Blade Capacity | (m3) | 4.5 | 4.3 | 8.6 | ||||
Blade Width X Height | (mm) | 3416×1145 | 3970×1037 | 4064×1386 | ||||
Max.Lift | (mm) | 1110 | 1095 | 1110 | ||||
Max.Depth | (mm) | 530 | 545 | 530 | ||||
Max.tilt Adjustment | (mm) | ≥860 | ≥400 | ≥400 | ||||
Pitch Adjustment | ( ° ) | 55 | 55 | 55 | ||||
Capability | (m3/H) | 247 | 247 | 260 | ||||
Weight Of Blade | (kg) | 2350 | 2450 | 2560 | ||||
COOLANT AND LUBRICANT CAPACITY | ||||||||
Fuel Tank Capacity | L | 320 | ||||||
Hydraulic Tank Capacity | L | 108 | ||||||
Engine oil Capacity | L | 45 | ||||||
Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity | L | 122 | ||||||
Final Drive Capacity | (L) | 33(each side) | ||||||
RIPPER(OPTIONAL) | ||||||||
3-Shank Ripper: | ||||||||
Max.Digging Depth | (mm) | 572 | ||||||
Max.Lift | (mm) | 702 | ||||||
Shank Of Distance | (mm) | 950 | ||||||
Weight | (kg) | 1700 | ||||||

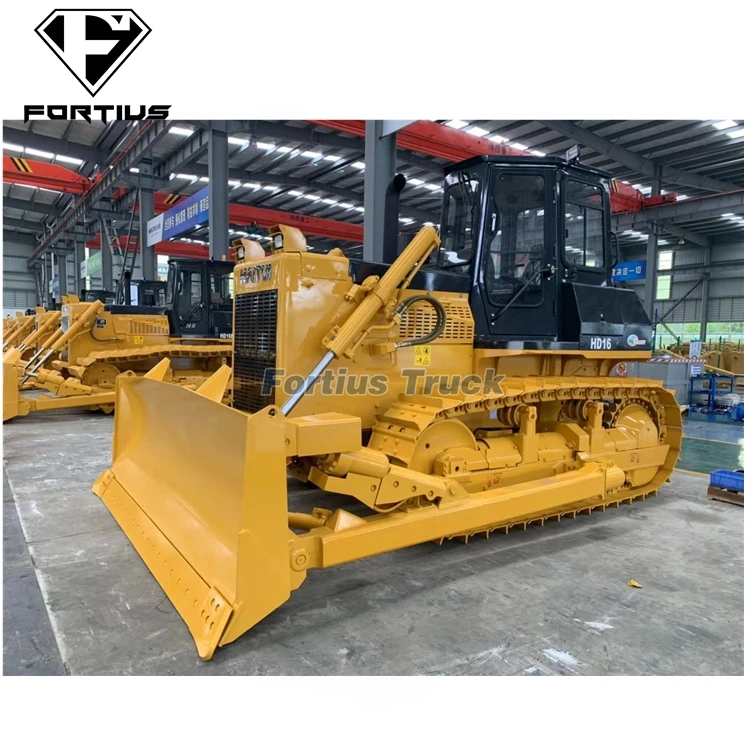

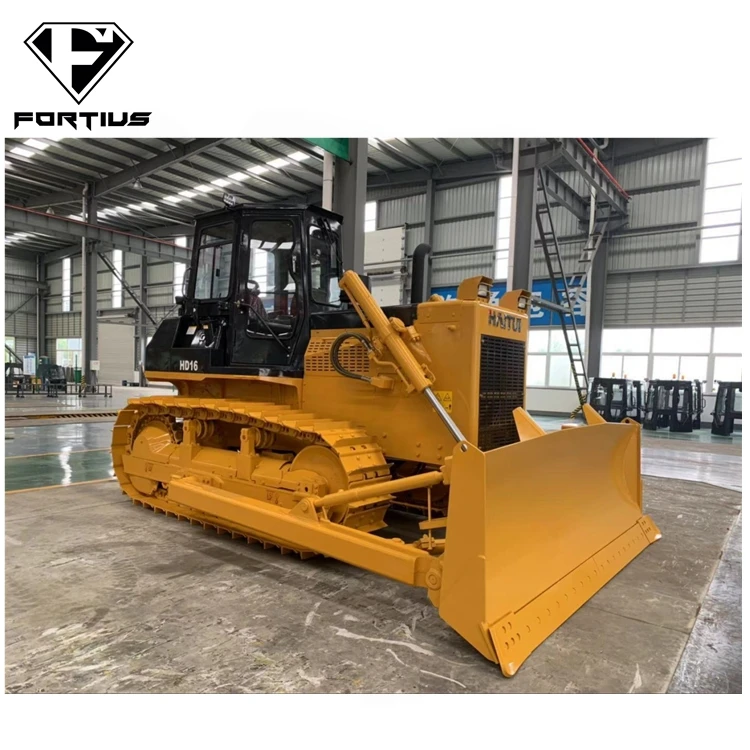

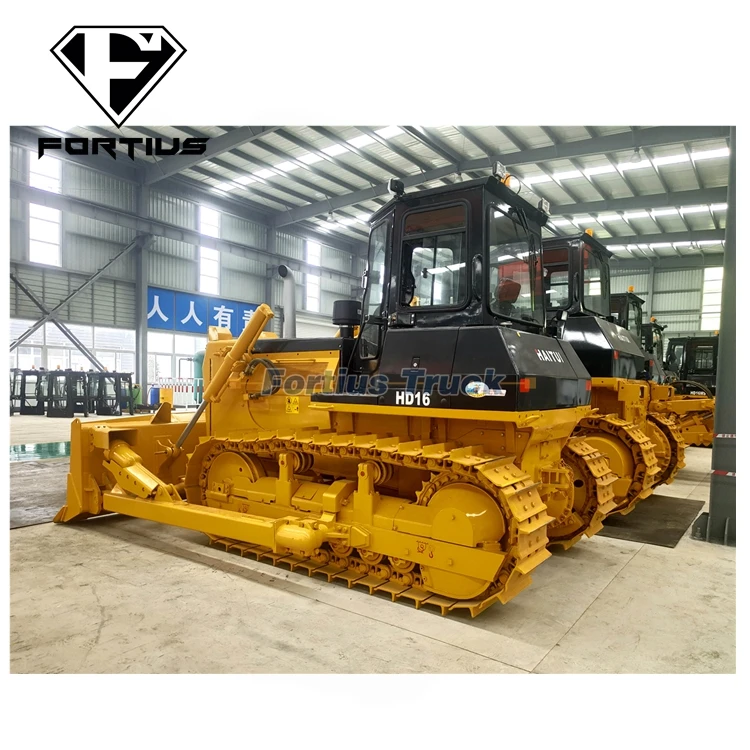

Details Photos
1.The Weichai electronic control, direct injection, turbocharged engine equipped features high torque reserve coefficient,
excellent energy-conservation and environment-friendliness, and strong power.
2.The split transmission and torque converter system, single-turbine three-element torque converter, and AMT full-automatic
electronic control transmission feature simple structure and higher reliability.
3.The electronic control joysticks feature convenient and flexible operations and incorporate the blade floating function.
4.The full-hydraulic maintenance-free wet drive axle features fast response, stable braking, and high safety and reliability.
excellent energy-conservation and environment-friendliness, and strong power.
2.The split transmission and torque converter system, single-turbine three-element torque converter, and AMT full-automatic
electronic control transmission feature simple structure and higher reliability.
3.The electronic control joysticks feature convenient and flexible operations and incorporate the blade floating function.
4.The full-hydraulic maintenance-free wet drive axle features fast response, stable braking, and high safety and reliability.
1.Comfort: Spacious and comfortable cab, providing excellent all-round vision.
2. New type suspension seat conforms ergonomics, improve driver's operation comfort.
2. New type suspension seat conforms ergonomics, improve driver's operation comfort.
3.Intelligence: Adopt smart driving computer, with big data analysis and storage function, timely warning prompt.
4.Configuration: National II standard high quality engine, adopts new technology of low fuel consumption and strong power, accurate matching of original imported main hydraulic system and engine, provide accurate flow, improve operation efficiency.
4.Configuration: National II standard high quality engine, adopts new technology of low fuel consumption and strong power, accurate matching of original imported main hydraulic system and engine, provide accurate flow, improve operation efficiency.
5.It has the characteristics of "high reliability, real value, safe and environmental protection, comfortable and convenient", and can provide a variety of special configuration options, which can meet the needs of different countries and customers.

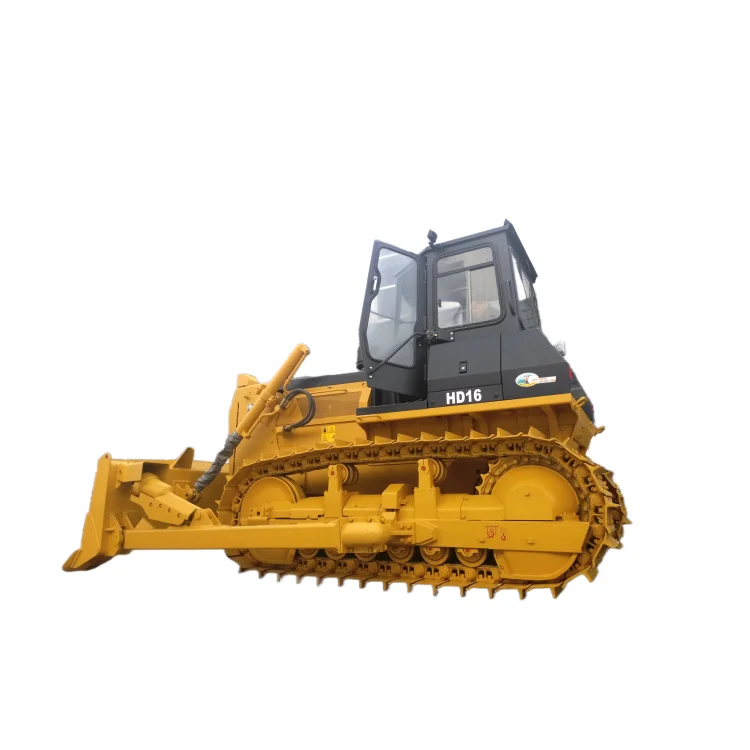

Product Show
Hot Sale Product
Our Company
About Fortius
established by few 10-years working experienced experts for SINOTRUK trucks, trailers and spare parts. construction machine , new
energy vehicles .
We have dealt with many projects in China and abroad, such as TANZANIA STRATEGIC CITIES PROJECT, Uganda CITIES Sewage engineering,
Guinea city electric project, Brunei Port project, Fiji logging transportation, Philippines mining project and so on.
We have "heavy duty fans" from all over the world now, hope you may joint us, and let start a good and pleasant business
association together
Our workshop

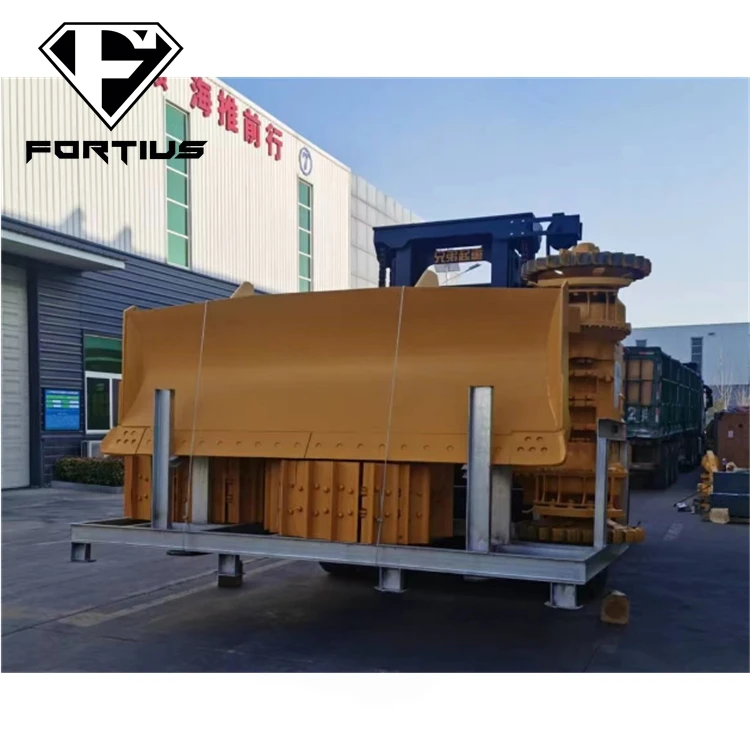

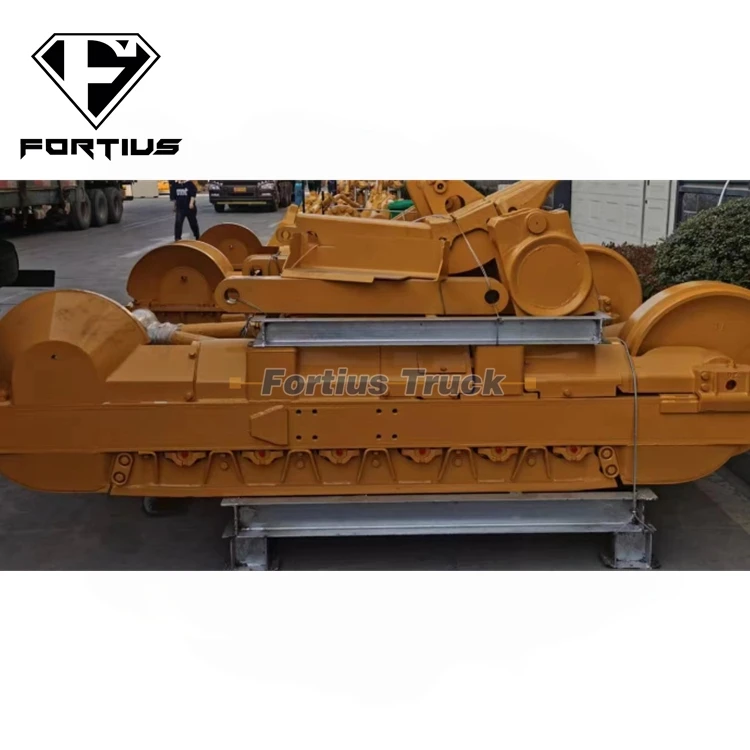

Packaging & Shipping
1.Container: The cheapest and fast one ;put the machine into container need disassemble .
2.Flat rack: Often used to ship two wheel loader,max load-bearing is 35tons.
3.Bulk cargo ship: which is better for bigger construction equipment,no need disassemble.
4.RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
2.Flat rack: Often used to ship two wheel loader,max load-bearing is 35tons.
3.Bulk cargo ship: which is better for bigger construction equipment,no need disassemble.
4.RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
Related Products
We Supply Wheel Loader, Bulldozer,Demolition Machine, Pile Driver Machine, Backhoe Loader, Steel
grabbing machine, Telescopic handler, Forklift,Tractor, Digger Hydraulic, Mining Excavator, Selfloader,
Pay Loader, Truck, Parts, road construction machinery
grabbing machine, Telescopic handler, Forklift,Tractor, Digger Hydraulic, Mining Excavator, Selfloader,
Pay Loader, Truck, Parts, road construction machinery
FAQ
Q1,What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2,What's your minimum quality?
1 unit
Q3,How about your delivery time?
A: Generally, it will take about 20 to 30 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q4,What's the warranty?
A: Engine, transmission, axle guarantee one year (Any faulty caused by incorrect operation or man-made factors is exclusive of
guarantee.)
Q5, What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2,What's your minimum quality?
1 unit
Q3,How about your delivery time?
A: Generally, it will take about 20 to 30 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q4,What's the warranty?
A: Engine, transmission, axle guarantee one year (Any faulty caused by incorrect operation or man-made factors is exclusive of
guarantee.)
Q5, What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply
