BV 10/16/25 мм2 450/750 В высококачественный бескислородный медный ПВХ изолированный сердечник жесткий

Описание и отзывы

Трекер стоимости

Характеристики

Product Description:

It is suitable for household appliances with AC rated voltage of 450/750V and below, household decoration, automation devices, power lighting, complete sets of electrical control circuits, mechanical equipment wiring and other occasions.
The long-term working temperature of the wire should not exceed +75°C, and the temperature during installation or movement of the wire should not be lower than -20°C.
This product has good electrical insulation properties, physical and mechanical properties and non-flammable properties, soft and reliable, convenient and durable.
The colors of this product are: yellow, red, green, blue, black, white, gray, two-color (yellow-green), brown.
Wire specifications are: 0.5 mm², 0.75 mm², 1  mm², 1.5 mm², 2.5 mm², 4  mm², 6 mm², 10  mm², 16  mm², 25  mm², 35  mm², 50  mm², 75  mm², 95  mm², 120  mm², 150  mm², 185 mm², etc.







Product use range:

1. Use as home appliance wiring cable, building wire
2. Use as electrical and electronic equipment internal connecting wire
3. Use as lighting wire
4. House wiring cable







Product technical parameters:

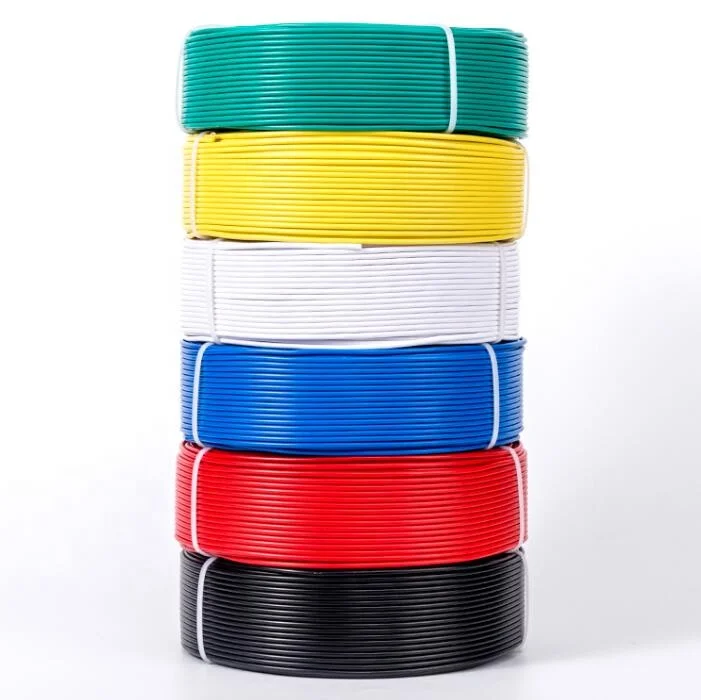

Product color description and specification choice:







Product structure features:

1. The insulating material is made of high-quality PVC, which can meet the national standard. The conductor and insulating structure are tight, not loose, and have good flame retardant ability. The surface of the wire is fine, acid and alkali resistance , and corrosion resistance.
2. The wire has excellent electrical insulation properties and can be used in relatively complex environments.
3. The conductor is made of high-quality oxygen-free red copper, with a compact structure, bright copper wire, and the resistance conforms to the national standard.











Product details:

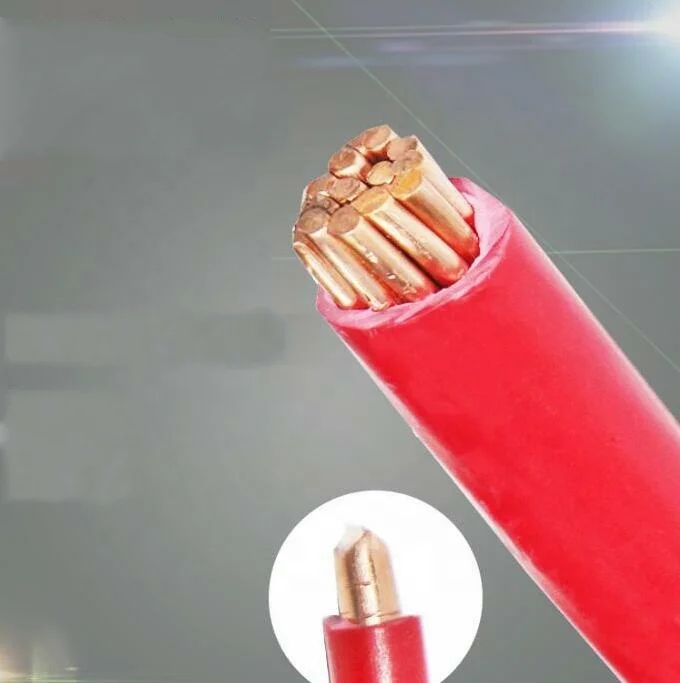

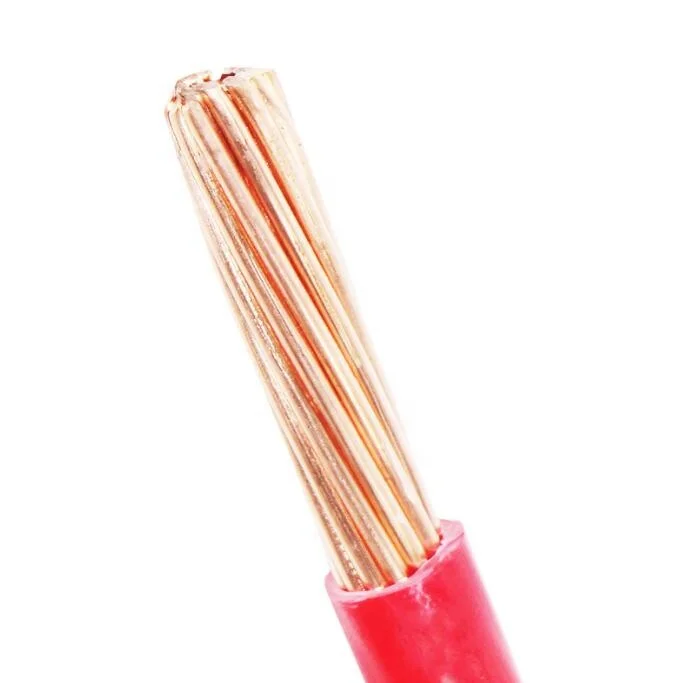

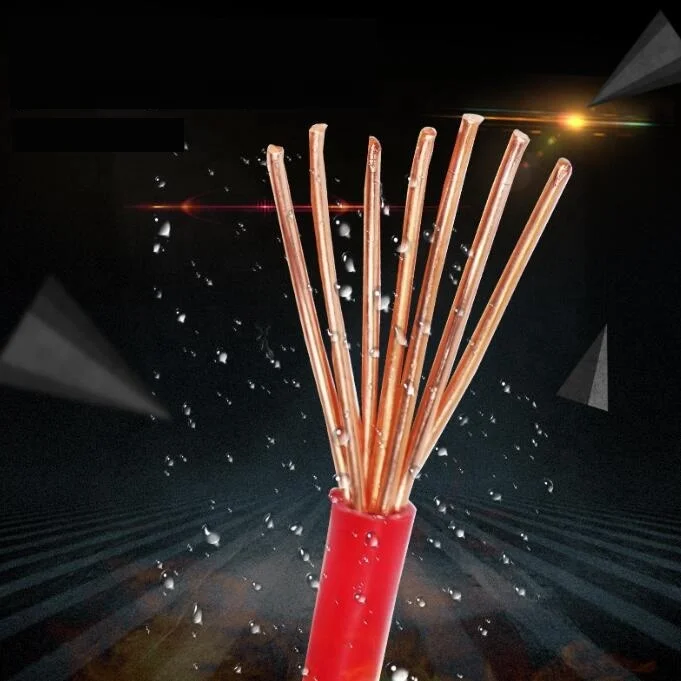

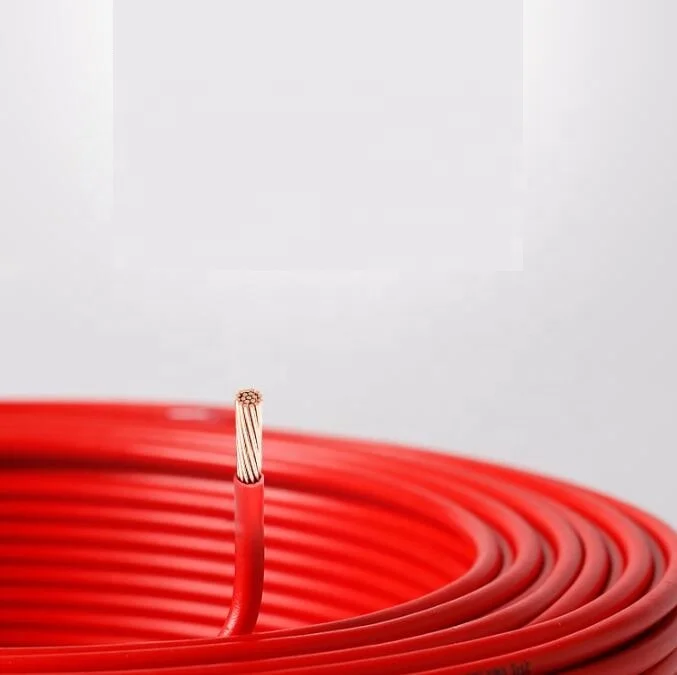

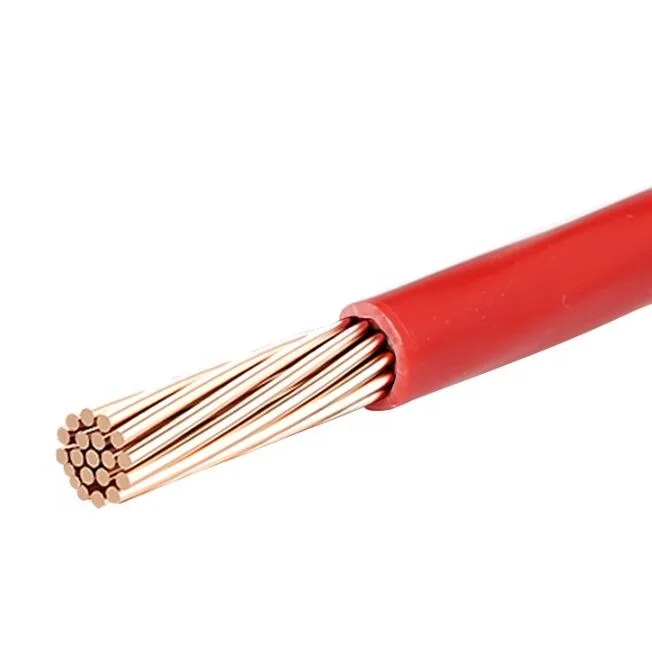

Products real shot:





A corner of the production workshop:





Product packaging:





Product application case:
