Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Лабораторная машина для вулканизации небольших пластин/резиновая плоская вулканизирующая машина/Пластинчатый
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Changsha,Lonroy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.89 $* | 0.73 $* |
| Aug-15-2025 | 0.1 $* | 0.86 $* |
| Jul-15-2025 | 0.7 $* | 0.55 $* |
| Jun-15-2025 | 0.63 $* | 0.8 $* |
| May-15-2025 | 0.65 $* | 0.91 $* |
| Apr-15-2025 | 0.8 $* | 0.29 $* |
| Mar-15-2025 | 0.16 $* | 0.75 $* |
| Feb-15-2025 | 0.85 $* | 0.82 $* |
| Jan-15-2025 | 0.83 $* | 0.81 $* |
Характеристики

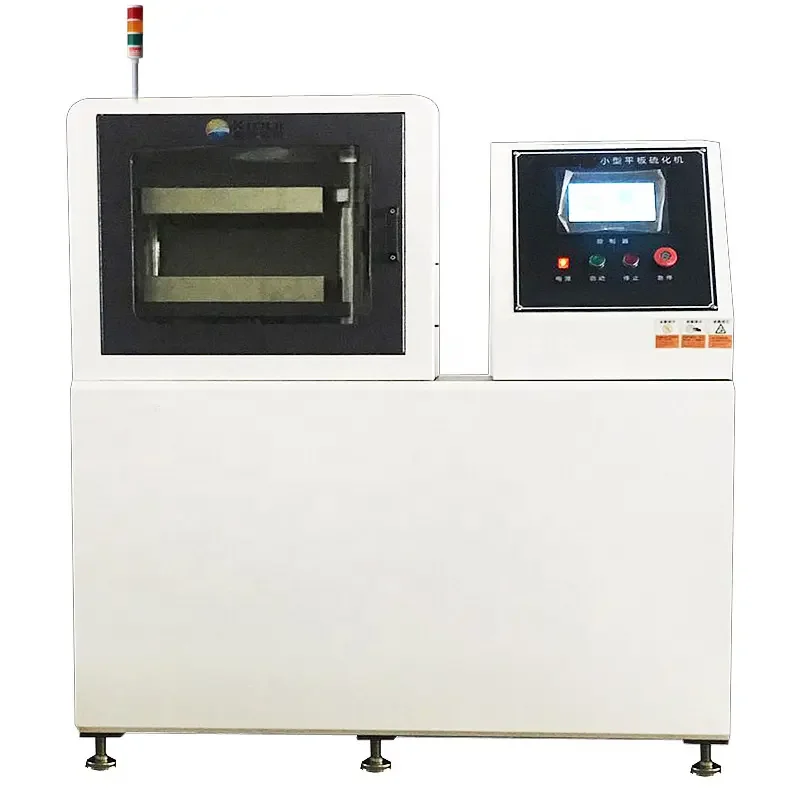

Lab Small plate vulcanizing machine/Rubber Flat Vulcanizing Machine/plate vulcanizing press
Overview
This series of plate vulcanizing machine is used for pressing all kinds of rubber model products and non-model products, and also can be used for pressing all kinds of thermosetting plastics and foaming rubber and plastic products.With independent power mechanism and electrical system, using the button control.Working pressure and heating temperature can be adjusted within a certain range.This machine is divided into two types: manual and semi-automatic

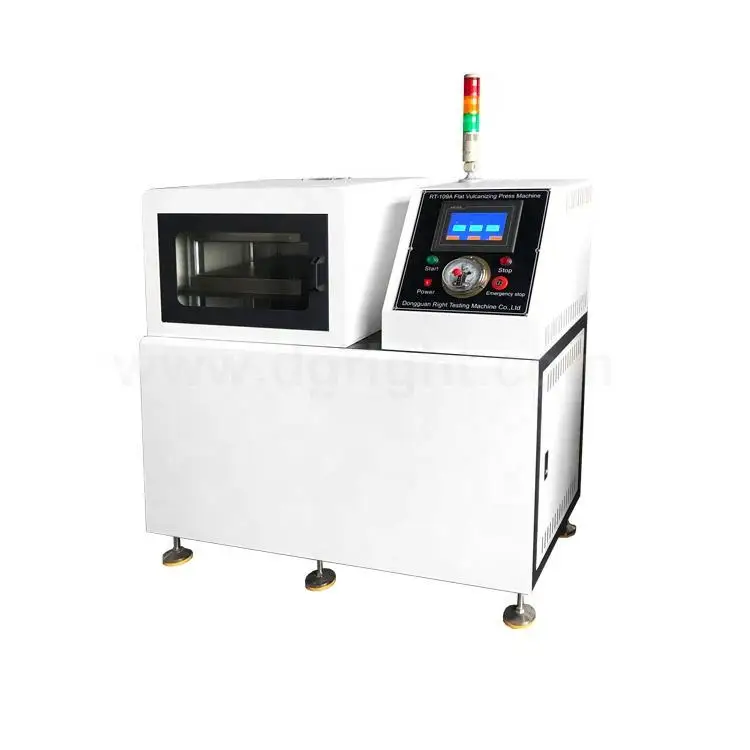

Lab Small plate vulcanizing machine/Rubber Flat Vulcanizing Machine/plate vulcanizing press
Application industry
Laboratory small plate vulcanizing machine is also called hot press molding machine, mainly used for rubber, plastic products sample making experiments, such as: tensile test, impact test, compression test sample preparation.
Plastic industry: laboratory sample making, small batch trial production, research and development,PPT,PE,PVC and so on.
Rubber industry: laboratory sample making, small batch trial production, research and development, natural rubber, silicone, silicone rubber, etc.

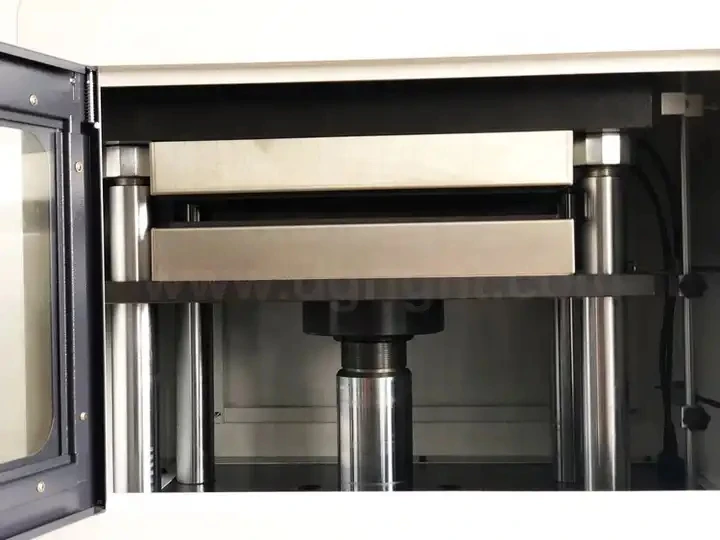

Lab Small plate vulcanizing machine/Rubber Flat Vulcanizing Machine/plate vulcanizing press
Technical parameters
1. Capacity: 5-25ton (adjustable) [with automatic exhaust function] 2, temperature range: RT to 300 ℃ 3, the temperature precision: ±00.5 ℃ 3. Temperature controller: PLC touch screen 4. Temperature control: PLC touch screen 5, heater: electric heat pipe heating 6. Working mode: electric heating.Heating method: electric heating. 7, the heating time: normal temperature to 160 ℃ about 15 min 8. Chronometer: PLC display, 0.01S ~ 999min ~ 999hr (adjustable) 9. One layer of hot pressing plate: 350 350mm (specially treated high hardness steel plate) electric heating. Cooling device: tap water cooling [optional] 10. Exhaust function: low pressure automatic exhaust can be adjusted 3 ~ 10 times per minute 11, hydraulic system: proportional hydraulic flow closed loop control system, GPY oil pump (Japanese) drive high performance electric hydraulic with high precision of the resistance of cylinder piston implementation such as speed control mode (travel height can be set in a single freedom) with automatic pressure compensation function, pressure time can be preset, load power, steady lifting, automatic pressure, pressure, pressure relief 12. Cylinder stroke: Max 300mm 13. Oil cylinder speed: 11mm/s 14. Pressure table: 0 ~ 200kg/sq.cm 15. Volume :(W ×D× H)1700× 750× 1460 mm 16. Electric source: 3 metrics, AC380V, 15A 17. Weight: about 430kg
|
