Высокоточный гидравлический сварочный аппарат для
- Категория: Butt Welders >>>
- Поставщик: Jining,Qingke,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1071.66 $* | 1125.37 $* |
| Aug-20-2025 | 1062.83 $* | 1115.87 $* |
| Jul-20-2025 | 891.17 $* | 936.30 $* |
| Jun-20-2025 | 1044.25 $* | 1096.40 $* |
| May-20-2025 | 909.70 $* | 954.51 $* |
| Apr-20-2025 | 1026.3 $* | 1077.14 $* |
| Mar-20-2025 | 1017.43 $* | 1068.90 $* |
| Feb-20-2025 | 1008.27 $* | 1058.43 $* |
| Jan-20-2025 | 999.9 $* | 1049.26 $* |
Характеристики
Product Description

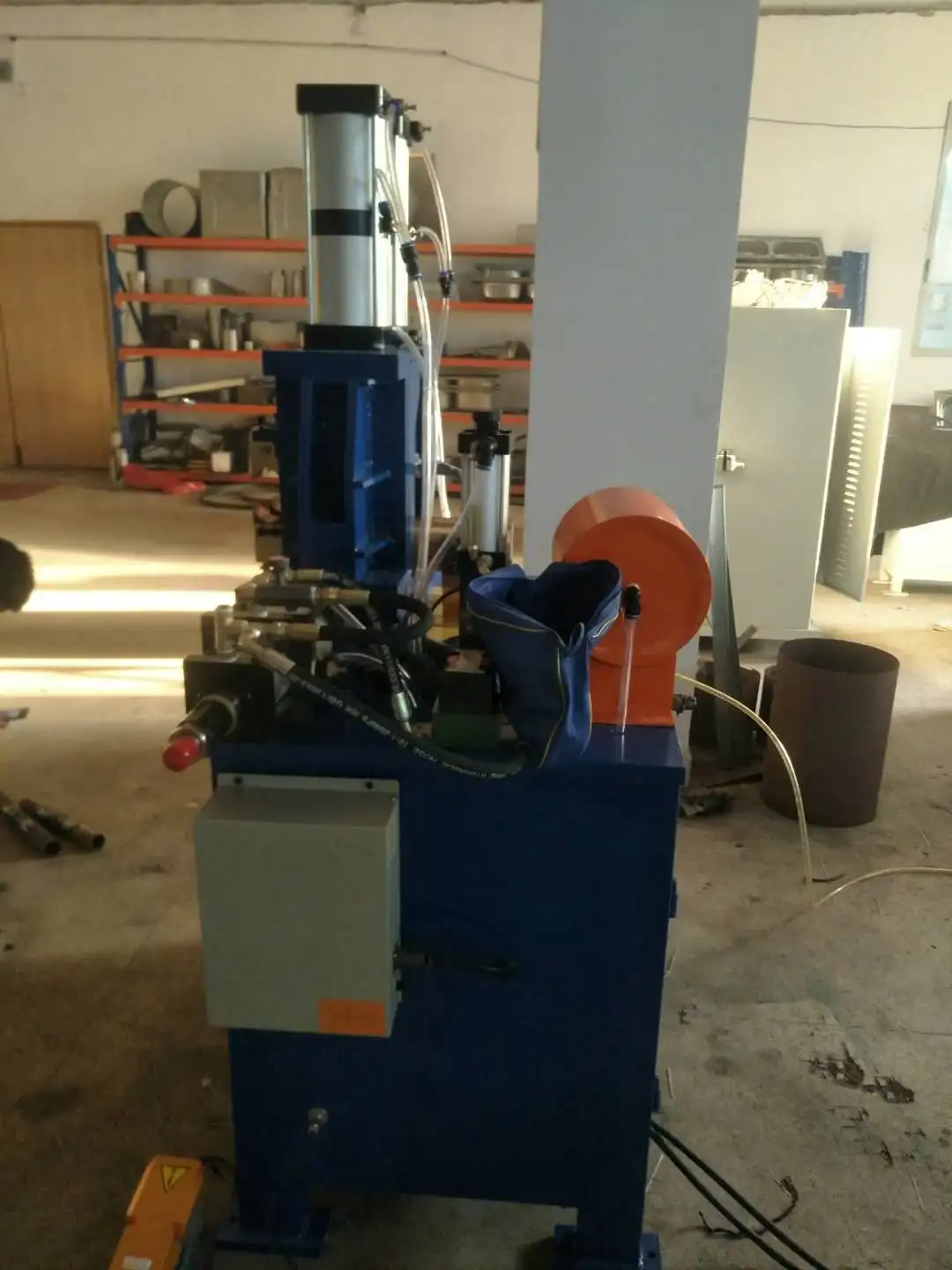

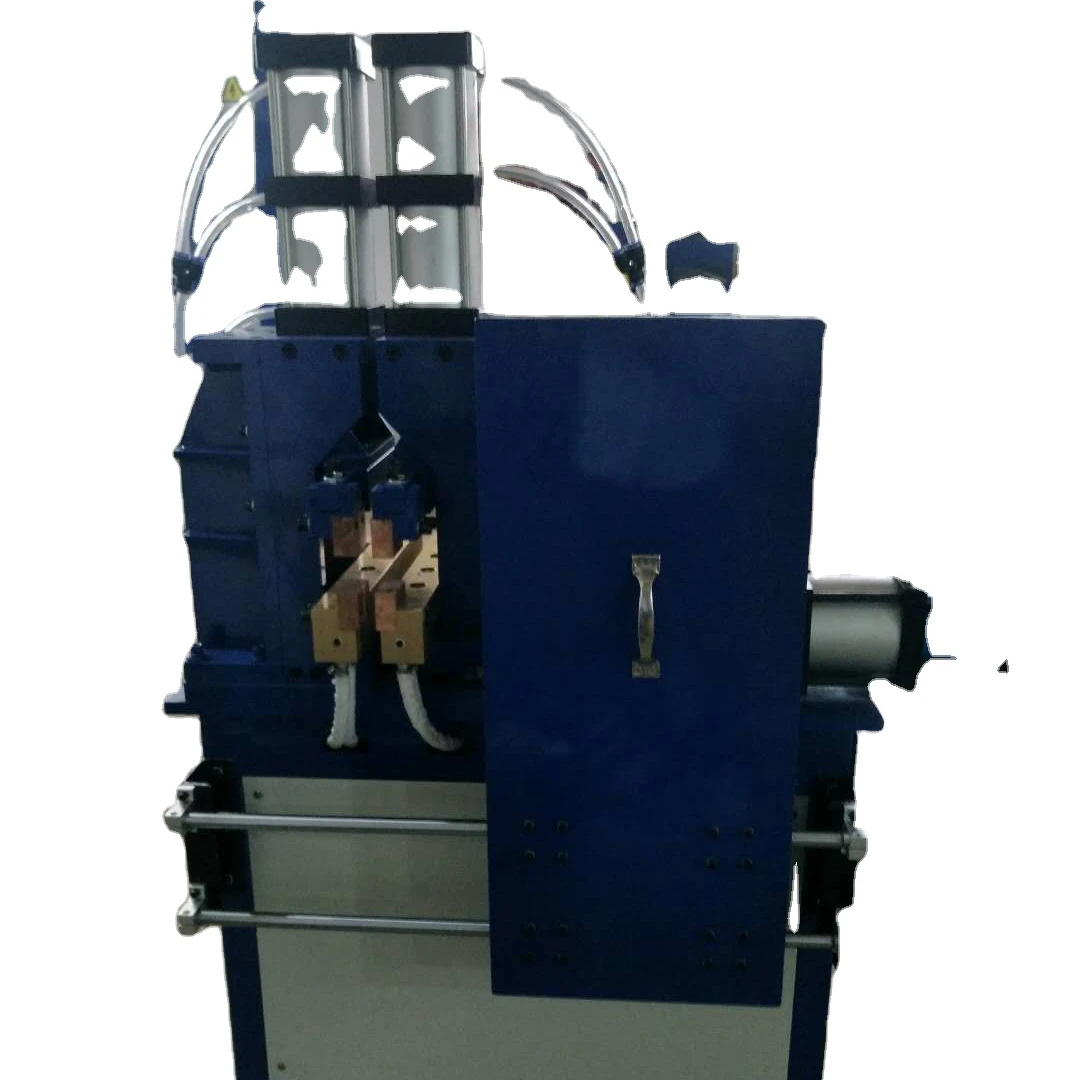

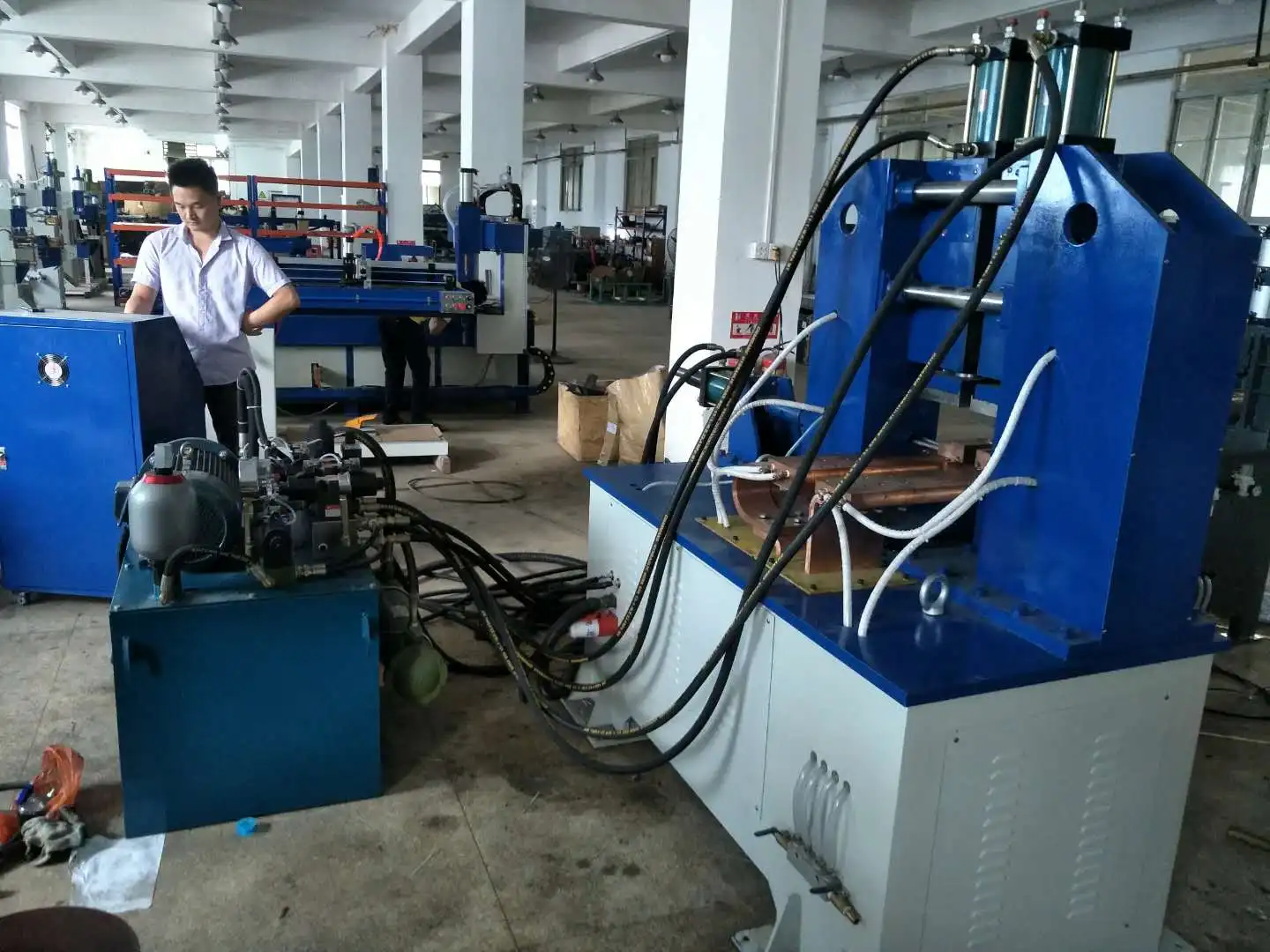

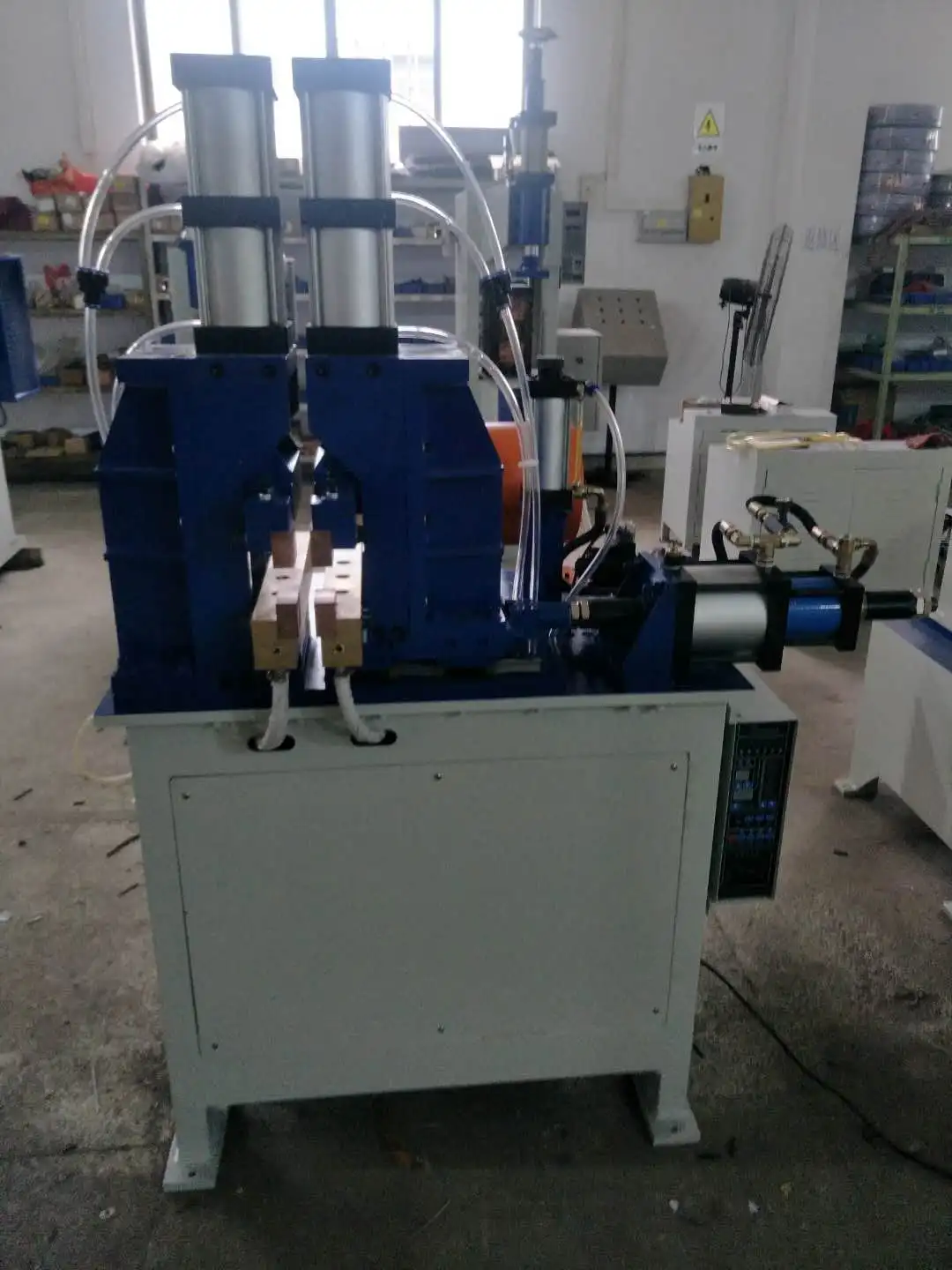

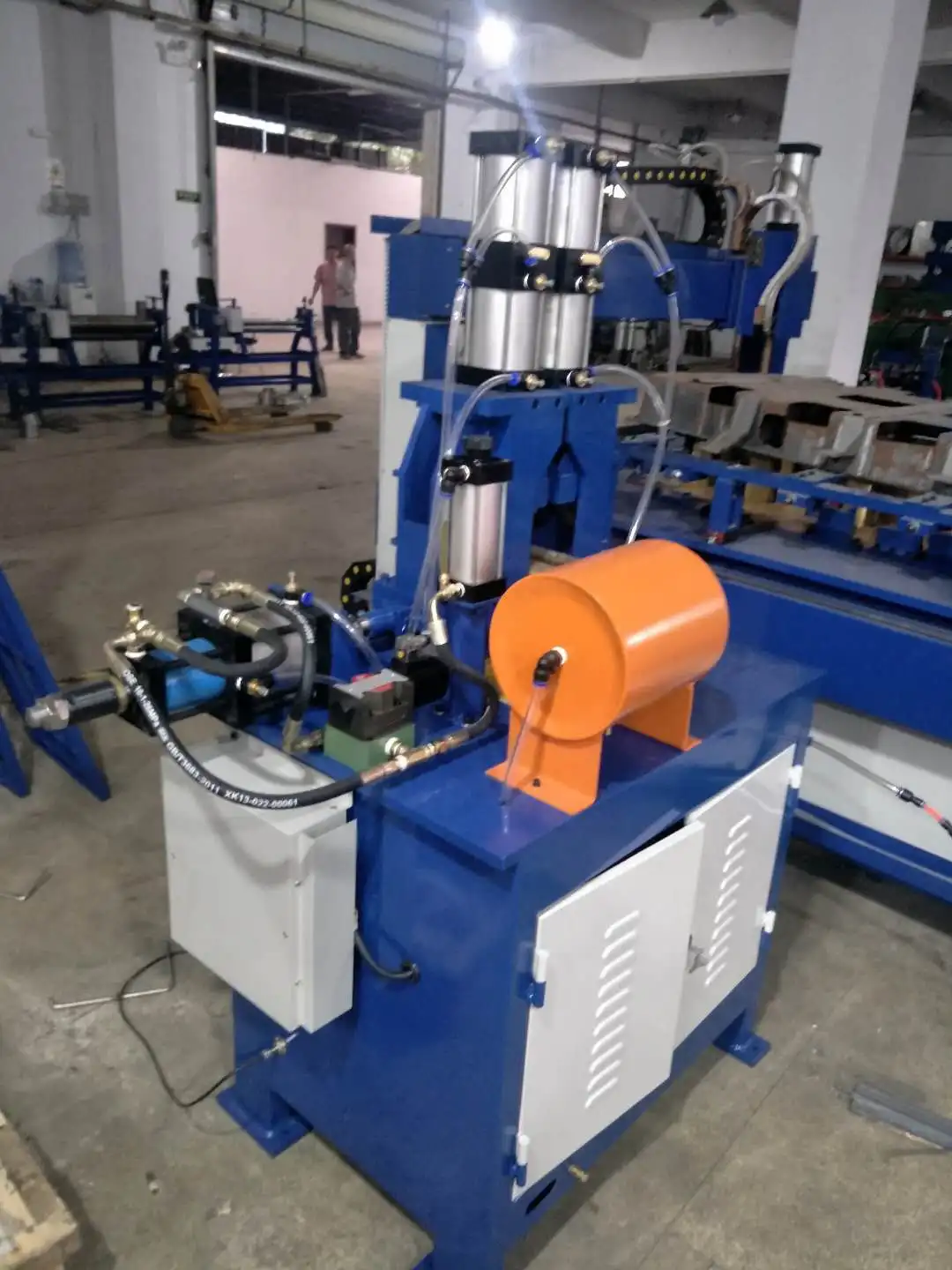

Flash butt welding machine

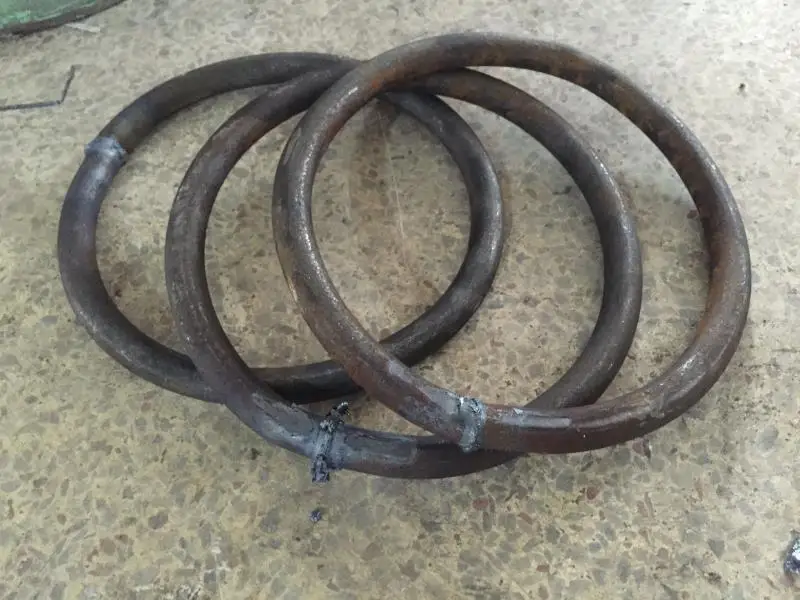

Automatically clamp the butted workpieces, and then through gas-liquid control, first push slowly through electricity to remove the oxidation on the surface of the workpiece welding and the flashing of the unevenness, and then let the end faces of the welded workpieces be thermally plasticized, and the welding area becomes more and more As the heat gets hotter, the speed of butt welding also accelerates. The flash and splashes make the two contact surfaces completely welded together. Finally, quickly pressurize the top satin to weld the two ends of the welding, cut off the current, and the welding is completed. This kind of welding has high strength, good compactness, no false welding, no slag inclusion, and no porosity.
Product Paramenters
Model | UN-75 | UN-100 | UN-150 |
rated power | 75KVA | 100KVA | 150KVA |
Rated voltage | 380V | 380V | 380V |
rated frequency | 50/60HZ | 50/60HZ | 50/60HZ |
Maximum short circuit current | 24000A | 28000A | 32000A |
duty cycle | 50% | 50% | 50% |
Maximum tightening rate | 6500N | 6500N | 8500N |
Maximum top satin rate | 3000N | 3000N | 3000N |
cooling water flow | 150L/H | 150L/H | 150L/H |
Average weight | 450KG | 550kG | 1200KG |
Dimensions | 100*90*150CM | 100*90*150CM | 140*100*170CM |
Packing & Delivery
Standard export wooden case packing for
Company Profile
Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million. This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC lathe, boring machine, and milling machine.
Main products: induction bearing heater, Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.
We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.
Main products: induction bearing heater, Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.
We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.
FAQ
Are you manufacture?
Yes. We are one of leading manufacturers
Do you have Stock productions to sell?
Yes, of course. But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b).The application for your products.
c).Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedule for punctual delivery.
(2) We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times
Yes. We are one of leading manufacturers
Do you have Stock productions to sell?
Yes, of course. But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b).The application for your products.
c).Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedule for punctual delivery.
(2) We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times
Our Services
1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Provide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Provide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
Contact us
Jining Qingke Machinery Co., Ltd.
Tel/whatsapp/Wechat:+8615650392062 Email:qkmuchmachinegood@163.com
Jessica
