Характеристики
Products Description

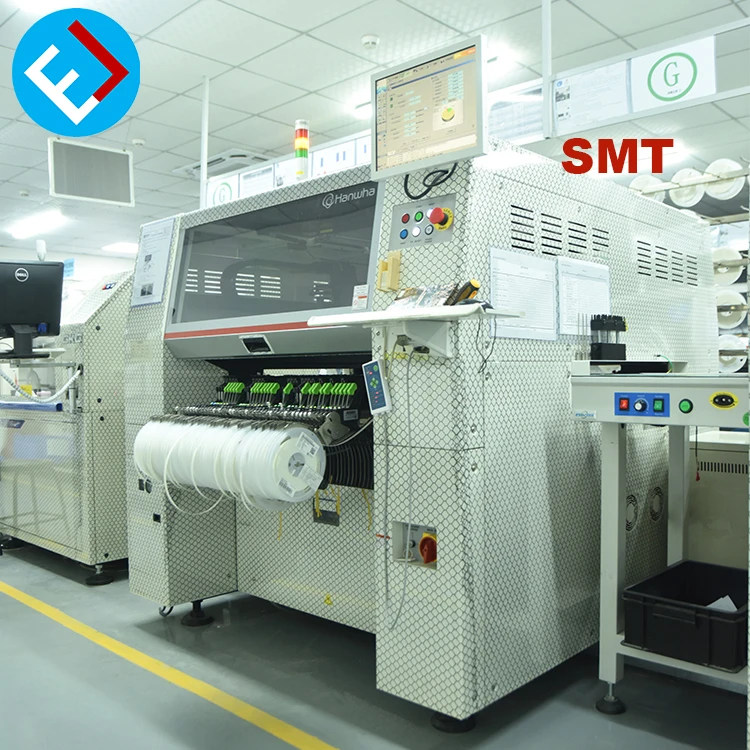

SMT Lines | 7 Lines | |
Capacity | 8 Million Placements Per Day | |
Max Board Size | 680*550mm Smallest:0.25"*0.25" | |
Min Components size | 0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP | |
Speed | 0.15sec/chip, 0.7sec/QFP | |
Max.PCB Width:450mm | ||
Min.PCB Width:unlimited | ||
Components Height:Top 120mm/Bot 15mm | ||
Metal Types:Part,Whole,Inlay,Side-step | ||
Metal Material:Copper,Aluminum | ||
Surface Finish:Plating Au,Plating Silver,Plating Sn | ||
Air Bladder Rate:less than 20% | ||
Press Range:0-50KN | ||
Max.PCB Size:800*600mm | ||
Assembly Types | SMT and Thru-hole | |
Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free | |
File Formats | Bill of Materials ,Gerber Files,Pick-N-Place Files(XYRS) | |
Type of Service | Turn-Key,Partial Turn-Kye or Consignment | |
Component Packaging | Cut Tape,Tube Reels Loose,Parts | |
Turn Time | 1-15days | |

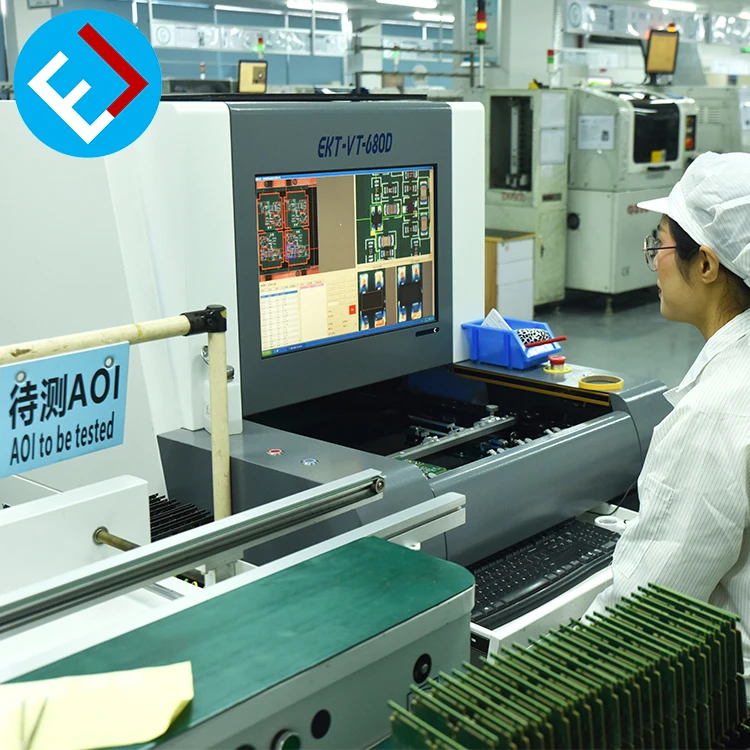

Testing | XRAY Inspection,AOI Testing ICT,Flying Probe,Burn-in,Function Test | |
Delivery And Packaging
Packing real pictures
This is a real shot of our general bulk packaging.
We also support custom packaging.
Electronic Manufacturing Services
All of the equivalent parts will be required to 100% confirm with our clients to make sure the specifications are acceptable.
We will remarks with full part-number and attached datasheet for client's reference.
We will remarks with full part-number and attached datasheet for client's reference.
If your project require programming and functional testing before delivery, our project manager will translate your instrustion and the testing workers will be trained to familar all steps, testing steps and results will be confirmed with you via a video, our team will make sure all of your instructions will be listen and follow and 100% passed the test. AlI defective issues and reasons will be recorded and share with you for further improving action.
Company Profile
The Transaction is just the beginning, our service is never-ending!
In the early stage of Shenzhen EL Technology, our business start from the OEM SMT Assembly service, Through more than 16 years of persistence and efforts by following this business philosophy, we have grown up step by step to provide our customers with one-stop service (Electric Manufacturing Service), including PCB board manufacturing, components sourcing, and PCB assembly. Our excellent services have been highly recognized by nearly 1,500 customers in more than 50 countries around the world. We have occupied workshop over 5000m2 with 200 employees, Our products are widely
used in industrial control, telecommunications, energy, automotive, security, medical and many other fields.
In the early stage of Shenzhen EL Technology, our business start from the OEM SMT Assembly service, Through more than 16 years of persistence and efforts by following this business philosophy, we have grown up step by step to provide our customers with one-stop service (Electric Manufacturing Service), including PCB board manufacturing, components sourcing, and PCB assembly. Our excellent services have been highly recognized by nearly 1,500 customers in more than 50 countries around the world. We have occupied workshop over 5000m2 with 200 employees, Our products are widely
used in industrial control, telecommunications, energy, automotive, security, medical and many other fields.
Quality Control
Our Service
FAQ
Q.What service can you supply ?
We are OEM PCB and PCBA manufacturer since 2004 ,we can provide turnkey solution including RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q.What file you need to prepare if you want to get an quotation from us?
* For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
* For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample picture or 3D PDF version file etc.
Q. Do you have any MOQ Limited ?
We haven‘t any limited about MOQ .Sample and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q.How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the components quantity, if simple, within 6 hours can finished,once complex and more,the 12- 36 hours can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
We are OEM PCB and PCBA manufacturer since 2004 ,we can provide turnkey solution including RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q.What file you need to prepare if you want to get an quotation from us?
* For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
* For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample picture or 3D PDF version file etc.
Q. Do you have any MOQ Limited ?
We haven‘t any limited about MOQ .Sample and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q.How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the components quantity, if simple, within 6 hours can finished,once complex and more,the 12- 36 hours can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
Surface finish:
Solder mask color:
Silkscreen color:
Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
Solder mask color:
Silkscreen color:
Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order. If your order is urgently please contact us directly ,we will priority to deal it and do our best to give you satisfied delivery time.
Q.How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC foot welding or bad solder etc.
Q.How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC foot welding or bad solder etc.
