Стальная пила 2

Категория: Spring Steel >>>
Поставщик: Guangzhou,Cgoodsteel,Co.,Ltd.

Цена:1 000,00 $ - 1 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	1190.35 $*	1250.2 $*
Aug-17-2025	1180.93 $*	1239.96 $*
Jul-17-2025	990.30 $*	1040.51 $*
Jun-17-2025	1160.94 $*	1218.46 $*
May-17-2025	1010.76 $*	1061.20 $*
Apr-17-2025	1140.44 $*	1197.72 $*
Mar-17-2025	1130.15 $*	1187.44 $*
Feb-17-2025	1120.75 $*	1176.81 $*
Jan-17-2025	1110.86 $*	1166.7 $*

Характеристики

Product Description

Established in 1996, GUANGZHOU CGOODSTEEL CO., LTD, has been operating in the field of high precision steel strip production and specialized in the manufacture excellent quality of band saw blade, cold rolled heat treating steel strips (hardened and tempered steel strip as well as cold rolled annealed steel strips) with material grades DIN standard ck50,ck55,ck60,ck67,ck70,ck75, c80,ck95, 60Si2Mn, 50CrV4, 51CrV4, SK5,SK85, SK51, etc, (SAE standard: 1050, 1055, 1060, 1065, 1070, 1075, 1095, 6150), and Europe standard C45, C50, C55, C60, C65, C70,C75, C80, C85, C95 etc. We have highly competent, experienced and enthusiastic engineers in factory who understand and learn the customers which will continuously improve our products and our business.

Our core value is SAFETY FIRST, QUALITY SUPPERIO. Combined with their experience and technology, dependent upon the advanced reliable equipment and efficient management system, our team are enable to fulfills the customer’s expectation of providing the good quality material and good service.

Each process from the crude material till the end product is accordance with national and international standard including chemical compositions,mechanical properties: hardness, tensile strength, elongation, yield, flatness, tolerance, edge, polish and tempering color are always controlled strictly, guaranteed all the steel products designed to meet the most exacting requirements.

Located in the Chinese mainland Town of manganese in Jiangxi Province, our factory covers over an area of 2 acres 5000 Square meters workshop,110 employees including professional technical Engineers with an monthly output of high-quality more than 1500 tons of heating treating steel. 70% for exporting over sea market , the customers Whom as importer ,trader ,broker, end users come from South America, Europe, Middle East , Far East Countries, The Arabian Peninsula , South Africa & the others.

Our Product

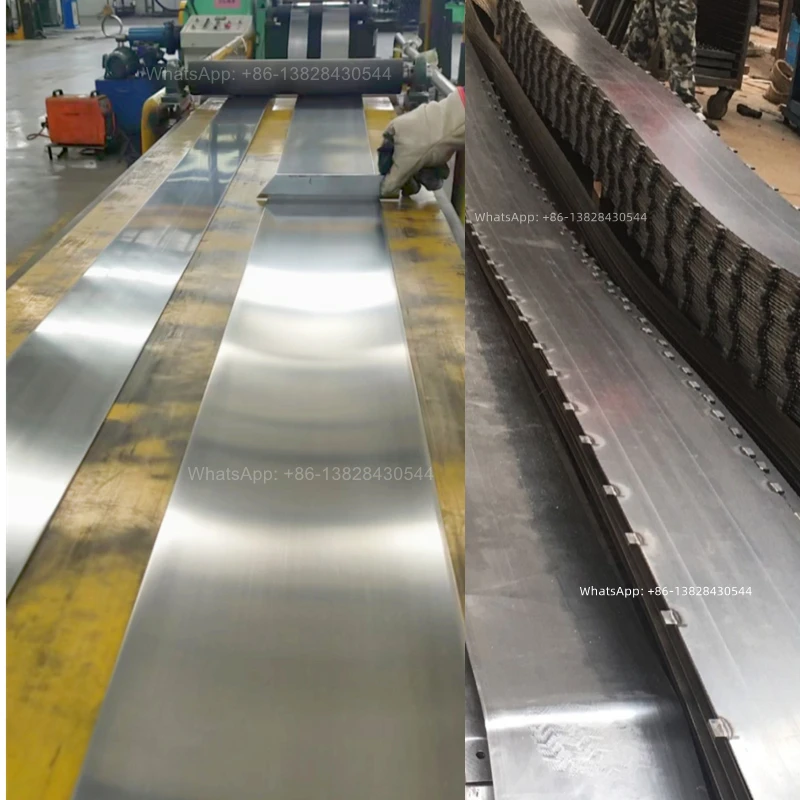

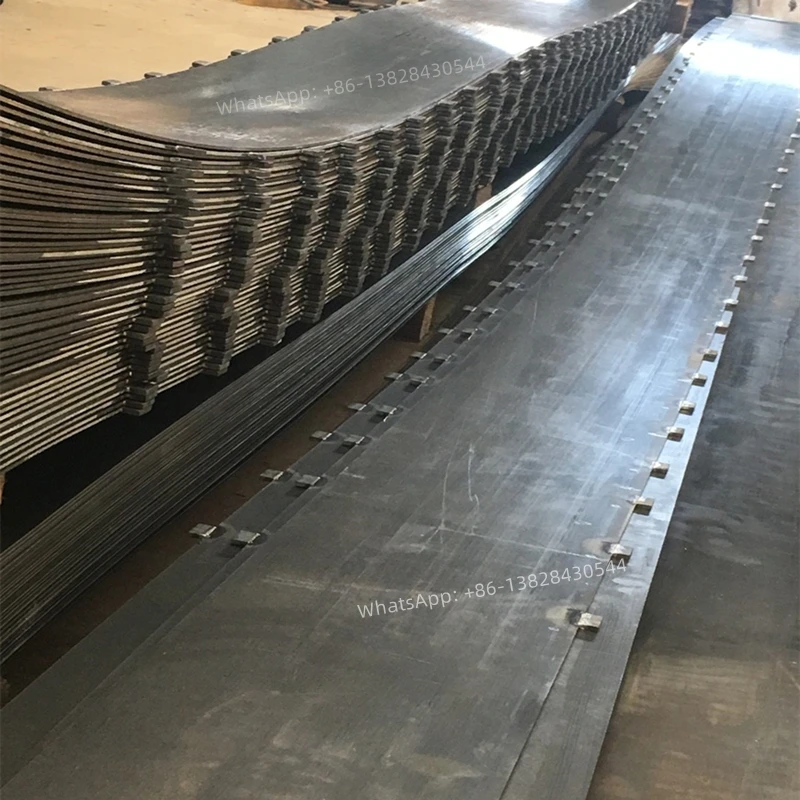

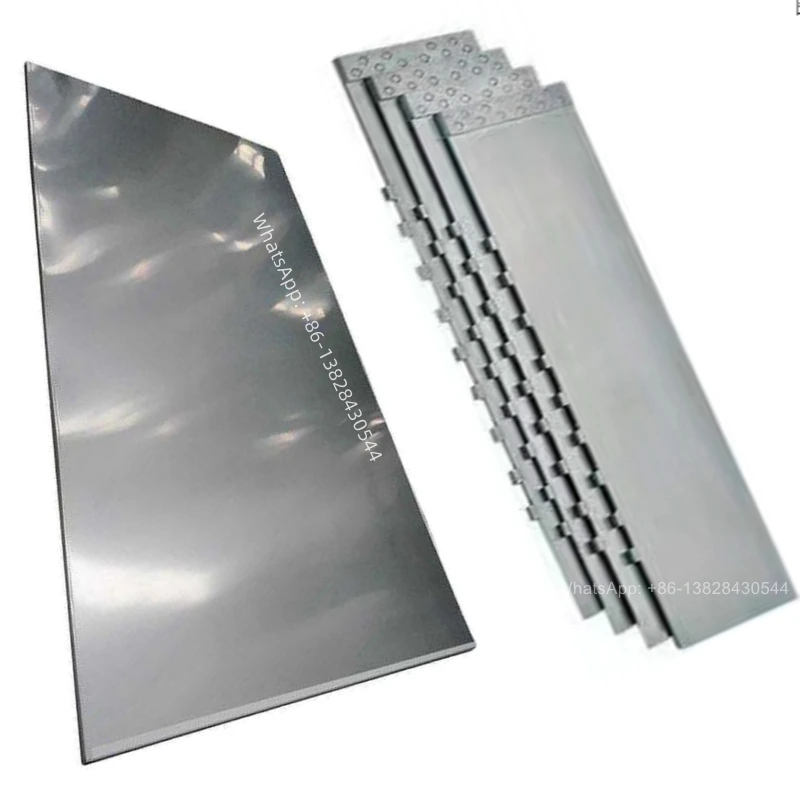

GANG SAW BLADE STEEL----CGOOD STEEL

CGOOD STEEL Gang saw steel RAW MATERIAL from FIRST-RATE crude materials purchased from ISO certificated state-own enterprise to guarantee superior quality.

CGOOD STEEL manufacture best quality Nickal & Carban Steel 1.0 mm to 3.5 mm gangsaw blades for all types of Marbles & sand stone procesing Industries.

CGOOD STEEL Gang saw steel meets the demands made by saw blade manufacturers and consumers on the quality of the blade material. What's more CGOOD STEEL makes continuous checks on our steels, to guarantee constantly their quality and improve their performances.Therefore we are able to offer our Customers a highly qualified technical support.
We can offer different qualities, with different prices, to allow you to be more competitive with our customized material.

The characteristic properties of CGOOD STEEL gang saw steel are:

1. High fatigue resistance. this is an important property, since stone saw blades are frequently exposed to high and varying loads as well as to vibrations i.e. high fatigue stresses.
2. High transition temperature, resulting in less risk of undesirable marten site formation during the brazing of the diamond segments.
3. A chemical composition which minimizes the risk of cracks in connection with brazing.
4. Great precision in thickness, length, flatness, straightness, flexibility tension and crown
5. Square, smooth edges which is a pre-requisite for strong & durable joint between the parent blade & segments.
6. CGOOD STEEL maintains a high and uniform quality of our produced materials.

STEEL GRADE	CHEMICAL COMPOSITION %
	C	Si	Mn	S	P	Cr
C75 / SAE 1075 / C75S / CK75	0.70-0.80	0.15-0.35	0.50-0.80	0.035 max.	0.035 max.	—
75Cr1/C75Cr1	0.70-0.80	0.25-0.50	0.60-0.80	0.030 Max.	0.035 max.	0.30-0.40
C75Cr25	0.70-0.78	0.35 Max.	0.60-0.80	0.030 Max.	0.035 max.	0.15-0.27
75Ni8	0.72-0.78	0.15-0.35	0.30-0.50	0.025 Max.	0.025 Max.	0.15 Max

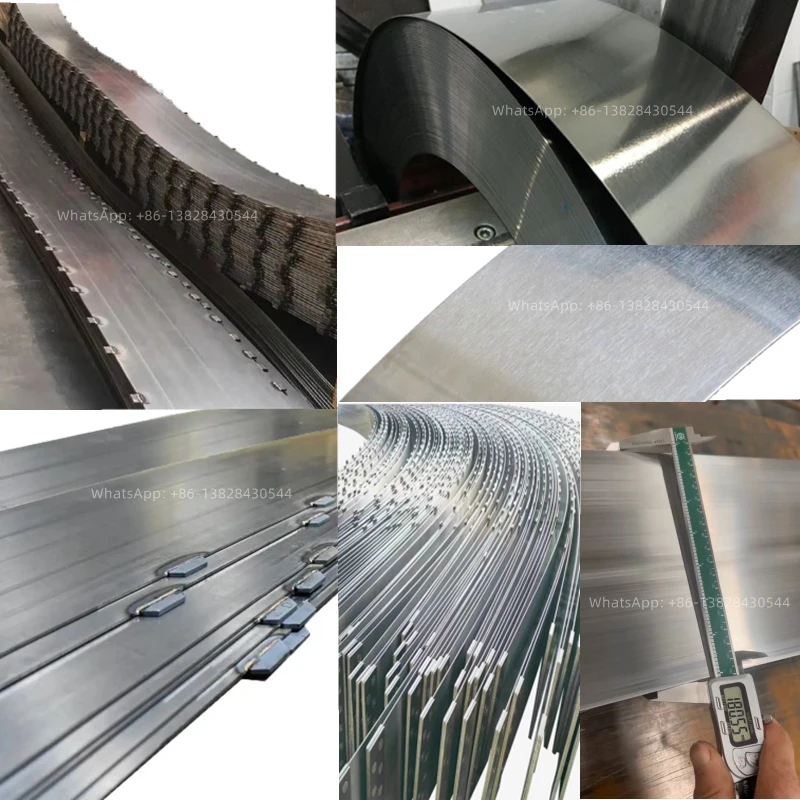

Band saw blade

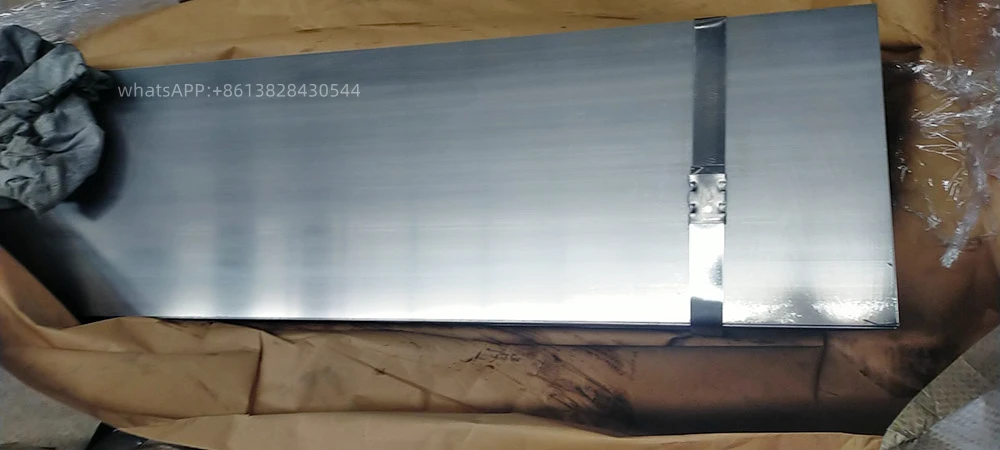

Spring steel strip

Hardened and tempered steel strip

Testing before delivery

We have strictly quality control before delivery of the size tolerance, surface, hardness, edge, coil weight, straightness and flatness, etc

SGS- TEST REPORT for raw material and finished steel strip

Hardening and Tempering is a thermal process that strengthens steel strips through a controlled heating and cooling process. The hardening process involves heating the steel strip to above the critical transformation temperature for the given grade and then rapidly cooling. The steel strip in this condition is extremely brittle and requires further treatment in the tempering. Then strips are reheated to a lower temperature and holding it at the given temperature for a given period of time. This process is done in an inert atmosphere to avoid oxidation. This type of steel strip has high degree of toughness and has excellent spring properties.

H+T steel strips are widely used for rolling shutter door springs, band saw blade, scraper, trowel, putty knives, shoe insole,
knives, kinds of flat springs etc, which don`t require severe bending.
