Низкое давление дизельного отопления 1000 кг hr паровой котел
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Wuxi,Zozen,Boilers,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.98 $* | 0.26 $* |
| Aug-19-2025 | 0.46 $* | 0.5 $* |
| Jul-19-2025 | 0.56 $* | 0.65 $* |
| Jun-19-2025 | 0.20 $* | 0.33 $* |
| May-19-2025 | 0.87 $* | 0.89 $* |
| Apr-19-2025 | 0.61 $* | 0.41 $* |
| Mar-19-2025 | 0.55 $* | 0.92 $* |
| Feb-19-2025 | 0.23 $* | 0.28 $* |
| Jan-19-2025 | 0.91 $* | 0.90 $* |
Характеристики

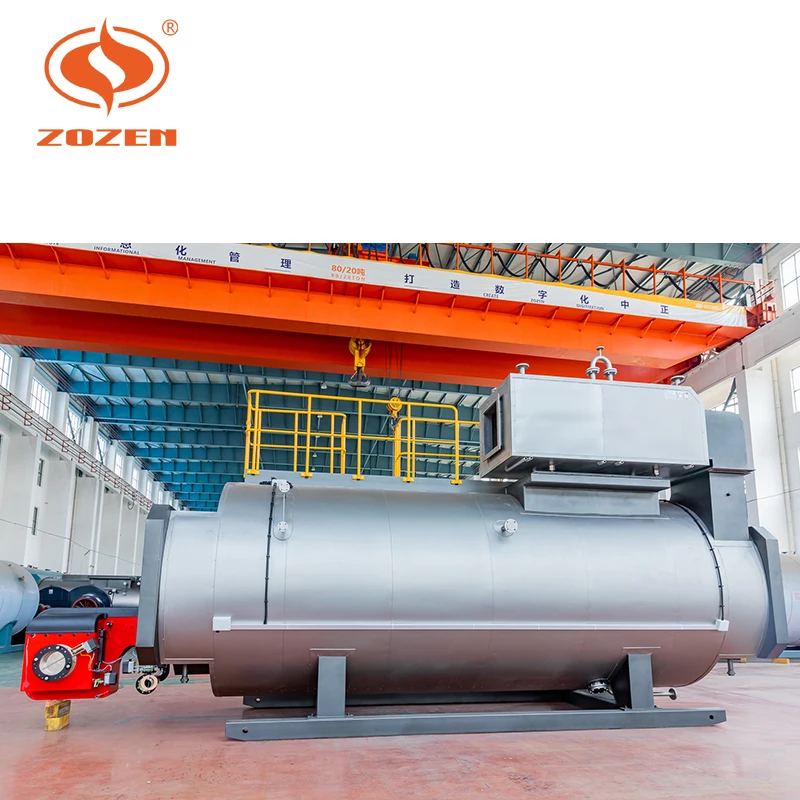

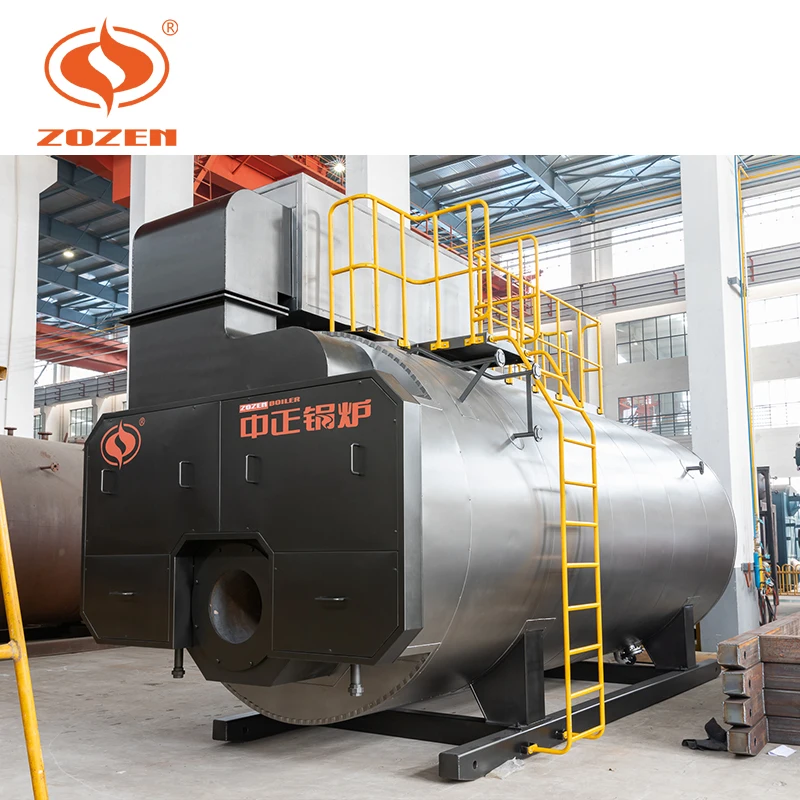

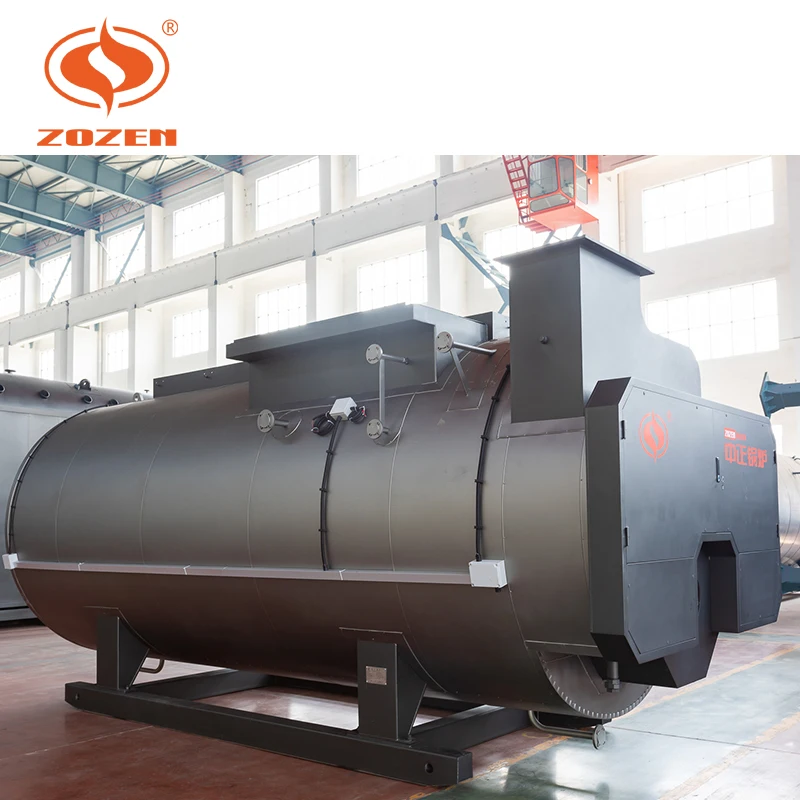

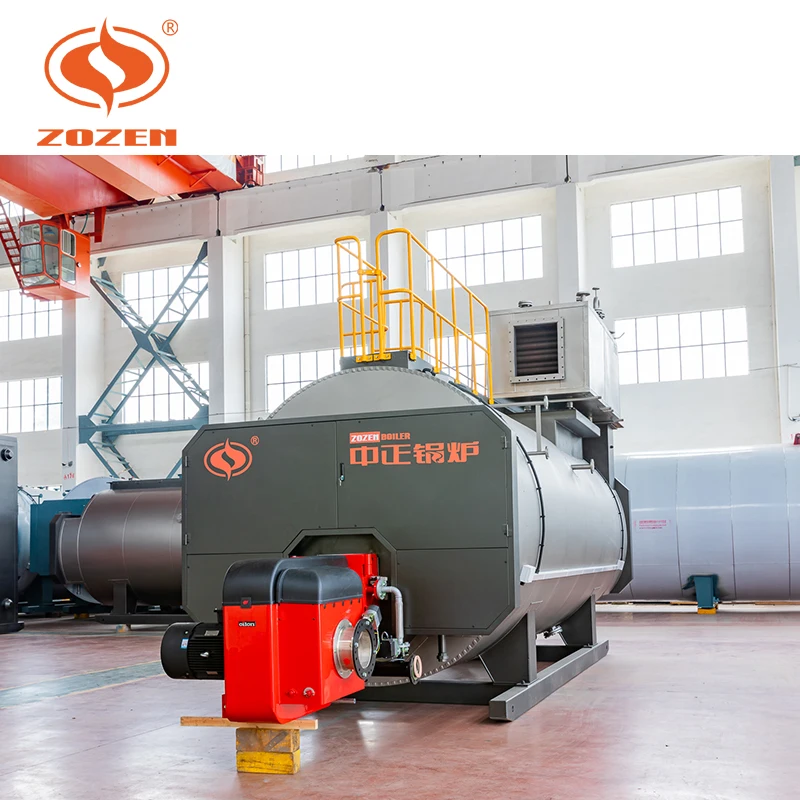

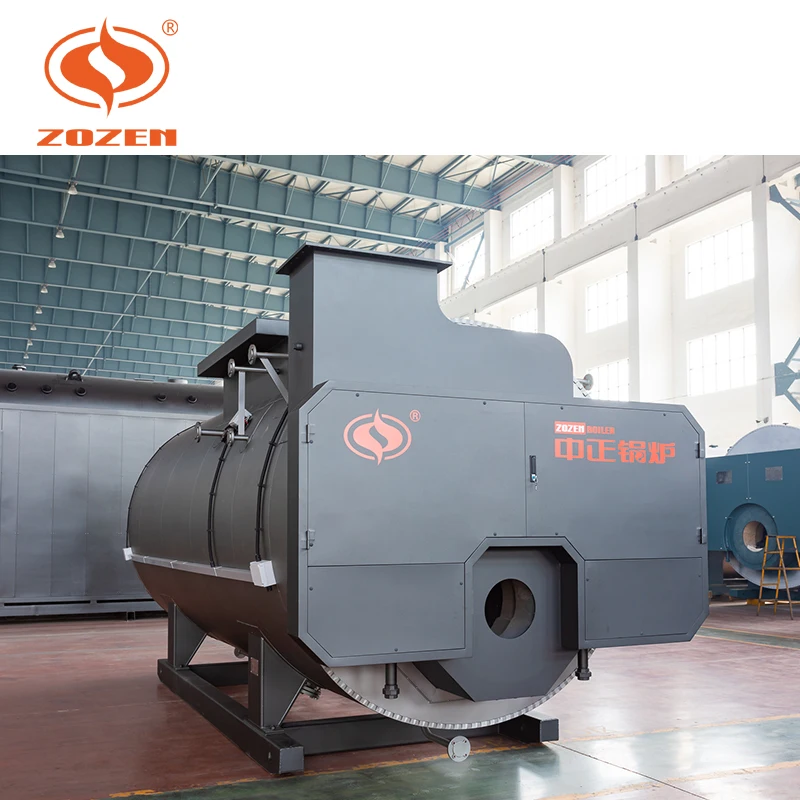

Detailed Images
Low Pressure Diesel Heating 1000kg hr Steam Boiler for Hospital
1. Sufficient steam storage and heating surface make the boiler to generate bigger thermal power and high quality steam output.
2. This 1000kg/hr gas oil fired steam boiler adopts whole corrugated furnace as well as improving the heat transfer effect.
Condensator at the end of flue gas duct makes the boiler heat efficiency reach above 98% and save the operating cost.
3. Fully automatic control.
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Product thermal capacity: 1 ton/hr, 2 ton/hr, 3 ton/hr, 4 ton/hr, 5 ton/hr,6 ton/hr, 8 ton/hr, 10 ton/hr
Working pressure: 0.7Mpa(7bar, 101psi), 1.0Mpa(10bar, 145psi), 1.25Mpa(12.5bar, 181psi), 1.6Mpa(16bar, 232psi)
Available fuel: Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
This WNS series industrial steam boiler to help industrial production, such as hospitoal, chemical, pharmaceutical, paper, building materials, food, textile, printing and dyeing and other industries.
Application
Packing & Delivery
Product Paramenters
Model | Rated steam capacity(t/h) | Rated working pressure(Mpa) | Rated steam temperature(℃) |
WNS1-0.7-Y(Q) | 1 | 0.7 | 170 |
WNS1-1.0-Y(Q) | 1 | 1 | 184 |
WNS1.5-1.0-Y(Q) | 1.5 | 1 | 184 |
WNS1.5-1.25-Y(Q) | 1.5 | 1.25 | 194 |
WNS2-1.0-Y(Q) | 2 | 1 | 184 |
WNS2-1.25-Y(Q) | 2 | 1.25 | 194 |
WNS3-1.0-Y(Q) | 3 | 1 | 184 |
WNS3-1.25-Y(Q) | 3 | 1.25 | 194 |
WNS4-1.25-Y(Q) | 4 | 1.25 | 194 |
WNS4-1.6-Y(Q) | 4 | 1.6 | 204 |
WNS5-1.25-Y(Q) | 5 | 1.25 | 194 |
WNS5-1.6-Y(Q) | 5 | 1.6 | 204 |
WNS6-1.25-Y(Q) | 6 | 1.25 | 194 |
WNS6-1.6-Y(Q) | 6 | 1.6 | 204 |
WNS8-1.25-Y(Q) | 8 | 1.25 | 194 |
WNS8-1.6-Y(Q) | 8 | 1.6 | 204 |
WNS10-1.25-Y(Q) | 10 | 1.25 | 194 |
WNS10-1.6-Y(Q) | 10 | 1.6 | 204 |
WNS15-1.25-Y(Q) | 15 | 1.25 | 194 |
WNS15-1.6-Y(Q) | 15 | 1.6 | 204 |
WNS20-1.25-Y(Q) | 20 | 1.25 | 194 |
WNS20-1.6-Y(Q) | 20 | 1.6 | 204 |
Our Finished store
Company Profile
Wuxi Zozen Boilers Co., Ltd which was founded in 1988, is now one of the most influential boiler manufacturers in China with a manufacturing base covering hundreds of thousands of square meters. It ranks top in the industrial boiler sector in Asia in terms of the variety of its products, the level of automation in its manufacturing facility and the volume of its production.
Nowadays, ZOZEN’s products have been exported to more than 100 countries and regions around the world and are used for application in chemical, pharmaceutical, paper, textile, food, electronics, automobile manufacturing, furniture, pesticides, biological products, building materials and many other industries.
Certifications
