Автоматическая Высокоэффективная машина для резки
- Категория: Rubber Recycling Machinery >>>
- Поставщик: Zhengzhou,Tianyu,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1896.14 $* | 1934.42 $* |
| Jul-16-2025 | 1538.78 $* | 1569.86 $* |
| Jun-16-2025 | 1866.54 $* | 1903.73 $* |
| May-16-2025 | 1851.99 $* | 1888.77 $* |
| Apr-16-2025 | 1478.9 $* | 1508.21 $* |
| Mar-16-2025 | 1821.20 $* | 1857.14 $* |
| Feb-16-2025 | 1807.4 $* | 1843.3 $* |
| Jan-16-2025 | 1792.23 $* | 1828.68 $* |
Характеристики

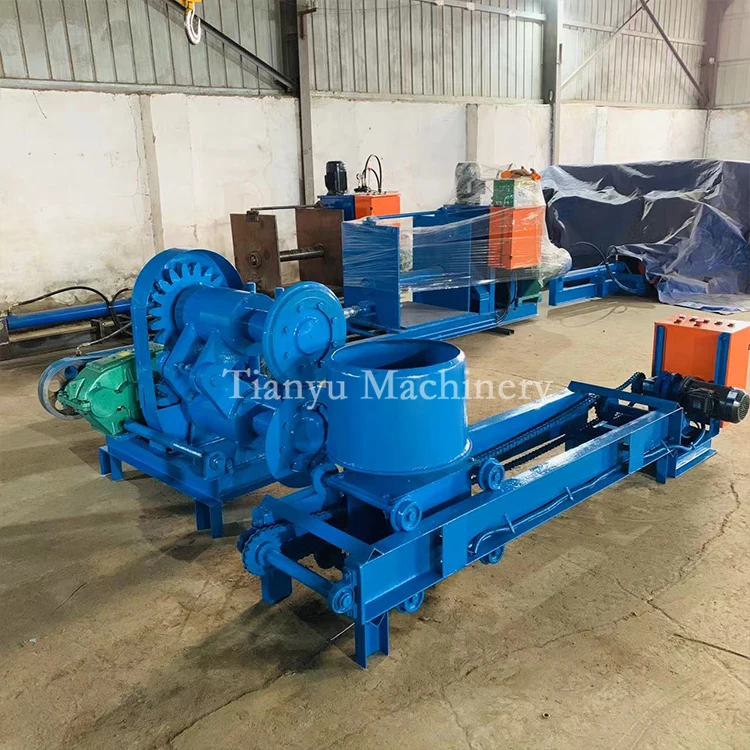

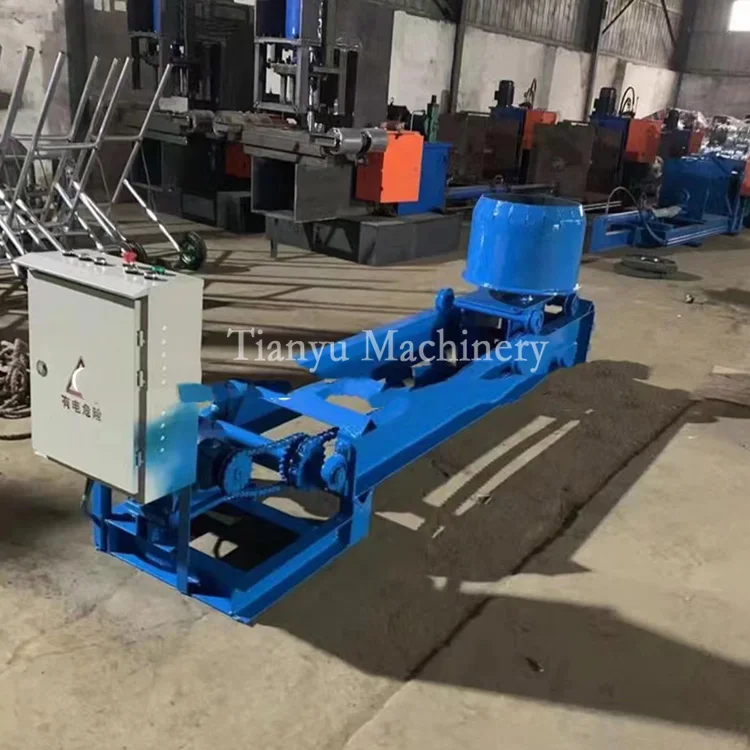

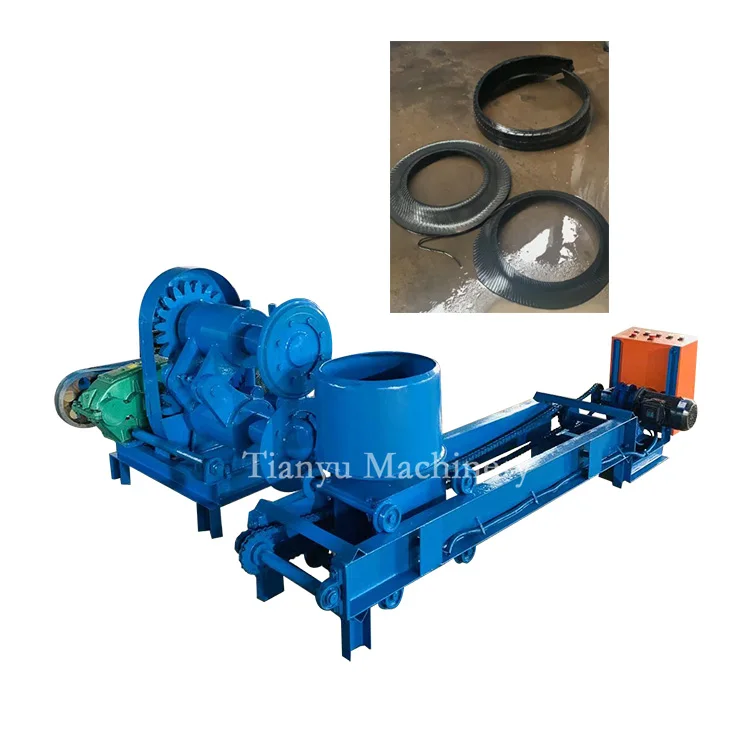

Tire Sidewall Ring Cutter
This is a double-sided cutting machine for tires.
The characterized is bead on both sides of the tire.And can be cut off at one time. It is mainly used for the processing of used tires, especially for the bead cutting of trolley tires (Tires 750R16 and below), which greatly improves the efficiency of tire ring cutting.
Motor Power | 1.5-3kw |
Voltage | 380V or customized |
Max.tire diameter | 750mm |
Size | 1300*600*800mm |
Capacity | 200-500pcs/h |
Weight | 170kg |
Features
1. Remove the bead on both sides of the tire at the same time,no need manual flipping.
2. Fast cutting, complete bead cutting in 5 seconds.
3. Distribution box control, simple and safe operation.
4. Large output, can process 300-500 tires per hour.
2. Fast cutting, complete bead cutting in 5 seconds.
3. Distribution box control, simple and safe operation.
4. Large output, can process 300-500 tires per hour.

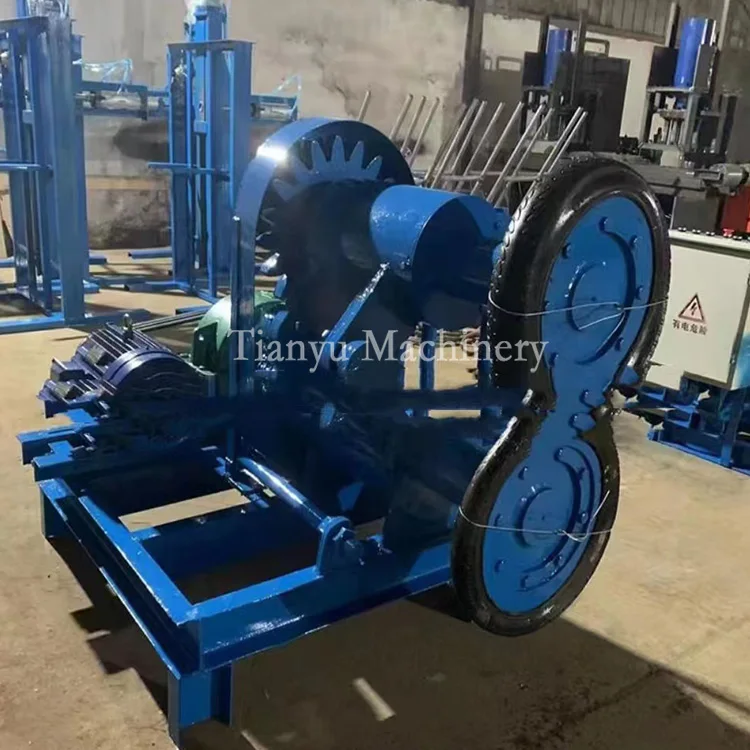

Tire cutter machine
This machine is mainly used to separate the rubber on the bead of various tires from the steel ring, so as to obtain a complete steel ring.
The mouth ring separator is mainly used as a special device for the use of steel wire tire cutting machine, strip cutting machine and block cutting machine. The remaining mouth ring after the large steel tire is cut into strips and blocks , It can be deeply processed to separate the rubber layer on the surface of the ring from the steel wire and cord rubber wrapped on it to obtain a complete and clean traveler, so as to maximize profits.
Capacity | 65pcs/h |
Power | 18.5kw |
Motor rotating speed (r/min) | 1440 |
Dimension(L×W×H） | 1500*900*140mm |
Machine weight | 1350kg |
Features
1.Simple operation.
2.High separation efficiency in terms of maintenance.
Automatic tire cutting machine
Automatic tire cutting machine, which from hydraulically controlled discs to cutting tires into strips and then into blocks.
One machine is multi-purpose, convenient and efficient.
Power | 22-30kw |
Voltage | 380V or customized |
Output size | 35*35mm or customized |
Capacity | 30-50pcs/h |
Machine Dimension(L×W×H） | 1100*1000*1300mm |
Machine weight | 1200kg |
Features
1.Multi-purpose machine, save investment costs. 2. Output size can be customized.
3.Applicable to 750-1200mm diameter tires.
Working Site
