Product Description
PLUG417R

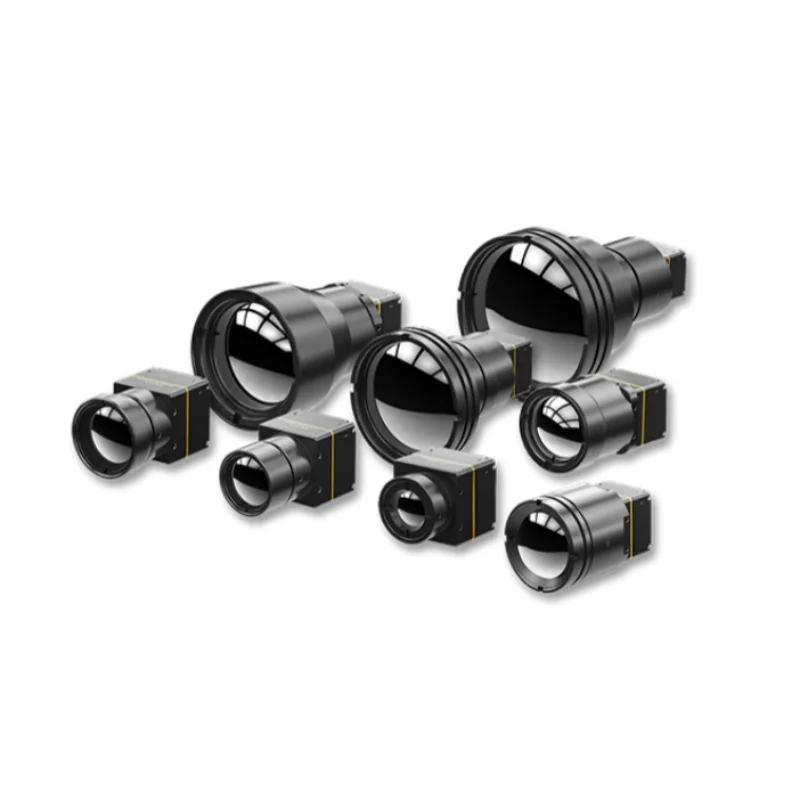

The PLUG-R series 384×288 Uncooled Thermal Module
• Typical NETD<30mk, High Sensitivity
• Stable Performance
• Easy Integration & Plug-in
• Clear Image Quality & Details
• Customizable Temperature Range
• Strong Environmental Adaptability
• Stable Performance
• Easy Integration & Plug-in
• Clear Image Quality & Details
• Customizable Temperature Range
• Strong Environmental Adaptability

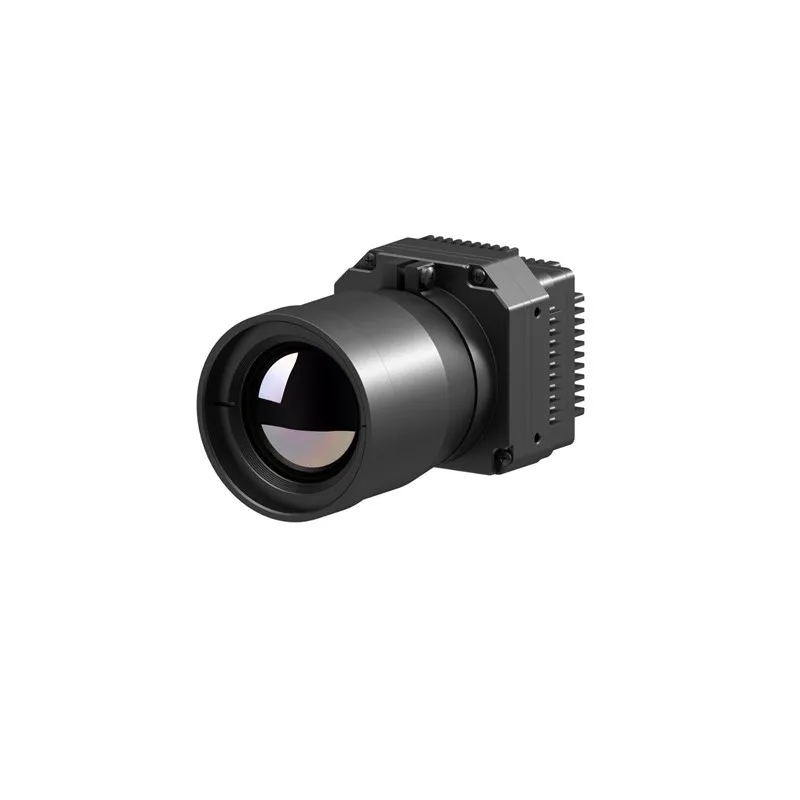

Easy Integration & Plug-in Infrared Temperature Measurement Camera Module with Customizable Temperature Range -20C~550C

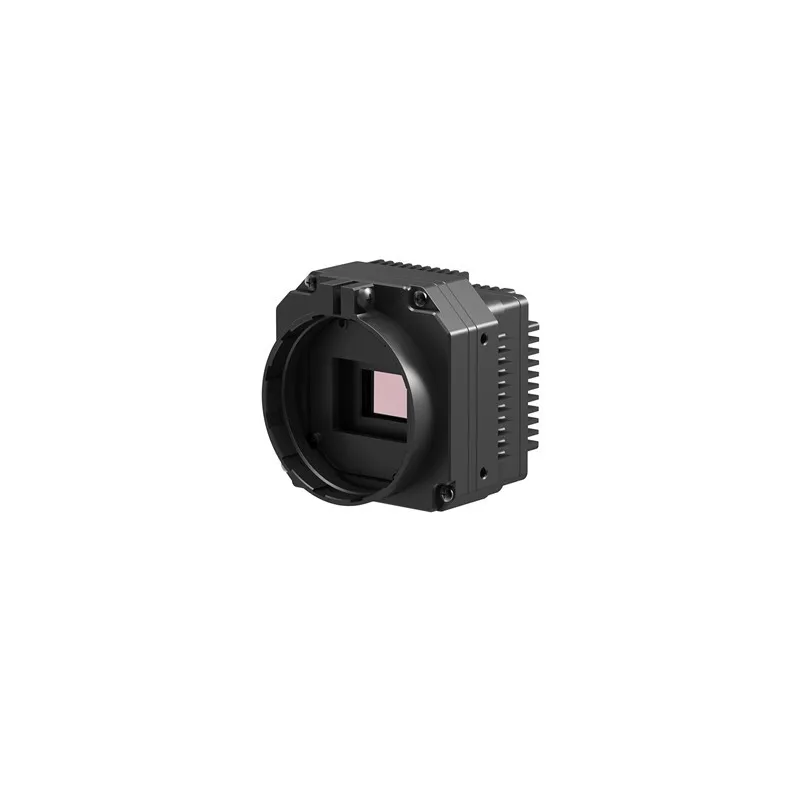

PLUG417R is one of the PLUG series uncooled infrared modules developed by Guide Group. It consists of 400x300@17μm uncooled infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.

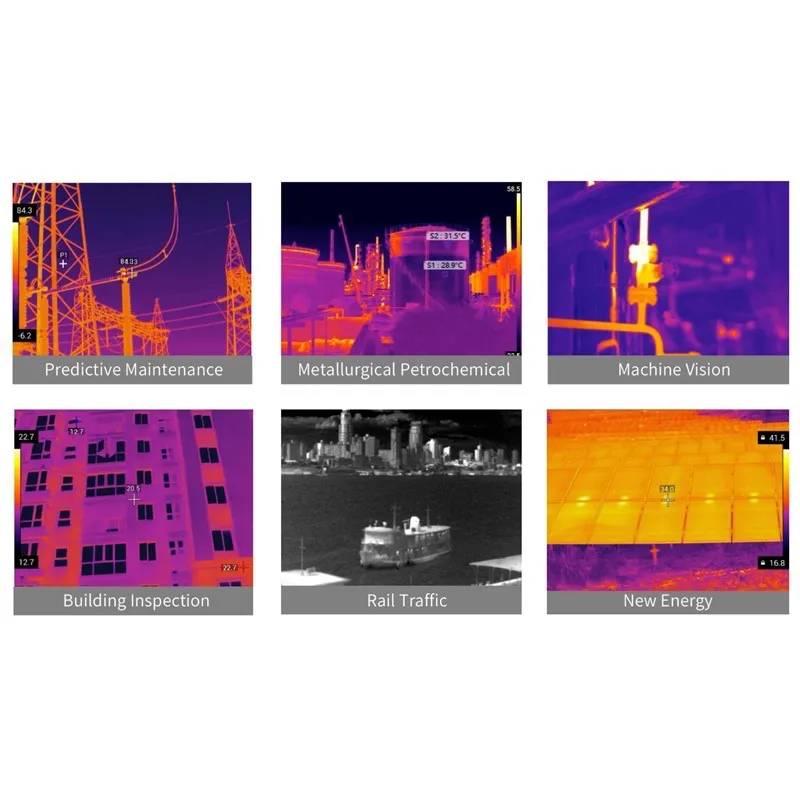

PLUG417R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.
PLUG417R is a kind of uncooled infrared thermal imaging module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.
Specification
Model | PLUG417R | |
IR Detector Performance | ||
Resolution | 384×288 | |
Pixel Size | 12μm | |
Spectral Range | 8~14μm | |
Typical NETD | ＜30mK | |
Image Processing | ||
Frame Rate | 25Hz/30Hz/50Hz/60Hz | |
Start-up Time | 15s | |
Analog Video | PAL/NTSC | |
Digital Video | RAW/YUV/BT656/LVDS | |
Expansion Component | USB/VPC/Cameralink/Gig-E | |
Dimming Mode | Linear/Histogram/Mixed | |
Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 | |
Image Display | Black Hot/White Hot/Pseudo Color | |
Image Direction | Horizontally/Vertically/Diagonally Flip | |
Image Algorithm | Non-uniformity Correction (NUC) | |
Auto Gain Control (AGC) | ||
Image Detail Enhancement (IDE) | ||
Electrical Specification | ||

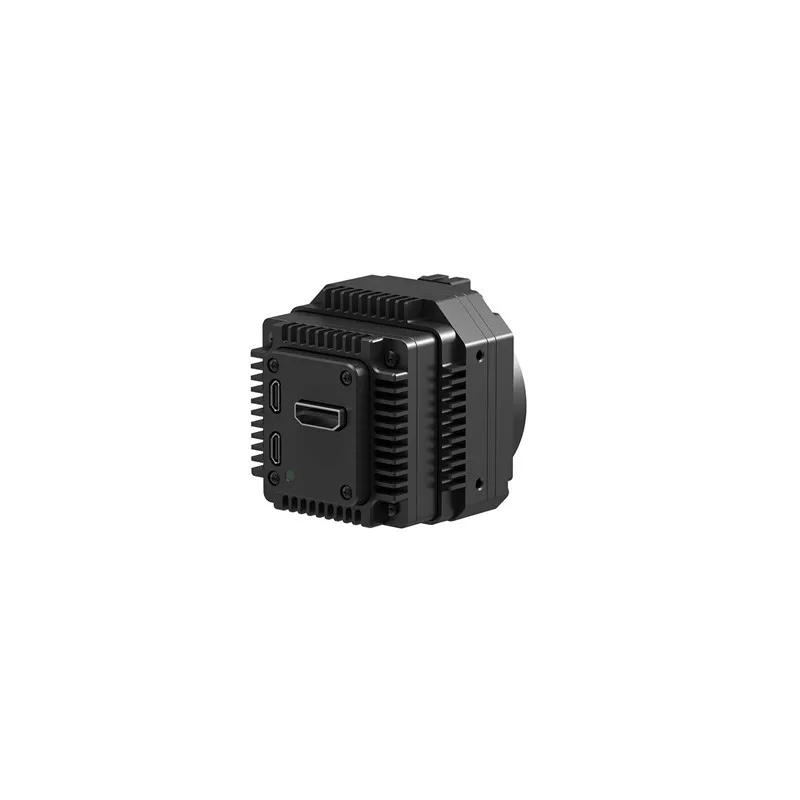

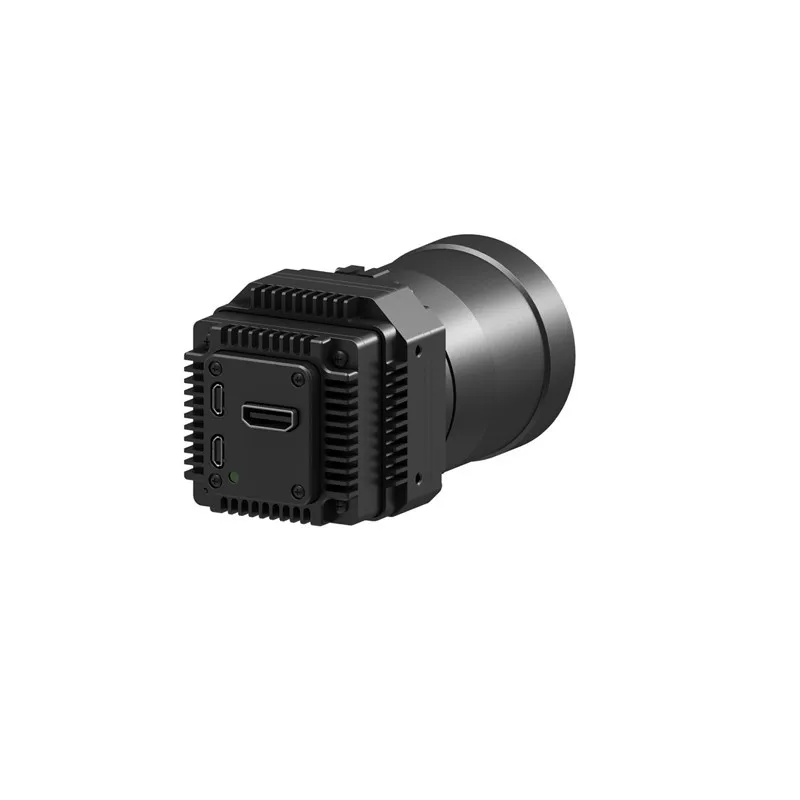

Standard External Interface | 50pin_HRS Interface | |
Communication Mode | RS232-TTL, 115200bps | |
Supply Voltage | 4.5~6V | |
Typical Power Consumption | 2W | |
Temperature Measurement | ||
Operating Temperature Range | -10℃~50℃ | |
Temperature Range | -20℃~150℃，0℃~550℃ | |
Temperature Accuracy | Greater of ±2℃ or ±2% | |
SDK | Support ARM/Windows/Linux SDK, Achieve Full Screen Thermography | |
Physical Characteristics | ||
Size (mm) | 44.5×44.5×36.6 | |
Weight | 77g±3g | |
Environmental Adaptability | ||
Operating Temperature | -40°C~+70°C | |
Storage Temperature | -45°C~+85°C | |
Humidity | 5%~95%, non-condensing | |
Vibration | Random Vibration 5.35grms, 3 Axis | |
Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction | |
Optics | ||
Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm | |
