120V IC Номинальный 4-дюймовый светильник с регулируемой яркостью 9 Вт 3CCT светодиодный потолочный встроенной квадратной панелью для
- Категория: Indoor Lighting >>>
- Поставщик: Shenzhen,Youth,Green,Lighting,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 407.25 $* | 427.83 $* |
| Aug-15-2025 | 404.93 $* | 424.16 $* |
| Jul-15-2025 | 339.19 $* | 356.92 $* |
| Jun-15-2025 | 397.41 $* | 417.75 $* |
| May-15-2025 | 345.19 $* | 362.48 $* |
| Apr-15-2025 | 390.17 $* | 410.61 $* |
| Mar-15-2025 | 386.36 $* | 405.24 $* |
| Feb-15-2025 | 383.22 $* | 402.18 $* |
| Jan-15-2025 | 380.15 $* | 399.86 $* |
Характеристики
Specification
item | 4inch 3CCT Square Slim Panel Light |
Color Temperature(CCT) | 3CCT/5CCT |
Lamp Luminous Efficiency(lm/w) | 90 |
Color Rendering Index(Ra) | 80 |
Support Dimmer | Yes |
Lighting solutions service | Lighting and circuitry design |
Application | Home Office |
Design Style | Modern |
Lifespan (hours) | 50000 |
Working Time (hours) | 50000 |
Input Voltage(V) | AC120V |
Lamp Luminous Flux(lm) | 810 |
CRI (Ra>) | 80 |
Working Temperature(℃) | -40-40°C |
Working Lifetime(Hour) | 50000 |
Lamp Body Material | PCB+Aluminum |
IP Rating | Ip44 |
Place of Origin | China |
Guangdong | |
Brand Name | YG |
Model Number | YG008D9-S-3C/YG008D9-S-5C |
Light Source | LED |
Warranty(Year) | 5-Year |

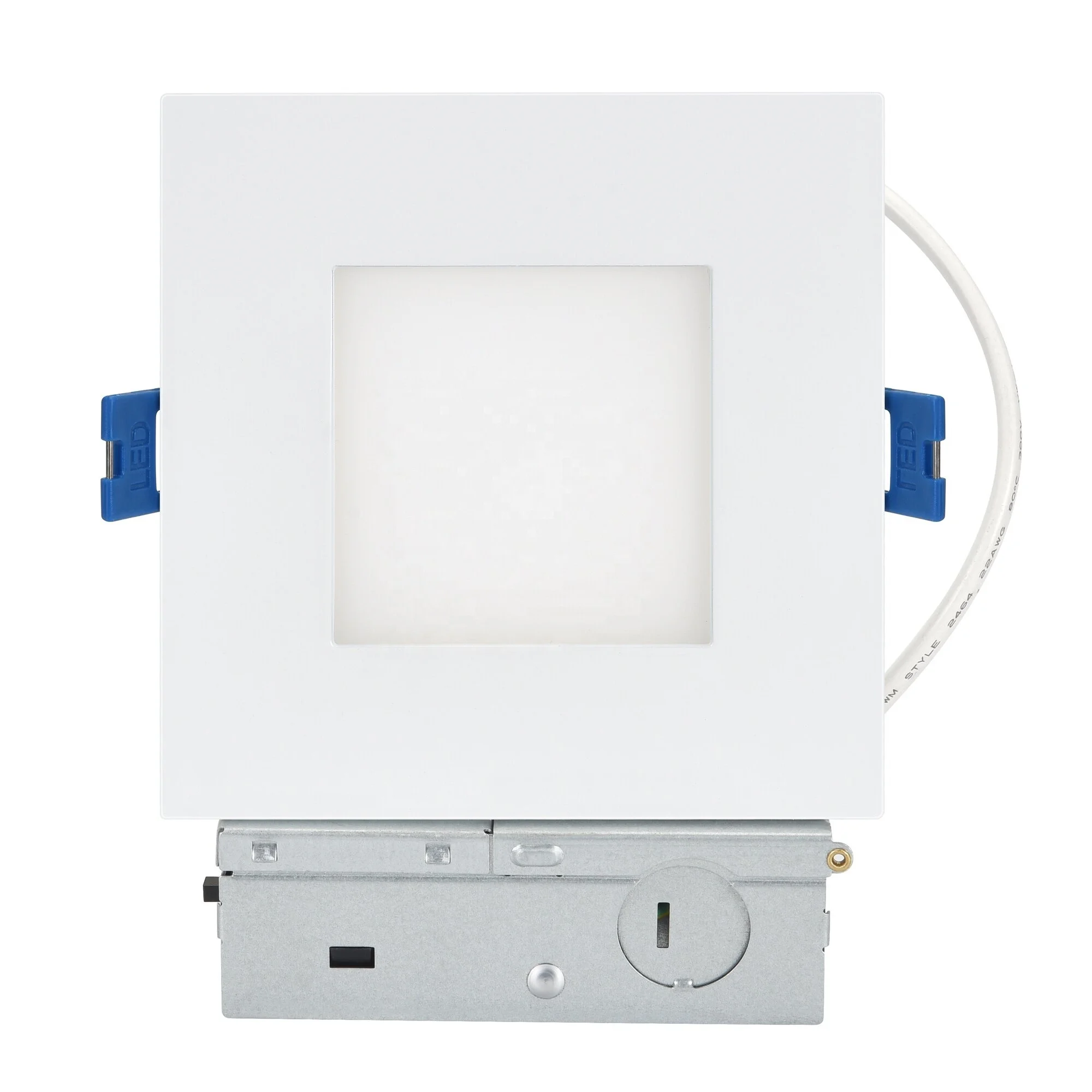

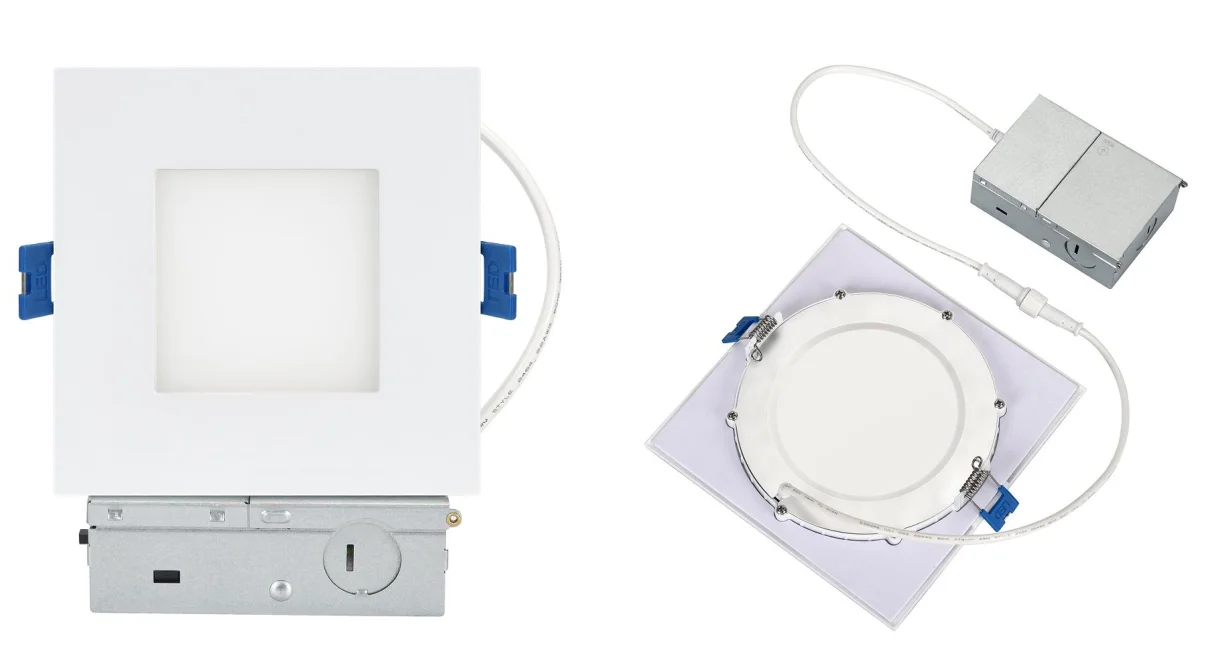

Product name | Square Slim Panel |
Power | 9W |
Size | 4inch |
CCT | 3000K-5000K |
Beam angle | 180 Degree |
Dimmable | 5-100% Triac Dimmable |
LED Light Source | Epistar 2835SMD |
LED Driver | Isoltaed |
Shape | Square Shape Round Cut |
Material | Aluminum+PCB |
Product Description
1. Model No.:
YG008D9-S-3C
YG008D9-S-5C
Color: 3CCT /5CCT
2. Watt: 9W AC120V 50/60Hz.
3. Lumen: 810LM
4. Air Tight; Suitable for Damp Locations
5. With Junction box, compatible for North America’s installation regulation requirement.
6. ETL Energy Star approved, 5 years warranty.
2. Watt: 9W AC120V 50/60Hz.
3. Lumen: 810LM
4. Air Tight; Suitable for Damp Locations
5. With Junction box, compatible for North America’s installation regulation requirement.
6. ETL Energy Star approved, 5 years warranty.

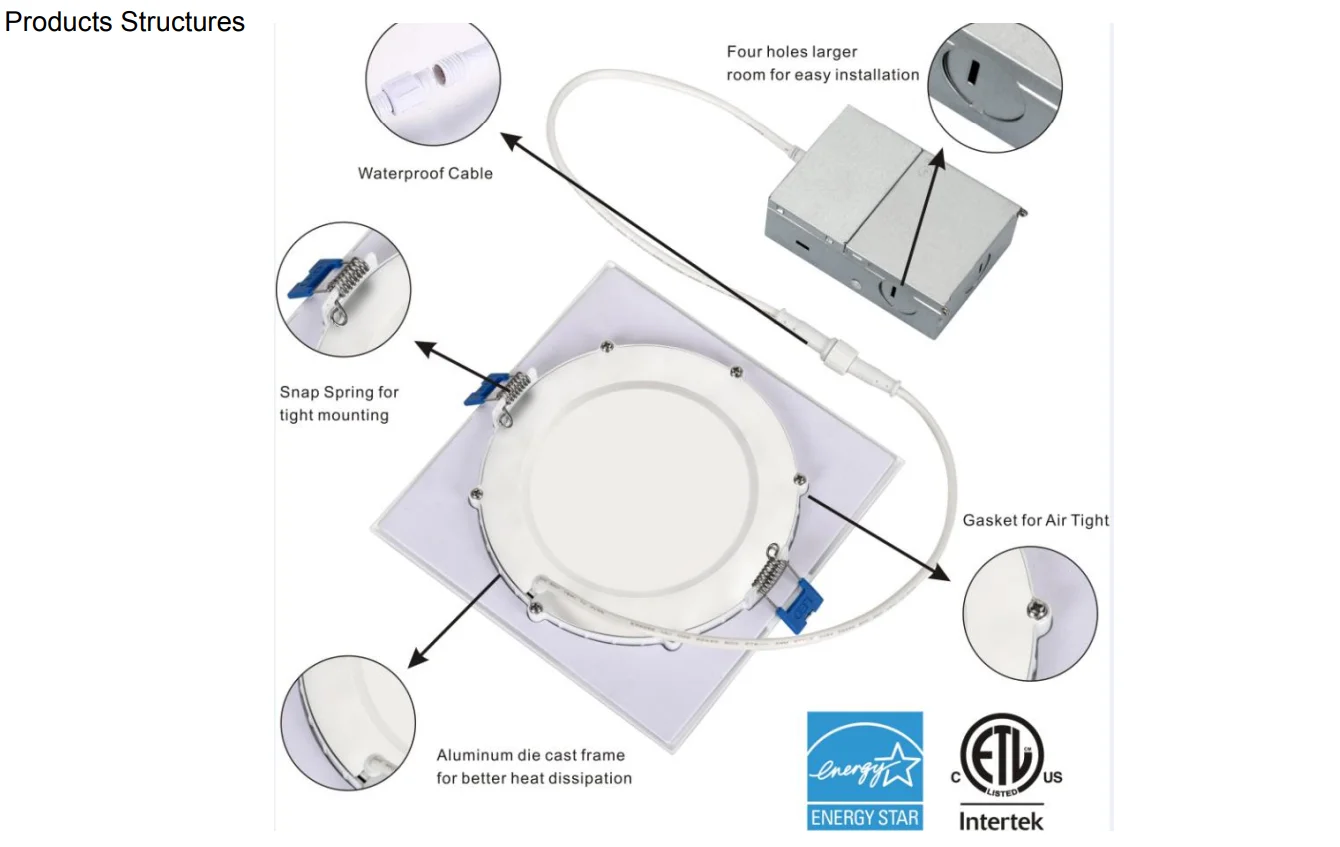

**Snap Spring for Tight Mounting.
Color Changeable by button switch
1)3000K-4000K-5000K
Three Colors All in one panel

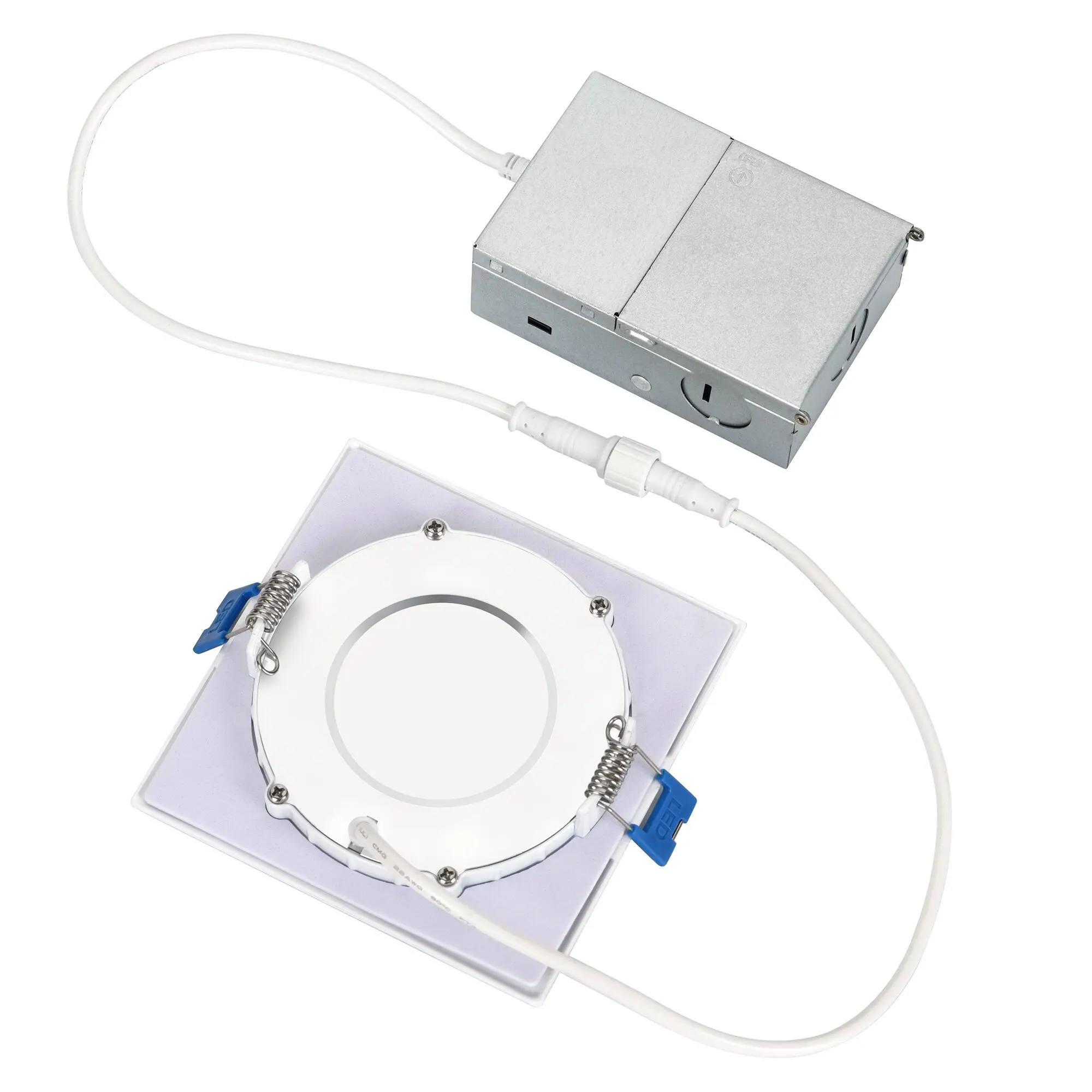

2)Easy to set Color Temperature by switching a lever on the Junction Box (see photo); If you are not sure which color temperature is suitable for your room this product is for you; By switching colors you can find which color is suitable.
1)3000K-4000K-5000K
Three Colors All in one panel
2)Easy to set Color Temperature by switching a lever on the Junction Box (see photo); If you are not sure which color temperature is suitable for your room this product is for you; By switching colors you can find which color is suitable.
Products Details
* Extremely Bright Dimmable LED Panel Lights – These square panel lights use 9 watts to provide 810 lumens with an 80+ CRI! Dims down to 5%- 100% and compatible with 120VAC dimmers.
