Китай завод сделал высокое качество v ремень
- Категория: Rubber Belts >>>
- Поставщик: Xingtai,Boshuo,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.26 $* | 0.74 $* |
| Aug-17-2025 | 0.72 $* | 0.28 $* |
| Jul-17-2025 | 0.24 $* | 0.77 $* |
| Jun-17-2025 | 0.70 $* | 0.87 $* |
| May-17-2025 | 0.76 $* | 0.67 $* |
| Apr-17-2025 | 0.76 $* | 0.93 $* |
| Mar-17-2025 | 0.17 $* | 0.90 $* |
| Feb-17-2025 | 0.90 $* | 0.10 $* |
| Jan-17-2025 | 0.19 $* | 0.96 $* |
Характеристики
Normal v belts
The top and bottom are encased by the wrapper. Two sides are rubber. V belt with toothed grooves is designed at the bottom to improve the bending property.

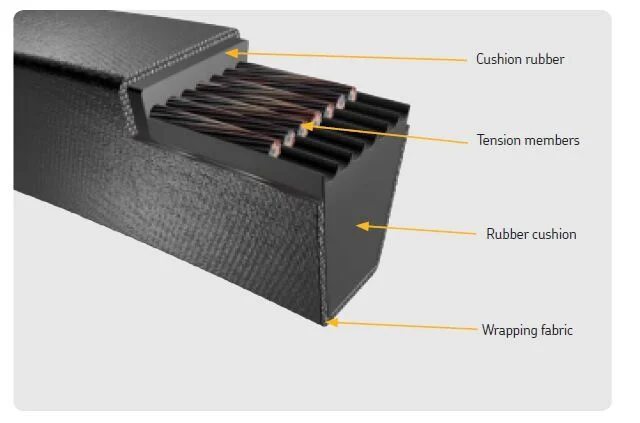

Structure
| No. | Name | Function | Material |
| 1 | Outside Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
| 2 | Tensile Member | Core material to pass the dynamic force | Polyester Wire |
| 3 | Top Rubber | Maintain the top shape of the adhesive taoe | NR;CR;SBR |
| 4 | Buffer Rubber | Support and protect the adhesiveforce of the tensile member | NR;CR;SBR |
| 5 | Bottom Rubber | Maintain the bottom shape of the adhesive tape | NR;CR;SBR |
Features
• Large intensity, high flexibility, good durability;
• Special bottom rubber used, small elongation and long service life;
• Excellent heat-resistence, oil-proot, and wearing resistence;
• High transmission efficiency;
• Suitable for band pulley with minor diamenter;
• Safe performance can be guaranteed even during high-speed operation.
THE NORMAL V BELT SECTION SIZE
| TYPE | TOP WIDTH | WITH HIGH | ANGLE | RANGE OF PRODUCTION |
| M | 10 | 6 | 40° | 15-120” |
| A | 13 | 8 | 40° | 18-360” |
| B | 17 | 11 | 40° | 22-550” |
| C | 22 | 14 | 40° | 33-600” |
| D | 32 | 19 | 40° | 80-600” |
| E | 38 | 23 | 40° | 110-600” |
NARROW V BELT SECTION SIZE
| TYPE | TOP WIDTH | BELT THICKNESS | ANGLE | PRODUCTION SCOPE |
| SPZ(FM) | 9.7 | 8 | 40° | 500-6850 |
| SPA | 12.7 | 10 | 40° | 500-8000 |
| SPB | 16.3 | 13 | 40° | 600-8000 |
| SPC | 22 | 18 | 40° | 1000-12500 |
| 3V(9N) | 9.5 | 8 | 40° | 20-200 |
| 5V(15N) | 16 | 13.5 | 40° | 50-355 |
| 8V(25N) | 25 | 23 | 40° | 100-500 |
Related Products
Company Information-
Xingtai Boshuo Trading Co., Ltd. was established in 2014. We are specialized in design, research, production and sale of v belt, raw edge v belt, poly v belt, industrial timing belt, auto timiing belt, etc.
Our factory is located in Beiding Industrial Zone in Ren County of Hebei Xingtai. And it is the largest rubber production and export base in North China. We are a professional belt manufacturer.
Based on the principle of honesty and mutual benefit, we are willing to build up stable cooperative relations with friends at home and abroad for a bright future.
ABOUT US
They are sales personnel in our company--- professionally trained, proficient in products and good at communication in English. So what we can do for you?
The accurate and detailed quotation can be given at the first time. We can also give you professional advices to help you make the best choice. You will find a trust-worthy trading partner and friend among us.
OUR FACTORY
We have established long-term business relations with over 40 countries such as USA, Canada, India, Pakistan and Indonesia.
It covers an area of 5600 square metres, with total asset of 10,000,000 RMB and about 200 staff including 15 senior engineers and 20 technicans.
APPLICATION SCENARIOS
Belts are widely used in power transmission equipments, agricultural machines, home appliances, automobiles, motorcycles, fitness equipments, 3D printers...
Packaging&Shipping
1. Packing information: PP/CARTON, it depends on customer's requirements.
2. Shipping condition: LCL, FCL or EXPRESS.
3. Quote item: FOB / EXW / CIF / CNF.
4.Port: Tianjin Port
5.Lead Time: Shipped in 30 days after payment.
Our Services
1. With rich work experience and profession product team more than10 years.
2. With fastest enquire reply and best service.
3. We can produce the product according to your sample.
4. The payment term: TT /LC /west union /cash.
5. We had strong supply ability and with short delivery term.
6. We support Alibaba online services at 8:00am -8:00pm.
FAQ
Q1: Can i order a small quantity of samples?
---- Yes. We can offer you samples at the bulk prices and send them by DHL, TNT. EMS, FEDEX or others according to your requirements.
Q2: How could i know whether the belt fits for my machine?
---- You can tell me which product you are interested in, and i will give you its main sizes. You can also send me drawings or samples, and then we will put them into production at your requests.
Q3: I want to find a supplier for my new products. Can you help me?
---- Yes. Kindly offer me your drawings or samples for analysis.
Q4: How long does it take to make a new product?
---- Usually 10-15 days for drawings and 7 days for samples.
Q5: Can we stencil (or print ) our logo or company name on the belt or package?
---- Yes. But we have a minimum order quantity.
Q6: What is your payment term?
---- T/T 30% deposit and T/T 70% balance beforce shipment.
Q7: What is your quotation?
---- We will give you FOB price. But EXW, CIF and CNF can also be given according to your demands.
