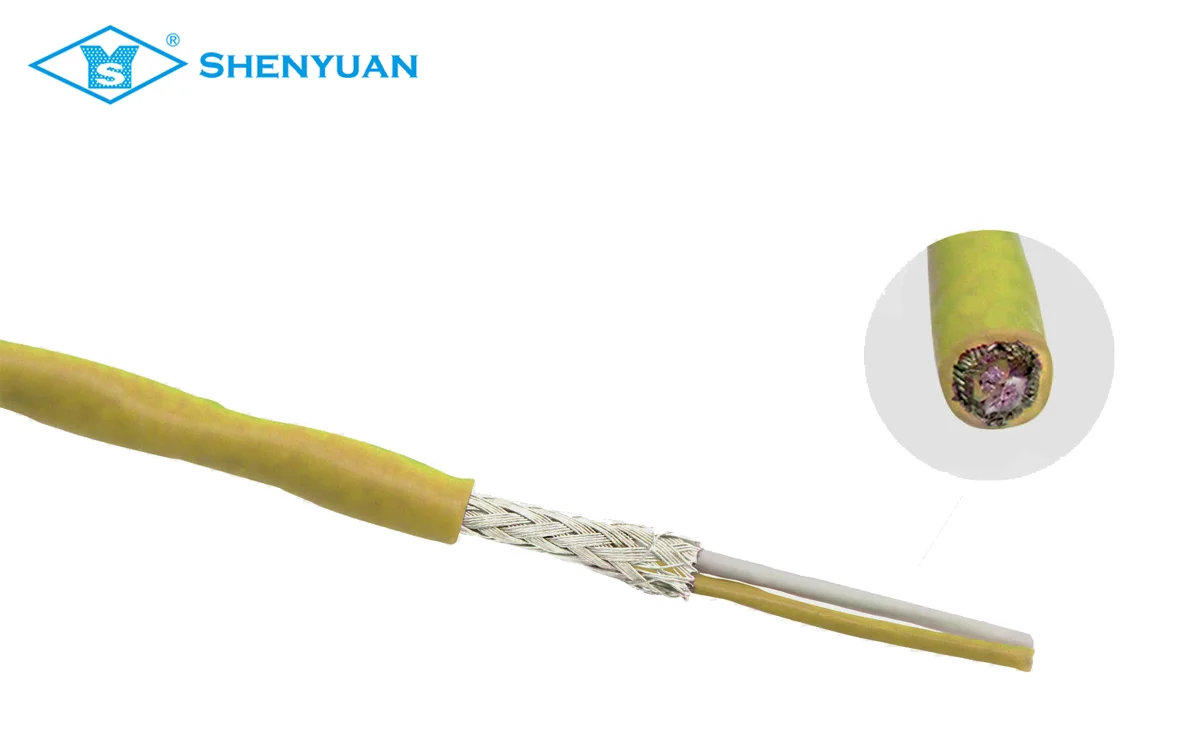

1) Product: AFPFmulti-core high temperature shielded cable
2) Style No.: AFPF
3) Size: 0.1sqmm~40sqmm;
4) Rated Voltage: 300/500V
5) Rated Temperature:-60°C~+200°C/250°C

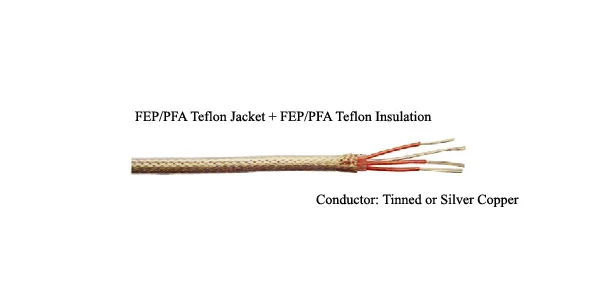

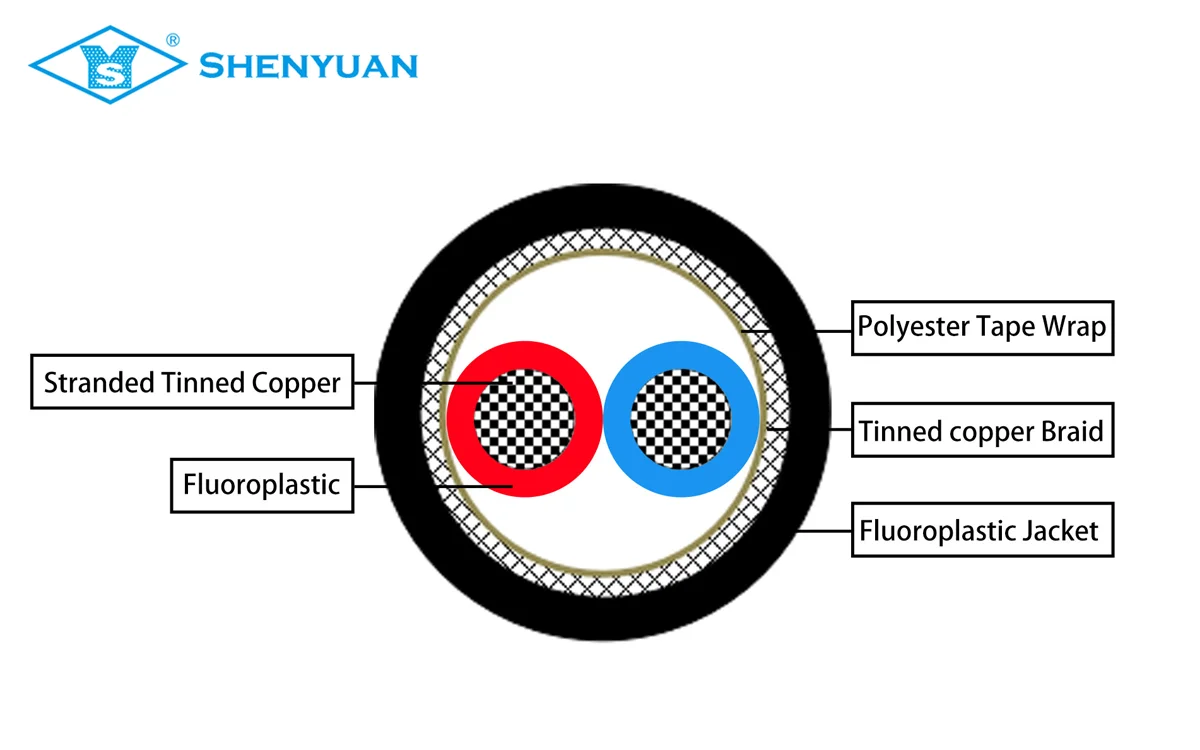

6) Conductor: Stranded tinned or silver copper
7) Insulation: FEP/PFA
8) Coated: FEP/PFA
9) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
Product features
*excellent resistance to high temperature
*low temperature resistance
*electrical properties and waterproof
*mildew superior performance
*aging resistance
*Excellent bending performance
*long service life
Applications
*mobile motors
*aviation
*power plants
*petrochemical and other high temperature environment
Section Area mm2 | Conductor construction NO.×mm | Insulation thickness mm | Number of cores | m/coil |
0.2 | 7×0.20 | 0.4 | below 37 cores | 200 |
0.3 | 16×0.15 | 0.5 | 200 | |
0.5 | 28×0.15 | 0.6 | 200 | |
0.75 | 24×0.20 | 0.6 | 100 | |
1 | 32×0.20 | 0.6 | 100 | |
1.5 | 48×0.20 | 0.6 | 100 | |
2.5 | 49×0.25 | 0.7 | 100 |
