25 мм сверло бетонная настенная 300 дорога двойной мотор

Wall Saw Machine

25 mm drill bit hole saw concrete wall 300 road double motor wall saw rope saw machine

Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.

The wall cutting machine is mainly used for the renovation, reinforcement, and design of buildings or old buildings. It can cut large-area wall cuts such as door holes, windows or elevator holes. The structure is non-destructive and can be formed in one time, in addition to avoiding the damage of the structure of the building by the traditional master knocking construction; the time, material and manpower of drilling the circular hole-discharging method can save a lot of rest time and cost.

Main Features of Hydraulic wall sawing machine

1.Reduce the labor intensity, safe and reliable operation

2.with overload protection, powerful, improved cutting capacity and labor productivity.

3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage, to expand the scale of construction projects can accept;

4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;

5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.

Four ways of using the wall sawing machine:

1.Transverse cutting
2.Longitudinal cutting
3.Ground cutting
4.Inverted cutting

Working principle

cutting surface smoothly and tidily.
by the track control, cutting position accurately.
no vibration, low noise, environmental protection, security, pollution-free.
cutting thickness can be adjusted according to the size of the saw blade.
Scope of application
general reinforced concrete walls, board cutting, demolition or the door hole.
cutting surface required to be a smooth, straight, beautiful concrete cutting.
cutting depth according to the blade size adjustment, the current use
Φ1600 mm blade which Maximum cutting depth up to 600mm.

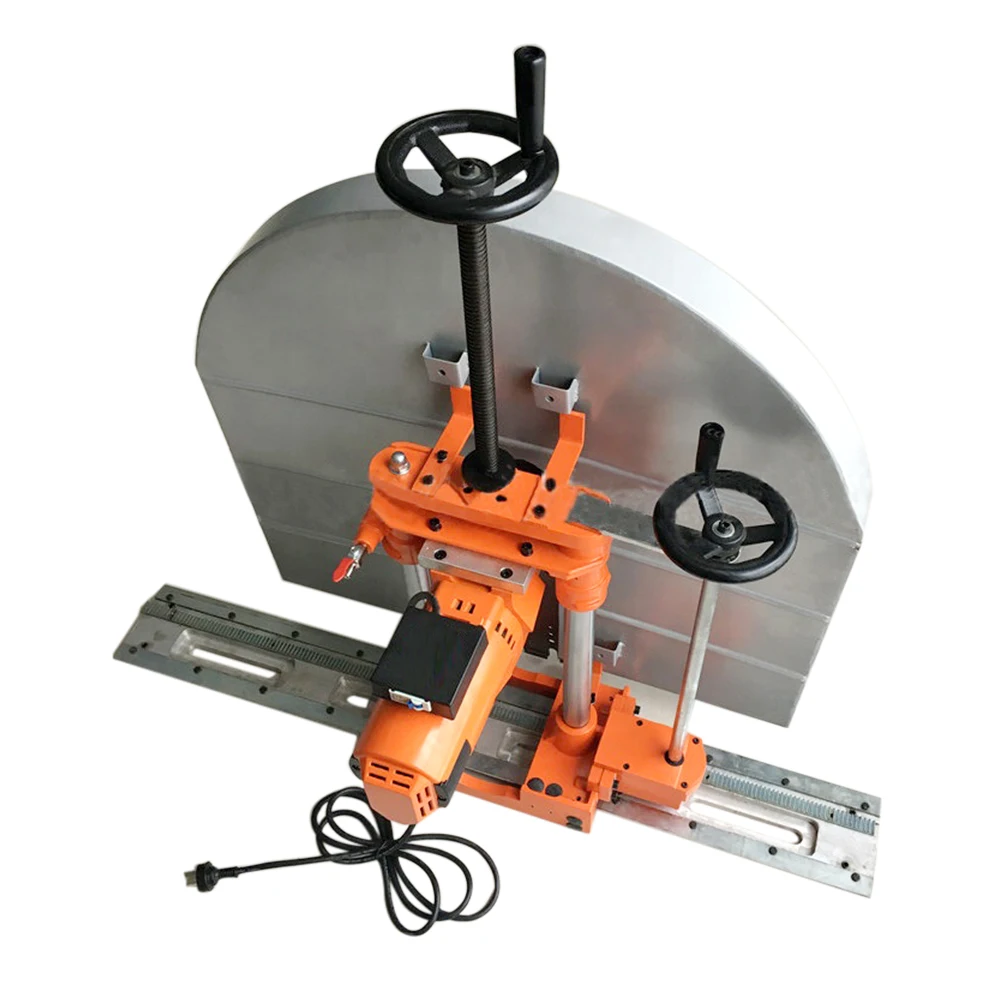

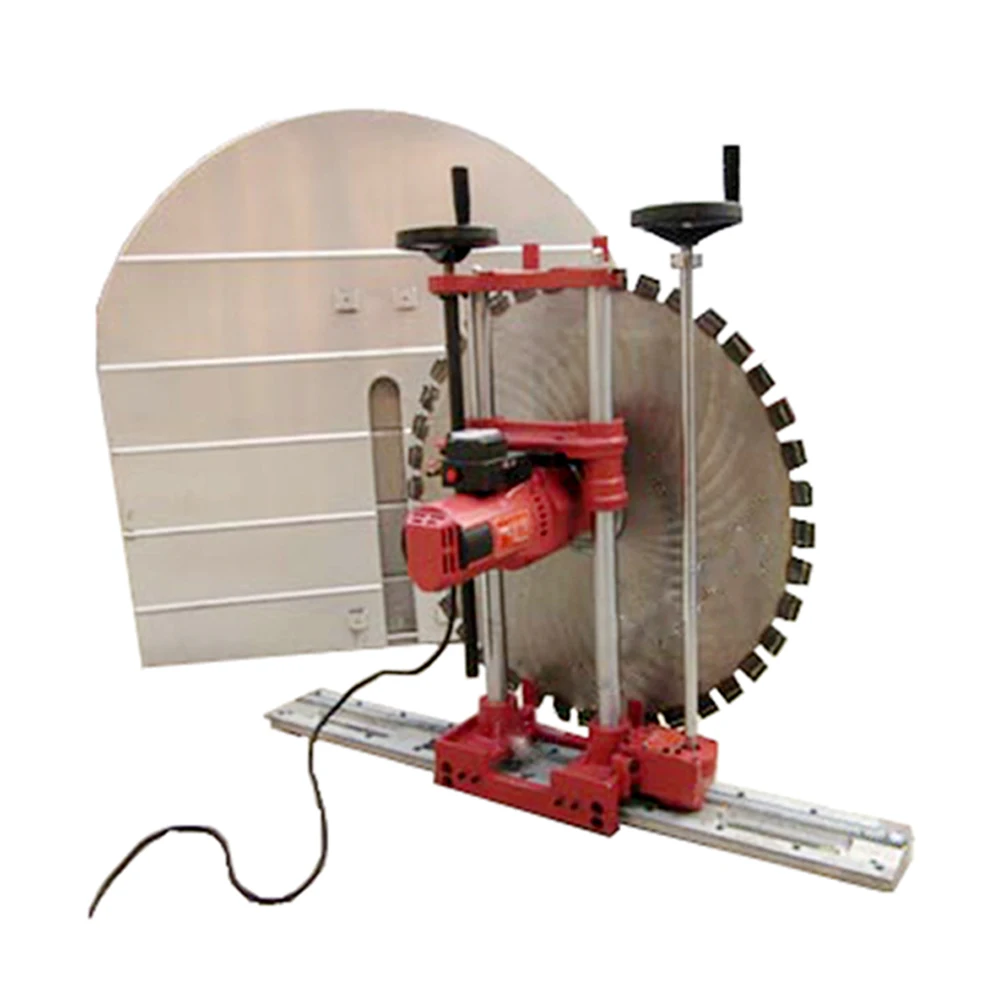

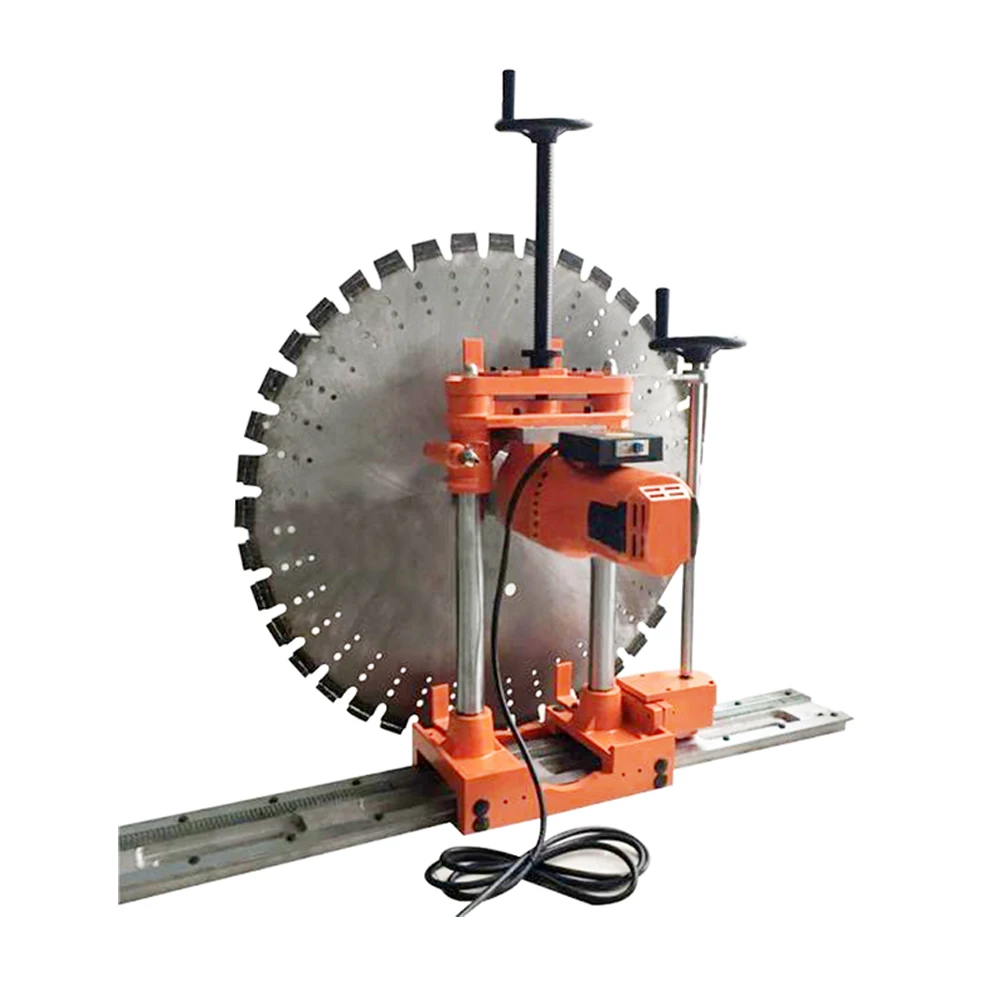

The whole set of machine inculdes:

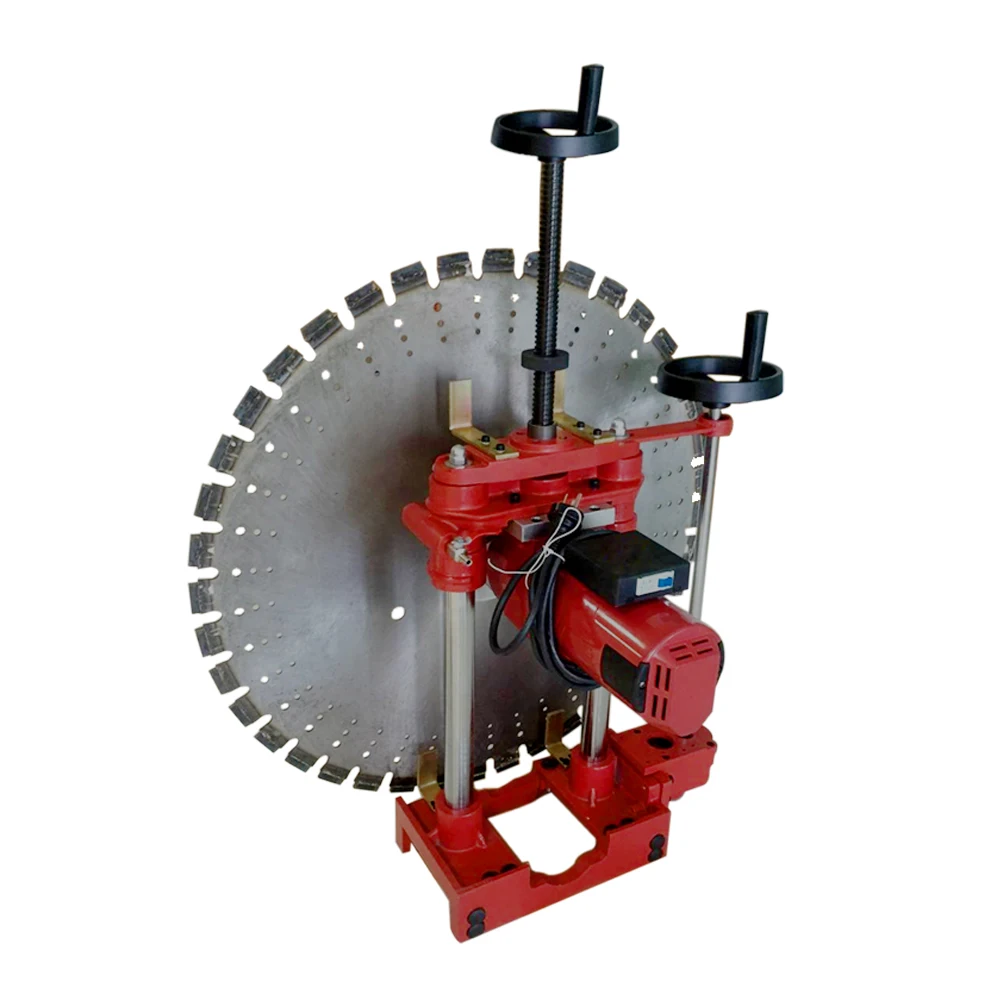

1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)

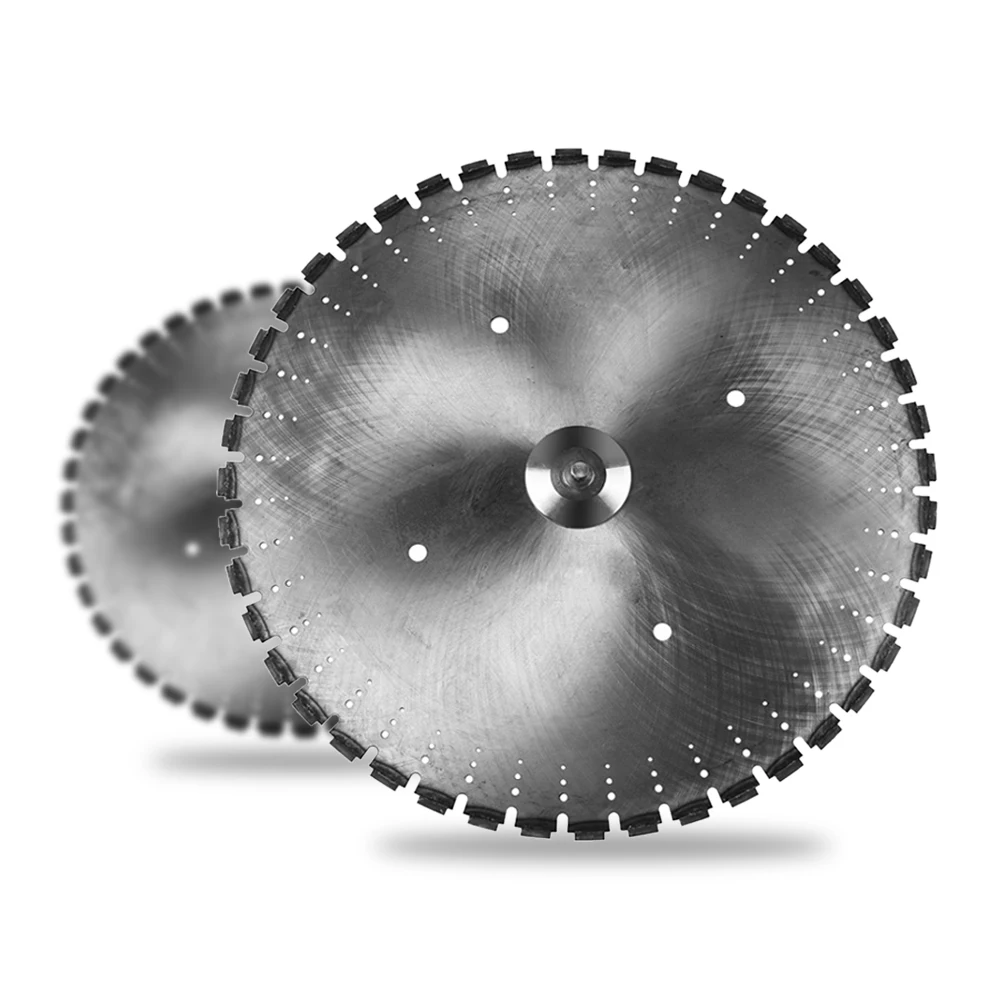

2. one disk, 800-1000mm or customized.

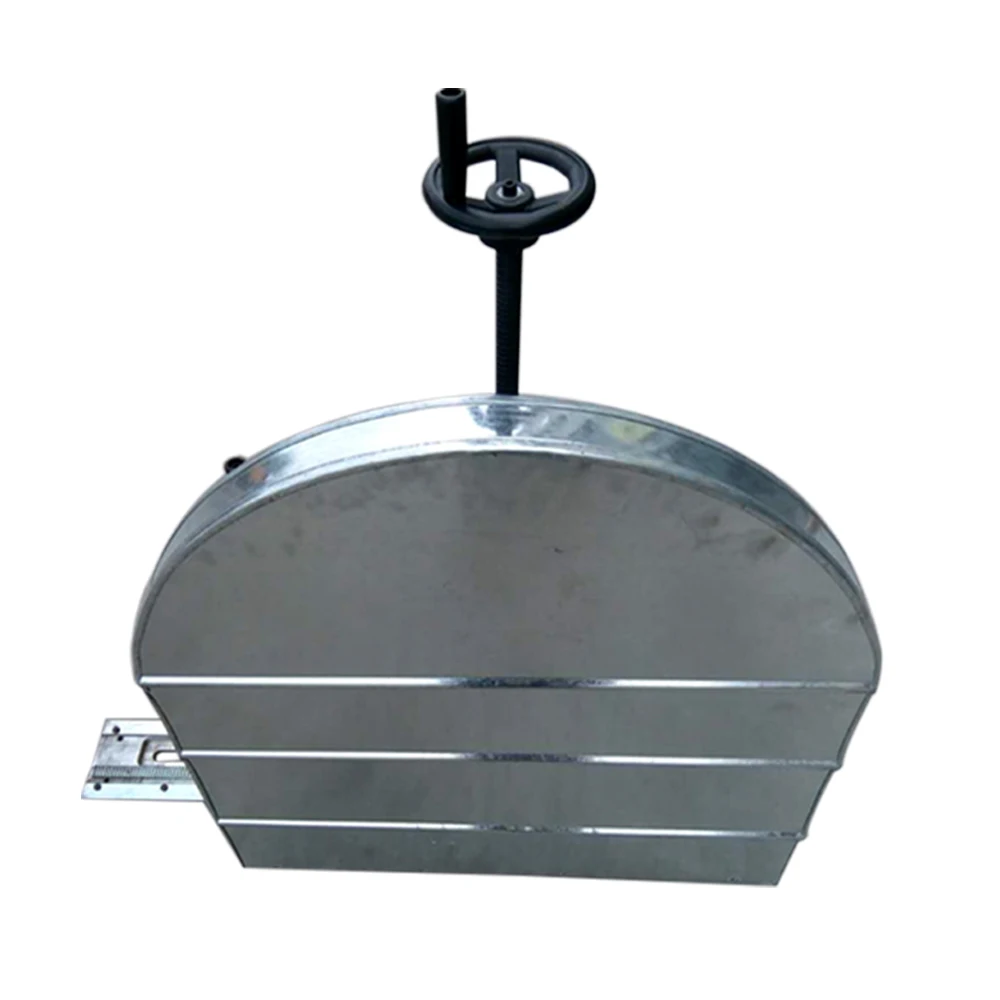

3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors

Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the saw blade and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for blade in/out, side handle is for machine movement.)

Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 20-30working days after deposit.

1. Pre-Sale Service: Recommend Suitable Machine According to Your Application.

2. In-Sale Services: Confirm the Order, Arrange Item Production, Supervise the Packaging and Shipping, and Offer Buying Guide to Finish the Purchase.

3. After-Sale Services: 24 Hour Technical Support Online. Contact Us to Get the Prompt Reply.
