Yuhua 20l высокотемпературный химический смесительный реактор с конденсатором из нержавеющей
- Категория: Reactors >>>
- Поставщик: Shanghai,Yuhua,Instrument,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1059.28 $* | 1112.18 $* |
| Aug-16-2025 | 1050.15 $* | 1103.54 $* |
| Jul-16-2025 | 881.62 $* | 925.56 $* |
| Jun-16-2025 | 1032.28 $* | 1084.24 $* |
| May-16-2025 | 899.8 $* | 944.62 $* |
| Apr-16-2025 | 1015.62 $* | 1066.90 $* |
| Mar-16-2025 | 1006.73 $* | 1056.14 $* |
| Feb-16-2025 | 997.82 $* | 1047.55 $* |
| Jan-16-2025 | 988.36 $* | 1037.74 $* |
Характеристики
Stainless steel reactor has the characteristics of rapid heating, high temperature resistant, high pressure resistance, corrosion resistance, health, no environmental pollution, easy to use. etc. Widely used in chemical, food, coating, hot melt adhesive, silica gel, paint, medicine, petrochemical production of reaction, evaporation, synthesis, polymerization, saponification, sulfonation, chlorination, nitrification and other processes of pressure reactor. Know more!
Product Description

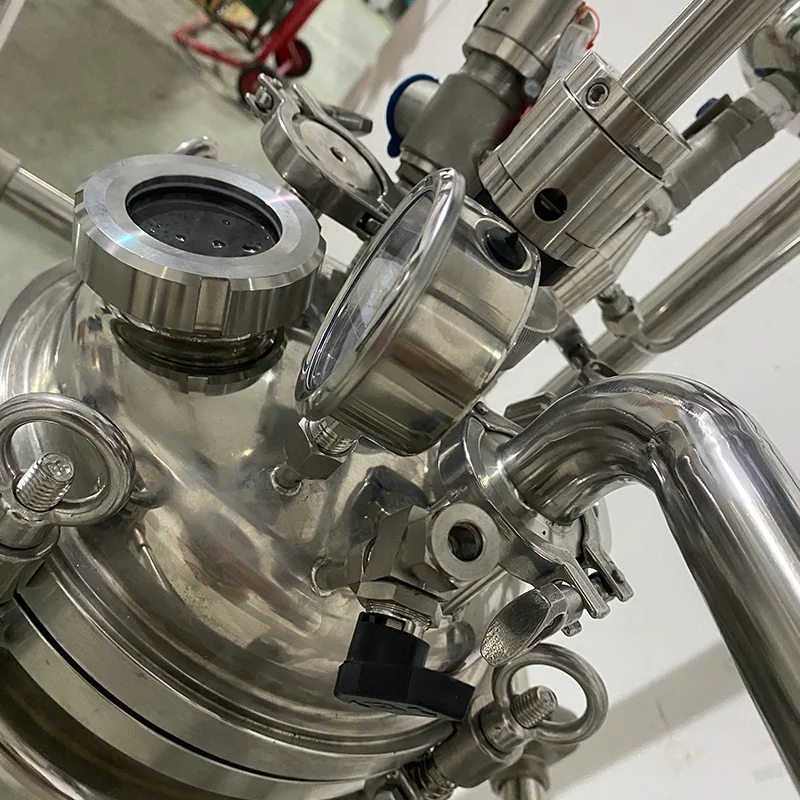

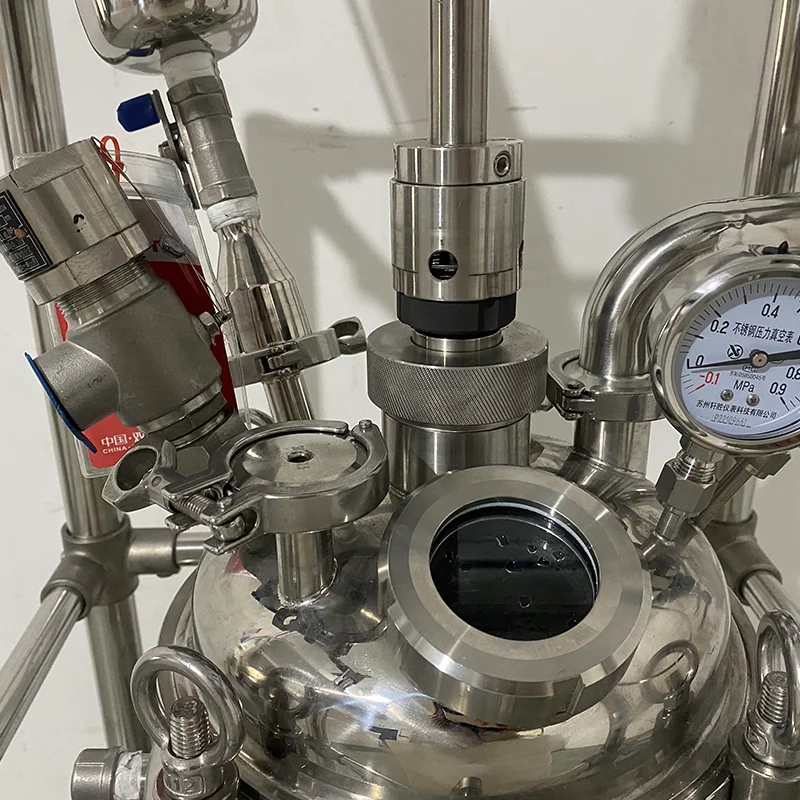

Multi port & multi-function kettle
Sight window on lid makes observation of reacting material easy. Ports on lid and the caliber can be customized.

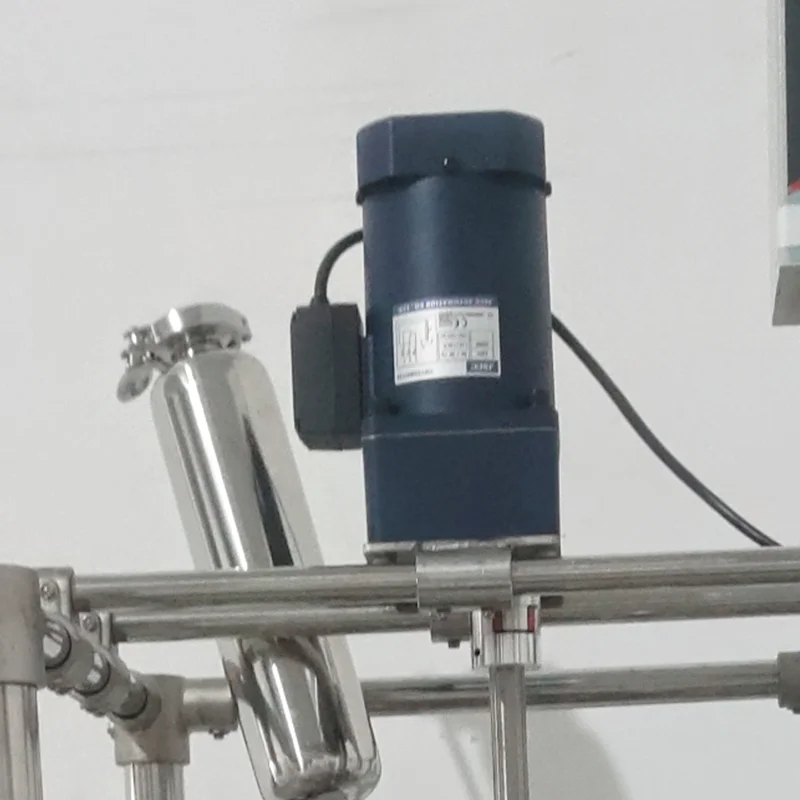

Brushless motor
Fully enclosed design, oil and dust proof, low noise, high efficiency, stable output, energy saving and power saving can improve work efficiency.
SS304 or SS316 optional
High quality SS304 or SS316 material , corrosion resistance, high temperature resistance, high pressure resistance, strong acid and alkali resistance.
PTFE stirring rod, 316 stainless steel stirring rod is wrapped with tetrafluoro, which has the characteristics of acid and alkali resistance, high and low temperature resistance, wear resistance, low adhesion, etc. The standard configuration can choose ABCD type stirring rods, the smaller bottle mouth can choose A type stirring rods, and the EFG type stirring rods can be customized.
Specifications
Model | SS-5L/10L | SS-20L | SS-30L | SS-50L | SS-100L | SS-150L | SS-200L | |||||||
Capacity | 5L/10L | 20L | 30L | 50L | 100L | 150L | 200L | |||||||
Material quality | 304 stainless steel /316 stainless steel optional | |||||||||||||
Thickness | Inner lining: 4mm, outer casing: 4mm(can be customized according to pressure) | |||||||||||||
Motor power | Frequency control 120w (customizable) | Frequency control 200w | Frequency control 400w | Frequency control 750w | ||||||||||
Speed | 0~600rpm | |||||||||||||
Controller | Speed adjustment, temperature and speed LCD digital display | |||||||||||||
Voltage | 220V/50HZ | |||||||||||||
Working pressure | The maximum positive pressure is 0.6Mpa (Customizable) | |||||||||||||
Sealing of kettle cover | Fluorine rubber pad seal,screw press type | |||||||||||||
Vacuum sealing | The maximum negative pressure is -0.098 Mpa | |||||||||||||
Stirring port | 32Φ | 59Φ | 32Φ | 32Φ | 79Φ | |||||||||
Solid feeding port | 55Φ | 75Φ | 133Φ | |||||||||||
Light port | 38Φ | 55Φ | 75Φ | |||||||||||
Reflux port | 38Φ | |||||||||||||
Constant pressuredrop funnel port | 25Φ | |||||||||||||
Temperature port | 19Φ | |||||||||||||
Pressure relief port | 4 points loose joint | |||||||||||||
Nitrogen port | 4 points | |||||||||||||
Stirrer diameter | 12Φ | 20Φ | 35Φ | |||||||||||
Stiring seal | Mechanical seal/magnetic coupling seal is optional | |||||||||||||

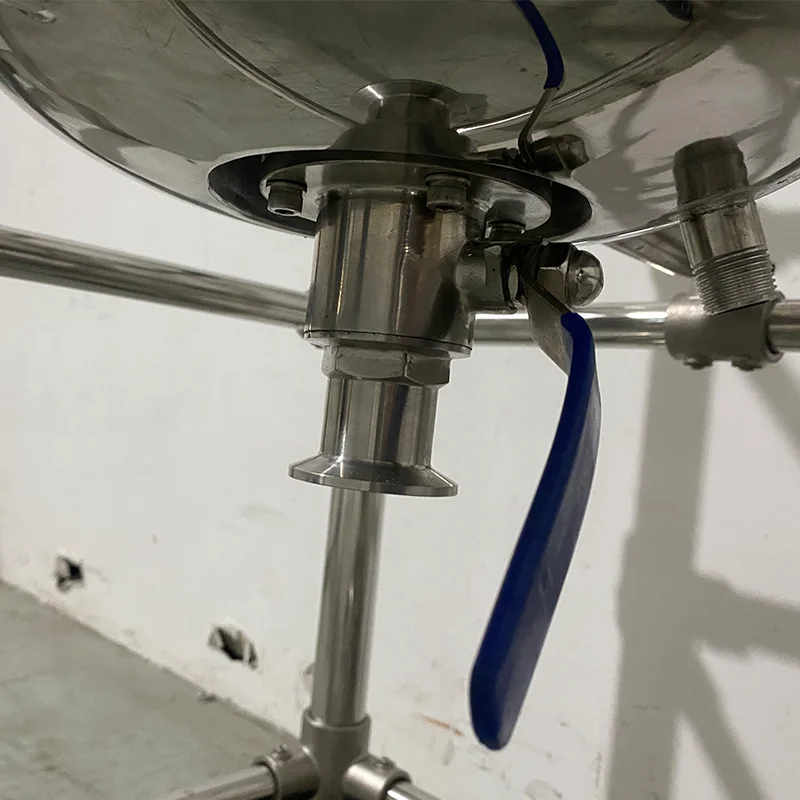

Discharging valve | DN38 ball valve | DN50 ball valve | ||||||||||||
Stirrer | Anchor style(other shapes are available) | |||||||||||||
lnlet/outlet oil port | DN20 male thread(customized) | |||||||||||||
The above data can be customized on demand | ||||||||||||||
Matching products
High and low temperature circulating device, heating and cooling can be switched by one button, without oil change and waiting.
Low temperature cooling circulating pump, fast cooling steam to improve recovery rate, closed cycle refrigeration, saving a lot of cooling water resources.
The circulating water vacuum pump can reduce the boiling point, improve the evaporation rate, guide the gas to rise, and improve the recovery rate.
Low temperature cooling circulating pump, fast cooling steam to improve recovery rate, closed cycle refrigeration, saving a lot of cooling water resources.
The circulating water vacuum pump can reduce the boiling point, improve the evaporation rate, guide the gas to rise, and improve the recovery rate.
