Гироскопическая цепь проволока пластиковый держатель

Гироскопическая цепь проволока пластиковый держатель

Категория: Drag Chain >>>
Поставщик: Shanghai,Jd,Automation,Technology,Co.,Ltd.

Цена:5,00 $ - 10,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	6.84 $*	6.56 $*
Jul-15-2025	5.8 $*	5.21 $*
Jun-15-2025	6.46 $*	6.71 $*
May-15-2025	6.82 $*	6.22 $*
Apr-15-2025	5.3 $*	5.28 $*
Mar-15-2025	6.27 $*	6.50 $*
Feb-15-2025	6.61 $*	6.12 $*
Jan-15-2025	6.17 $*	6.78 $*

Характеристики

Photos

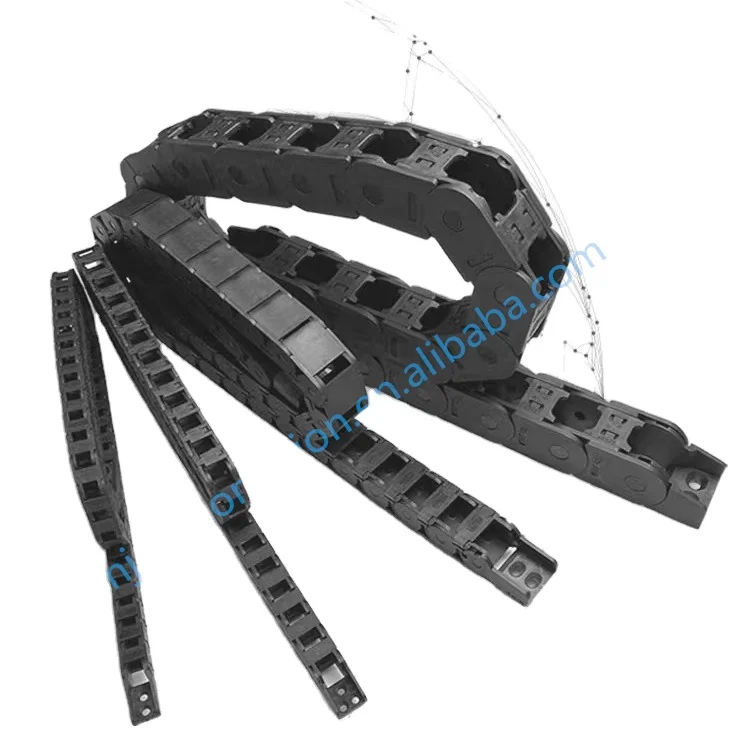

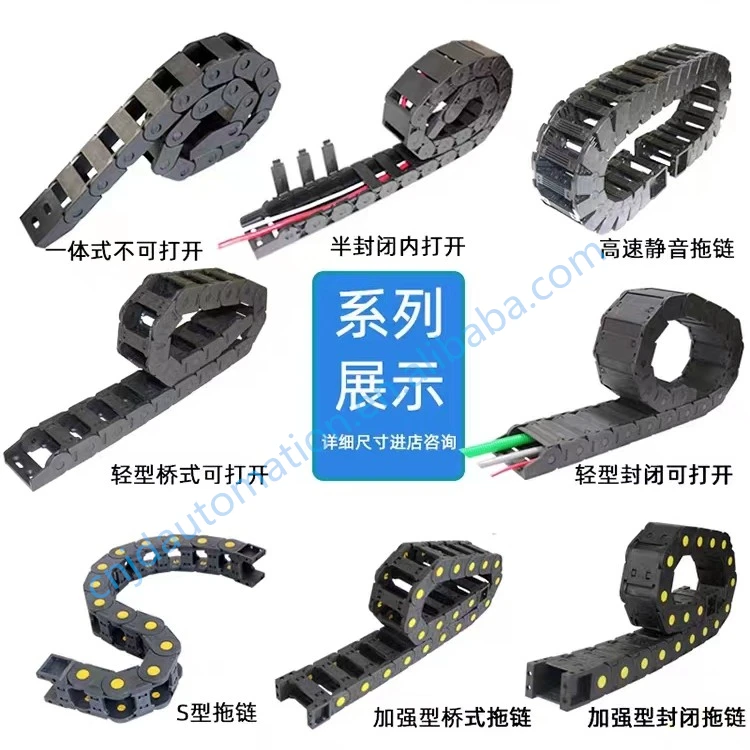

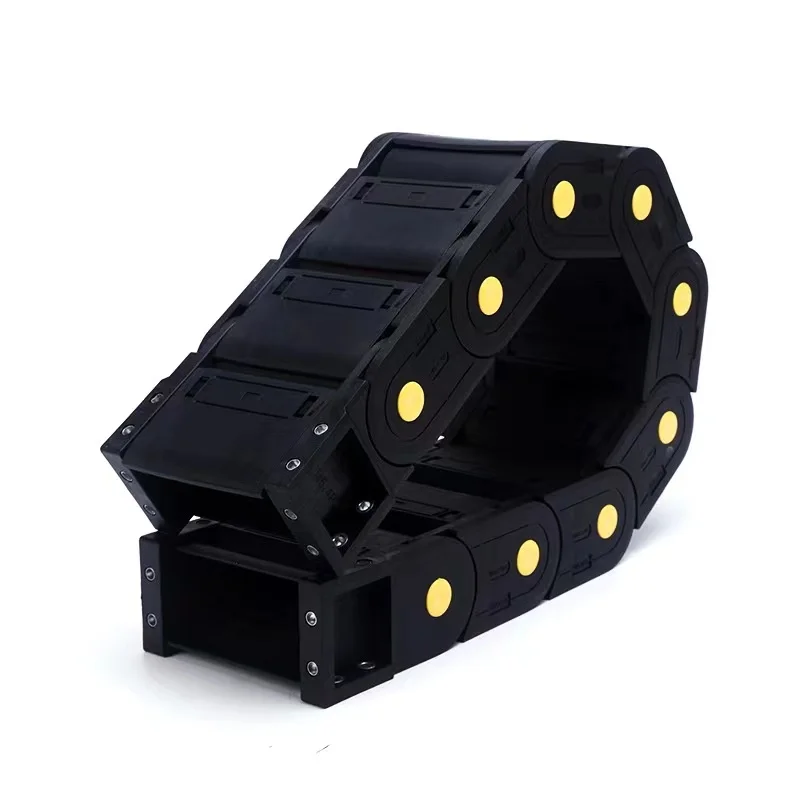

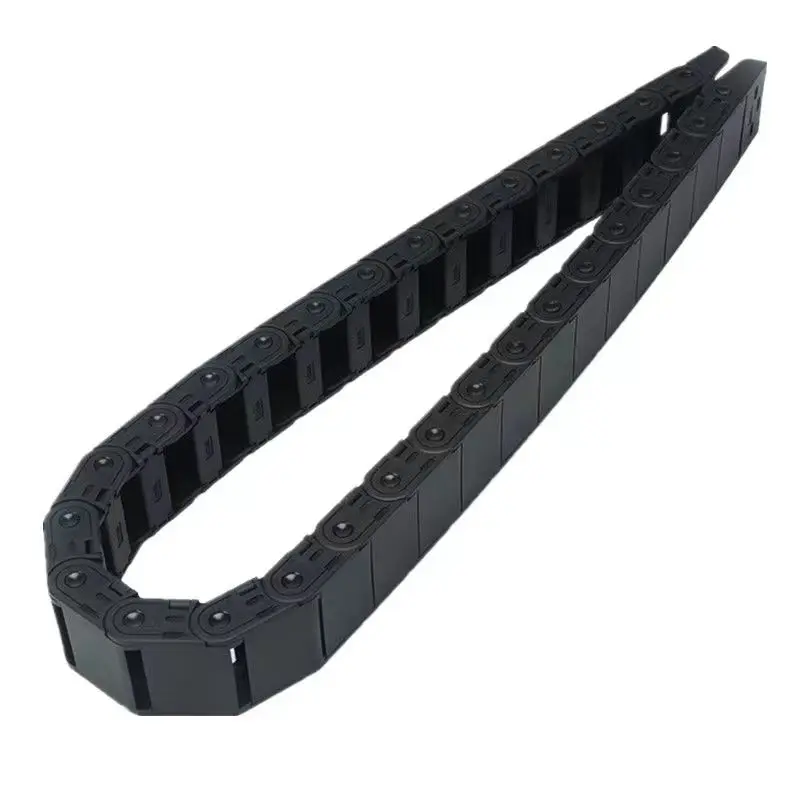

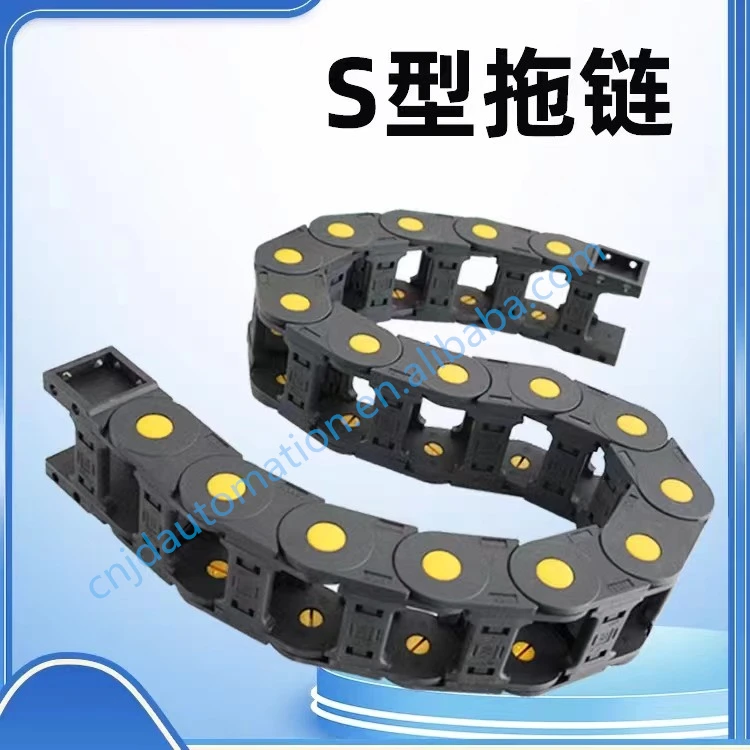

Thecable chainlooks like a tank chain and is composed of many unit links, which rotate freely. The unit link is composed of left and right chain plates and upper and lower plates. Each section of the drag chain can be opened to facilitate installation and maintenance without threading. After opening the revision, the cable, oil pipe, gas pipe and water pipe can be put into the drag chain, which can lead and protect the built-in cable, oil pipe, gas pipe and water pipe.

Application

Thecable chainis suitable for the occasion of frequent reciprocating bending movement. It has low noise, wear resistance and can move with high speed. It has been widely used in manipulator, automatic warehouse, CNC machine tool, glass machinery, door and window machinery, electronic equipment, stone machinery, injection molding machine, lifting and transportation equipment ect.

Specification

Size	*Inner Height Width (mm)**	Bending Radius (mm)
07 Series	7*7	15
10 Series	10*6	18
			10*10
			10*15
			10*20
15 Series	15*15	28
			15*20
			15*30
			15*40
			15*50
18 Series	18*25	38
			18*37
			18*50
20 Series	20*25	55.75.100
			20*38
			20*50
			20*57
			20*77
			20*103
25 Series	25*25	55.75
			25*38
			25*50
			25*57
			25*77
			25*103
30 Series	30*25	75.100.125.150
			30*38
			30*50
			30*57
			30*77
			30*103
35 Series	35*50	75.100.125.150.200
			35*60
			35*75
			35*100
			35*125
			35*150
			35*175
			35*200
45 Series	45*50	75.100.125.150.200
			45*60
			45*75
			45*100
			45*125
			45*150
			45*175
			45*200
55 Series	55*75	150.200.250.300
			55*100
			55*125
			55*150
			55*175
			55*200
			55*250
			55*300
65 Series	65*75	150.200.250.300.350
			65*100
			65*125
			65*150
			65*175
			65*200
			65*250
			65*300
80 Series	80*75	200.250.300.350.400
			80*100
			80*125
			80*150
			80*175
			80*200
			80*250
			80*300
