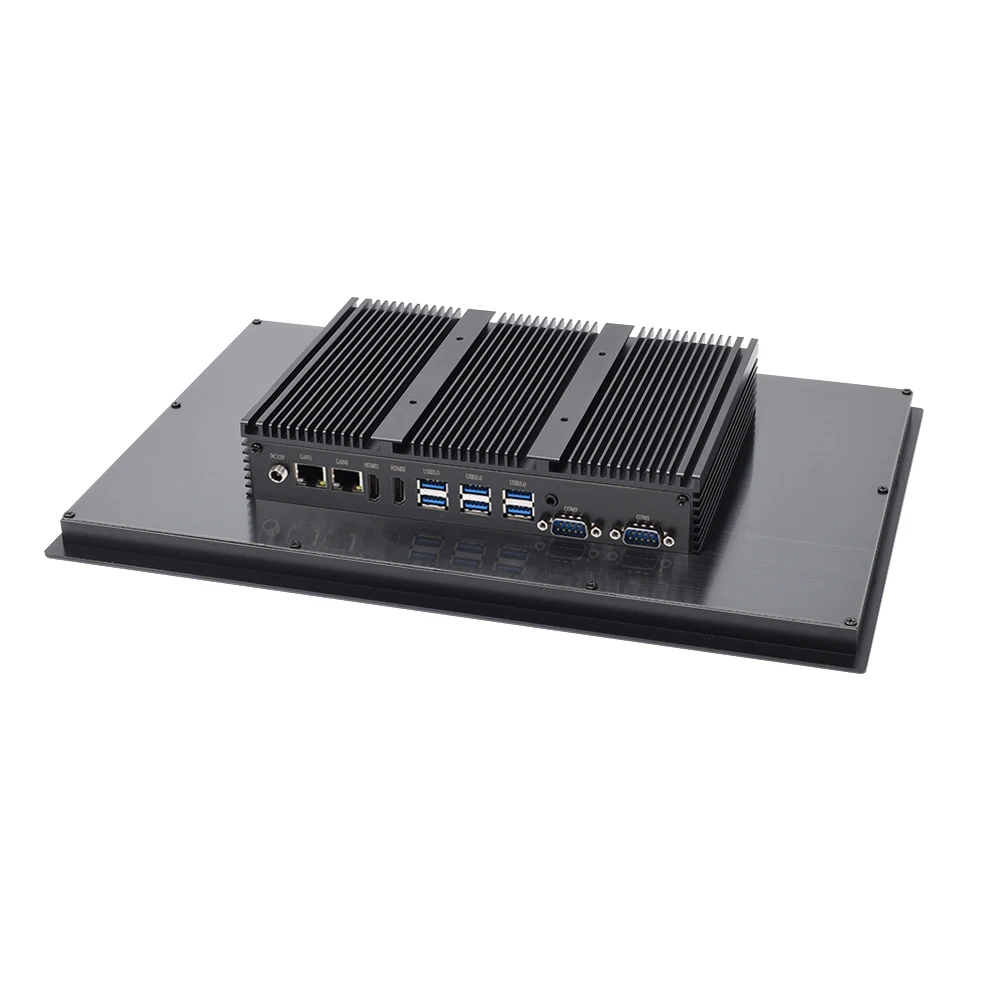

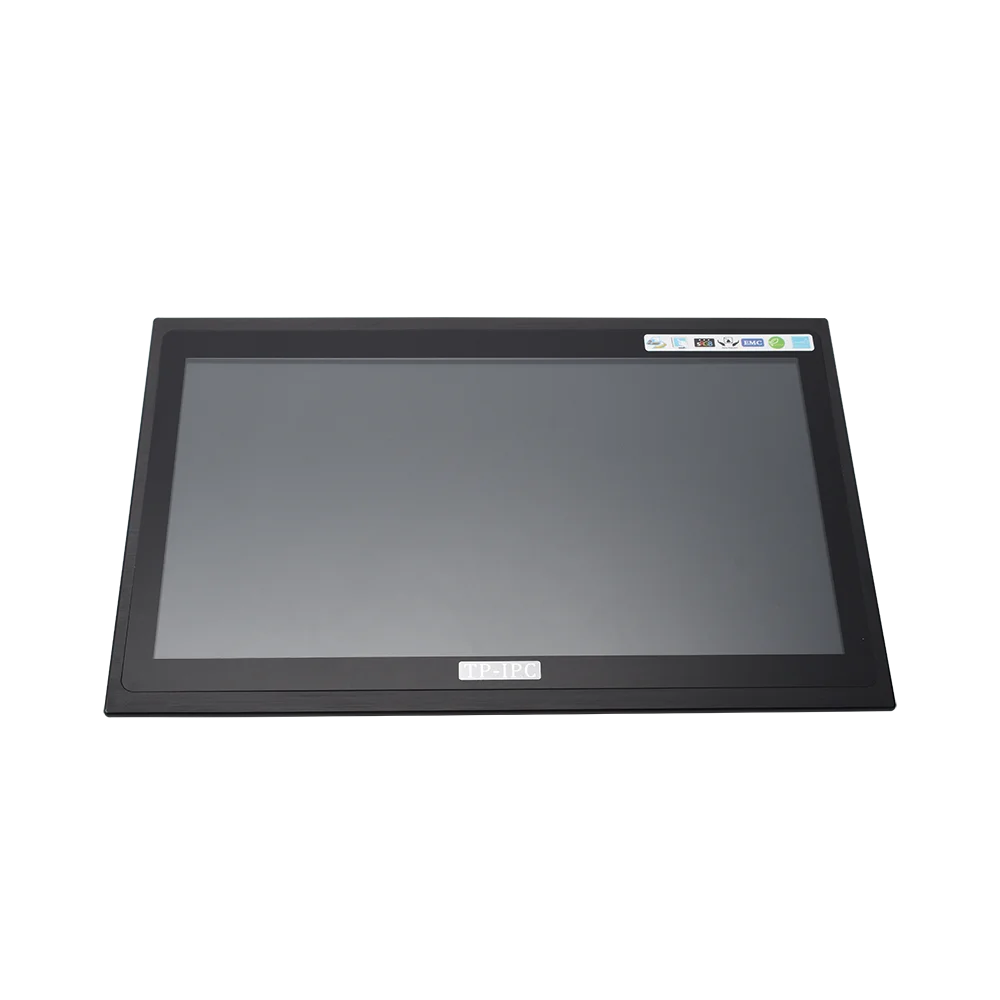

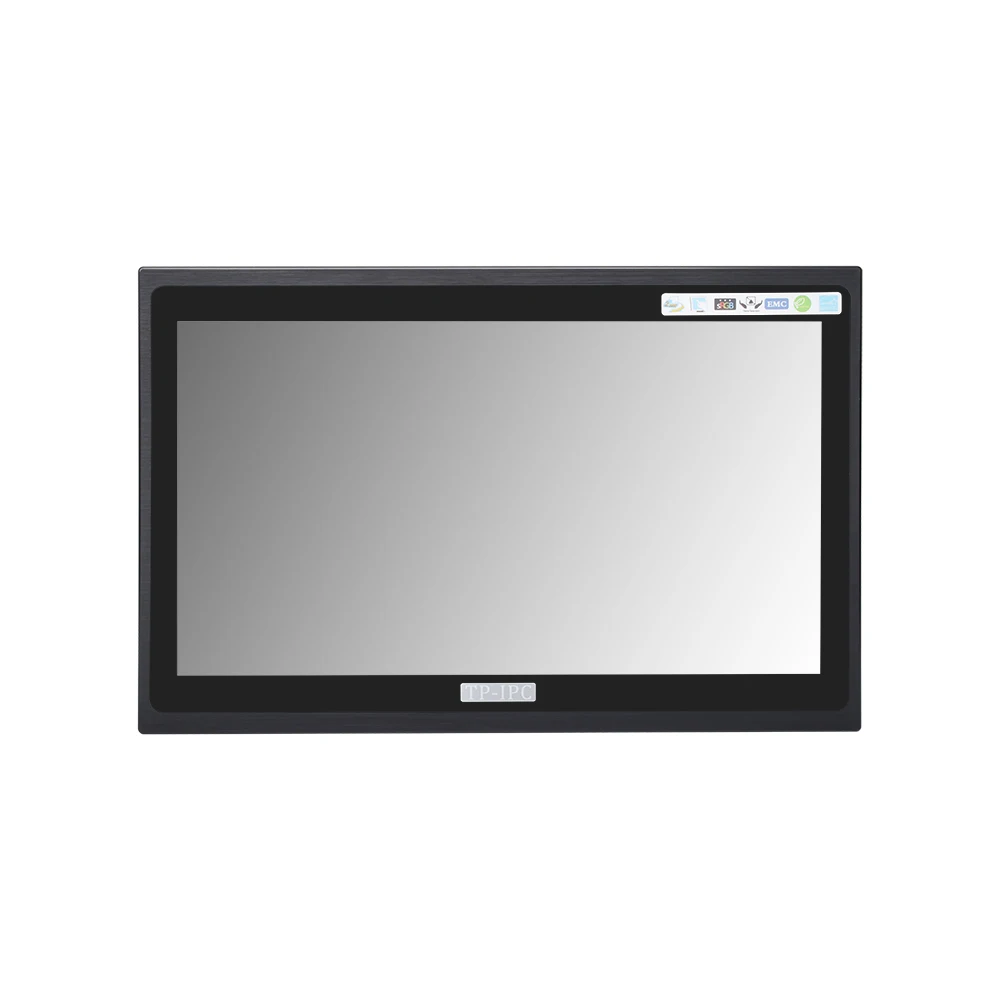

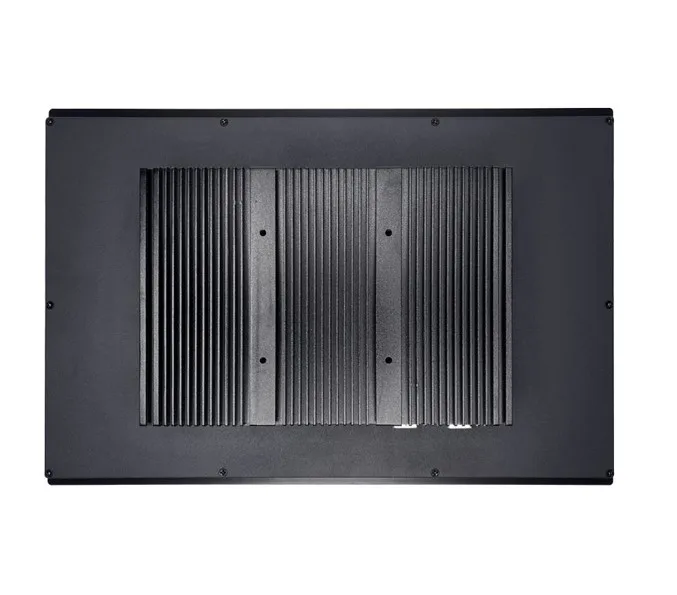

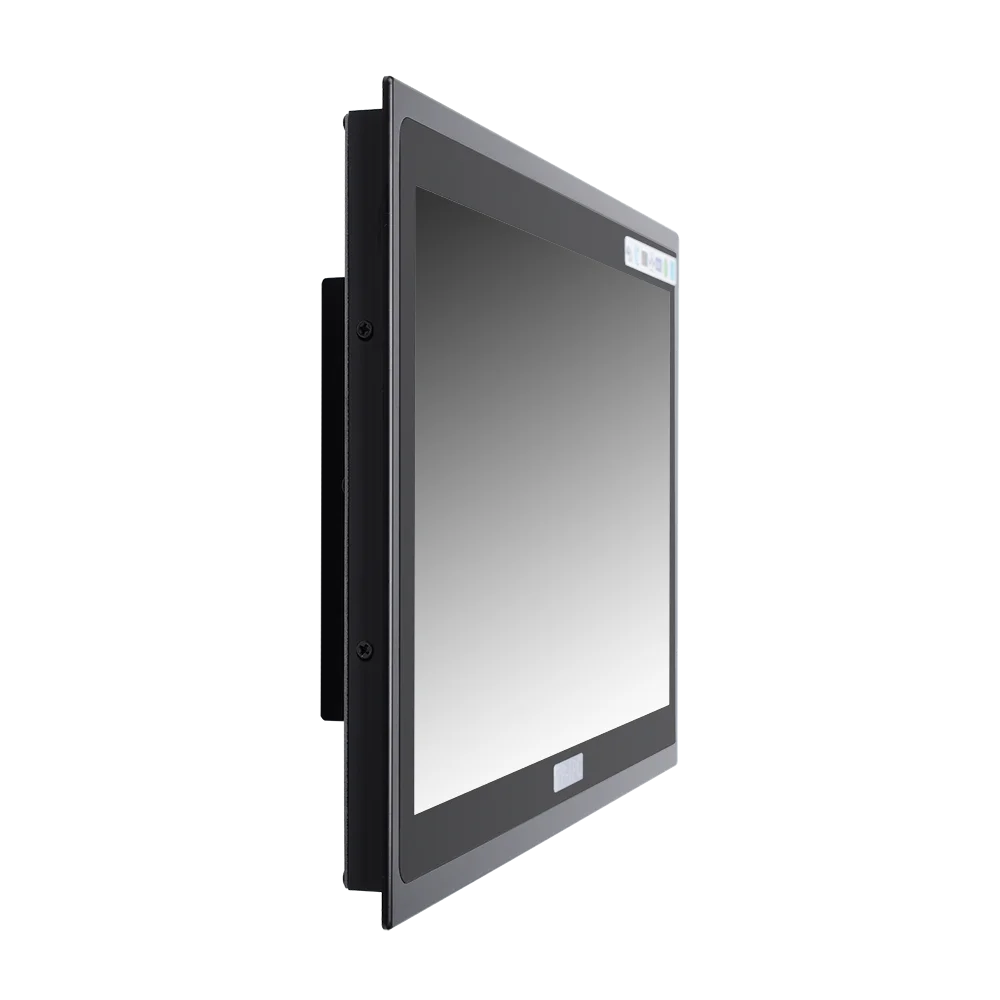

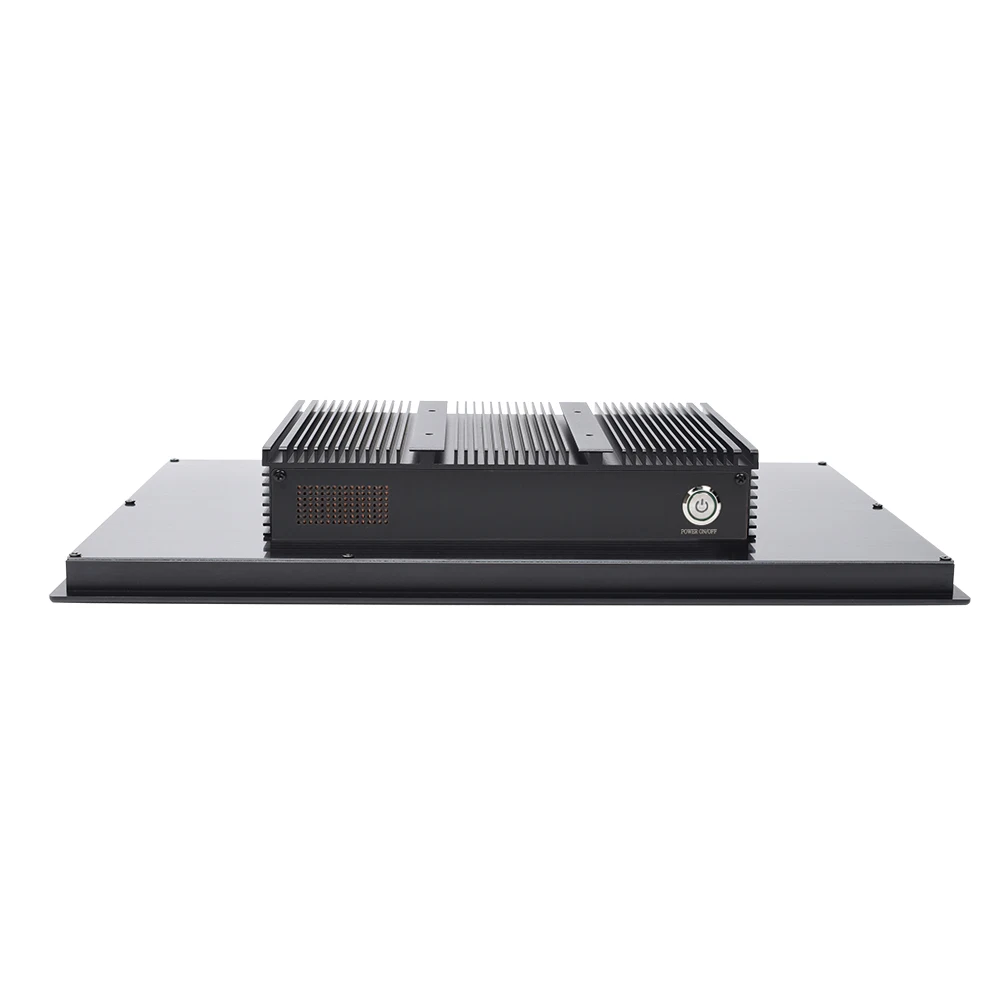

15-дюймовый встроенный сенсорный ЖК-экран многофункциональный промышленный ПК все
- Категория: Industrial Computer & Accessories >>>
- Поставщик: Dongguan,City,Tuolang,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.32 $* | 0.92 $* |
| Aug-17-2025 | 0.65 $* | 0.15 $* |
| Jul-17-2025 | 0.61 $* | 0.95 $* |
| Jun-17-2025 | 0.59 $* | 0.6 $* |
| May-17-2025 | 0.80 $* | 0.88 $* |
| Apr-17-2025 | 0.33 $* | 0.75 $* |
| Mar-17-2025 | 0.82 $* | 0.58 $* |
| Feb-17-2025 | 0.28 $* | 0.79 $* |
| Jan-17-2025 | 0.30 $* | 0.52 $* |
Характеристики
Products Description
Specifications | ||||||||||
Model No. | IPPC-104V2-11TH-15SW | |||||||||
Screen | Ratio:4:3 | 15", Resolution 1024*768 | ||||||||
Ratio:16:9 | 15.6", Resolution 1920*1080 | |||||||||
CPU | CPU Model | Intel® Core™ i7-1165G7 | Intel® Core™ i5-1135G7 | Intel® Core™ i3-1115G4 | Intel® Celeron® 6305E | |||||
Graphic | Intel® Iris® Xe Graphics, up to 96 EUs,1.3Ghz | Intel® Iris® Xe Graphics, up to 80 EUs,1.3Ghz | Intel® UHD Graphics, up to 48 EUs, 1.25Ghz | |||||||
RAM | SO-DIMM | 2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB | ||||||||
Storage | M.2 | 1* M.2 (NGFF) 2280 M-key Slot, support PCIex4 Gen4 NVMe/ SATA3.0 SSD | 1* M.2 (NGFF) 2280 M-key Slot, support PCIex4 Gen3 NVMe/SATA3.0 SSD | |||||||
Supported OS | Windows & Linux | Win 10, Win 10 IoT, Linux (Ubantu, Dibian, Kali, CentOS, etc.) | ||||||||
I/O INTERFACE | COM | 3* RS232 (COM1/2/3, Header, Full lanes) 2* RS232/TTL (COM4/5, Header, 3 lanes); 1* RS232/RS485/TTL (COM6, Header, 3 lanes) (COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode) | ||||||||
Ethernet | 2* Intel® GbE LAN (10/100/1000 Mbps, RJ45) | |||||||||
USB | 6* USB3.0; 4 * USB2.0 Internal Headers | |||||||||
Video | 2* HD(TYPE-A), max resolution up to 4096*2160@30Hz | |||||||||
Audio | AUDIO HDA Codec, 1 * Line-Out + MIC 2in1 3.5mm Jack; 1 * Amplifier Header | |||||||||
Phoenix Terminal | 1* 8-bit GPIO (Optional, internal header, default uninstalled) | |||||||||
SIM | 1* Built-in nano-SIM Card Slot connected to M.2 B-key slot | |||||||||
Power Supply | DC 12V | |||||||||
Extended Capabilities | Additional Internal Interface | 1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support WiFi+BT, 2230) 1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052) | ||||||||
Functionality Extension | COM, LAN, USB, CAN BUS, Wi-Fi, 4G | |||||||||
Environment | Operating Temperature | -10 ~ 50 °C w/ 0.7m/s Airflow | ||||||||
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | |||||||||
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||||||||
Physical Characteristics | Dimensions | 357*283*55.5 mm/ 387*255.5*56.7 mm(W* H* D) | ||||||||
Net Weight | 4.2/3.4KG | |||||||||
Regulation | EMC | CE/FCC Class B, CCC | ||||||||
Safety | CE-LVD, RoHS, CCC | |||||||||
Designed Specifically For Industrial Harsh Environment
All aluminum alloy Design Durable to Hi/Low Temp. Apply temp. -20 to 60°C
Front Panel IP65 Waterproof & Dustproof
Support 365 Days A Year 7*24 Hours Uninterrupted And Stable Operation
Strong Compatibility: Compatible with Windows 7/Windows 8/Windows 10/Linux
DIMENSION DRAWINGS
Installation Instructions
Accessories for embedded installation
VESA
Non-adjustable desktop stand
Customer can choose one of above as standard accessories. Its cost is already included in quotation.
Floor stand
Adjustable desktop stand
Wall-mounted shelf
The above accessories will be charged according to market price.
Applications
Smart Transportation
Intelligent Medical
Industrial Automation
Automatic visual positioning
Commercial self-service equipment
Motion Control
Why Choose Us
Our factory is located in Dongguan,Guangdong province, very close to Hongkong, Guangzhou, and Shenzhen.
We specialize in R&D, production, sales and service for industrial automation controlling products for over ten years.
The atmosphere of the company is harmonious, and the staff is united, as the top management of the company love to benefit
employees and put customer first.
The goal of our company is "Be a respectable company".
We specialize in R&D, production, sales and service for industrial automation controlling products for over ten years.
The atmosphere of the company is harmonious, and the staff is united, as the top management of the company love to benefit
employees and put customer first.
The goal of our company is "Be a respectable company".
Vibration Test
Aging Test
Cleaning Inspection
Who We Cooperate With
Certifications
Guangdong High-tech Enterprise
ISO-9001
ISO-10012
CCC
RoHS
CE
EMC
Package & Delivery
Durable Carton Package
Inner Packing: EPE Foam
Protective Film Packing
222
Payment Term
We accept T/T in advance(30% deposit, balance before delivery), L/C at sight.
Delivery time
Within 10 pcs based on our standard products, working date 3-7 days;
OEM products to be negotiated, normally 25-30 days.
We accept T/T in advance(30% deposit, balance before delivery), L/C at sight.
Delivery time
Within 10 pcs based on our standard products, working date 3-7 days;
OEM products to be negotiated, normally 25-30 days.
FAQ & Related Products
Q: Are you a trade company or a factory?
A: We are a factory, specialize in manufacturing industrial automation controlling products
A: Sure. The sample fee and freight will be paid by the buyer.
A: We are a factory, specialize in manufacturing industrial automation controlling products
Q: Can we customize the product?
A: Yes, We can put your LOGO on the product and package.
A: Yes, We can put your LOGO on the product and package.
MOQ is 50 pcs.
Q: Can you offer sample for test?
A: Sure. The sample fee and freight will be paid by the buyer.
Q: Is it only LCD monitor, or all in one finished product?
A: it is not parts, but finished product, ALL IN ONE computer specially for industry.
A: it is not parts, but finished product, ALL IN ONE computer specially for industry.
We also have LCD monitor for industrial use. If you need, contact us.
Q Do you have any other size?
A: YES, We have full size screen for your customization.
Q: What other products you supply?
A: We have many kinds of Mini PC with various interface to meet different applications.
Q: How about warranty?
A: 2 years. We offer on-line technical support.
A: 2 years. We offer on-line technical support.
Return to repair or Free replacements if problem caused by our factory.
