Product Description

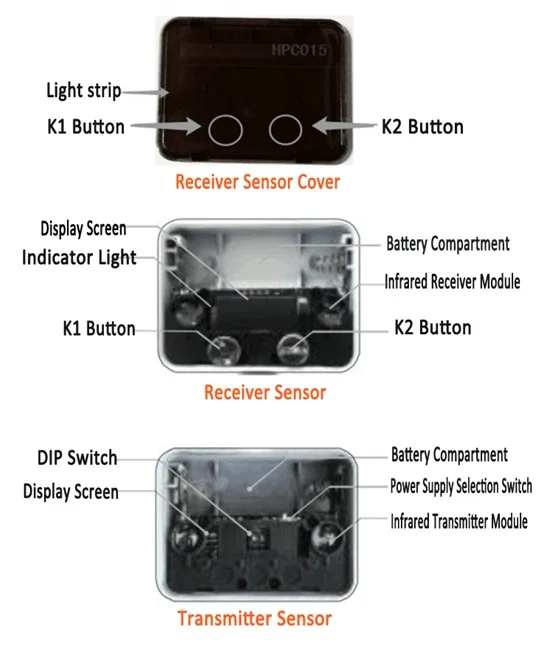

1.Introduction of Sensors





2. Battery Installation

Sensors are powered by ER18505 battery.

When yellow lights keeps flashing on receiver sensor, or red lights flashing on transmitter sensor, you should replace a new battery. people counting system

Please note the battery installation direction

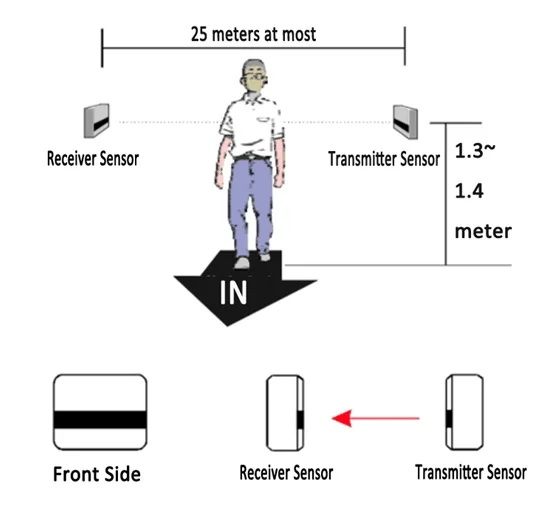

3. Sensors Installation

Sensors should be stick on the two sides of entrance with the stickers we support. Please make sure they are

face to face and in same height. people counting system







people counting system Note:

If receiver sensor doesn’t get the signal from transmitter sensor, the red light flashes.

If receiver sensor get the signal from transmitter sensor, no red light flashes.

Tilt position can be adjusted by metal stand (purchase on selection)

Can penetrate glass door with a tilt angle of less than 30 degrees

Paste on the door frame or wall with double-sided sticker



4. Receiver Settings

Receiver is operated by two touch buttons. When there is no touch operation, the screen will shut down after 10 seconds.

Long press K1 or K2 to enter the setup menu. Or connect receiver to computer via a USB cable and set the parameters through the client program.



Receiver has two modes of operation: high speed, low speed.

The low speed mode is used by default, which detects normal walking speed.



If the scene target you are using is moving faster, please select the high speed mode and adjust the speed status of the transmitter to high speed accordingly, then restart the transmitter to take effect



Used for the device with data export version, set the save interval.

Optional: Real time / 1 minute / 30 minutes / 1 hour, etc.

Receiver periodically saves a record according to the set save interval.

Receiver always saves only the last 3200 records, please export the data in time.

E.g:

The save interval is 1 hour, work period is 12 hours per day, then 12 records are saved every day, 3200/12=266,

the last 266 days can be saved, and the recorded data is the accumulated in and out data per hour in the business hours.

If the save interval is set to "Real Time", the receiver will save a record every time it detects a count, and only the records

of the last 3200 people can be saved.



5.DataQuery andExport:

l Operation on the device and Data Browse

Enter the menu bar, select "2Data browse" and continue press K1 to enter. Long pressing the K1 to switch the date year/month/day, Short pressing K1 K2 to switch records.



Can query the accumulated annual visitors traffic for the last 3 years/ the total number of Per month in the last 12 months

and the total number of per day in the last 30 days

Export data via a USB cable from a computer

For further details, please check the software tool instruction.

Export data via U disk



Only support U disk with FAT32 file system, recommend the storage capacity not exceed 32G, use the matching converter,

then insert to Micro USB port on the sensor.











Enter the “cache management” menu, choose the “a Download to U disk”, wait for the download to complete.

The sensor counter only provides export function for undownloaded data, If you want to download all the data again from sensor, you need to perform “c re-download setting” firstly then operate the “a Download to U disk”.





Forbidden to operate any steps during the data record download process, the ID of each sensor counter device is unique,

U disk will create a directory according to different ID codes and convenient to manage data records from many devices.

Pull out the U disk until finished all of downloads.



6. Data clearing

Enter the “cache management” menu, choose “b Empty cache”, then long pressing the K2.





Long pressing K2 to clear all caches,

Long pressing K1 to return.

Unrecoverable after clear cache, Be cautiousto operate this step!

It is for clearing all data and has no effect on the parameter settings.



7. Indicator Light Status









8.1 Red light on Counter terminal keeps flashing:

8.1.1. The infrared sensor counter transmitter and the counter terminal are not aligned or not at the same height

Solution: Adjust the counter transmitter and terminal installation position so that both of them are at the same height and face to face.

8.1.2. There is obstacles blocking between sensors

Solution: Remove obstruction

8.1.3. Battery in transmitter is low

Solution: Replace new battery

8.1.4. The working mode of the transmitter and the receiver do not match

Solution: Adjust the high speed and low speed modes to make them consistent
