Характеристики
Product Overview

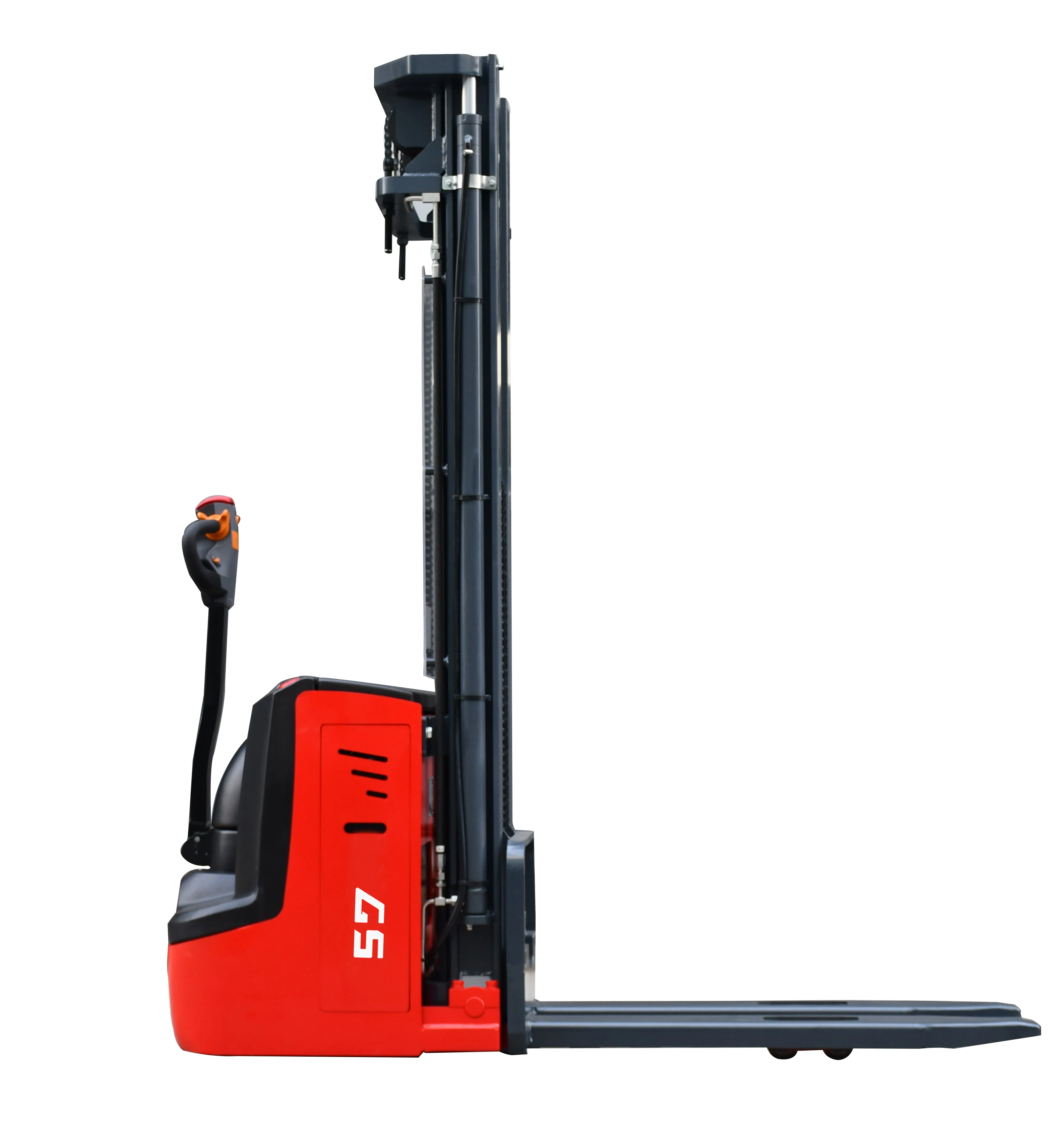

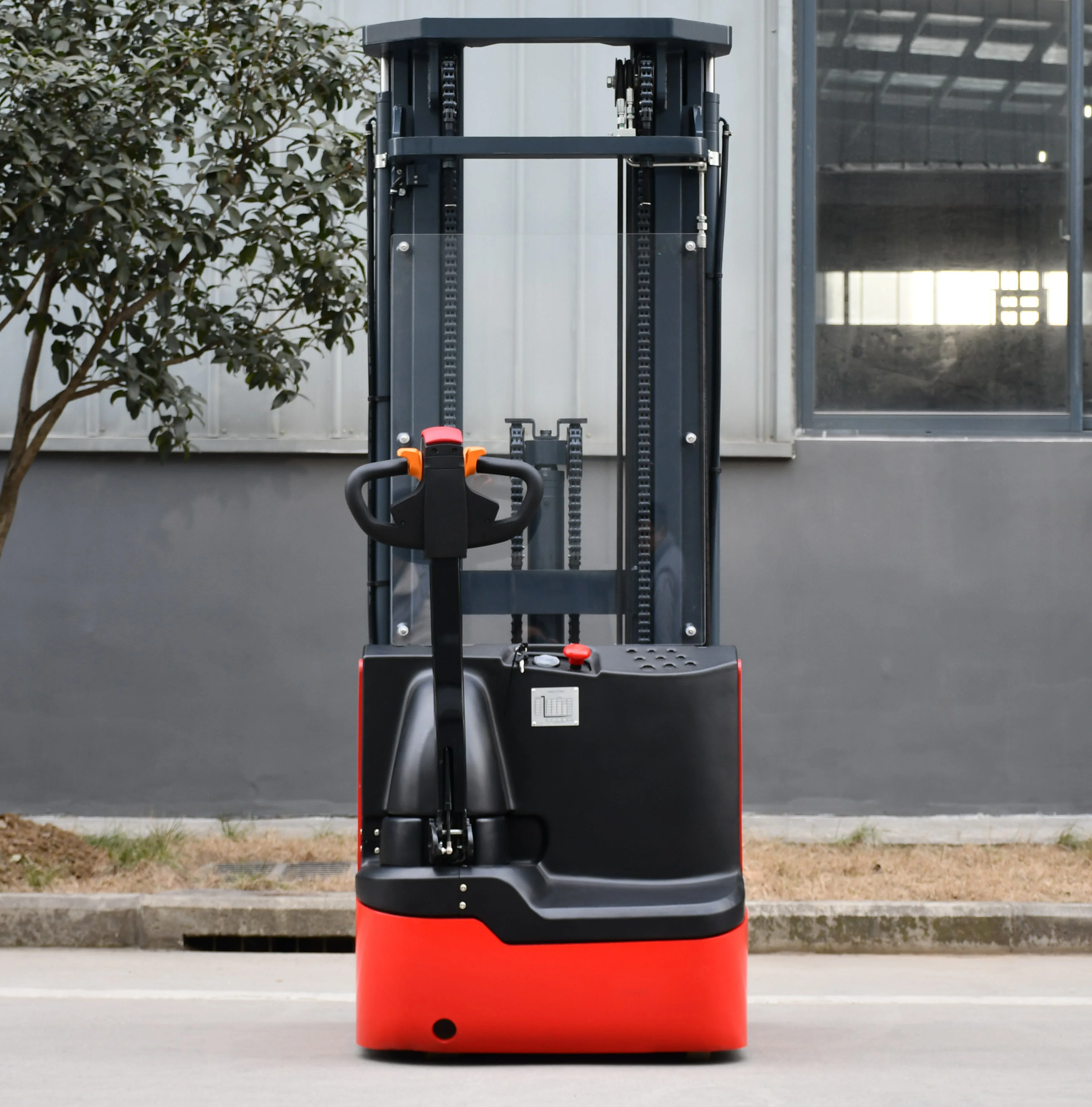

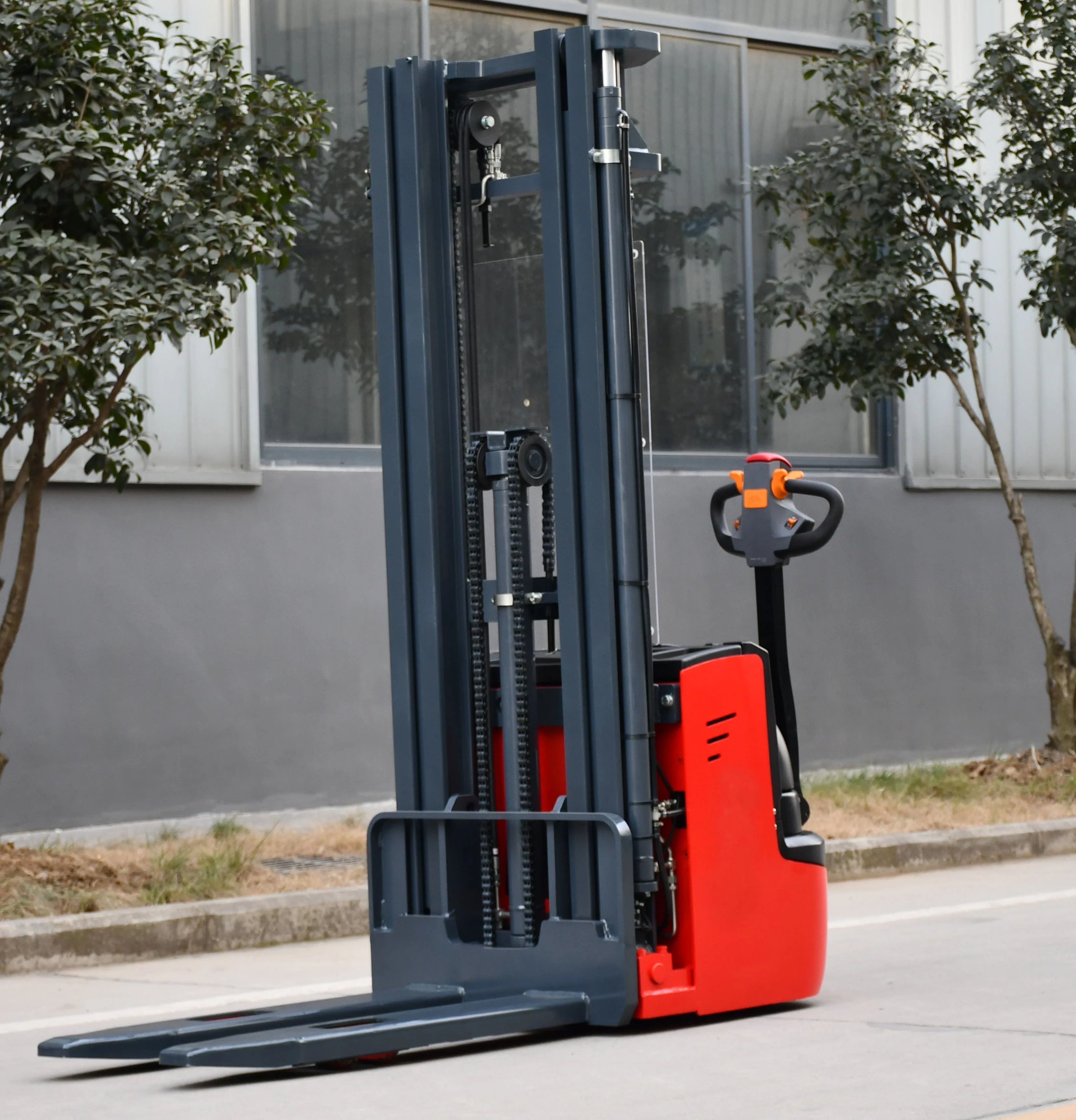

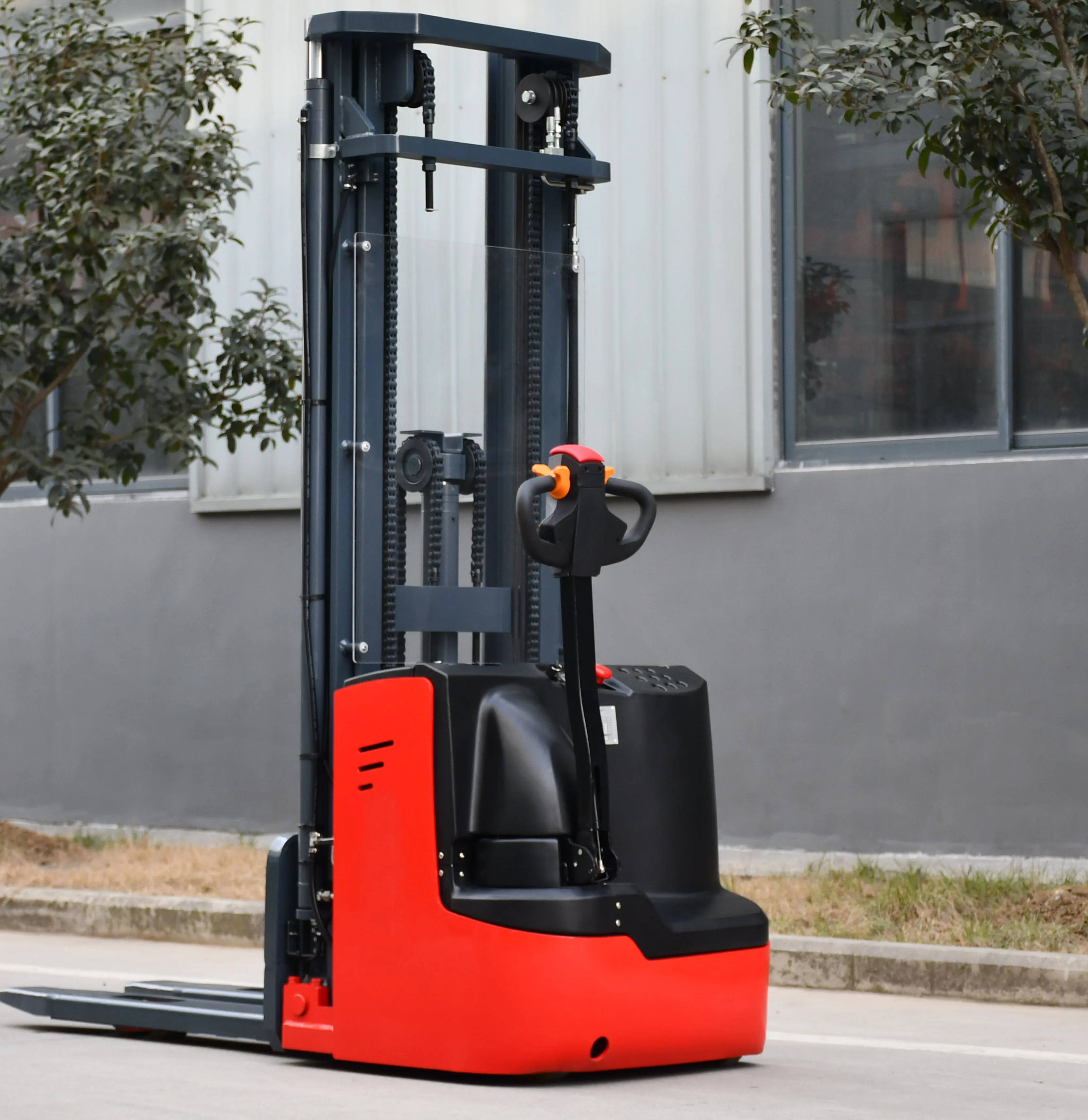

1.6T/2T Electric Stacker MBC16 MBC20
Walkie operation type, hot sale for Europe market.
Mainly used in supermarket, warehouse and short-middle distance transportation.
With four fulcrum structure, has stable and safe performance.
FEATURES AT A GLANCE
1.Germany drive motor;2.Anti feet pinch design;
3.Station-driven steering makes the control more convenient and flexible;
4.The latest CURTIS control;
5.The integrated control handle is simple and beautiful, and all operation functions can be easily completed by one hand;
6.High strength steel mast structure with 5 fulcrums and low center of gravity;
7.Imported waterproof connectors;
8.Smaller aisle width,more accurate steering and operation;
9.Function of reducing buffer and effectively
3.Station-driven steering makes the control more convenient and flexible;
4.The latest CURTIS control;
5.The integrated control handle is simple and beautiful, and all operation functions can be easily completed by one hand;
6.High strength steel mast structure with 5 fulcrums and low center of gravity;
7.Imported waterproof connectors;
8.Smaller aisle width,more accurate steering and operation;
9.Function of reducing buffer and effectively
Long handle design

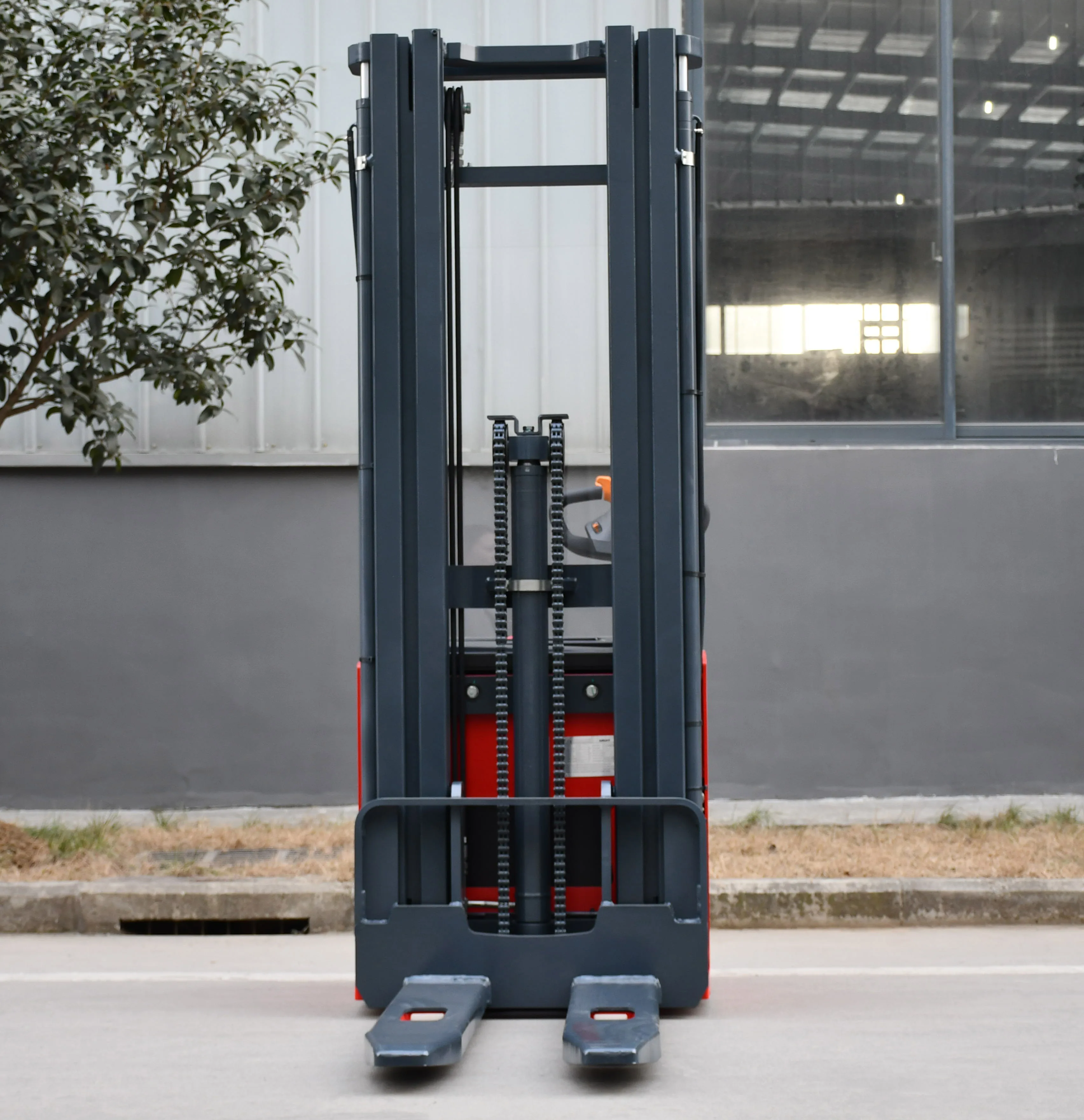

Wide view mast
Side pull battery for easy battery replacement
PRODUCT SPECIFICATIONS
1 | Model | MBC16 | MBC20 | |
2 | Power type | Battery | Battery | |
3 | Operation type | Walkie | Walkie | |
4 | Loading capacity | Q(kg) | 1600 | 2000 |
5 | Loading center | C(mm) | 600 | 600 |
6 | Tyre type, front/rear | solid PU | solid PU | |
7 | Fork roller size | φ80x70 | φ80x70 | |
8 | Driving wheel | φ125x50 | φ230x75 | |
9 | Wheel quantity Front/Rear(X=driving) | 4/1x+1 | 4/1x+1 | |
10 | Lifting height | h3(mm) | 3000 | 3000 |
11 | Mast lowered height | h1(mm) | 2025 | 2025 |
12 | Mast extended height | h4(mm) | 3500 | 3500 |
13 | Overall length | l1(mm) | 1990 | 1900 |
14 | Overall width | b1/b2(mm) | 820 | 820 |
15 | Fork overall width | b5(mm) | 570/680 | 570/680 |
16 | Fork dimension | l/e/s(mm) | 1150/190/58 | 1150/190/58 |
17 | Driving speed load/unload | km/h | 5.0/6.0 | 5.0/6.0 |
18 | max. gradeability, load/unload | % | 6%/12% | 6%/12% |
19 | Drive motor power(S2-60min) | kw | 1.5 | 1.5 |
20 | Battery | V/Ah | 24/210 | 24/210 |
21 | Battery weight | kg | 200 | 200 |
22 | Service weight(inclue battery) | kg | 1150 | 1180 |
