Тестер емкости литиевых батарей EBC-A40L 5V Cycle 35A Charge 40A
- Категория: Battery Testers >>>
- Поставщик: Shenzhen,Qishou,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 126.88 $* | 129.4 $* |
| Jul-19-2025 | 102.92 $* | 104.92 $* |
| Jun-19-2025 | 124.61 $* | 126.90 $* |
| May-19-2025 | 123.27 $* | 125.88 $* |
| Apr-19-2025 | 98.67 $* | 100.30 $* |
| Mar-19-2025 | 121.52 $* | 123.22 $* |
| Feb-19-2025 | 120.6 $* | 122.54 $* |
| Jan-19-2025 | 119.40 $* | 121.69 $* |
Характеристики
Specification
size | Voltage | Maximum discharge power |
44 * 29 * 27cm | 110V / 220V | 200W |

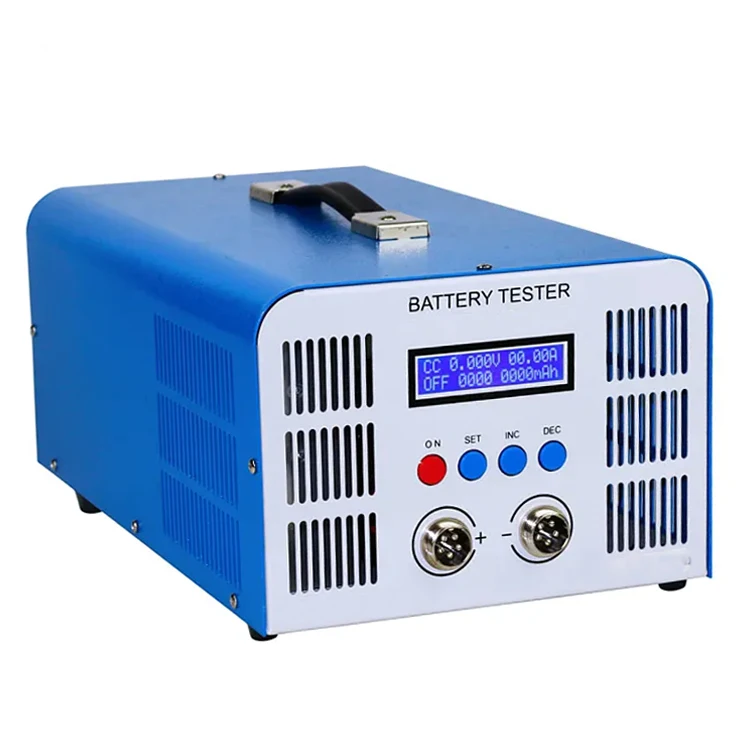

Name: EBC-A40L Battery Capacity Tester
Voltage: 110V / 220V
Maximum discharge power: 200W
Voltage range: 0-5V
Current range: 0.1-40A
Current accuracy: 0.2% +-0.01A
Discharge mode: CC constant current discharge / CP constant power
Discharge termination: time / voltage is below the set lower limit / manual
Charging mode: CV constant current and constant voltage charging
Charging termination: constant voltage current is lower than the set lower limit / manual
Cooling method: active cooling by fan
Accessories: one online cable, one pair of test cables, one power cable
Packing size: 44 * 29 * 27cm
sizeVoltageMaximum discharge power44 * 29 * 27cm110V / 220V200W
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Voltage: 110V / 220V
Maximum discharge power: 200W
Voltage range: 0-5V
Current range: 0.1-40A
Current accuracy: 0.2% +-0.01A
Discharge mode: CC constant current discharge / CP constant power
Discharge termination: time / voltage is below the set lower limit / manual
Charging mode: CV constant current and constant voltage charging
Charging termination: constant voltage current is lower than the set lower limit / manual
Cooling method: active cooling by fan
Accessories: one online cable, one pair of test cables, one power cable
Packing size: 44 * 29 * 27cm
sizeVoltageMaximum discharge power44 * 29 * 27cm110V / 220V200W
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Product Description
Company Profile
Certifications
Exhibition
FAQ
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
Q：Does your BMS have current balance?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
Q：Does your BMS have current balance?
A：yes,We have the current passive balance function, the passive balance function module is
integrated on the BMS board, do not need external balance device.
Q: Are these battery packs compatible with my inverter?
integrated on the BMS board, do not need external balance device.
Q: Are these battery packs compatible with my inverter?
Do you have a list of companies with compatible inverters?
A: Yes, Sir. Our battery pack is compatible with most brands of inverters on the market.
A: Yes, Sir. Our battery pack is compatible with most brands of inverters on the market.
Contact us and let me tell you more.
Q: How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
