Характеристики
Products Description
CDT-22B Factory Cheap Price Soil Moisture Temperature Sensor In Stock
steel probe is inserted into soil surface or soil profile to test soil moisture and temperature quickly. Moisture
measurement part is designed on the basis of the principle of FDR, by measuring the dielectric constant of the soil in
order to measure the volume of the soil moisture content, temperature part adopts precision platinum resistance element, the product built-in drift calibration and temperature compensation circuit, can adapt to most applications.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
BENEFITS AND FEATURES
APPLICATIONS
* Weather monitoring stations
* Environmental monitoring
* Livestock farm
* Forestry
* Greenhouse
* Agriculture
* High Sensitivity
BENEFITS AND FEATURES
* High Sensitivity
* Fast response time
* Long service life
* Low consumption
* Good stability of output
* High temperature and high humidity environment for long-term use
* Can integrated temperature humidity air pressure at the same time
* Fast response time
* Long service life
* Low consumption
* Good stability of output
* High temperature and high humidity environment for long-term use
* Can integrated temperature humidity air pressure at the same time
APPLICATIONS
* Environmental monitoring
* Livestock farm
* Forestry
* Greenhouse
* Agriculture
* High Sensitivity
TECHNICAL DESCRIPTION
Item | Technical Specification | ||
Moisture | Temperature | ||
Range | 0-100%(m3/m3) | -30℃-+70℃ | |
Accuracy | ±2%(0-50%) | ±0.2℃ | |
Output Signal | 4-20mA ,0-5V,0-2V,RS485 optional | ||
Response Time | <1s | ||
Supply | 5VDC,12-24VDC | ||
Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder | ||
Housing | ABS | ||

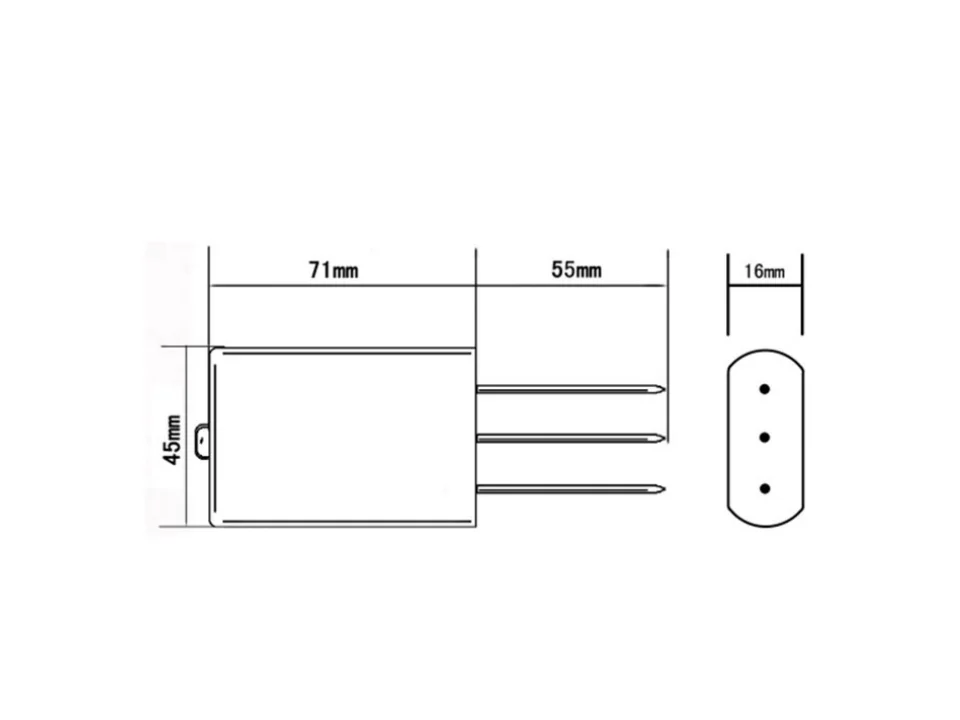

Dimensions | 71*45*16mm( probe:2* Ø3*55mm,1*Ø4*55mm) | ||
Operating Temperature | -40℃-+80℃ | ||
Ingress Protection | IP67 | ||
Storage | 10-60℃@20%-90%RH | ||
Probe material | 316L stainless steel | ||
