НОВЫЙ свободный поршневой двигатель для перемешивания глубокое быстрое охлаждение минус
- Категория: Other Refrigerators & Freezers >>>
- Поставщик: Ningbo,Juxin,Ult-Low,Temperature,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 376.72 $* | 395.42 $* |
| Aug-15-2025 | 373.40 $* | 392.54 $* |
| Jul-15-2025 | 313.81 $* | 329.23 $* |
| Jun-15-2025 | 367.56 $* | 385.65 $* |
| May-15-2025 | 319.69 $* | 335.38 $* |
| Apr-15-2025 | 360.39 $* | 378.94 $* |
| Mar-15-2025 | 357.96 $* | 375.83 $* |
| Feb-15-2025 | 354.24 $* | 372.20 $* |
| Jan-15-2025 | 351.82 $* | 369.99 $* |
Характеристики
Specification

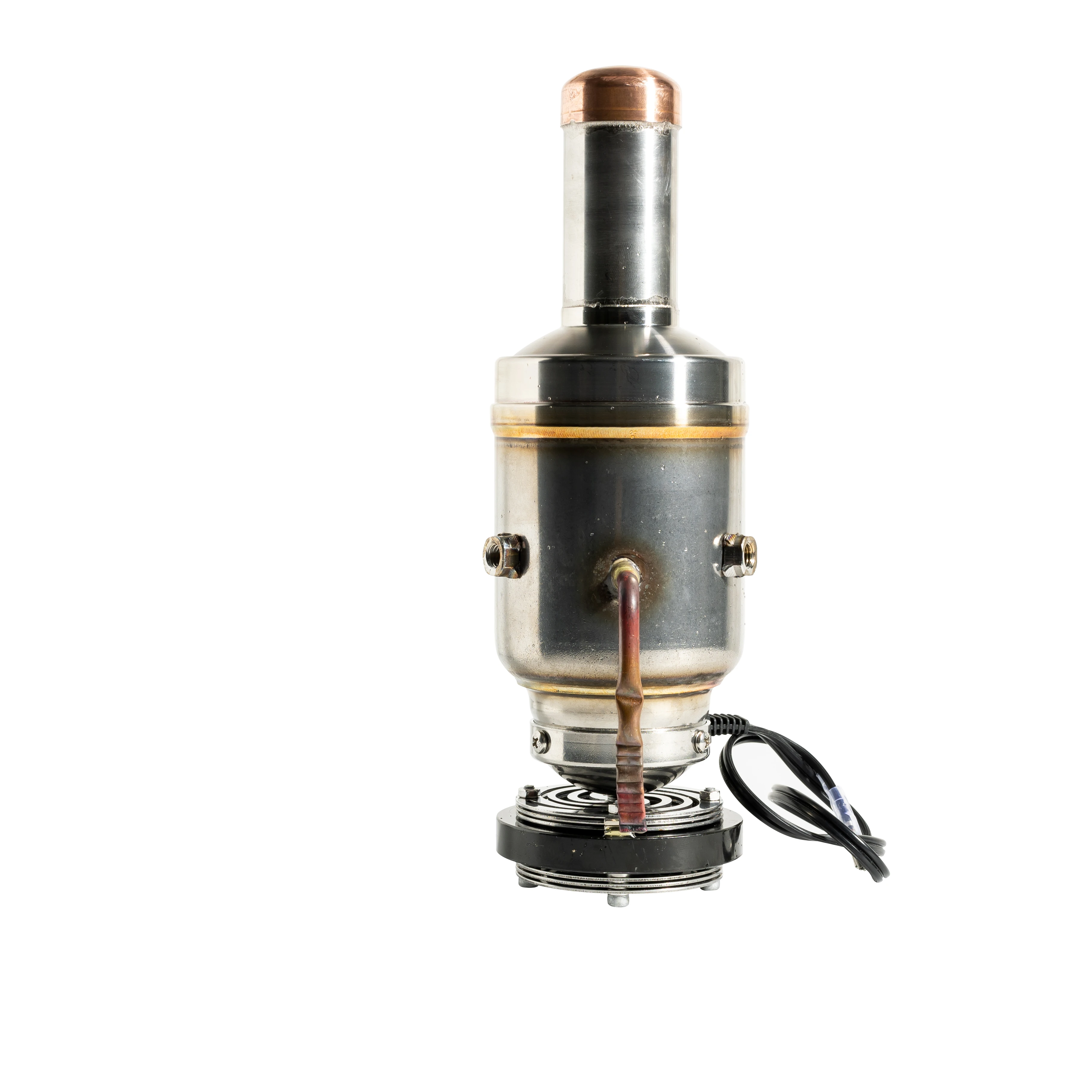

Porduct Name | Free-piston Stirling Cooling Engine | |||||||
Type | JX-80W1 | |||||||
Input Date | ||||||||
Rated input voltage | 24V DC | |||||||
Rated input voltage range | 21.6V to 26.4V DC | |||||||
Rated input current | ≤6A | |||||||
Output Date | ||||||||
Output current range | 0 to 9A | |||||||
Output voltage range | 0 to 16V | |||||||
Output frequency | 80.0Hz | |||||||
Basic Date | ||||||||
Exterior(LxWxD) | 165*140*290mm | |||||||
Net Weight | 3.2Kg | |||||||
Refrigerating capacity | over 30W @ Minus 80 Degree | |||||||
Top head temperature | Minus 120 Degree | |||||||
Work temperature | Minus 10 Degree to 32 Degree | |||||||
Storage temperature | Minus 20 Degree to 60 Degree | |||||||
Humidity | 20% to 90% | |||||||
Heat dissipation | Air cooling | |||||||
Noise | ≤55dB | |||||||
Our Advantages
Installation methods
Installation Dimension
Application field
Company Profile
Certifications
Product packaging
Q&A
Q1. How long will receive the items?
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
