CDF-21A экономичный ультразвуковой датчик направления скорости ветра
- Категория: Speed Measuring Instruments >>>
- Поставщик: Hunan,Coda,Electronic,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.36 $* | 0.80 $* |
| Aug-17-2025 | 0.94 $* | 0.42 $* |
| Jul-17-2025 | 0.24 $* | 0.0 $* |
| Jun-17-2025 | 0.97 $* | 0.47 $* |
| May-17-2025 | 0.89 $* | 0.35 $* |
| Apr-17-2025 | 0.6 $* | 0.2 $* |
| Mar-17-2025 | 0.80 $* | 0.98 $* |
| Feb-17-2025 | 0.7 $* | 0.51 $* |
| Jan-17-2025 | 0.65 $* | 0.2 $* |
Характеристики
Products Description

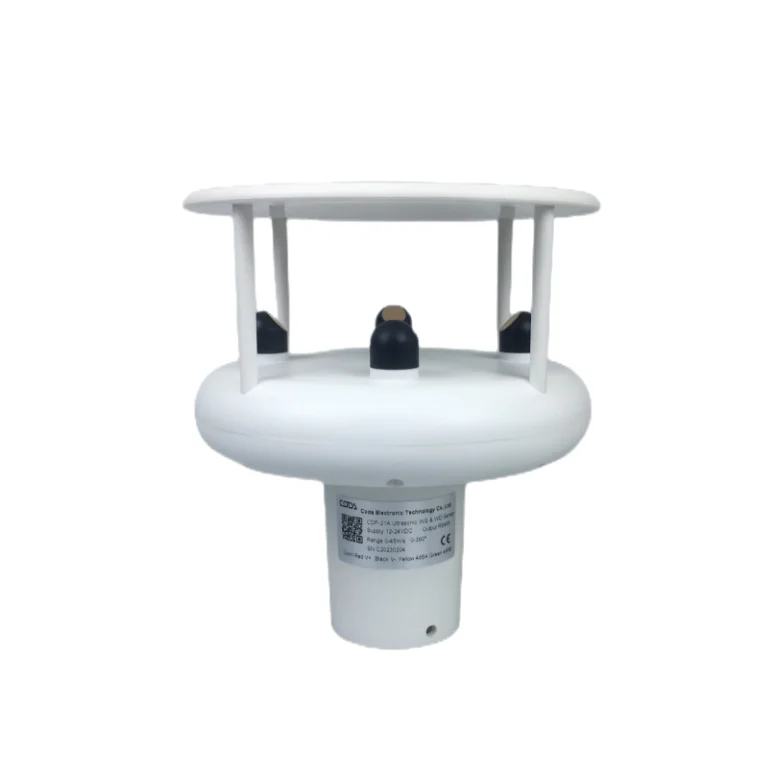

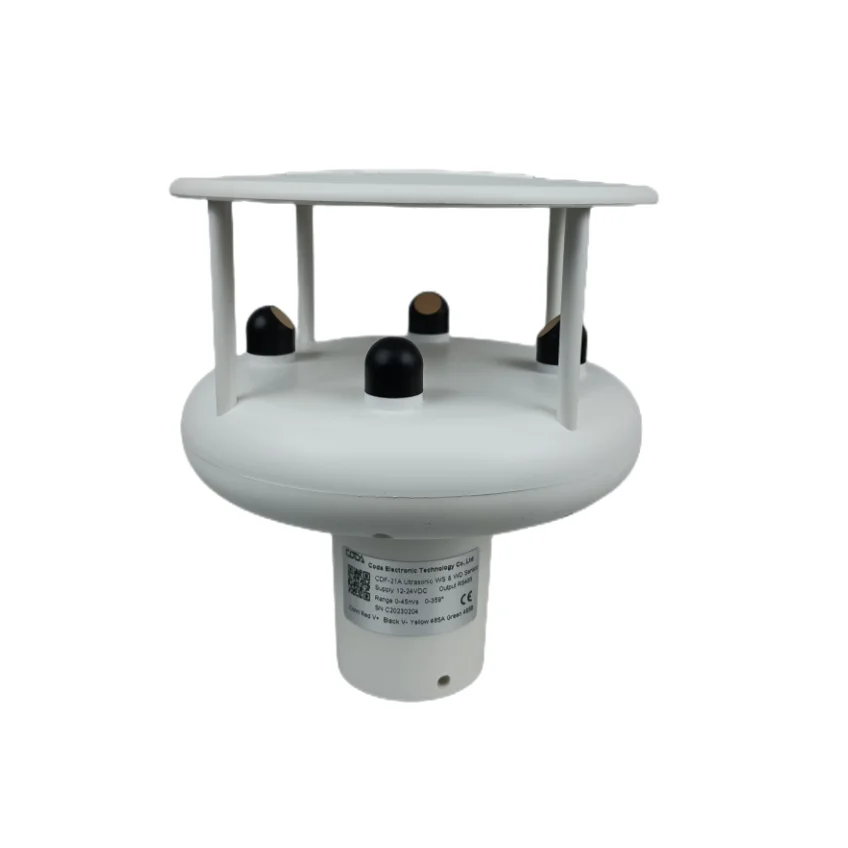

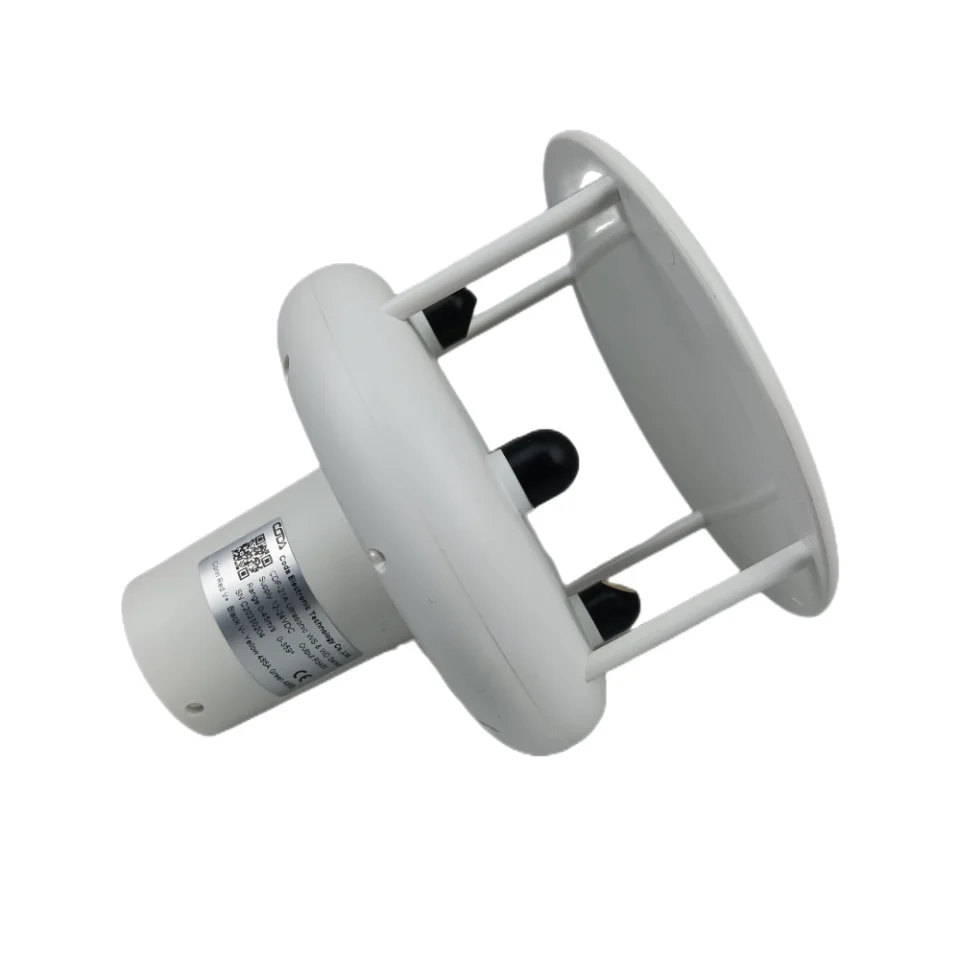

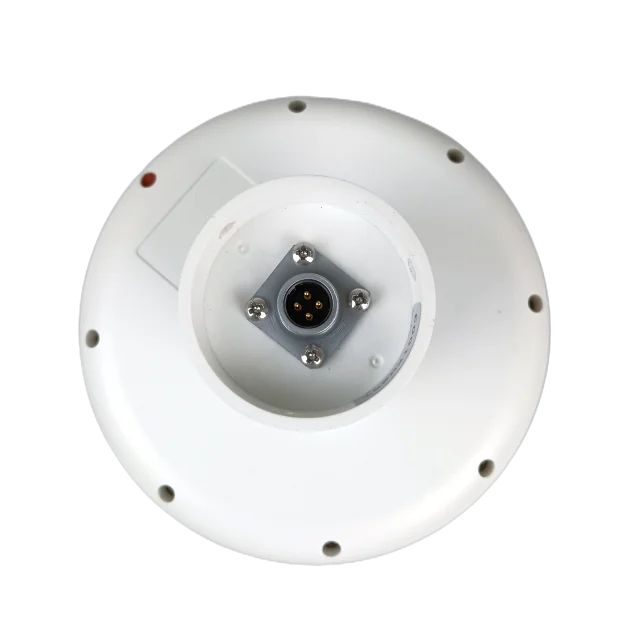

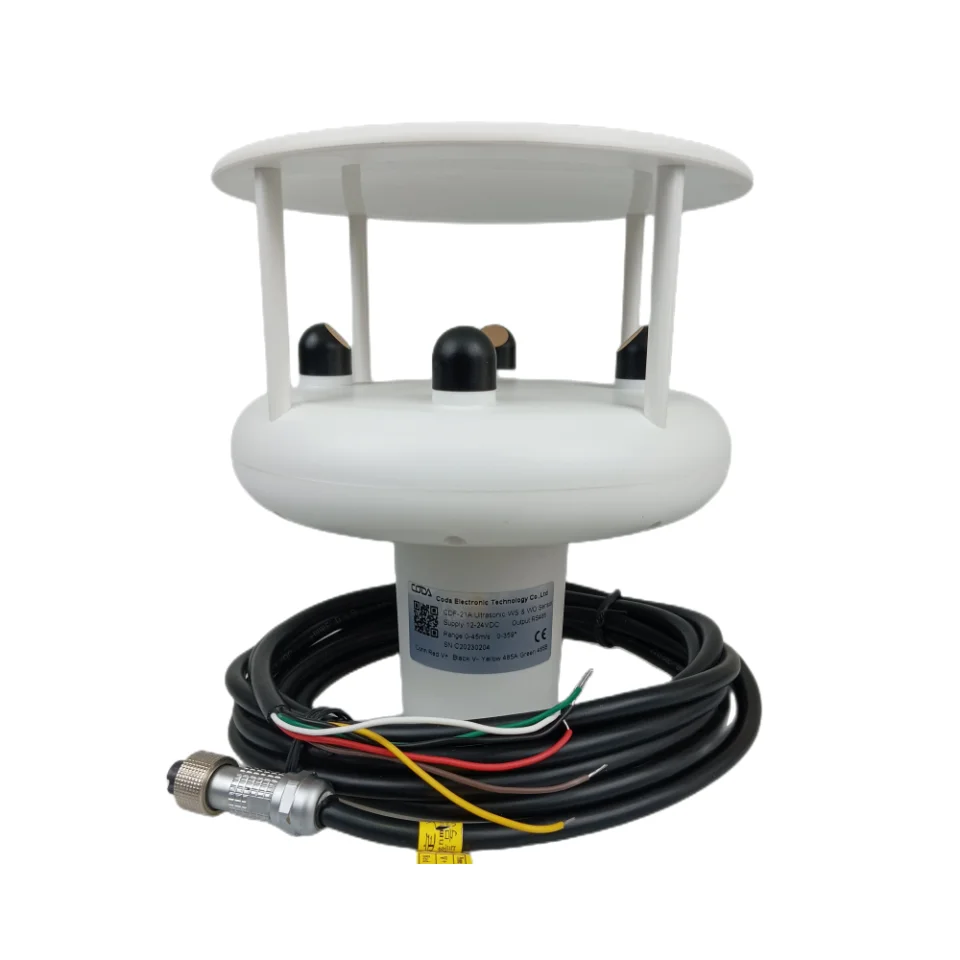

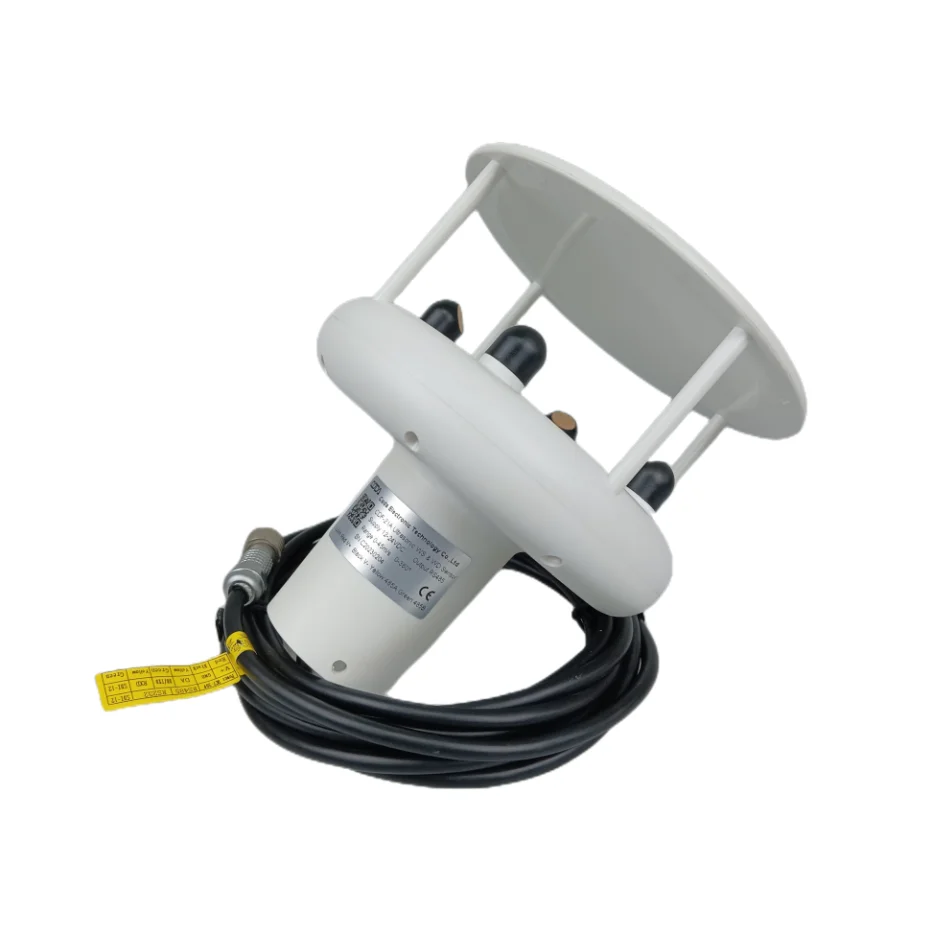

CDF-21A Auto Heating 4-20ma Rs485 Output Ultrasonic Anemometer Wind Speed Direction Sensor For Weather Station
ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction;
built-in signal processing unit can output a corresponding signal in response to user needs, with the structure
lightweight and compact, no moving parts,high-strength structural design can be accurately detected in the harsh
climatic conditions,made the accurate and stable elements,low maintenance, an open communications protocol
and so on.It can be widely used in meteorology, oceanography, environment,airports, ports, laboratories, industry
and agriculture, and transportation and other fields.
BENEFITS AND FEATURES
* Bridge & Tunnel
* Solar and wind power generation
* Wind resource assessment
* Automatic weather station
* Agriculture
TECHNICAL DESCRIPTION
BENEFITS AND FEATURES
* Adapt to complex weather conditions
* No moving parts, long service life
* The surface preservative treatment
* Strong anti-interference
* High accuracy
* Automatic heating anti-frozen
APPLICATIONS
* Environmental monitoring* No moving parts, long service life
* The surface preservative treatment
* Strong anti-interference
* High accuracy
* Automatic heating anti-frozen
APPLICATIONS
* Bridge & Tunnel
* Solar and wind power generation
* Wind resource assessment
* Automatic weather station
* Agriculture
TECHNICAL DESCRIPTION
Item | Technical Specification |
Power Supply | 12-24VDC |
Power consumption | <1W(Heating not activated); <3W(Heating activated) |
Output Signal | RS232/RS485(Modbus/NMEA-0183),4-20mA/0-5V(only for wind speed & direction) optional |
Operating Temperature | -40℃-+80℃ |
Ingress Protection | IP66 |
Heating power | Automatically turn on when the ambient temperature is below 0℃ |
Electronic compass | optional |
Atmospheric pressure | optional |
Dimension | Ф144*148mm |
Weight(unpacked) | 0.8kg |
Main material | ASA |
Item | Technical Specification | ||||
Wind speed | Wind direction | Atmospheric pressure | |||
Range | 0-45m/s,0-60m/s | 0-360° | 150-1100hPa | ||
Resolution | 0.01m/s | 1° | 0.1hPa | ||
Accuracy | ≤10m/s：±0.2m/s ＞10m/s：＜±2% the current value | ±3° | ±1 hPa | ||
Starting Threshold | 0.1m/s | 0.1m/s | |||
Extreme Wind Speed | 60m/s | ||||
Company Profile
Hunan Coda Electronic Tech Co.,Ltd is specialized in weather sensors and environmental sensor providing aquaculture / weather /environmental monitoring solution, best weather station manufactuer.
Coda has a complete production chain, a strong technical team and a comprehensive marketing team. The weather environment monitoring system independently developed and the product has been widely used in PV power generation,weather monitoring, urban environmental monitoring, wind power generation, marine ships, aviation airports, bridges and tunnel etc., customers are all over the world, and we have achieved good social and economic benefits.
Packing&Shipping
Why Choose Us
We have received 1000+Good feedback from all over the world since 2018.
FAQ
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Q: What payment ways do you accept?
A: You can pay us by T/T or credit card.
Q: What is your delivery time?
A: It is in 5-7 working days since the payment confirmed. If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: 12 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .But before that, we will do the visiting investigation.
A: Yes, we can offer OEM service and design the shell and logo for you.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Q: What payment ways do you accept?
A: You can pay us by T/T or credit card.
Q: What is your delivery time?
A: It is in 5-7 working days since the payment confirmed. If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: 12 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .But before that, we will do the visiting investigation.
