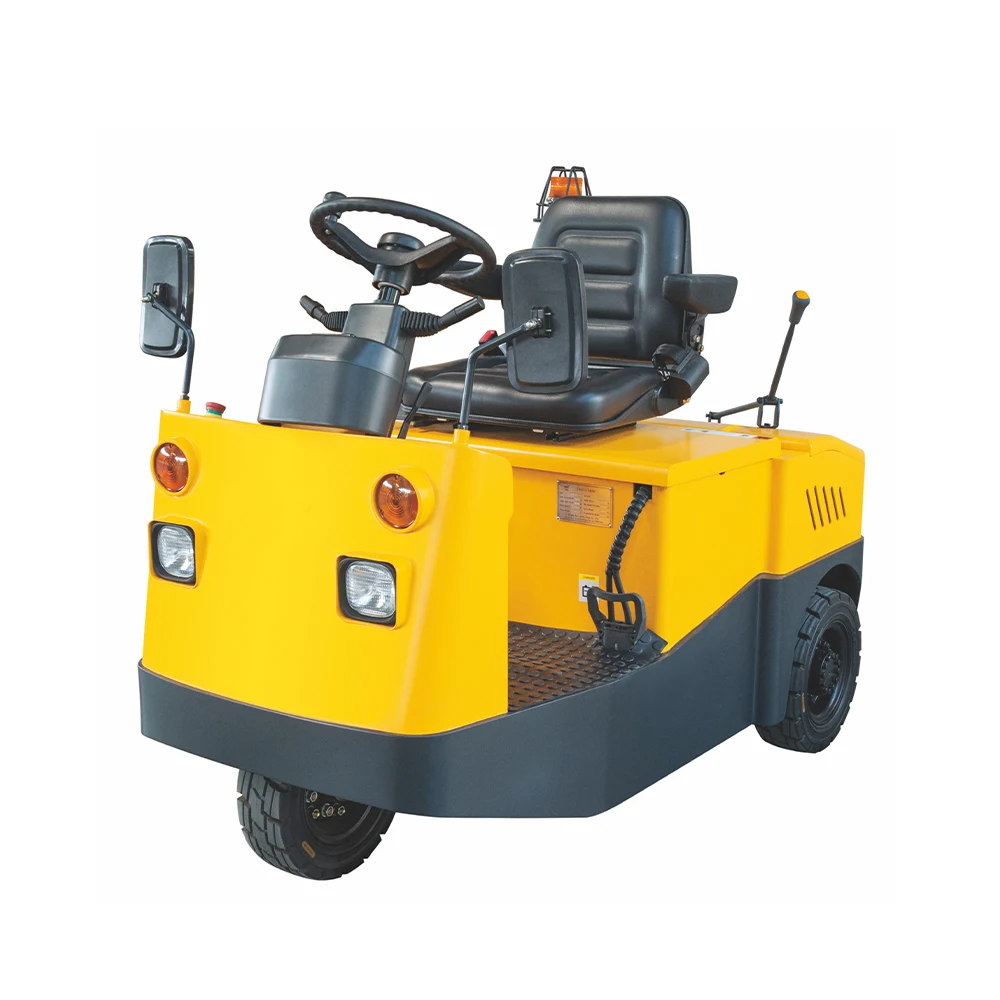

Лучшее качество электротягач-трактор на батарейках сделано
- Категория: Other Material Handling Equipment >>>
- Поставщик: Taixing,Yike,Handling,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 10159.55 $* | 10362.4 $* |
| Jul-16-2025 | 8239.10 $* | 8404.77 $* |
| Jun-16-2025 | 9999.29 $* | 10199.68 $* |
| May-16-2025 | 9919.86 $* | 10117.74 $* |
| Apr-16-2025 | 7919.6 $* | 8077.76 $* |
| Mar-16-2025 | 9759.55 $* | 9954.12 $* |
| Feb-16-2025 | 9679.70 $* | 9873.8 $* |
| Jan-16-2025 | 9599.9 $* | 9791.97 $* |
Характеристики

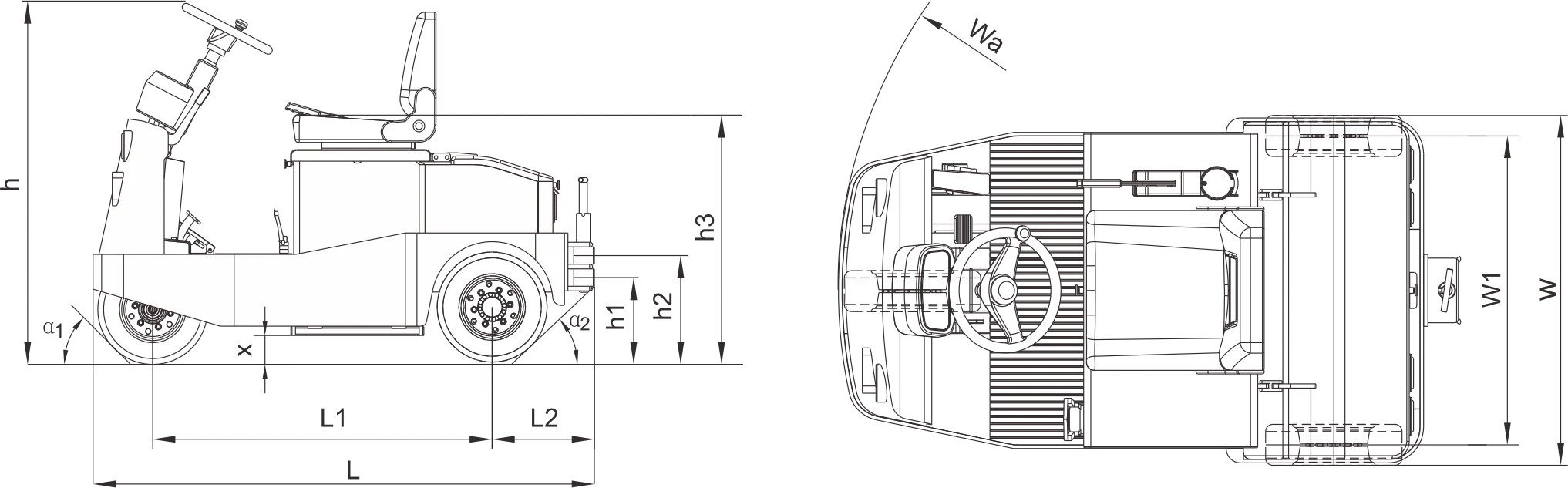

model | unit | QDD50 | QDD60 | QDD100 |
Drive mode | Electric | Electric | Electric | |
Driving mode | Seated type | Seated type | Seated type | |
Rated towing weight (60 minute rated value) | kg | 5000 | 6000 | 10000 |
Rated traction force (60 min rated value) | N/kg | 1250/125 | 1500/150 | / |
Maximum traction force (5-minute rated value) | N/kg | 5000/500 | 6000/600 | / |
Height of hook center from the ground | h1/h2(mm) | 280/350 | 280/350 | 400/500 |
weight | kg | 1160 | 1280 | 2080 |
Front axle load | kg | 410 | 450 | 800 |
Rear axle load | kg | 750 | 830 | 1280 |
Number of tires front/rear | X=drive wheel | 1/2X | 1/2X | 2/2x |
Tire size - front wheel | Elastic solid tire | 15*4 1/2-8 | 15*4 1/2-8 | 5.00-8 |
Tire size - rear wheel | Elastic solid tire | 4.00-8 | 4.00-8 | 6.50-10 |
Seat height | h3(mm) | 910 | 910 | 1100 |
Total length | L(mm) | 1940 | 1940 | 2485 |
Total width | W(mm) | 1100 | 1100 | 1160 |
Total height | h | 1250 | 1250 | 1460 |
Approach angle α one | 0 | 245° | 245° | 38° |
Departure angle a2 | 0 | 240° | 240° | 30° |
Minimum ground clearance | X(mm) | 90 | 90 | 130 |
Minimum turning radius of outer edge | Wa(mm) | 1650 | 1650 | 2200 |
Travel speed Full load | km/h | 8 | 7 | / |
Road speed no-load | km/h | 14 | 14 | / |
Maximum gradient full load | % | 6 | 6 | / |
Maximum gradient no-load | % | 15 | 15 | / |
brake | V | Mechanical, hydraulic | Mechanical, hydraulic | Mechanical, hydraulic |
Voltage | Ah | 48 | 48 | 48 |
capacity | kg | 360 | 400 | 540 |
Drawbar | latch | latch | latch |
Product advantages:
This vehicle is used to move trailers loaded with various kinds of goods. It is designed with three fulcrums and has obvious characteristics such as small turning radius, good trafficability, no noise, no pollution, etc;
The H-type drive axle is arranged and the battery is treated with low voltage, so the vehicle operation has high stability;
On-board multi-function display instrument, which can display the power, fault code, accumulated working time of the whole vehicle, etc;
The standard model is driven by DC motor, and Curtis control system; Customers can choose AC motor drive system;
Users can select and match the windshield, rocker arm decoupling device, battery side pull type, rearview mirror, strobe light, AC motor drive system blue light, traction seat height, etc. according to their needs;
CANBUS technology greatly simplifies the electrical circuit and greatly reduces the failure rate of electrical components.
This vehicle is used to move trailers loaded with various kinds of goods. It is designed with three fulcrums and has obvious characteristics such as small turning radius, good trafficability, no noise, no pollution, etc;
The H-type drive axle is arranged and the battery is treated with low voltage, so the vehicle operation has high stability;
On-board multi-function display instrument, which can display the power, fault code, accumulated working time of the whole vehicle, etc;
The standard model is driven by DC motor, and Curtis control system; Customers can choose AC motor drive system;
Users can select and match the windshield, rocker arm decoupling device, battery side pull type, rearview mirror, strobe light, AC motor drive system blue light, traction seat height, etc. according to their needs;
CANBUS technology greatly simplifies the electrical circuit and greatly reduces the failure rate of electrical components.
1. Why choose us?
As a manufacturer, LTMG Industries is committed to providing not only high quality, high performance and competitive prices of electric forklifts, but also prompt delivery and comprehensive 7/24 after-sales service.
2. What is the product range of our factory?
LTMG Industries is a large machinery manufacturer specializing in the supply of loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers'
requirements.
3. What payment terms can we accept?
Usually 30% deposit is required in advance and 70% balance is required before shipment. 100% irrevocable sight letters of credit and terms agreed by us are also acceptable.
4. What certificates do we have?
All products comply with ISO 9001 quality system and are CE certified.
5. What is our delivery time?
Usually, it takes 15 to 30 days after receiving your deposit. About standard products, we always have stock and can deliver immediately. But customized products will take more time, depending on your requirements
order.
6. Can we provide OEM service?
LTMG Industries can provide customized products according to customers' requirements, OEM and ODM are both acceptable.
As a manufacturer, LTMG Industries is committed to providing not only high quality, high performance and competitive prices of electric forklifts, but also prompt delivery and comprehensive 7/24 after-sales service.
2. What is the product range of our factory?
LTMG Industries is a large machinery manufacturer specializing in the supply of loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers'
requirements.
3. What payment terms can we accept?
Usually 30% deposit is required in advance and 70% balance is required before shipment. 100% irrevocable sight letters of credit and terms agreed by us are also acceptable.
4. What certificates do we have?
All products comply with ISO 9001 quality system and are CE certified.
5. What is our delivery time?
Usually, it takes 15 to 30 days after receiving your deposit. About standard products, we always have stock and can deliver immediately. But customized products will take more time, depending on your requirements
order.
6. Can we provide OEM service?
LTMG Industries can provide customized products according to customers' requirements, OEM and ODM are both acceptable.
