HBN гексагональный нитрид бора


Поделиться:


Цена:1,00 $ - 10,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 1.68 $* 1.81 $*
Jul-15-2025 1.25 $* 1.17 $*
Jun-15-2025 1.77 $* 1.25 $*
May-15-2025 1.36 $* 1.55 $*
Apr-15-2025 1.64 $* 1.54 $*
Mar-15-2025 1.21 $* 1.33 $*
Feb-15-2025 1.6 $* 1.36 $*
Jan-15-2025 1.64 $* 1.54 $*

Характеристики






Manufacturing capability




















































Tolerance for linear dimensions: ±0.002mm at best Straightness: 0.02mm at best
Tolerance for angular dimensions: ±0°10' at best Minimum hole diameter: 0.5mm
Surface roughness: Ra0.05μm at best Minimum internal thread: M2
Concentricity: 0.02mm at best Maximum external thread: M20
Cylindricity: 0.02mm at best Available thread type: Metric, UNC/UNF, BSW
Flatness: 0.02mm at best Available surface finish: as fired, grinding, lapping, polishing, metallization, glazed
Parallelism: 0.02mm at best








PRODUCT DESCRIPTION


_02
































Product Name

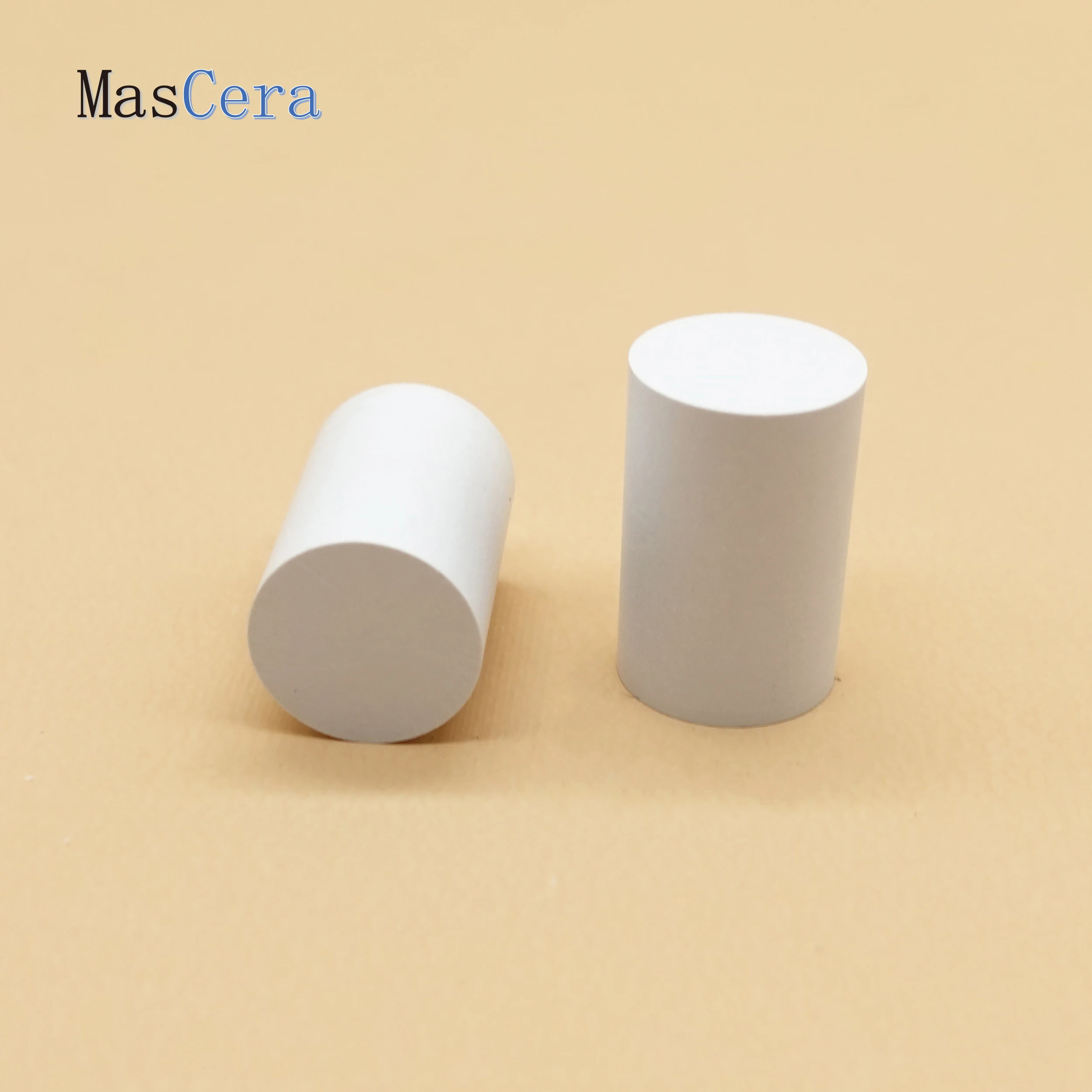

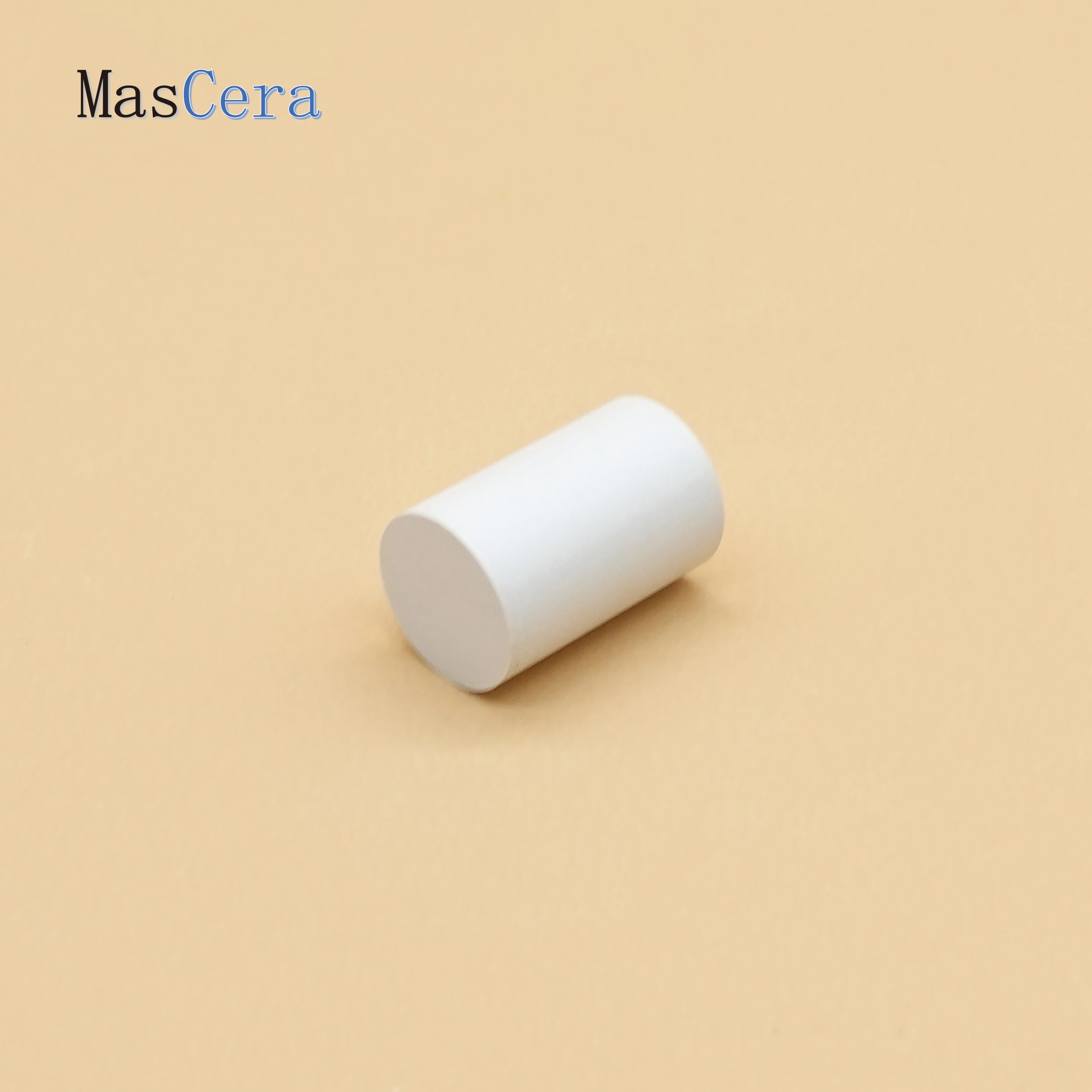

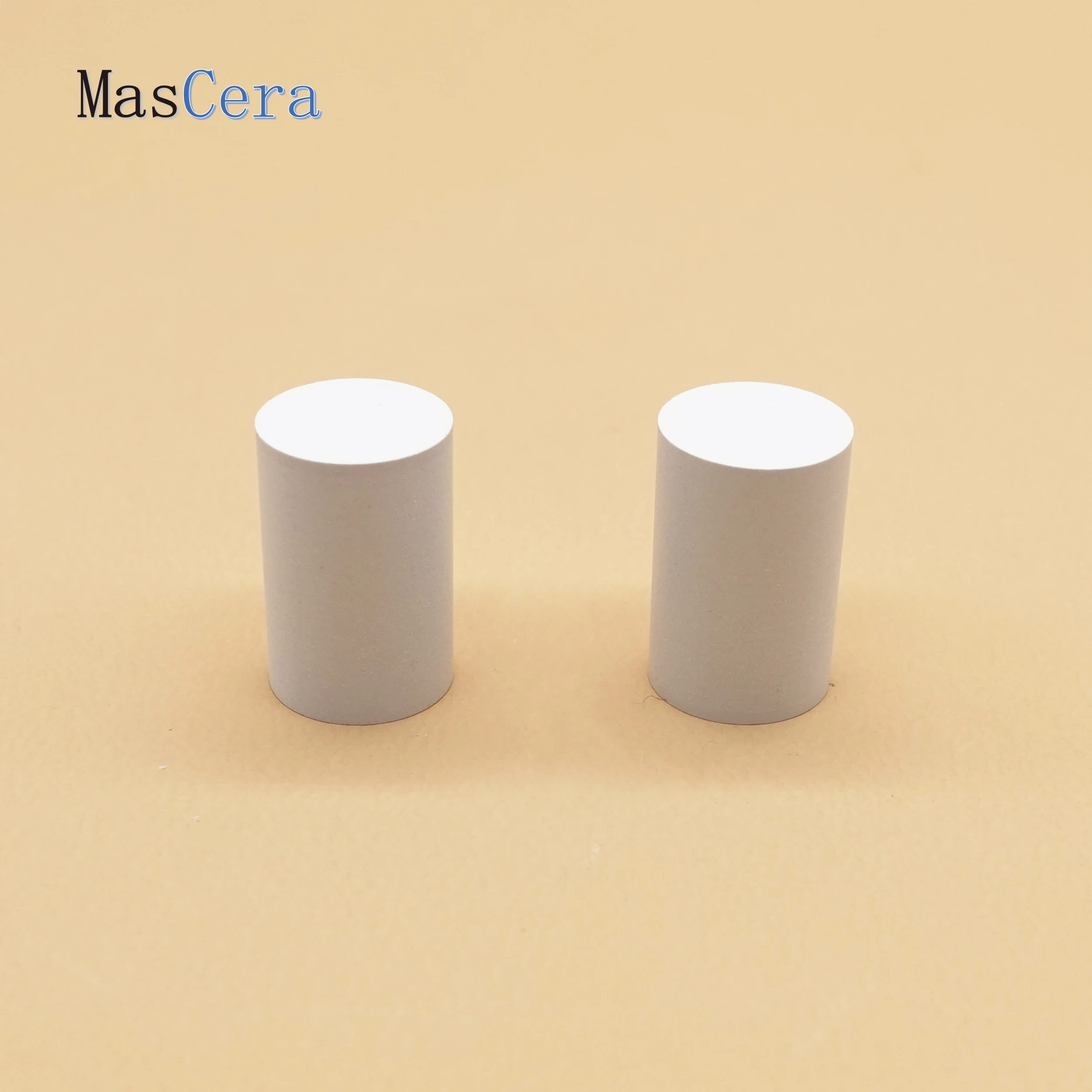

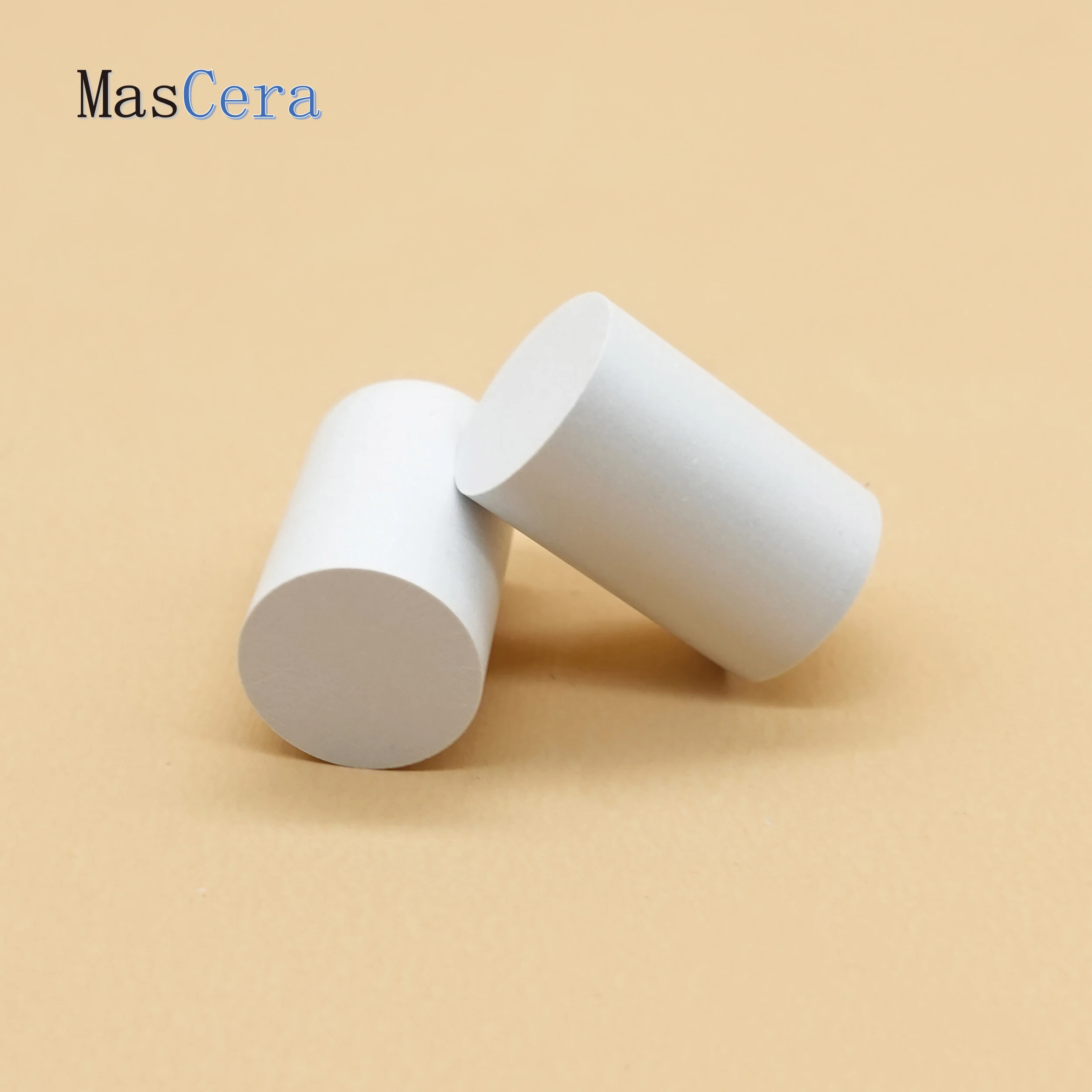

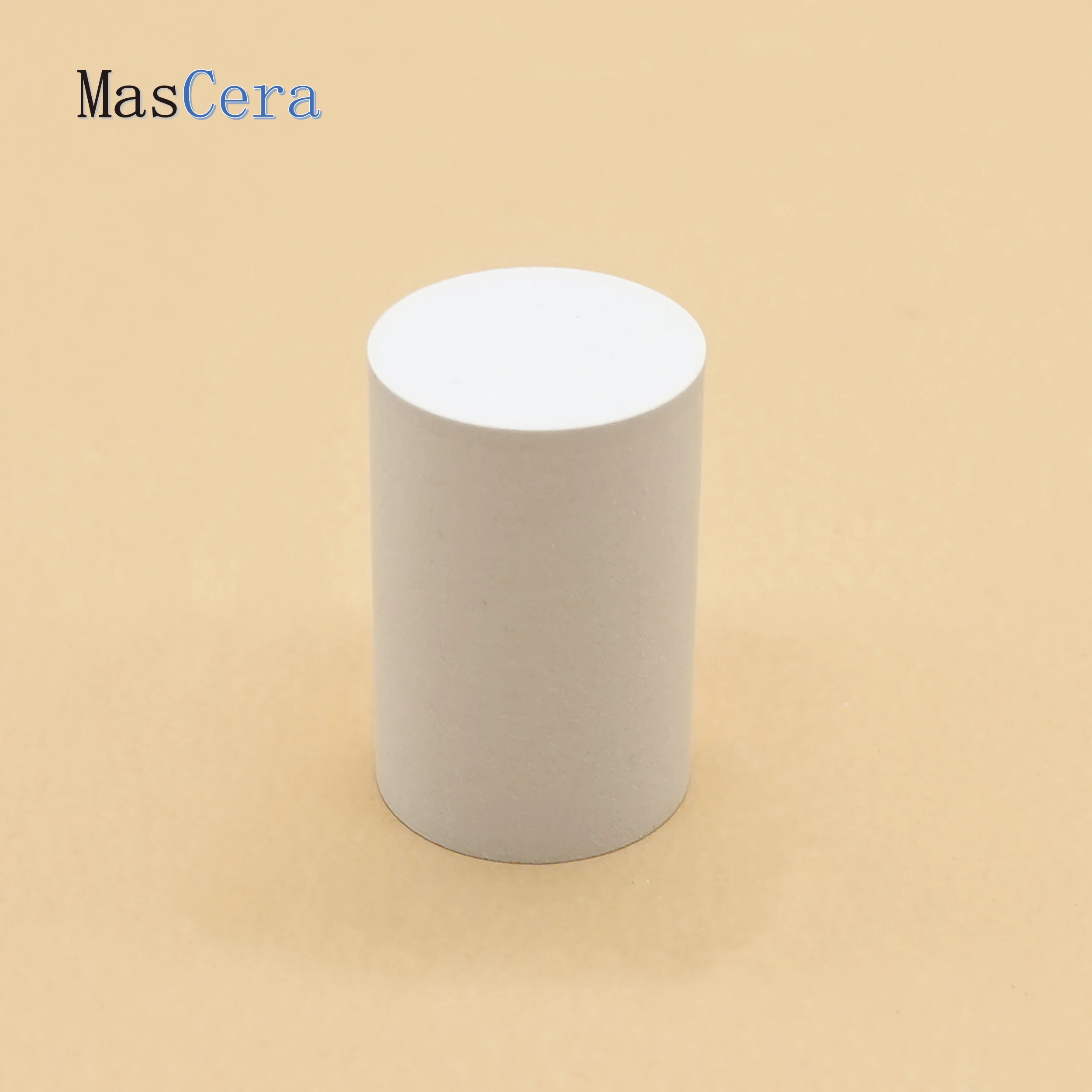

HBN Hexagonal Boron Nitride Ceramic Bar/Cylinder

Material


Boron nitride ceramic/BN ceramic


Shape


Ceramic Cylinder


size


Ø9.8*L15mm

Customized size available


Color


Light Grey


Usage

Electrical Insulator




  Hot Pressed Boron Nitride (HPBN) Ceramic is one of industrial ceramic materials, its hardness and mechanical strength is not as high as alumina or zirconia ceramics, the soft hardness and good machinability enables this material to produce complicated shapes.  Boron nitride ceramic has excellent inertness to most molten metals and good thermal shock resistance, so it is very suitable to use in metallurgical applications. The good electrical insulation also makes it a good option for electrical applications.





  Mascera is a reputable supplier for hot pressed boron nitride ceramic, we have developped several grades of materail for different property requirement. Welcome to contact us when you have demand, we will do our best to match your demands.











































































































































Material TypeBN-997BN-99BN-ABN-BBN-CBN-DBN-E
Main ContentBN>99.7%BN>99%BN+AL+SIBN+ZR+ALBN+SICBN+ZRO2BN+AlN
ColorWhiteWhiteLight GreyLight GreyGrey GreenDark GreyGrey Green
Density (G/Cm3)1.61.95-2.02.2-2.32.25-2.352.4-2.52.8-2.92.8-2.9
Flexural Strength (Mpa)18306565809090
Compressive Strength (Mpa)4585145145175220220
Electrical Resistivity (Ω.Cm)>1014>1014>1013>1013>1012>1012>1013
Max. Service Temp. (℃)
@Air Condition
900900900900900900900
Max. Service Temp. (℃) @Vacuum Condition1800180017501750180018001750
Max. Service Temp. (℃) @Inert Gas Condition2100210017501750180018001750
Thermal Conductivity (W/Mk)35403535453085
Thermal Expansion Coefficient (25 - 1000℃) (10-6/K)1.51.8222.83.52.8





  DSC05816   DSC05811

  DSC05813   DSC05812
