Brushless turbina pelton wheel hydro power plant

Water Head	50m - 1300m
Power range	50KW-20MW
Frequency	50HZ/60HZ
Generator Voltage	400V, 800V, 6300V, 10500V
Runner diameters	0.35m-4m
Layout pattern	Horizontal or Vertical
Material	Stainless Steel ZG0Cr13Ni4Mo
Excitation	Brushless or Static excitation system
Lifespan	50 years
Nozzle numbers	1-6

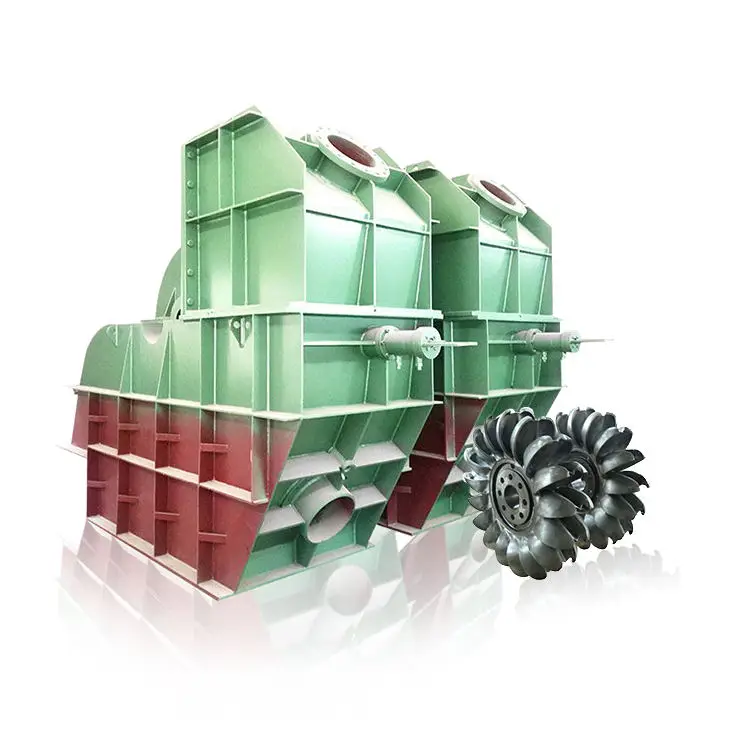

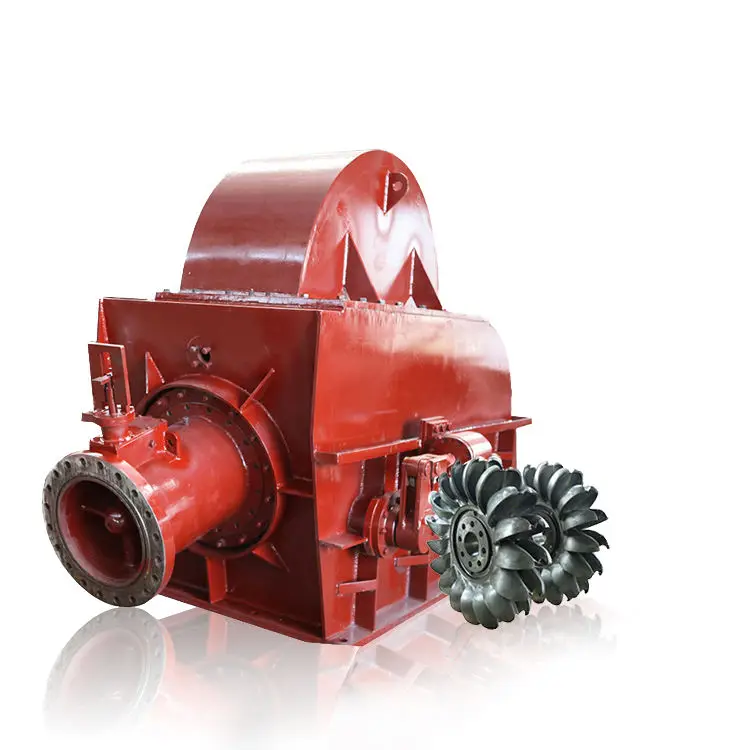

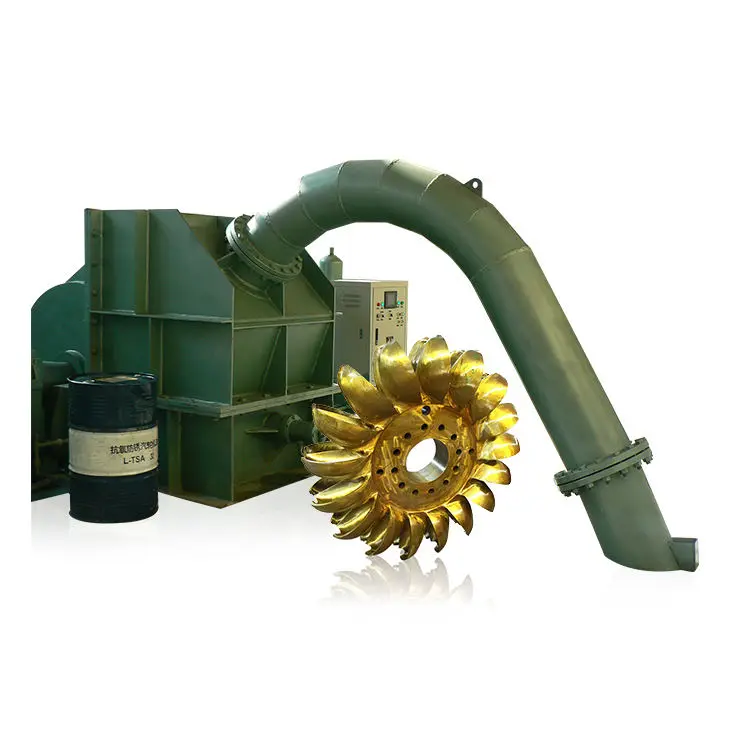

Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement, nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow.

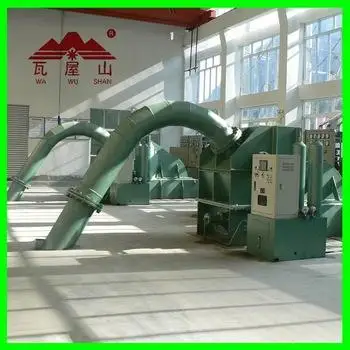

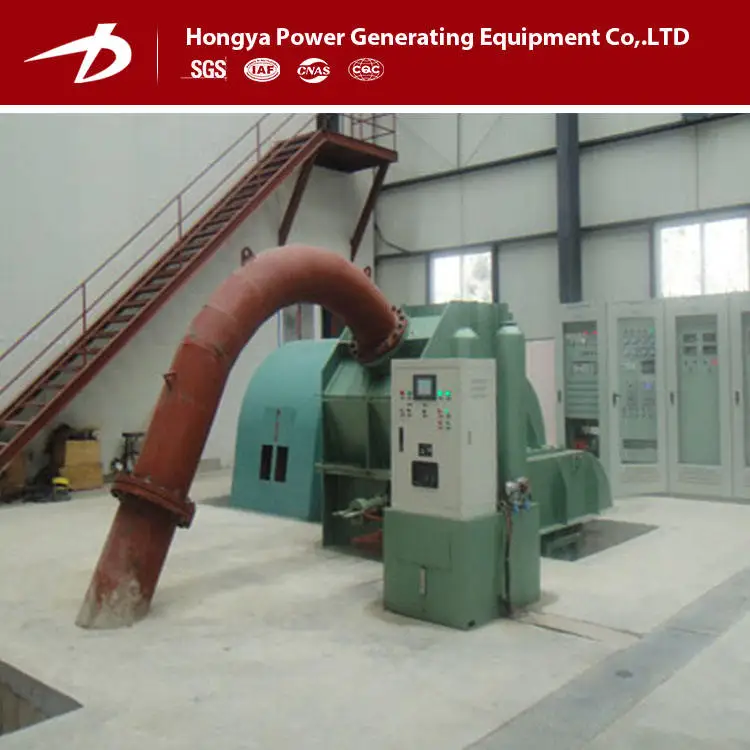

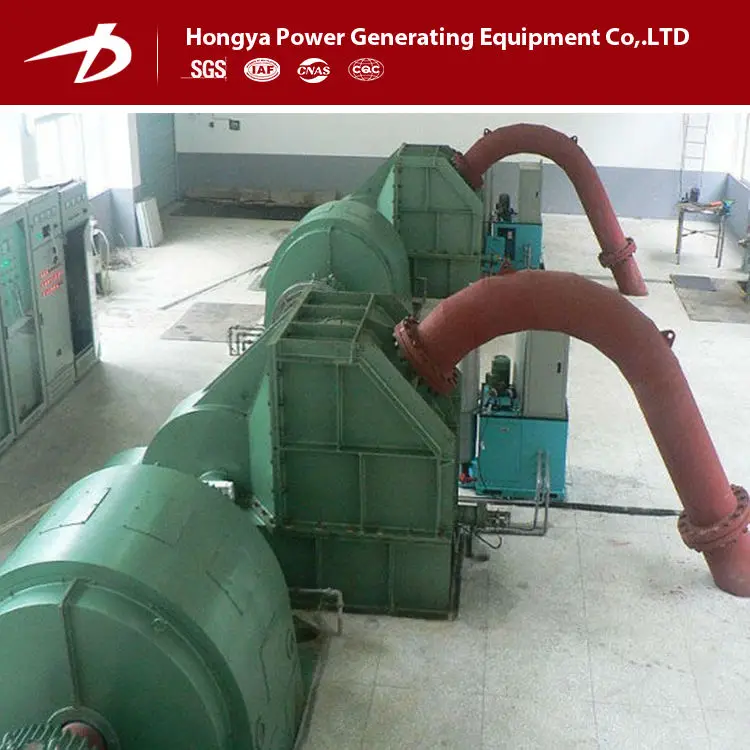

Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.
