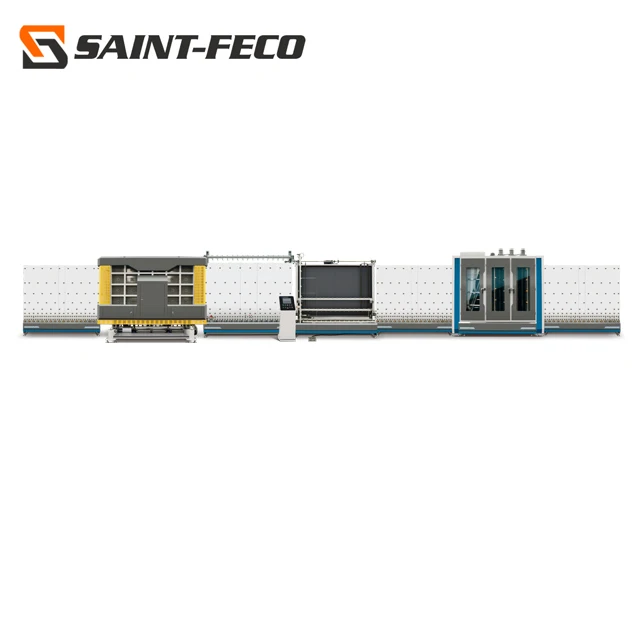

Машина для наполнения газом аргоном с двойным стеклом/автоматическая машина производства стекла
- Категория: Glass Production Machinery >>>
- Поставщик: Jinan,Saint-Feco,CNC,Machinery,Co.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 81515.82 $* | 85591.97 $* |
| Aug-20-2025 | 80830.83 $* | 84872.48 $* |
| Jul-20-2025 | 67815.42 $* | 71206.19 $* |
| Jun-20-2025 | 79460.51 $* | 83433.66 $* |
| May-20-2025 | 69185.77 $* | 72644.31 $* |
| Apr-20-2025 | 78090.47 $* | 81995.32 $* |
| Mar-20-2025 | 77405.47 $* | 81275.66 $* |
| Feb-20-2025 | 76720.46 $* | 80556.89 $* |
| Jan-20-2025 | 76035.87 $* | 79837.25 $* |
Характеристики
Products Description
Model | SFCH-2500 | SFCH-2000 |
Voltage | 380V/50HZ | 380V/50HZ |
Power | 28KW | 23KW |
Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
Max.Glass Size | 2500x3300mm | 2500x3300mm |
Min. Glass Size | 300x450mm | 300x450mm |
Working Direction | Right to Left or Left to Right | Right to Left or Left to Right |
Glass Thickness | 3-19mm | 3-19mm |
Transfer Speed | 8-45m/min | 8-45m/min |
Weight | 7000KGS | 5000KGS |
Dimension | 22200x2100x3700mm | 20200x2100x3300mm |
Main Parts List： | |||
No. | Component Name | Brand | Origin |
1 | Servo Motor for Pressing | Schneider/Yaskawa | France/Japan |
2 | Driver for Pressing | Yaskawa | Japan |
3 | X Axis Servo Motor | Schneider/Yaskawa | France/Japan |
4 | X Axis Driver | Yaskawa | Japan |
5 | Y Axis Servo Motor | Schneider/Yaskawa | France/Japan |
6 | Y Axis Driver | Yaskawa | Japan |
7 | PLC | DELTA | Taiwan, China |
8 | Frequency Converter | DELTA | Taiwan, China |
9 | Touching Screen | DELTA | Taiwan, China |
10 | Variable Speed Motor | DYG | Taiwan, China |
11 | Power Source | DELTA | Taiwan, China |
12 | Circuit Breaker | Schneider | France |
13 | Ultrasonic Photoelectric Switch | Banner | America |
14 | Photoelectric Switch | Autonics | Korea |
15 | Relay | Omron | Japan |
16 | AC Contactor | Schneider | France |
17 | Solenoid Valve | SMC | Japan |
18 | Digital Pressure Gauge | SMC | Japan |
19 | Solenoid Valve | AIRTAC | Taiwan, China |
20 | Cylinder | AIRTAC | Taiwan, China |
21 | Water Pump | DALEI | China |
22 | Brushes | Haoer | China |
23 | Roller | Jiayuan | China |
24 | Roller Bearing | Haierbin Group | China |
25 | Guide Rail | HIWIN | Taiwan, China |
26 | High Pressure Fan | Hanshuo | China |
27 | Foot Pedal | Mingde | China |
Features:
1.PLC Control ,touch screen human-machine interface
2.It can make double glass, triple glass, big and small glass ect.
3.Automatic recognition of coated glass and LOW-E glass film.
4.Imported glass suction cup and vacuum generator makes better glass catching effect
5.The protection panel has been processed with plastic spraying to achieve good performance and long life time
6.Cleaning parts adopts stainless steel and resistance material
7.All electrical parts using international famous brand.
8.The pressing part can be widen to 450 mm for easy maintenance
9.The pressing parts adopt opening-door style for convenient maintenance.
10.This line adopts online gas filling function,
2.It can make double glass, triple glass, big and small glass ect.
3.Automatic recognition of coated glass and LOW-E glass film.
4.Imported glass suction cup and vacuum generator makes better glass catching effect
5.The protection panel has been processed with plastic spraying to achieve good performance and long life time
6.Cleaning parts adopts stainless steel and resistance material
7.All electrical parts using international famous brand.
8.The pressing part can be widen to 450 mm for easy maintenance
9.The pressing parts adopt opening-door style for convenient maintenance.
10.This line adopts online gas filling function,
Company Profile
SAINT-FECO CNC Machinery Co.LTD
SAINT-FECO CNC Machinery Co.LTD is established in 2006. We are professional manufacturer of window door and glass machines with 17 years experience.
We have our own industrial park covered an area of with 30000 square meters in 2015, and our registered capital is 10,000000RMB. Also we have our own R&D team, production department, QC department, purchase department, after-sale service department and so on. We have 50 persons with rich machine assembling experience.Now we have more than 20 branches in China, also our machines have been sold to Southeast Asia, America, India, and so on.
We have our own industrial park covered an area of with 30000 square meters in 2015, and our registered capital is 10,000000RMB. Also we have our own R&D team, production department, QC department, purchase department, after-sale service department and so on. We have 50 persons with rich machine assembling experience.Now we have more than 20 branches in China, also our machines have been sold to Southeast Asia, America, India, and so on.
Our Factory
Sample Room
Exhibition
Product Packaging
FAQ
1.Question:Are you manufacturer?
Answer:
Answer:
Yes,we are the professional manufacturer with more than 16 years experience in this area.
2. What’s the delivery time for the machines?
Answer:
2. What’s the delivery time for the machines?
Answer:
Normal machines our delivery time is 20 days after getting deposit, customized machines should confirm with our sales persons.
3. Question: How about the after-sale service ?
Answer:
3. Question: How about the after-sale service ?
Answer:
1).reply it at once when machines break down, by email/whatsapp/direct line,if by email,it reply it within 12 hour
2) if clients need , we can appoint engineers to help install the machines and train the workers
4.Question:What’s the guarantee time ?
Answer:
2) if clients need , we can appoint engineers to help install the machines and train the workers
4.Question:What’s the guarantee time ?
Answer:
1).All machines guarantee time is one year, not including wearing parts.
2) If machines parts broken, we will give for free, but clients should afford courier fees.
3).24 hours on line service each day, free technical support.
5. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Also support online training.
6.Question: What is the payment terms ?
Answer:
Any payment method you want,such as T/T, L/C and so on.
2) If machines parts broken, we will give for free, but clients should afford courier fees.
3).24 hours on line service each day, free technical support.
5. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Also support online training.
6.Question: What is the payment terms ?
Answer:
Any payment method you want,such as T/T, L/C and so on.
