Type

PM9833

PM9833A

PM9833B

Basic Accuracy

0.2Class

Measuring Voltage

9.0V-600.0V

9.0V-1000.0V

Measuring Current

20mA-40A

20mA-60A

Input mode

Voltage and Current are floating input

Power Factor

0.001-1.000

Frequency

45-100Hz

Measuring Mode

AC

Input

resistance

Voltage

Is about 2MΩ

Current

About 0.5Ω,High grade is about 4mΩ

Display model

7 windows, White LED display.

Electric energy accumulation

-----

0-999999Wh/0-99999Wh

Electric energy timer

-----

9999h, Accuracy error ± 2 seconds / hour, resolution 1 second

harmonic

-----

1-50 times, accuracy class: B class IEC61000-4-7

Sampling speed

0.05S        0.1S 0.25S        0.5S 1S

AD conve

800times/s, The sampling period 125μs, 24-bit voltage and

current are simultaneously sampled.

Line filtering

Cut-off frequency 2KHz

The voltage value of the AC

√

The current value of the AC

√

Active power

√

Apparent power

√

Reactive power

√

Phase difference

√

Power supply input

AC 100V-240V 45-440Hz DC 100V-300V

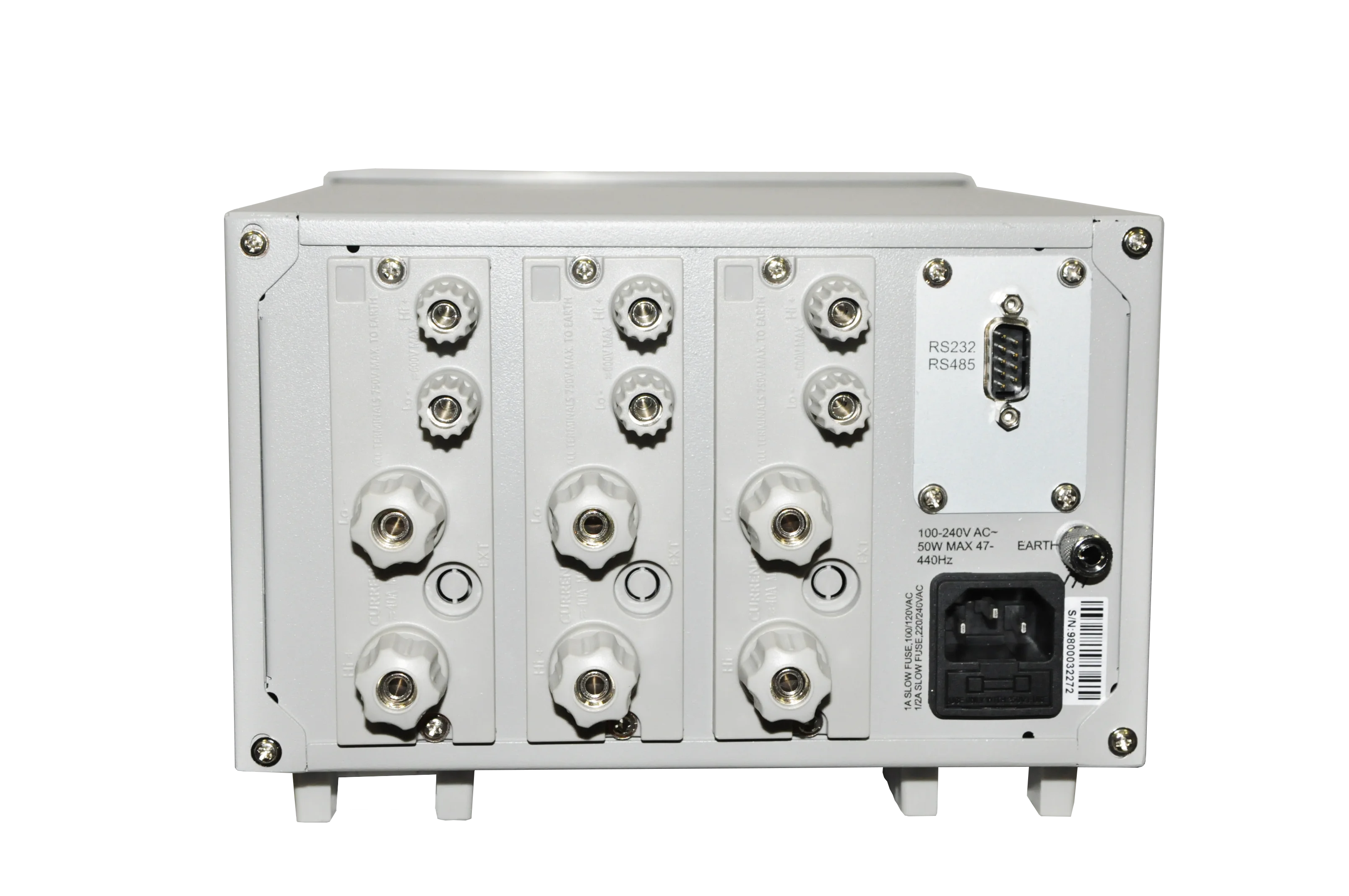

Communication

Optional RS232/485

Standard RS232/485

Size(mm)

215*132*275mm    Support transformer or current clamp (optional)

Weight(kg)

About 4kg
