Аппарат для шлифовки и полировки окантовки стекла из
- Категория: Glass Processing Machinery >>>
- Поставщик: Foshan,Global,Jinfeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 10472.13 $* | 10996.90 $* |
| Aug-15-2025 | 10384.23 $* | 10903.70 $* |
| Jul-15-2025 | 8712.10 $* | 9148.61 $* |
| Jun-15-2025 | 10208.32 $* | 10718.58 $* |
| May-15-2025 | 8888.9 $* | 9332.53 $* |
| Apr-15-2025 | 10032.46 $* | 10534.29 $* |
| Mar-15-2025 | 9944.29 $* | 10441.58 $* |
| Feb-15-2025 | 9856.94 $* | 10349.50 $* |
| Jan-15-2025 | 9768.31 $* | 10256.21 $* |
Характеристики
Products Description

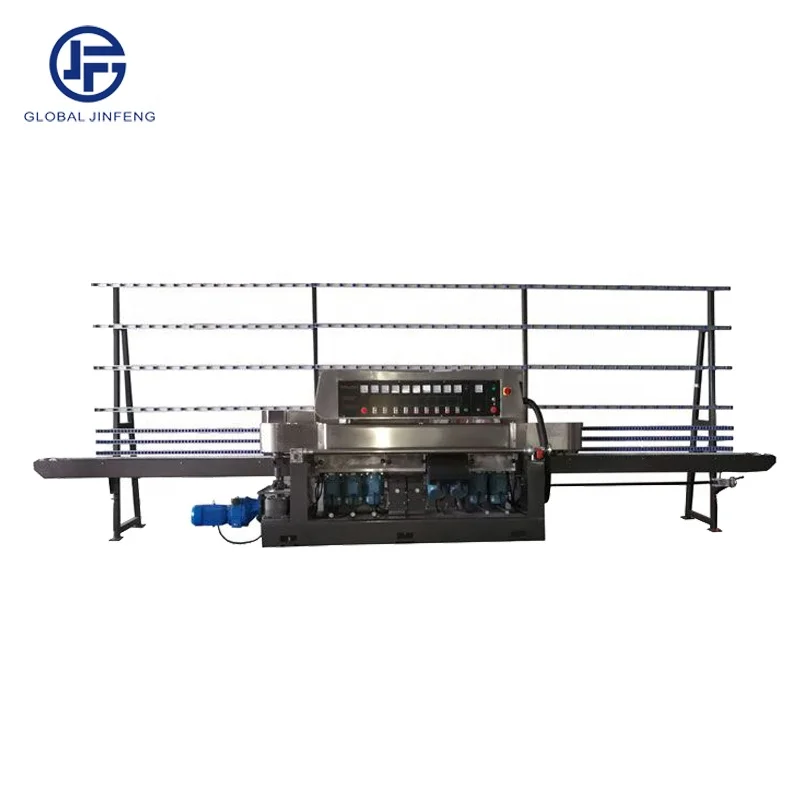

Global jinfeng 9 glass machine grind glass edges automatic edging machine cnc glass straight-line edging and polishing machine
This kind of the machine is suitable for edging the straight line and chamfer angle of different -size of flat glass.It combines coarse,fine edging and polishing of the straight line together with coarse fine edging of the two side corners in one procession.It is characterized with mechanical stepless adjustment with wide range,steady speed changing.When edging the feeding speeds can be adjusted.
Note:The device size specification can be customized according to customer requirements.
Note:The device size specification can be customized according to customer requirements.
Glass drive speed | 0.5-5m/min |
Max glass size | 2000*3000mm |
glass thickness | 3-25mm |
power | 20kw |
weight | 2700kgs |
Dimensions | 6500*1500*2200mm |
Details Images
1. adjust the amount of grinding
The input can adjust the overall lifting height by adding and manually adjusting the screw.When the input belt is adjusted
downward, the amount of grinding will increase. Using this method to adjust the amount of grinding will be more convenient than adjusting the height of the wheels.
downward, the amount of grinding will increase. Using this method to adjust the amount of grinding will be more convenient than adjusting the height of the wheels.
2.The variable-speed motor
The variable-speed motor is used to adjust the speed of transmission of the entire machine.When in use, the machine must be in a transmission state to be adjusted. variable-speed needs to go through the side viewing mirror. Observe whether the oil is turbid
or low. If you need to add oil, use motorcycle oil. Generally, the oil can be changed once every 3 months.
or low. If you need to add oil, use motorcycle oil. Generally, the oil can be changed once every 3 months.
3.Synchronous belt drive
relatively expensive, if the synchronous belt is damaged, it needs to be replaced as a whole.

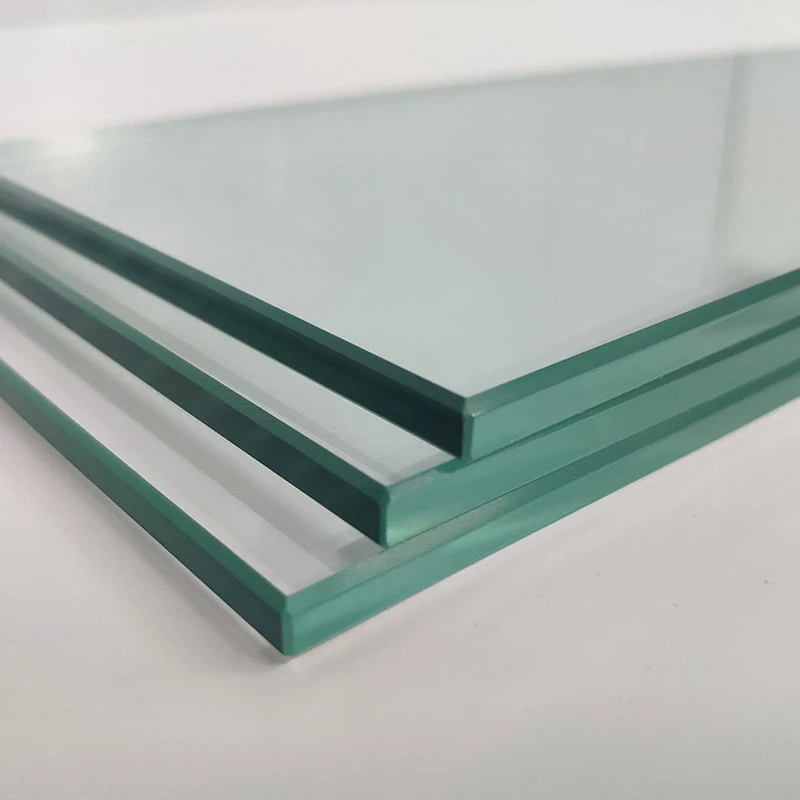

Glass Effect
Motor
Control panel switch

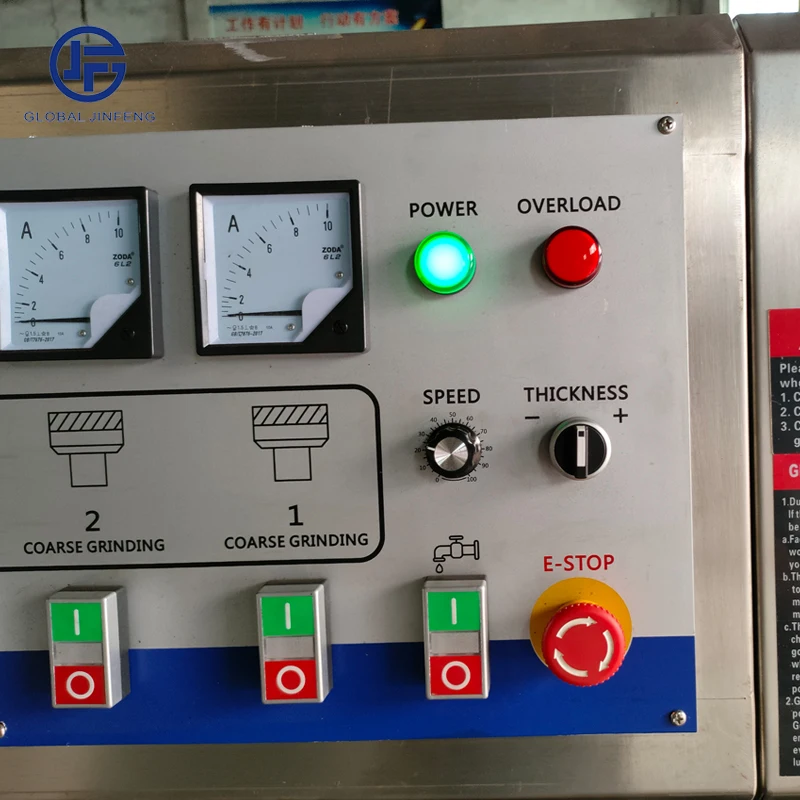

control panel
Item | Size |
Pos.1 Diamond wheel | 150x12x8x8mm |
Pos.2 Diamond whee | 150x12x8x8mm |
Pos.3 Resin wheel(Chamfer) | 130x12x10x10mm |
Pos.4 DLD Wheel (Chamfer) | 130x60x35mm 10S60 |
Pos.5 Resin wheel(Chamfer) | 130x12x10x10mm |
Pos.6 DLD Wheel (Chamfer) | 130x60x35 10S60(Made in China) |
Pos.7 Resin wheel | 150x12x10x10mm |
Pos.8 DLD Wheel | 150x70x40mm 10S40(Made in China) |
Pos.9 DLD Wheel | 150x70x40mm 10S60(import) |
Other Accessories
Certifications
Product packaging
Exhibition
Beijing exhibition
Mexico exhibition
Mexico exhibition
Success Case
Our service
Pre-sales service
1.Inquiry and consulting support.
2.Sample testing support.
3.View our factory.
4. Any question will be replied within 12 hours ,we promise providing a reasonable and detailed quotaiton.
2.Sample testing support.
3.View our factory.
4. Any question will be replied within 12 hours ,we promise providing a reasonable and detailed quotaiton.
After-sales service
1.Training how to instal the machine,training how to use the machine.
2.Engineers available to service machinery overseas.
3.During the warranty period, in case of accident, we will respond within 12 hours after receiving the information. We will guide
the operators by fax and email. If you don't know how to repair it, we will send maintenance personnel to the site after receiving
the message.
2.Engineers available to service machinery overseas.
3.During the warranty period, in case of accident, we will respond within 12 hours after receiving the information. We will guide
the operators by fax and email. If you don't know how to repair it, we will send maintenance personnel to the site after receiving
the message.
FAQ
1.What is the guarantee?
A.1 Year of the whole set machine after shipping
B.Wear parts with cost price
C.24x7 hour on line after sale service
2.How to guarantee the quality and shipping time?
We are Gold Supplier in Alibaba, so you will get guarantee from alibaba
3.How long is the delivery time?
About 25-30 days, if urgent,we will produce as fast as we can
4.What is the payment term?
T/T,L/C,Western Union,Cash and other terms are accepted
5.Can we make special voltage?
Yes,like 380V/220V/415V,according to customer demand
6. How about the installation and bedug?
We will make Instruction with detail photos,video to teach you,if need engineer,will send to you.
A.1 Year of the whole set machine after shipping
B.Wear parts with cost price
C.24x7 hour on line after sale service
2.How to guarantee the quality and shipping time?
We are Gold Supplier in Alibaba, so you will get guarantee from alibaba
3.How long is the delivery time?
About 25-30 days, if urgent,we will produce as fast as we can
4.What is the payment term?
T/T,L/C,Western Union,Cash and other terms are accepted
5.Can we make special voltage?
Yes,like 380V/220V/415V,according to customer demand
6. How about the installation and bedug?
We will make Instruction with detail photos,video to teach you,if need engineer,will send to you.
