Машина для прокатки листового металла
US $10000
Оборудование для формовки напольной металлической плитки PPGI GI PPGL GL машина производства
- Категория: Tile Making Machinery >>>
- Поставщик: Henan,Demma,Electronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 11305.34 $* | 11870.95 $* |
| Aug-20-2025 | 11210.65 $* | 11771.21 $* |
| Jul-20-2025 | 9405.75 $* | 9875.78 $* |
| Jun-20-2025 | 11020.59 $* | 11571.35 $* |
| May-20-2025 | 9595.83 $* | 10075.8 $* |
| Apr-20-2025 | 10830.80 $* | 11372.53 $* |
| Mar-20-2025 | 10735.29 $* | 11272.47 $* |
| Feb-20-2025 | 10640.29 $* | 11172.73 $* |
| Jan-20-2025 | 10545.5 $* | 11072.35 $* |
Характеристики
Floor deck roll forming machine for grooved subfloor plates
Send inquiry for more discount information !!!
Product Description
Whole processing line:
Uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table
Uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table
Material:
Effective width: 1220mm
Feeding width: about 1220mm
Material Thickness:0.7-1.2/0.8-1.6mm
Applicable material: Galvanized Sheet(GI)
Effective width: 1220mm
Feeding width: about 1220mm
Material Thickness:0.7-1.2/0.8-1.6mm
Applicable material: Galvanized Sheet(GI)
Equipment technical conditions:
1. Equipment feeding direction: | left in and right out | |
2. Voltage parameters | (380/50/60 three-phase 220/50/60 415/50/60 480/50/60) | |
3. Equipment molding: | hydraulic shear | |
46 # hydraulic oil4. Hydraulic oil: | hydraulic shear | |
5. Gear oil: | 18 # hyperbolic gear oil | |
6. Main technical parameters of the equipment | ||
7. Motor explosion-proof grade ExdIICT4 | ||
8. Motor protection grade IP55 | ||

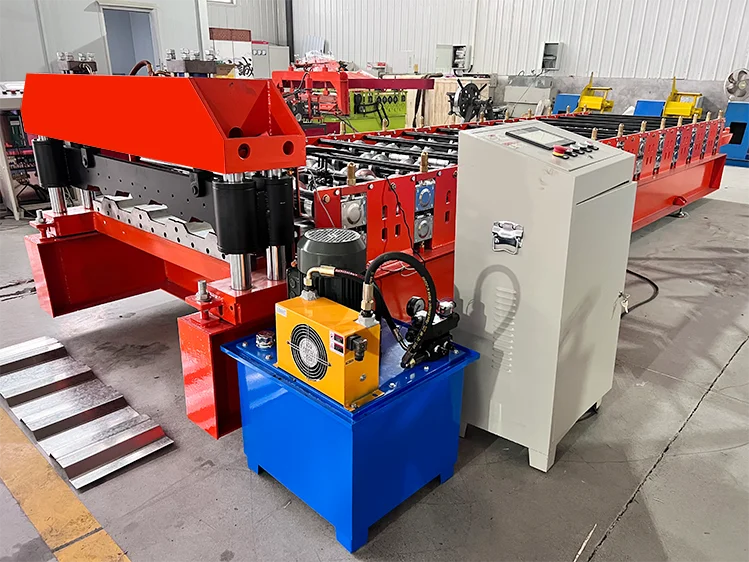

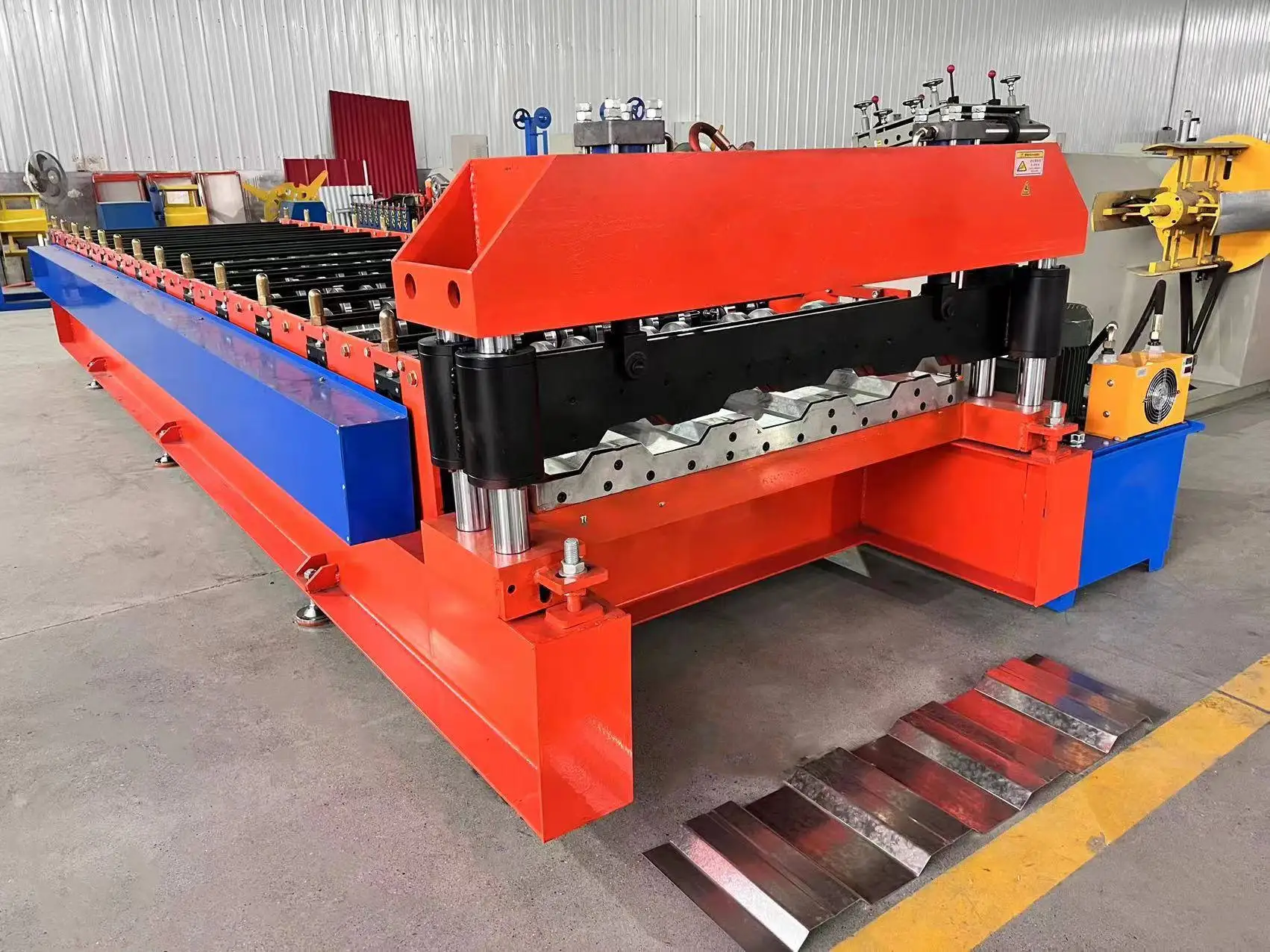

Detail Images
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from 45# steel, high-frequency heat treatment
The material for Embossing roller: bearing steel GCr15 for long working life, heat treatment
Side wall thickness: Q235 t18mm
Rollers manufactured from 45# steel, high-frequency heat treatment
The material for Embossing roller: bearing steel GCr15 for long working life, heat treatment
Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:7.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station
Hydraulic motor:7.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
80mm Solid
The shaft is quenched and tempered by No. 40 Luocheng steel

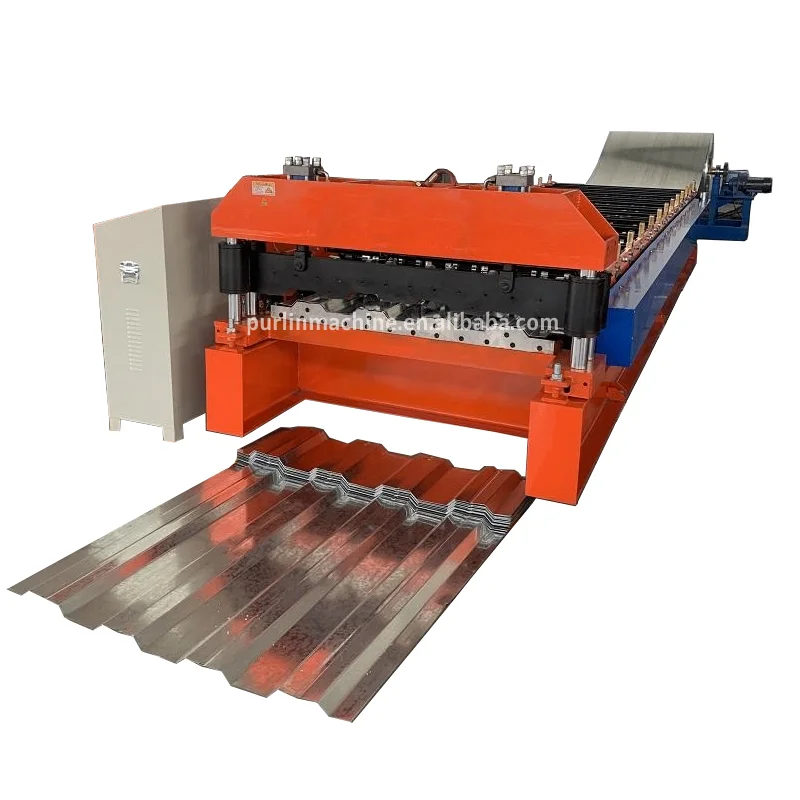

More model for your choice:
Auxiliary equipment
Shipping & Delivery
1)Usually shipping by containers, which will be more convenient and safe for this big machine
2)You can choice use our agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
2)You can choice use our agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
About Us
Henan Demma Electronic Equipment Co., Ltd., is a supplier of machinery.We have exported more than 100 countries like USA, Mexico,Canada, Spain, Russia, Singapore, Thailand, India etc . Our products provide customer more convenient in their business and expect to have more cooperate in future.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories
Q2: Can I have my own customized product?
A2: Yes, your customized requirements for color, logo, design, package, carton mark, etc. are welcome
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance
Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
