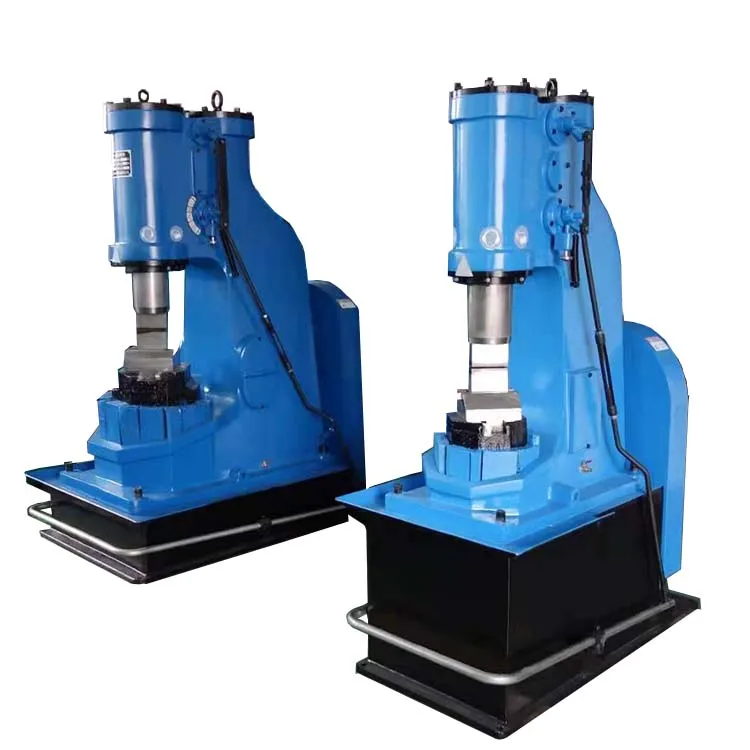

C41-25 пневматический кованый пресс молоток

Категория: Metal Forging Machinery >>>
Поставщик: Henan,Jane,Machinery,Co.,Ltd.

Цена:2 210,00 $ - 2 490,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	2630.36 $*	2762.12 $*
Aug-16-2025	2608.84 $*	2738.87 $*
Jul-16-2025	2188.17 $*	2297.22 $*
Jun-16-2025	2564.85 $*	2692.85 $*
May-16-2025	2232.93 $*	2344.41 $*
Apr-16-2025	2519.19 $*	2645.47 $*
Mar-16-2025	2497.50 $*	2622.30 $*
Feb-16-2025	2475.2 $*	2599.3 $*
Jan-16-2025	2453.41 $*	2576.28 $*

Характеристики

Application

Product Description

Features
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage

Application
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Specification

Specifications	Units	C41-25kg
Weight of falling parts	Kg	25
Max.hit energy	Kj	0.27
Height of working area	mm	240
Hit number	min-1	250
Anvil block size	mm	100x50
Max. square steel can be forged	mm	40x40
Max.round steel can be forged(diameter)	mm	¢45
Rate power	Kw	Single-phase 3/220V, Three-phase 2.2/380V
Motor speed	r. p.m	1440
Total weight	kg	560
Overall dimension	mm	980x510x1200
