Локомотив CJY10/6GP для транспортировки рудника тележка горных работ локомотив
- Категория: Locomotive >>>
- Поставщик: Yimei,Machinery,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10115.2 $* | 10621.35 $* |
| Aug-17-2025 | 10030.54 $* | 10532.89 $* |
| Jul-17-2025 | 8415.91 $* | 8836.6 $* |
| Jun-17-2025 | 9860.70 $* | 10353.88 $* |
| May-17-2025 | 8585.9 $* | 9014.74 $* |
| Apr-17-2025 | 9690.47 $* | 10175.53 $* |
| Mar-17-2025 | 9605.78 $* | 10085.70 $* |
| Feb-17-2025 | 9520.35 $* | 9996.55 $* |
| Jan-17-2025 | 9435.77 $* | 9907.36 $* |
Характеристики
Company Profile
Products Description
Introduction of Transport Mine Trolley Overhead Line Locomotive CJY10/6GP Underground Tunnel Mining Trolley Locomotive For Sale
Electric Trolley Underground Mining Locomotive using DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.zmwm02
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The Electric Trolley Underground Mining Locomotives are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The Electric Trolley Underground Mining Locomotives are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Product Paramenters
Parameters of Transport Mine Trolley Overhead Line Locomotive CJY10/6GP Underground Tunnel Mining Trolley Locomotive For Sale
Specification/ Model | CJY7/6GP | CJY7/7GP | CJY7/9GP | CJY10/6GP | CJY10/7GP | CJY14/6GP | CJY14/7GP | CJY14/9GP |
weight (ton) | 7 | 7 | 7 | 10 | 10 | 14 | 14 | 14 |
Track gauge (mm) | 600 | 762 | 900 | 600 | 762 | 600 | 762 | 900 |
Wheelbase (mm) | 1100 | 1100 | 1100 | 1100 | 1100 | 1700 | 1700 | 1700 |
Wheel diameter (mm) | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 |
Height btw connector & track surface (mm) | 320/430 | 320/430 | 320/430 | 320/430 | 320/430 | 320/430 | 320/430 | 320/430 |
Min curve radius (m) | 7 | 7 | 7 | 7 | 7 | 15 | 15 | 15 |
Pantograph (mm) | 1800-2200 | 1800-2200 | 1800-2200 | 1800-2200 | 1800-2200 | 1800-2400 | 1800-2400 | 1800-2400 |
Braking mode | Mechanic + electric | Mechanic + electric | Mechanic + electric | Mechanical+Electrical | Mechanical+Electrical | Mechanic + electric+Air | Mechanical+Electrical+Air | Mechanical+Electrical+Air |
Max traction (kN) | 19.2 | 19.2 | 19.2 | 27.5 | 27.5 | 38.5 | 38.5 | 38.5 |
Max speed (km/h) | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 25 |
Rated speed (km/h) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Power of motor (kW) | 2 * 22 | 2 * 22 | 2 * 22 | 2*22(30) | 2*22(30) | 2*37 | 2*37 | 2*37 |
Voltage(V) | DC250/550 | DC250/550 | DC250/550 | DC250/550 | DC250/550 | DC550 | DC550 | DC550 |
Driving method | spur gear | spur gear | spur gear | spur gear | spur gear | spur gear | spur gear | spur gear |
Speed adjust | AC frequency change | AC frequency change | AC frequency change | AC Frquency Conversion | AC Frquency Conversion | AC frequency change | AC Frquency Conversion | AC Frquency Conversion |
Controller | Resistance or IGBT | Resistance or IGBT | Resistance or IGBT | Resistance or IGBT | Resistance or IGBT | Resistance or IGBT | Resistance or IGBT | |
Transmission | Single Level Spur Gearing | Single Level Spur Gearing | Single Level Spur Gearing | Single Level Spur Gearing | Single Level Spur Gearing | Dual Bevel Gearing | Dual Bevel Gearing | Dual Bevel Gearing |
Dimension(L*W*H)(mm) | 4460 * 1060 * 1590 | 4400 *1340 *1590 | 4400 * 1340* 1590 | 4460*1060*1590 | 4460*1340*1590 | 5250*1060*1750 | 5250*1340*1750 | 5300*1340*1750 |
Service & Application | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling | Mucking in Mining&Tunneling |
Details Images

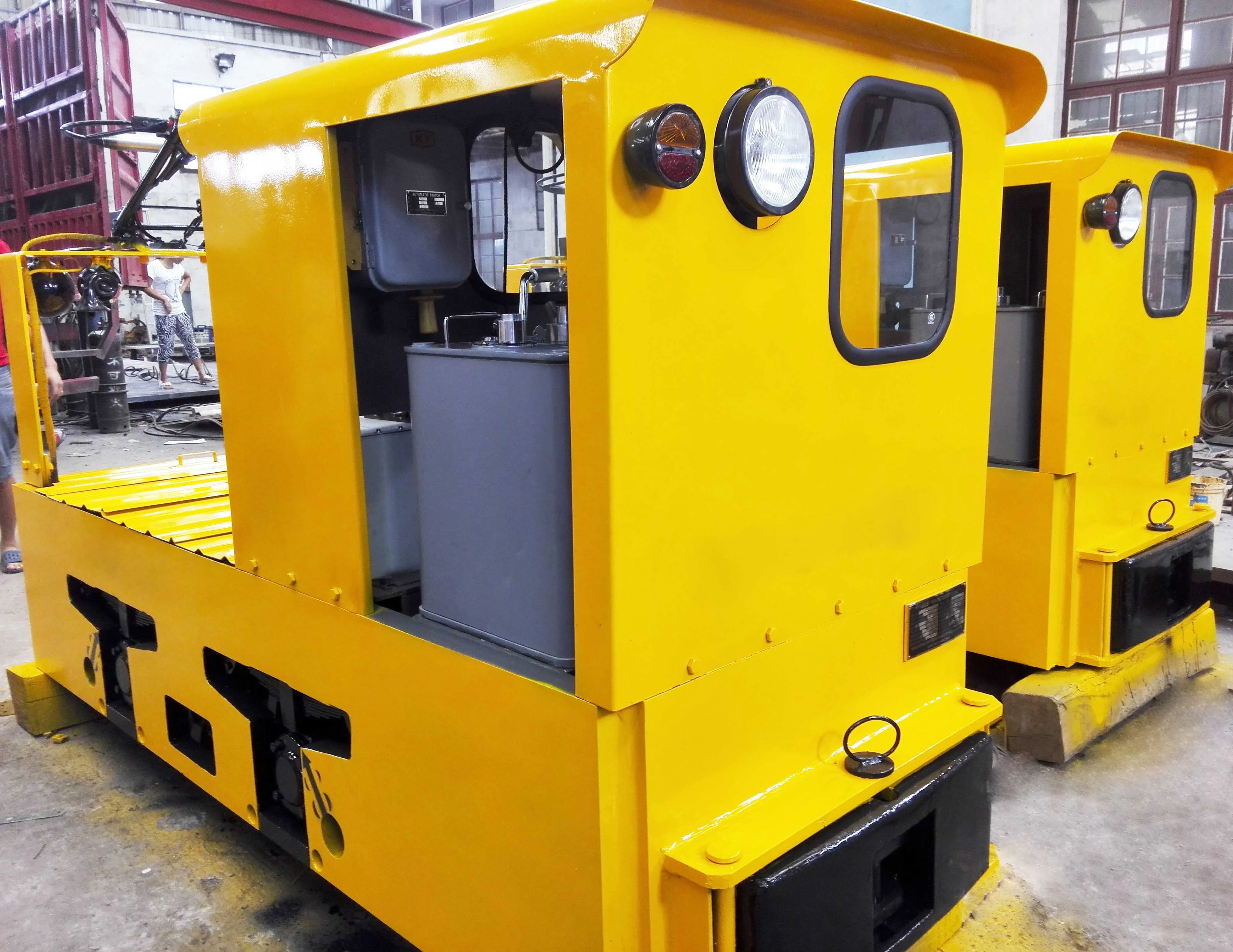

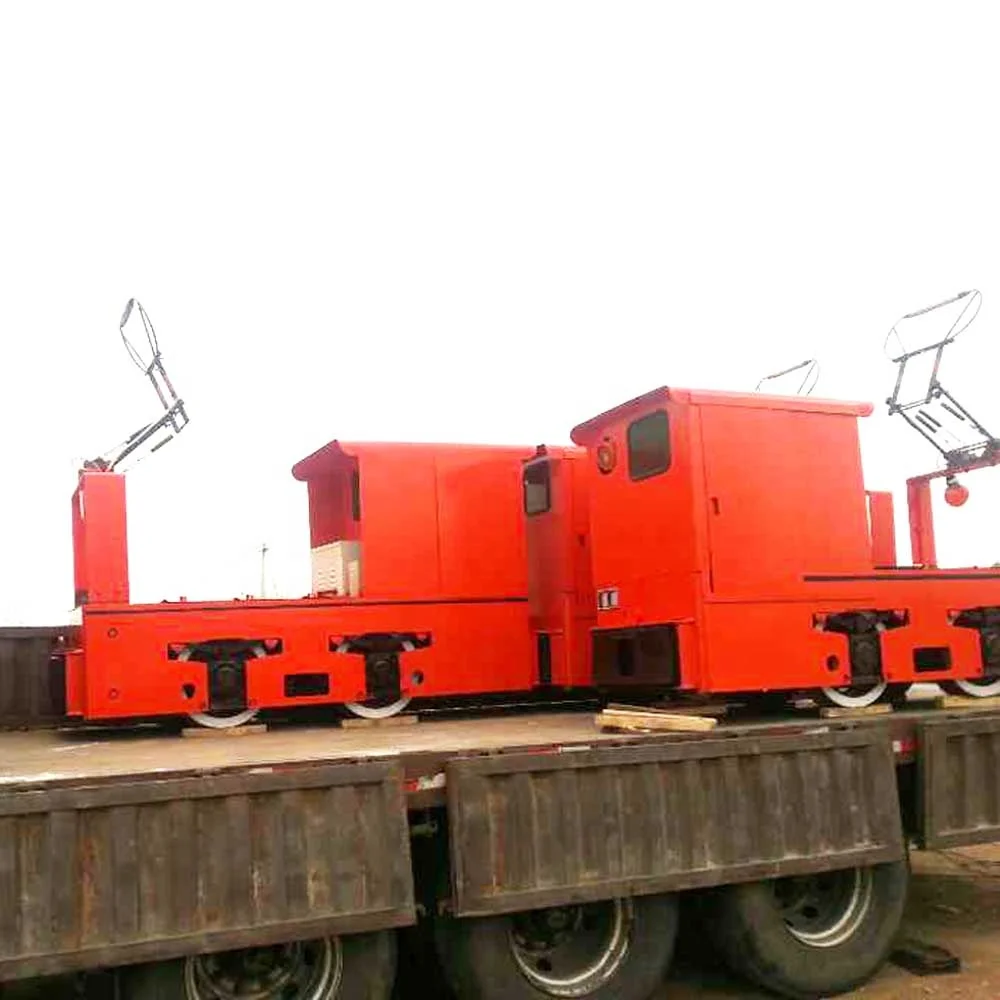

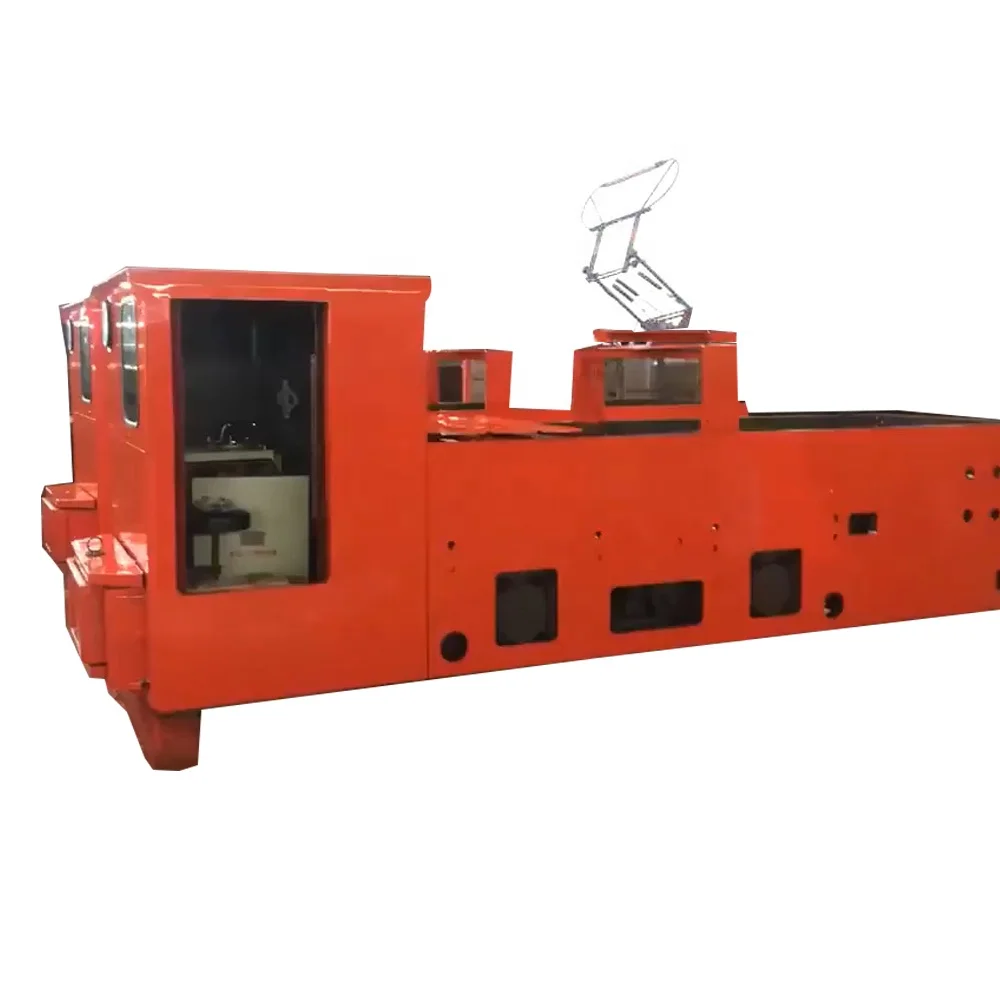

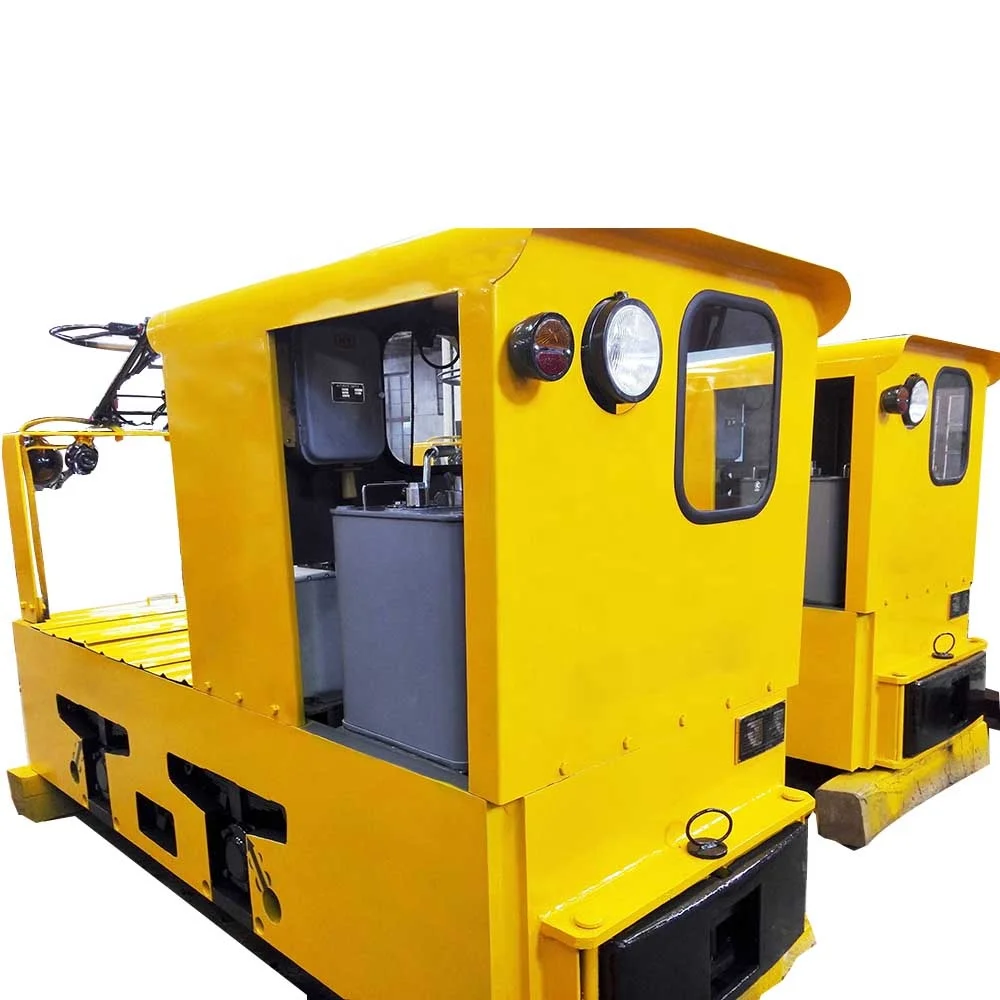

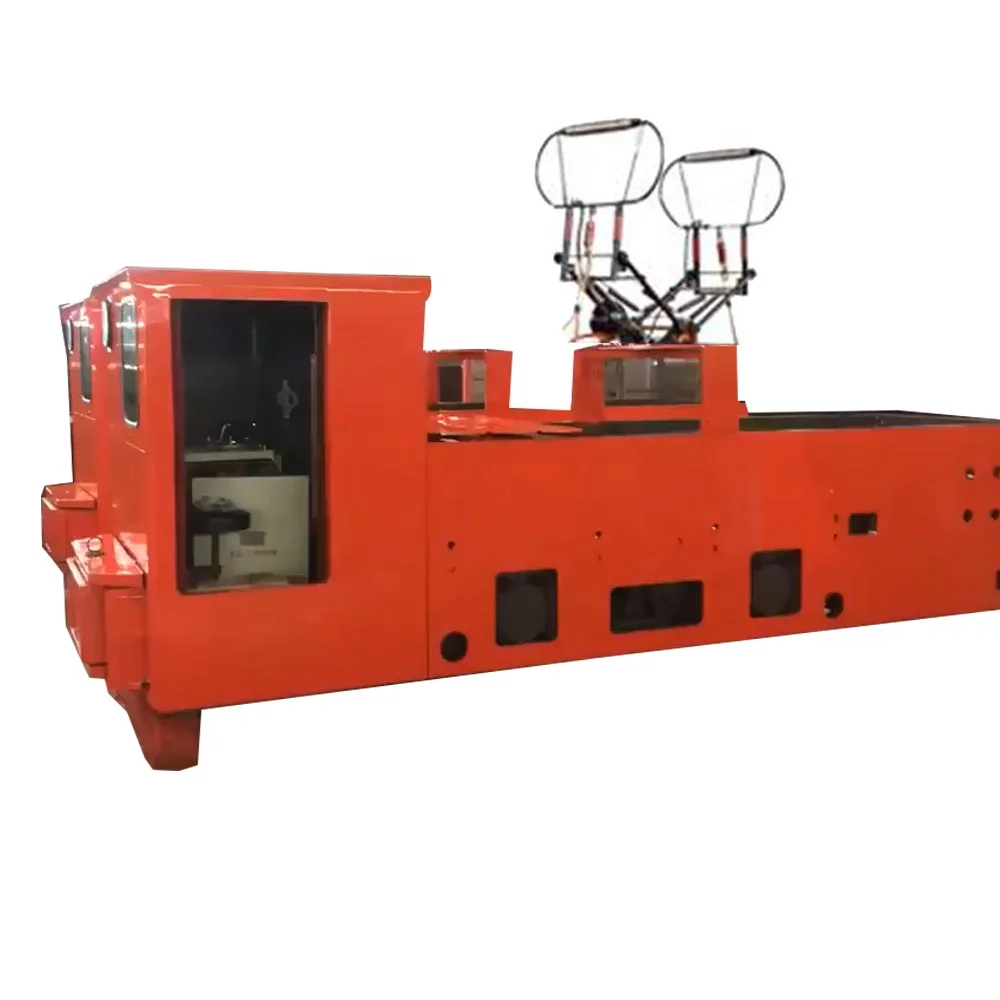

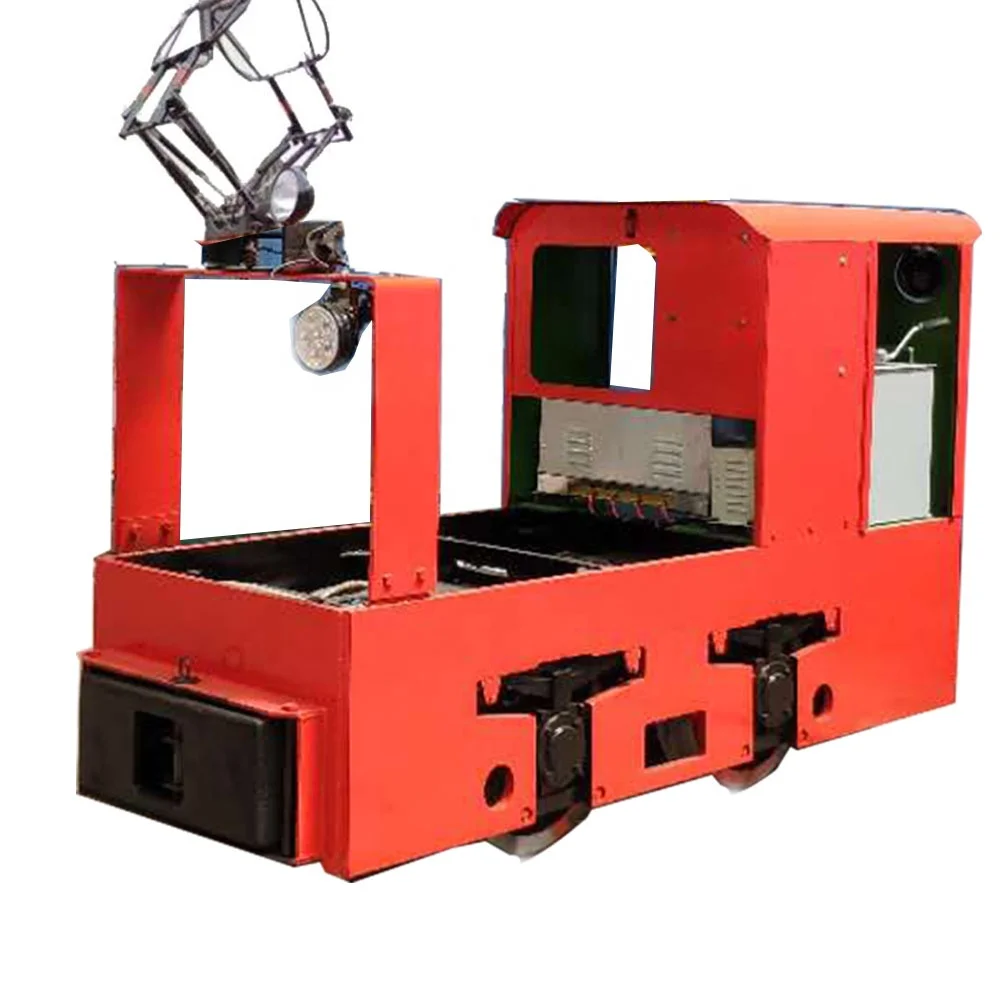

Photos of Transport Mine Trolley Overhead Line Locomotive CJY10/6GP Underground Tunnel Mining Trolley Locomotive For Sale
FAQ
1.Factory
Q: Are you Electric Trolley Locomotive manufacturer?
A: We are the Trolley Locomotive manufacturer. Yimei Trolley Electric Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Mining Trolley Locomotive for sale?
A: Our Mining Electric Trolley Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Battery Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Mine Trolley Locomotives , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Q: Are you Electric Trolley Locomotive manufacturer?
A: We are the Trolley Locomotive manufacturer. Yimei Trolley Electric Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Mining Trolley Locomotive for sale?
A: Our Mining Electric Trolley Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Battery Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Mine Trolley Locomotives , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Certifications
Exhibition
Product packaging
