Офтальмологическое оборудование ARK-8500 оптический автоматический рефрактометр

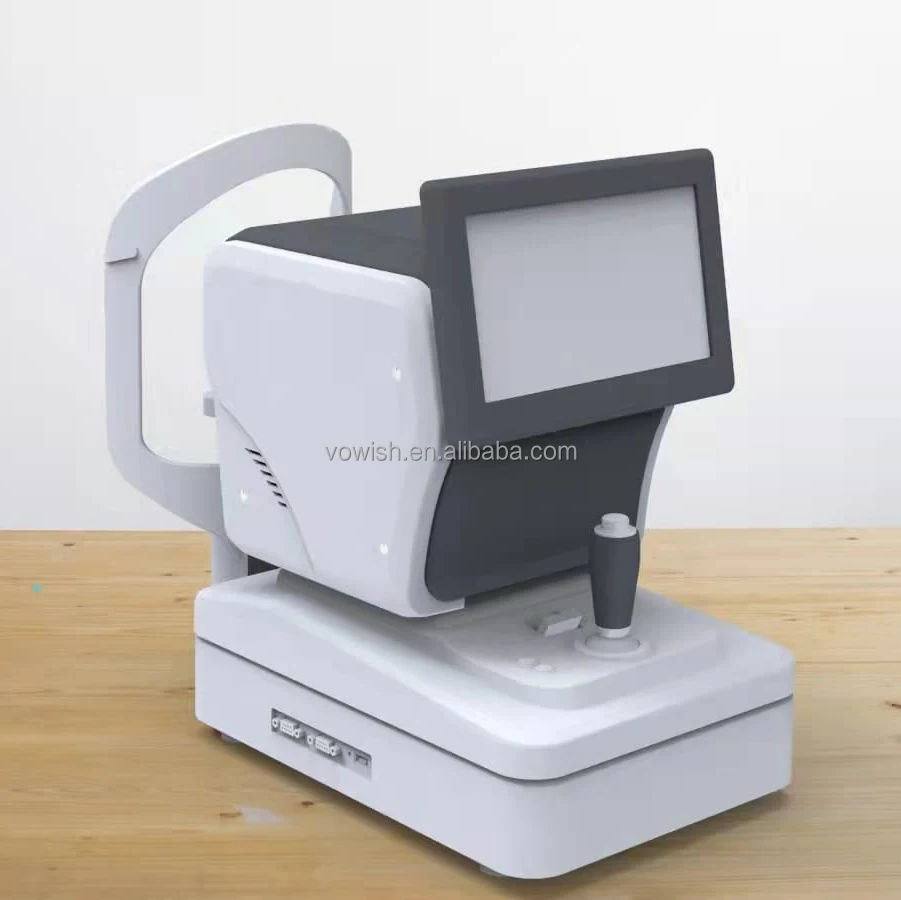

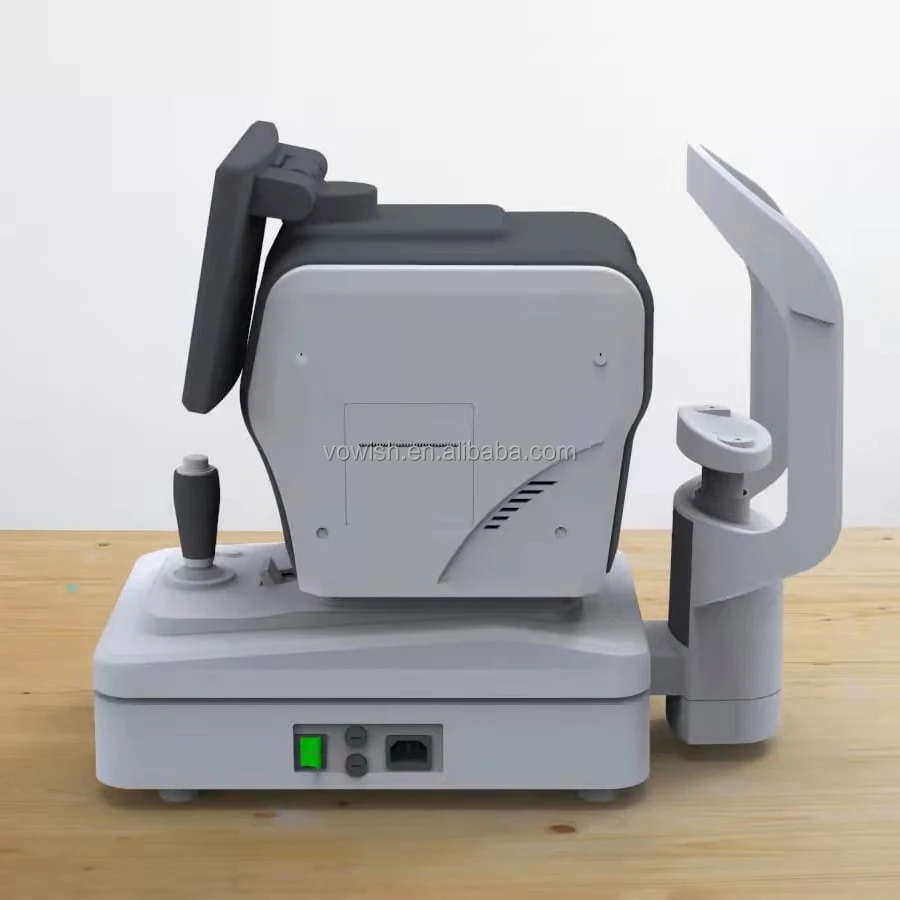

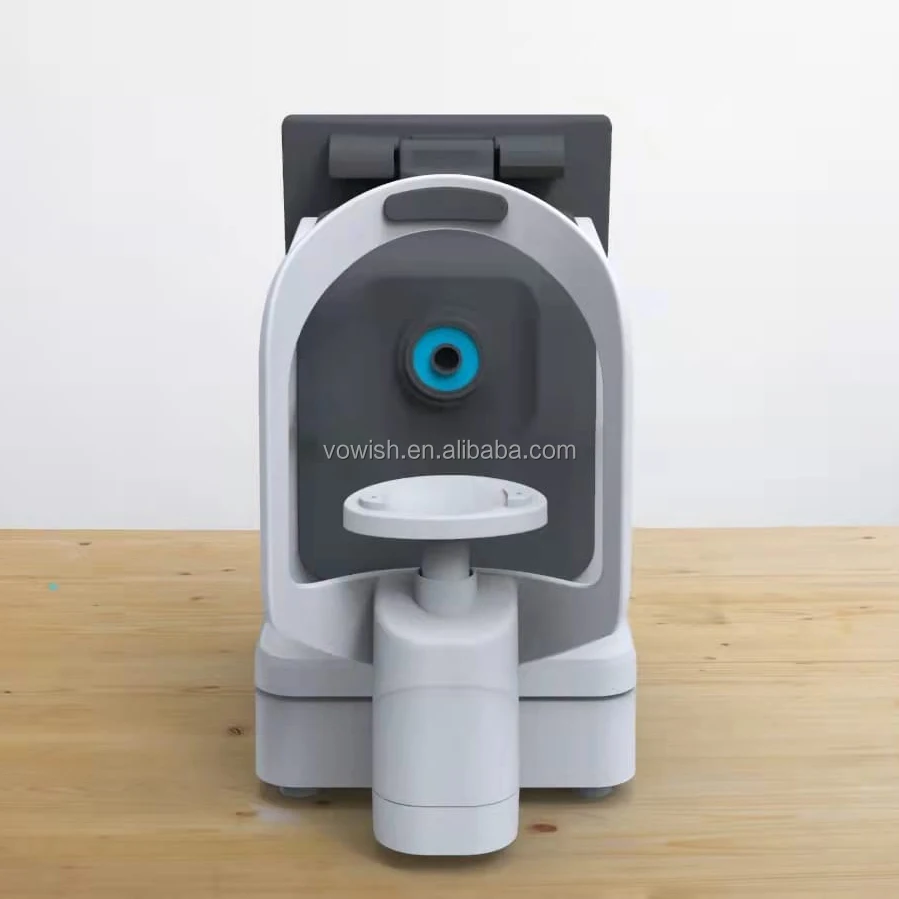

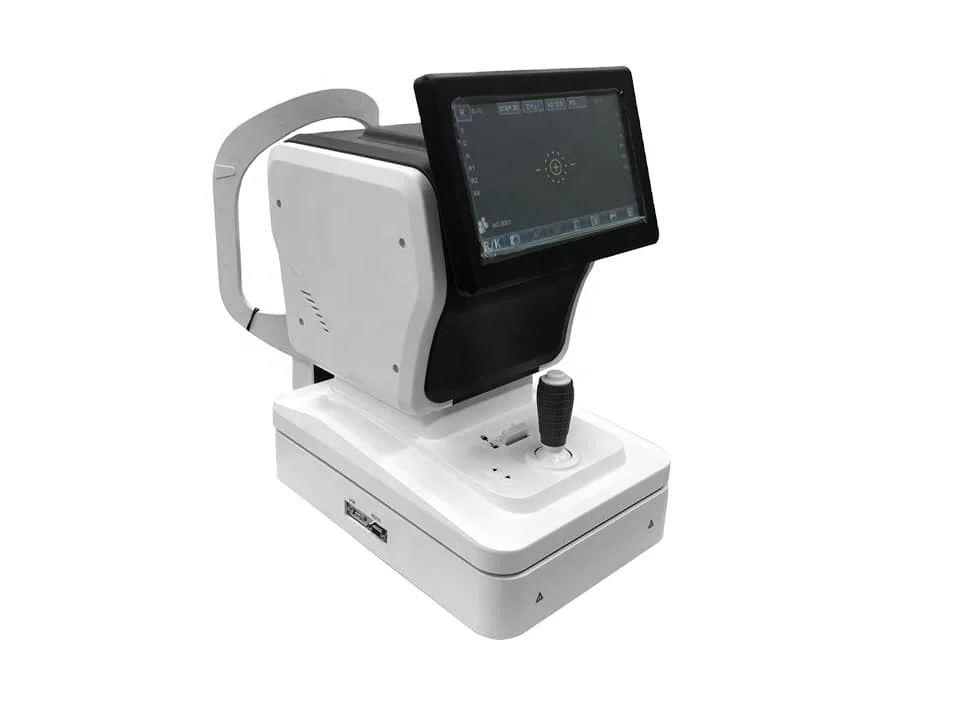

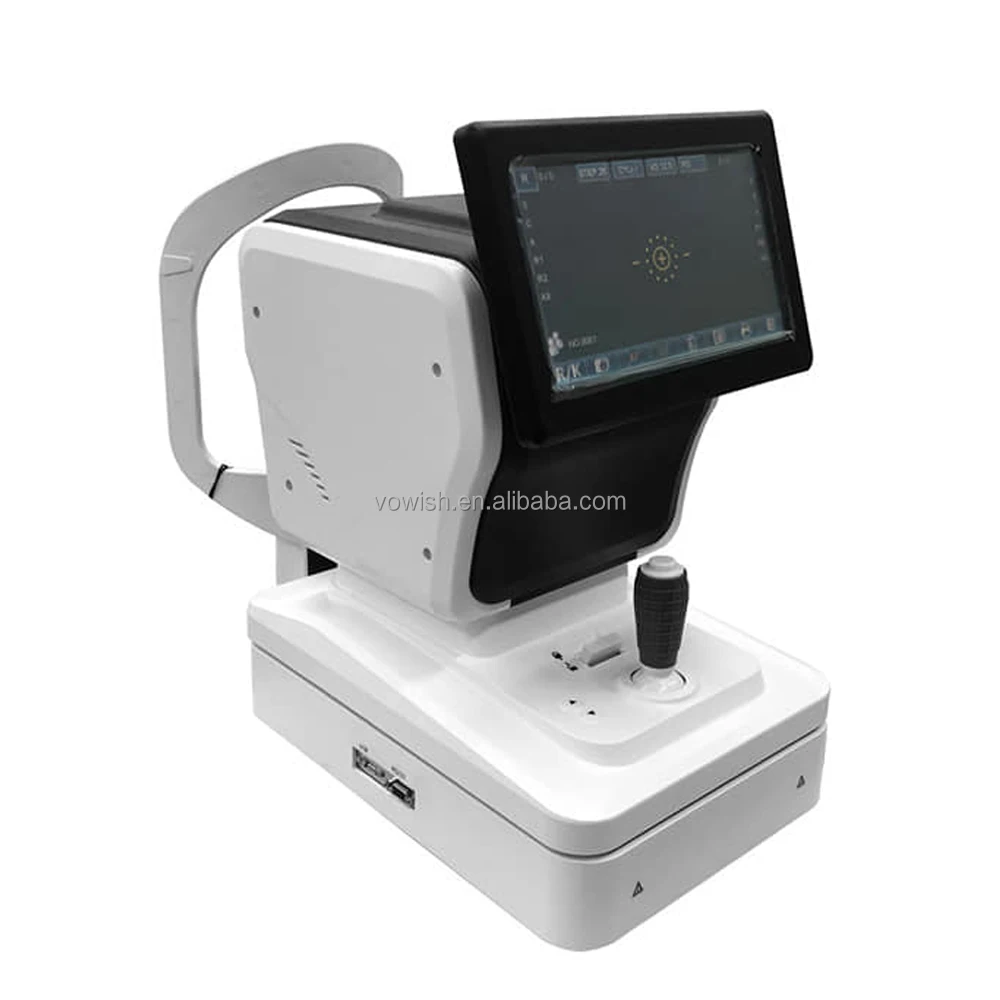

ARK-8500 Auto Refractometer Keratometer

VD Range

0.0, 12.0, 13.75, 15.0

Spherical Range

-20.00D ~ + 20.00D (VD = 12mm, 0.01,0.06, 0.12, 0.25 Increments)

Cylinder

0.00D ~ + 10.00D (0.06, 0.12, 0.25 Increments)

Axis

0~180°  1°  step

Cylinder form

-, + , ±

PD

10 ~ 86mm

Mini Pupil Size:

2.0mm

Average Measurement Time

 <0.5 seconds.

Pupil Distance

 2.00-8.00mm

Max Brighness

<30uw (safety Assure)

Curvature Radius

5.0 ~ 10.0mm (0.01mm Increments)

Refractive Power

33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375)

Corneal Power

0.00D ~ -15.00D (0.06D / 0.12D / 0 25D Increments)

Date Save

10 Group Left/Right Eye

Axis

1 ° ~ 180 °

Target

Auto Fog

Monitor

8-inch TFT Touch Screen (Flip)

Print

57mm Width, Auto Cut

 Power

 AC 100 ~ 250V, 50 / 60Hz, Wide Voltage

Net Weight

22 kgs

Gross Weight

26.5 kgs

Packing

(L) 680mm x (W) 400mm x (H) 640mm
