Прочные туннельные локомотивы подземные горные электролокомотивы электрокомотивы gcc 3 0/600J (B) взрывозащищенный дизельный Локомотив на


Поделиться:


Цена:1 728 415,72 ₽ - 2 078 474,60 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 2195087.60 $* 2238989.55 $*
Jul-19-2025 1780267.65 $* 1815872.24 $*
Jun-19-2025 2160519.75 $* 2203729.6 $*
May-19-2025 2143235.69 $* 2186100.45 $*
Apr-19-2025 1711131.86 $* 1745354.53 $*
Mar-19-2025 2108666.62 $* 2150839.86 $*
Feb-19-2025 2091382.17 $* 2133210.60 $*
Jan-19-2025 2074098.50 $* 2115580.86 $*

Характеристики





Company Profile




Products Description




Introduction of Durable Tunnel Locomotives Underground Mining Electric Locomotives CCG 3.0/600J (B) Explosion-proof Diesel Locomotive For Sale
Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction. Mine explosion-proof drum & rail locomotive diesel engine series, is in line with the ideal of coal mine production safety transportation equipment. It is reasonable structure, compact, energy saving, high efficiency, easy operation and maintenance, frame lines motor vehicle, motorcycle batteries, compared does not need to set up traction power, do not need AC power and charging equipment.zmwm02




Product Paramenters




Parameters of Durable Tunnel Locomotives Underground Mining Electric Locomotives CCG 3.0/600J (B) Explosion-proof Diesel Locomotive For Sale


Model
CCG 3.0/600J (B)
CCG 5.0/600J (B)
CCG-5.0/600 double cylinder explosion-proof diesel locomotive
CCG8.0/600J
Matched Power Model
ZS1115FB
YH1125SFB
/
YH4108DFB(A)
Dimension (L*W*H) mm
2400*920(1000)*1600
3020*1000(1098)*1600
3500*1100*1580
3700*1100*1600
Weight kg
3000
5000
5000
8000
Greatest Traction
4.5
7.5
12
12
Force KN
Fuel tank (L*W*H mm)
/
/
320*280*180
/
Pulling Tonnage T
15
22
40
35
Gauge mm
600(made to order)
Wheelbase mm
706(712)
880(860)
900
980
Greatest Speed km/h
15+1
17+1
no-load:forward:14.6 backward:12.5;
20+2
rated load:forward:11.6 backward:10
Diesel Engine Power (kw)/Rotating Speed (r/min)
11/2200
14.7/2200
17.24/2200
52/2400
Smallest Railway Orbit m
5
6
7
7
Greatest Braking Force N
5000
8000
12800
Traction Height mm
270 320
320 430
270 320 430
320 430
Braking Distance m
40
Height Above Ground mm
80
125
/
125
Braking Mode
foot and machine control
/
air and hand wheel control
Exhaust Quality
CO≤0.1% NOX≤0.08%




Details Images

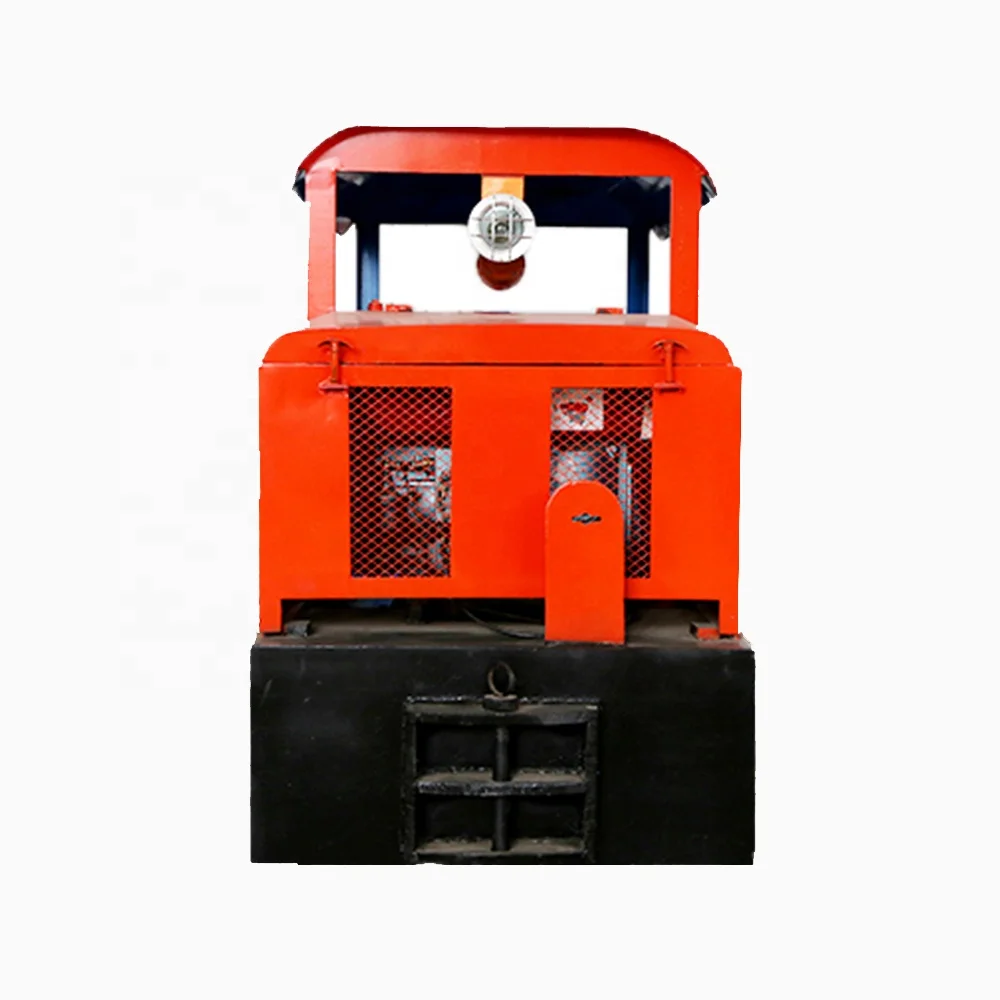

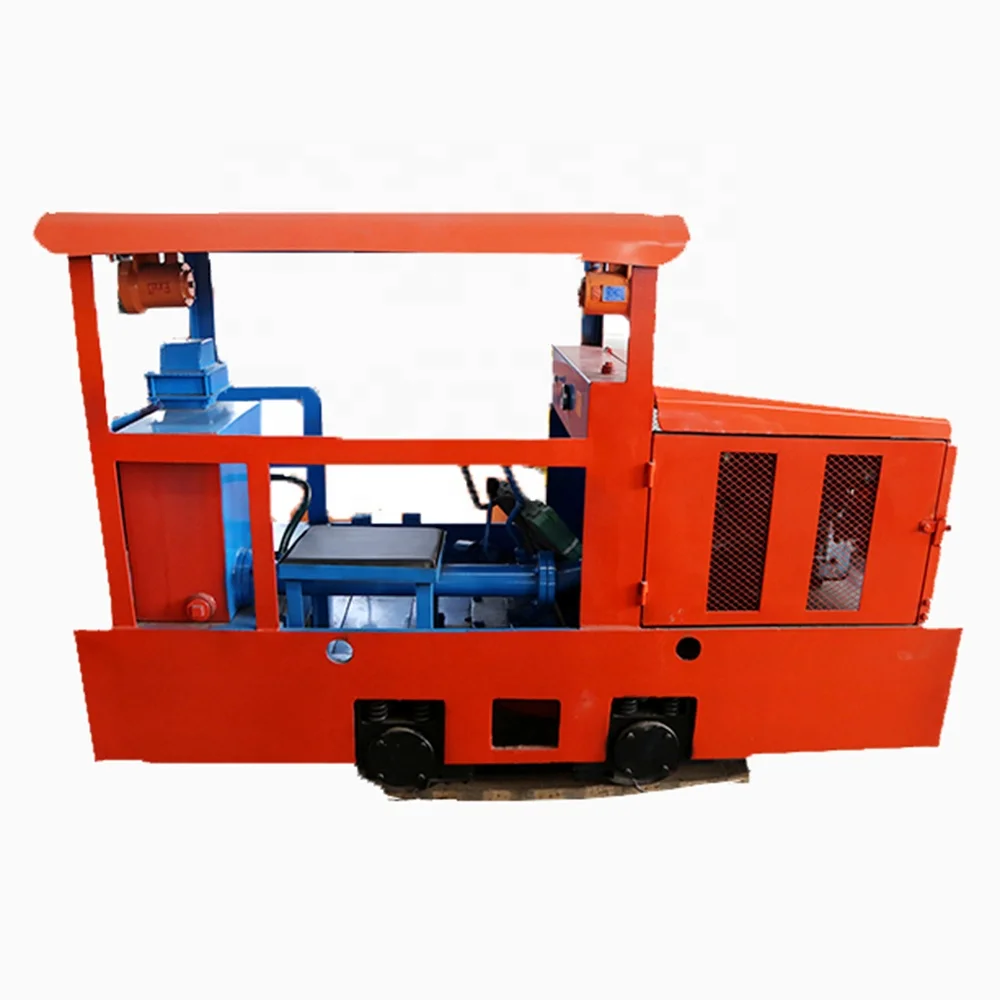

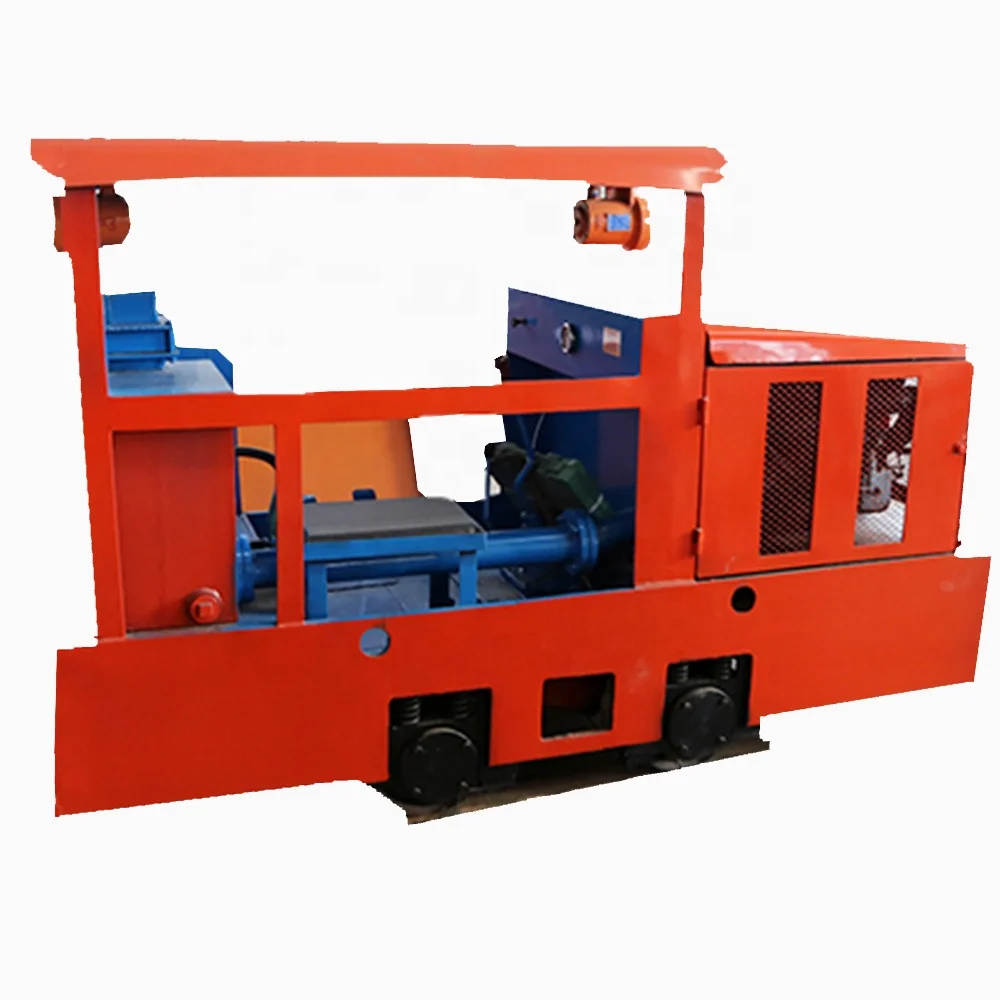

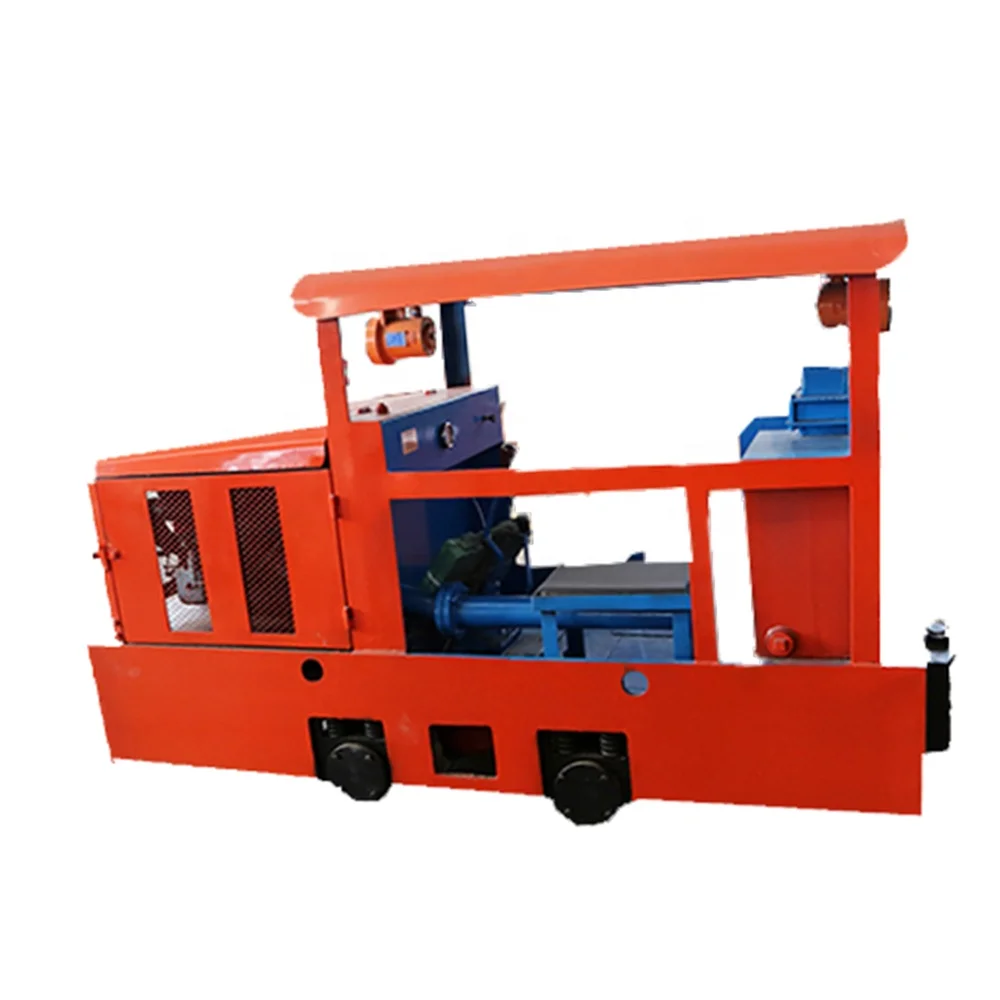

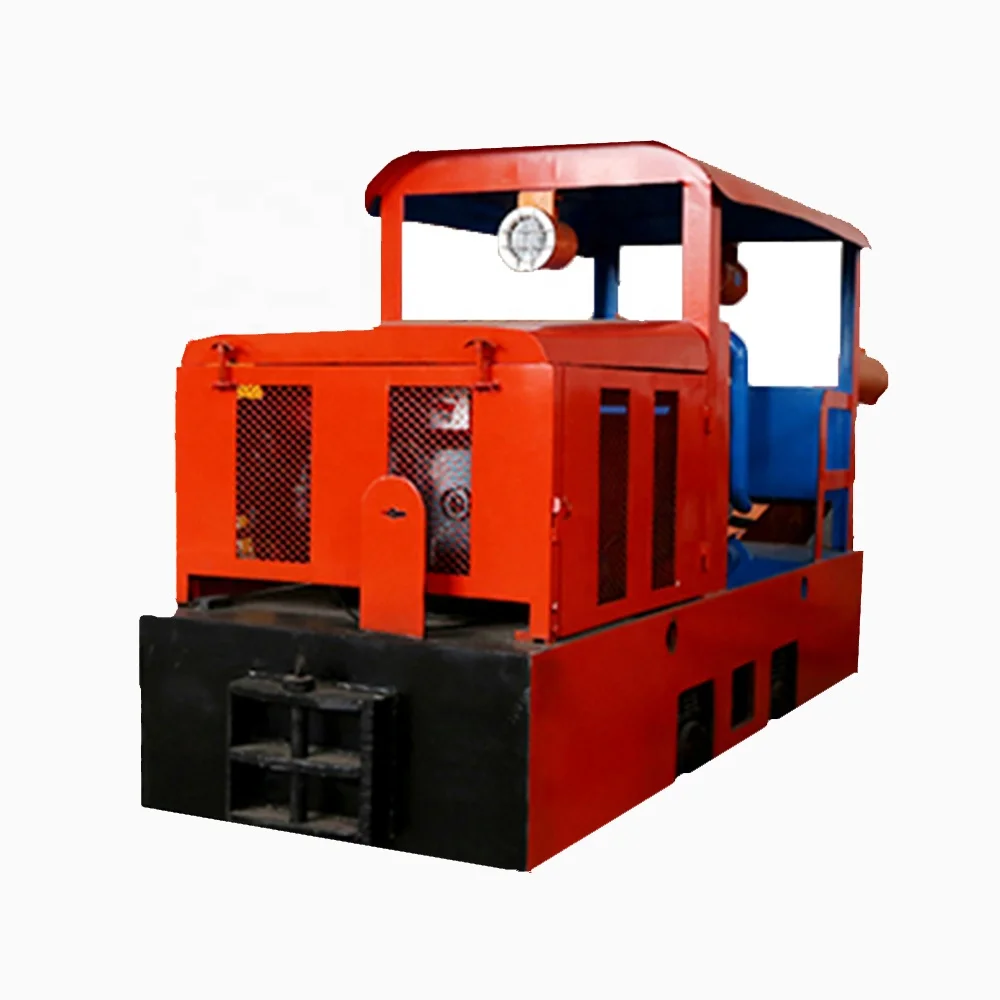

Photos of Durable Tunnel Locomotives Underground Mining Electric Locomotives CCG 3.0/600J (B) Explosion-proof Diesel Locomotive For Sale




FAQ







1.Factory
Q: Are you Diesel Locomotive manufacturer?
A: We are the Mining Diesel Locomotive manufacturer. Yimei Underground Diesel Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Diesel Narrow Gauge Locomotive for sale?
A: Our Diesel Engine Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Diesel Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Diesel Train Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.


Certifications




Exhibition




Product packaging
