Взрывозащищенные Ccg8.0/600j горные и туннельные аккумуляторные локомотивы внутреннего сгорания узкоколейные для
- Категория: Locomotive >>>
- Поставщик: Yimei,Machinery,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 764112.93 $* | 779394.46 $* |
| Jul-19-2025 | 619713.97 $* | 632107.46 $* |
| Jun-19-2025 | 752079.65 $* | 767121.95 $* |
| May-19-2025 | 746062.51 $* | 760983.72 $* |
| Apr-19-2025 | 595646.95 $* | 607559.87 $* |
| Mar-19-2025 | 734029.51 $* | 748710.15 $* |
| Feb-19-2025 | 728012.93 $* | 742572.22 $* |
| Jan-19-2025 | 721996.76 $* | 736436.10 $* |
Характеристики
Company Profile
Products Description
Introduction of Explosion-Proof Underground Mining Electric Locomotive CCG8.0/600J Mine Diesel Narrow Gauge Locomotive For Sale
CCG Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction. zmwm02
ADVANTAGES
1.Double-ended locomotive driving, easy operation and passengers, and better outlook;
2.Body short, maintaining roadway turning radius by the flexibility and stability;
3.Electric starter, control rooms for sound processing, noise reduction;
4.By (European) import the essence of device, the second exhaust gas treatment, to further reduce emissions.
ADVANTAGES
1.Double-ended locomotive driving, easy operation and passengers, and better outlook;
2.Body short, maintaining roadway turning radius by the flexibility and stability;
3.Electric starter, control rooms for sound processing, noise reduction;
4.By (European) import the essence of device, the second exhaust gas treatment, to further reduce emissions.
Product Paramenters
Parameters of Explosion-Proof Underground Mining Electric Locomotive CCG8.0/600J Mine Diesel Narrow Gauge Locomotive For Sale
Model | CCG 3.0/600J (B) | CCG 5.0/600J (B) | CCG-5.0/600 double cylinder explosion-proof diesel locomotive | CCG8.0/600J | |||
Matched Power Model | ZS1115FB | YH1125SFB | / | YH4108DFB(A) | |||
Dimension (L*W*H) mm | 2400*920(1000)*1600 | 3020*1000(1098)*1600 | 3500*1100*1580 | 3700*1100*1600 | |||
Weight kg | 3000 | 5000 | 5000 | 8000 | |||
Greatest Traction | 4.5 | 7.5 | 12 | 12 | |||
Force KN | |||||||
Fuel tank (L*W*H mm) | / | / | 320*280*180 | / | |||
Pulling Tonnage T | 15 | 22 | 40 | 35 | |||
Gauge mm | 600(made to order) | ||||||
Wheelbase mm | 706(712) | 880(860) | 900 | 980 | |||
Greatest Speed km/h | 15+1 | 17+1 | no-load：forward:14.6 backward:12.5; | 20+2 | |||
rated load:forward:11.6 backward:10 | |||||||
Diesel Engine Power (kw)/Rotating Speed (r/min) | 11/2200 | 14.7/2200 | 17.24/2200 | 52/2400 | |||
Smallest Railway Orbit m | 5 | 6 | 7 | 7 | |||
Greatest Braking Force N | 5000 | 8000 | 12800 | ||||
Traction Height mm | 270 320 | 320 430 | 270 320 430 | 320 430 | |||
Braking Distance m | 40 | ||||||
Height Above Ground mm | 80 | 125 | / | 125 | |||
Braking Mode | foot and machine control | / | air and hand wheel control | ||||
Exhaust Quality | CO≤0.1% NOX≤0.08% | ||||||
Details Images

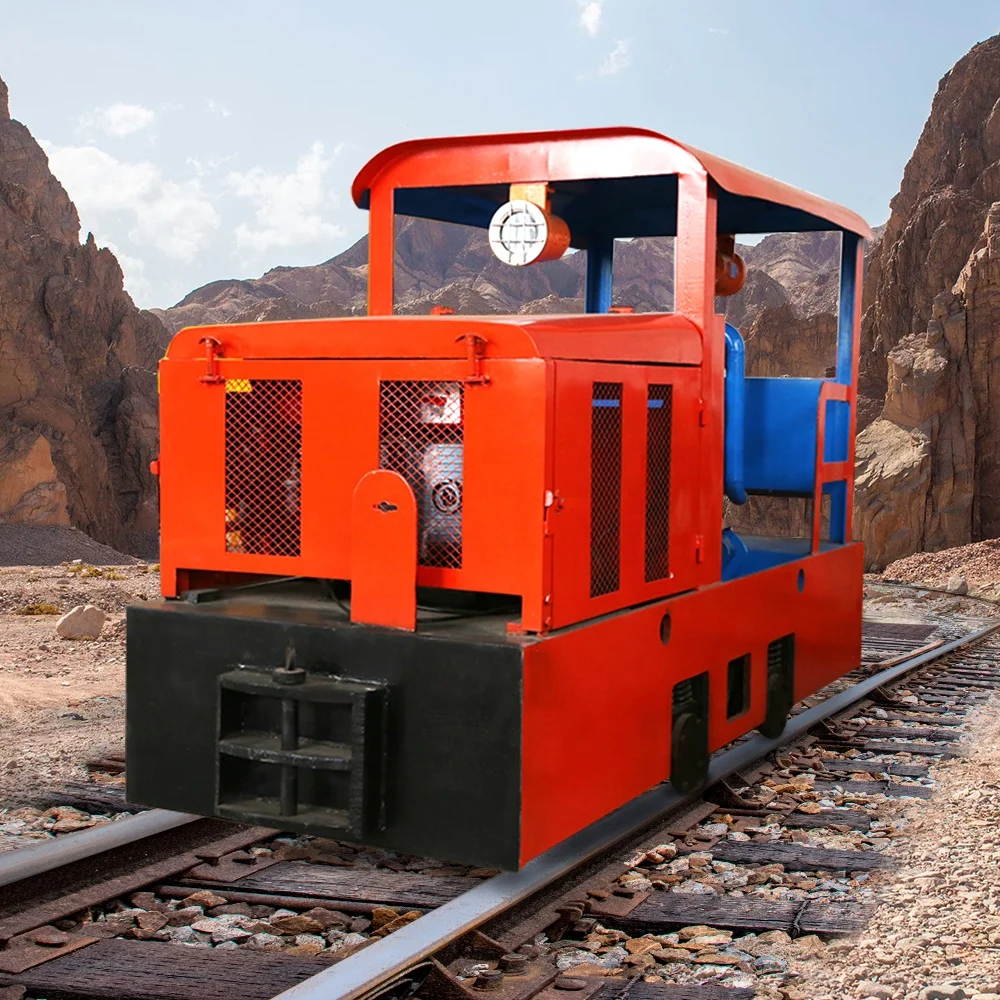

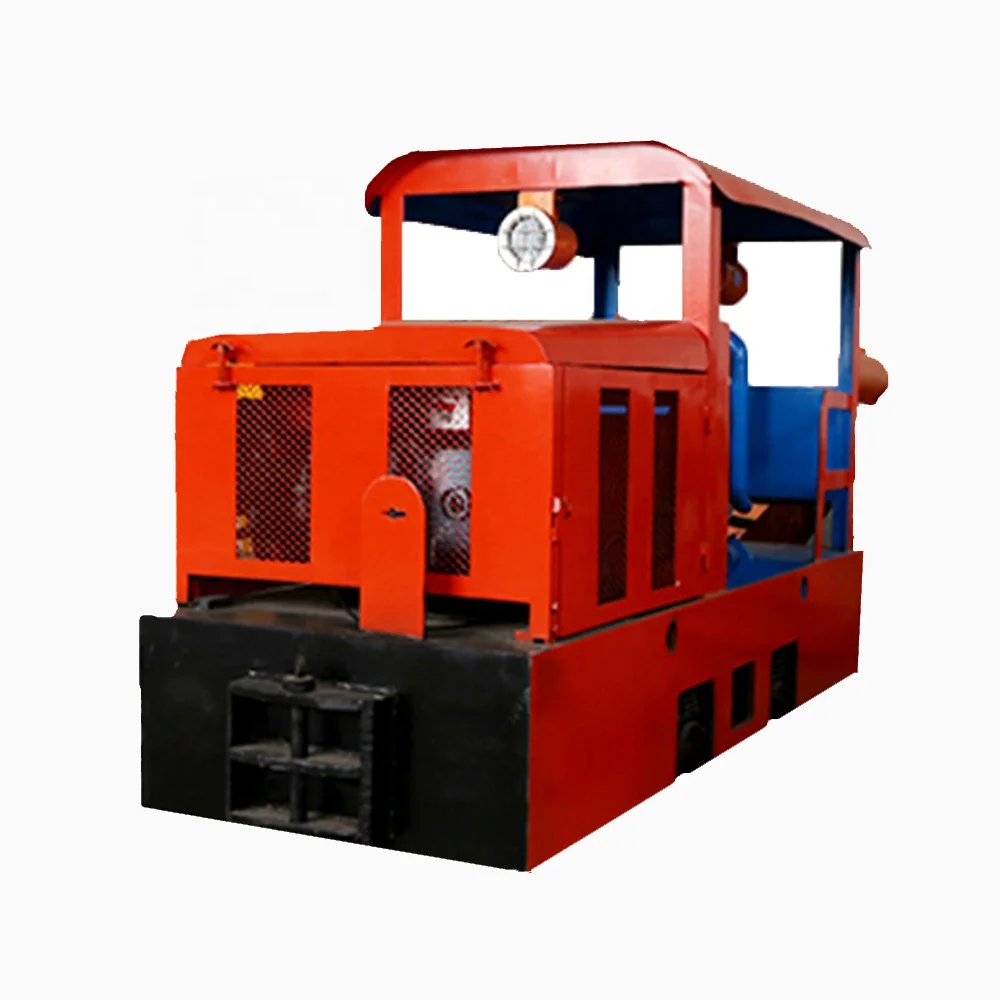

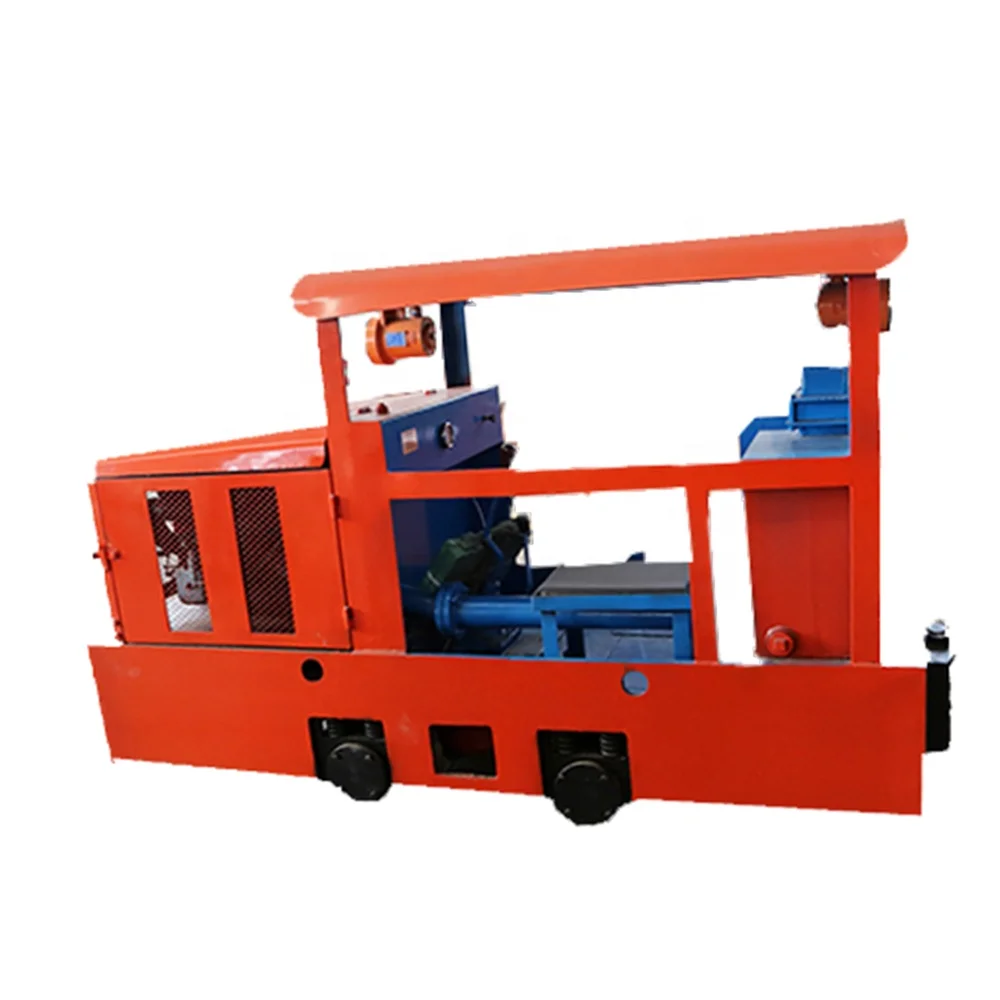

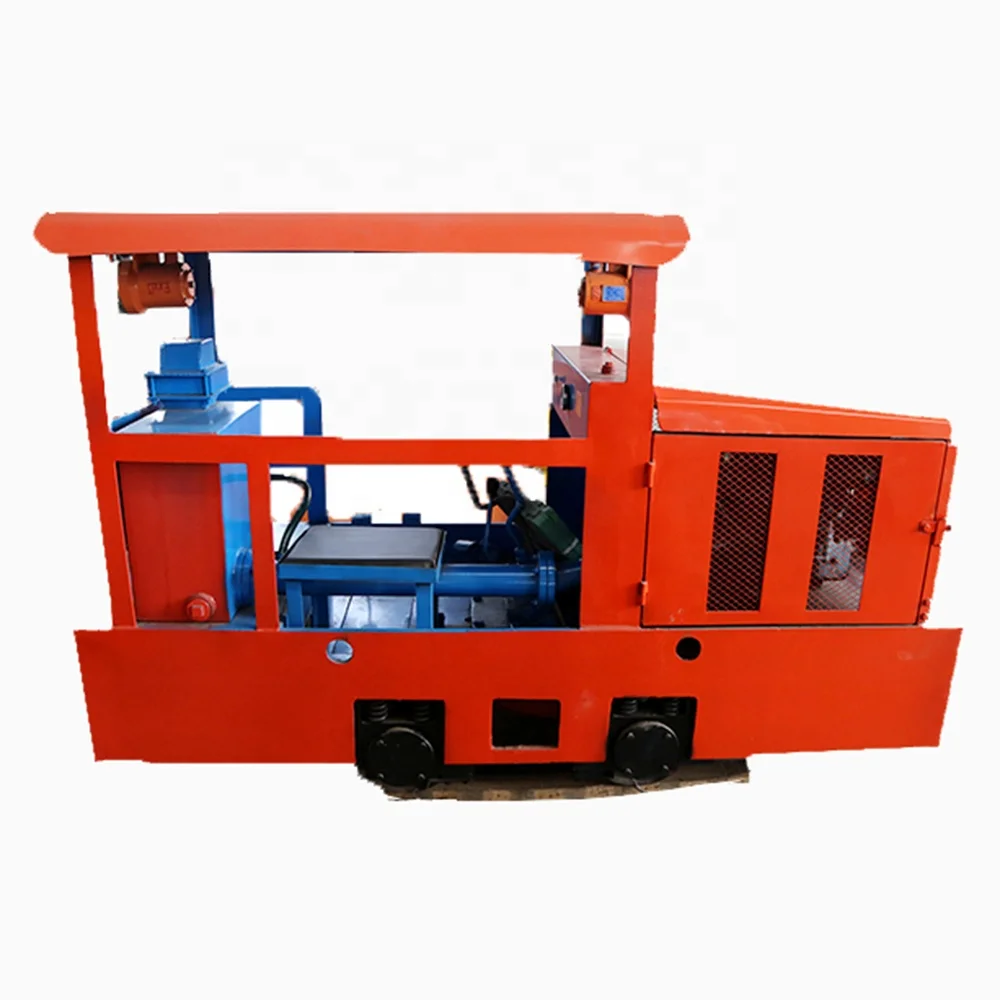

Photos of Explosion-Proof Underground Mining Electric Locomotive CCG8.0/600J Mine Diesel Narrow Gauge Locomotive For Sale
FAQ
1.Factory
Q: Are you Diesel Locomotive manufacturer?
A: We are the Mining Diesel Locomotive manufacturer. Yimei Underground Diesel Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Diesel Narrow Gauge Locomotive for sale?
A: Our Diesel Engine Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Diesel Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Diesel Train Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Q: Are you Diesel Locomotive manufacturer?
A: We are the Mining Diesel Locomotive manufacturer. Yimei Underground Diesel Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Diesel Narrow Gauge Locomotive for sale?
A: Our Diesel Engine Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Diesel Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Diesel Train Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Certifications
Exhibition
Product packaging
