Контроллер RS485 2000 Вт 3000 4500 5000 постоянный ток Промышленный источник питания 0-15 в

1

Display: Output Voltage And Current Led Display.

2

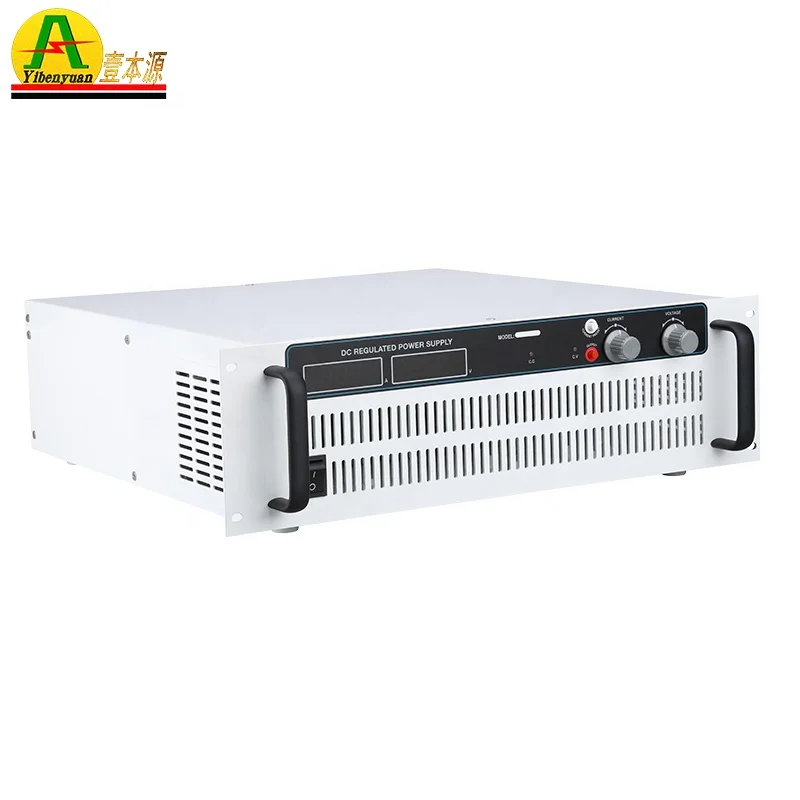

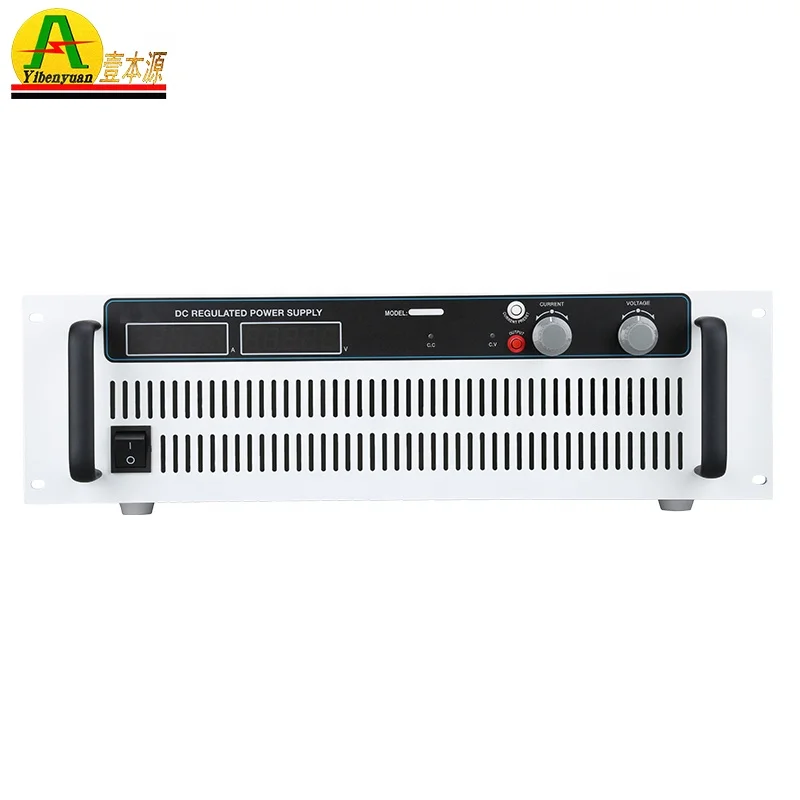

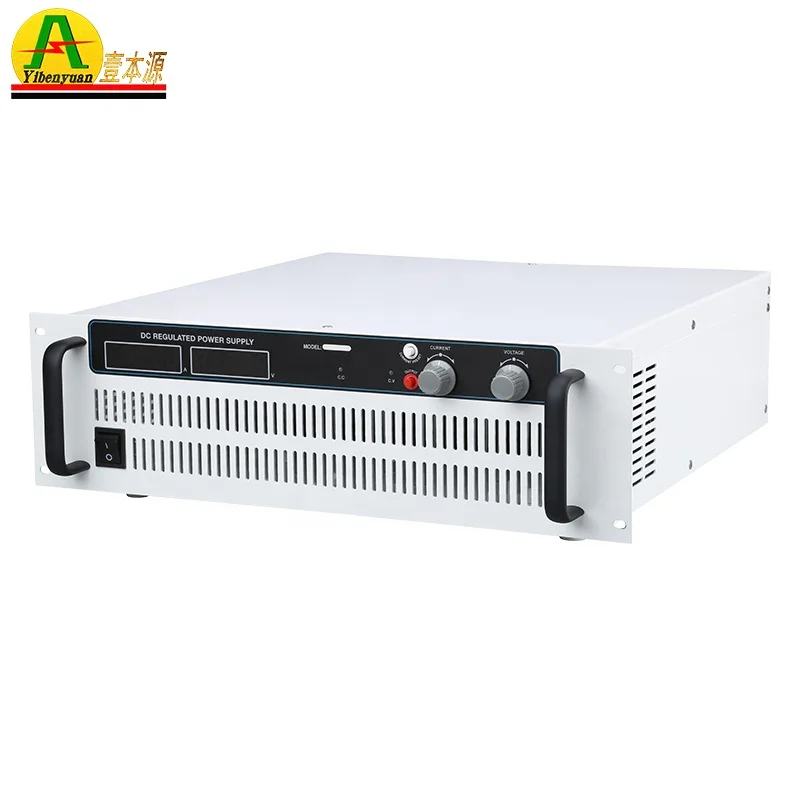

Appearance: Using a Desktop, Cabinet, Or 19-Inch Standardized Size, Can Be Combined And Placed In a Variety Of Workbenches And Racks.

3

Advantages: High-Frequency Pwm Hardware-Adjusted Soft-Switching Control Technology Makes The Power Supply High Efficiency, Low Ripple, Low Noise, And High Reliability, Small Size, And Light Weight.

4

Constant Voltage And Constant Current: Output Cc, Cv Constant Voltage And Constant Current Automatic Switching, Voltage, And Power Flow Value From Zero To The Rated Value Of Continuous Adjustment

4

Protection Functions: Over-Voltage Protection (Ovp, Over-Current Protection (Ocp, Over-Temperature Protection (Otp.))

External Compensation: Optional External Compensation (Remote Sensing, Reducing The Circuit Cable Voltage Drop.

5

Current Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has Current Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional).

6

Voltage Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has a Voltage Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional).

7

Computer Program Control Function: Optional Rs485/Rs232 And Other Data Interfaces, Standard Modbus Communication Protocol, Can Be Configured With Computer/Upper Computer Software Control Monitoring. Can Be Multiple Network Control, Or Master-Slave Parallel Control. (Optional)

8

Positive And Negative Commutation Function: Can Provide Output Positive And Negative Commutation Function (Bipolar), Commutation Mode: Manual, Timing, Calculator Program Control, Etc. (Optional)

Brand

IDEALPLUSING

Model

YBY-ATDK15350

AC Input

(Inquiry Customization)

Single phase 110VAC±15% 50/60hz

Customized-Contact sales for quote

Single phase 220VAC±15% 50/60hz

(Less than 9000W)

Three phase 380VAC±15% 50/60hz

(More than 9000W)

AC Input

Single phase 220VAC±15%

Input frequency

50Hz/60Hz

Output voltage

0-15VDC

Output current

0-350A

Output Power

5250W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC

Remote Display

(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃;Humidity:10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;Humidity:10%~90%RH

Machine Dimension

L483*W465*H132MM

Package Dimension

L590*W530*H180MM

Net/Gross Weight

20KG/30KG
